1. Introducció
Gràcies per la compraasing the DBPOWER DC-014 Replacement Drone Battery Set. This manual provides essential information for the safe and efficient use, charging, and maintenance of your new battery. Please read this manual thoroughly before use and retain it for future reference.
2. Informació de seguretat
Improper use of lithium-ion batteries can lead to fire, injury, or property damage. Always follow these safety guidelines:
- Use only the provided charging cable or a compatible charger specifically designed for this battery.
- Do not disassemble, puncture, short-circuit, or expose the battery to extreme temperatures (above 60°C / 140°F or below 0°C / 32°F).
- Keep the battery away from water, fire, and direct sunlight.
- Si la bateria mostra signes de danys, inflor o fuites, deixeu-ne d'utilitzar-la immediatament i llenceu-la correctament.
- No deixeu la càrrega de les bateries sense vigilància.
- Mantenir fora de l'abast dels nens i mascotes.
- Eliminar les bateries usades d'acord amb la normativa local.
3. Contingut del paquet
The DBPOWER DC-014 Replacement Battery Set includes:
- 1 x DBPOWER DC-014 Lithium-Ion Drone Battery
- 1 x cable de càrrega

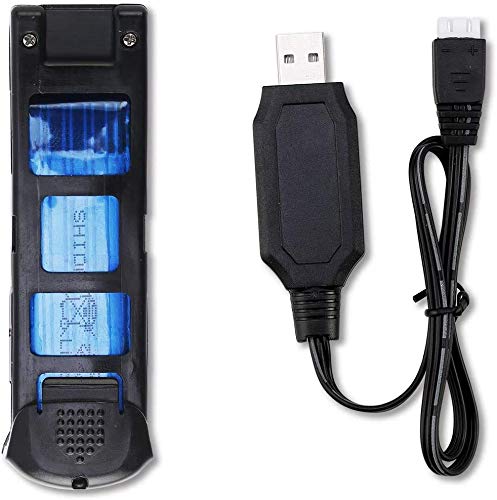

Image: The DBPOWER DC-014 drone battery and its accompanying charging cable.
4. Producte acabatview
The DBPOWER DC-014 is a 7.4 Volt rechargeable Lithium-Ion battery designed as a replacement or spare for compatible DBPOWER drones. It weighs approximately 26 grams and provides reliable power for extended flight times.
Image: A DBPOWER drone in flight, demonstrating the product this battery is designed for. The drone features include altitude hold, foldable design, 1080P FPV camera, one-key takeoff/landing, headless mode, 3D flips, 3-level speed adjustment, and custom route flight.
5. Configuració: Càrrega de la bateria
Before first use, fully charge the battery. Follow these steps:
- Connect the provided charging cable to the battery's charging port.
- Plug the other end of the charging cable into a compatible USB power source (e.g., a computer USB port, a USB wall adapter, or a power bank).
- The charging indicator (if present on the battery or charger) will typically illuminate or change color to indicate charging status. Refer to your drone's main manual for specific charging indicator behavior.
- Once fully charged, disconnect the battery from the charging cable and the power source. Do not overcharge the battery.
Avís:
- Always supervise the battery during charging.
- Charge the battery on a non-flammable surface, away from flammable materials.
6. Funcionament: instal·lació i ús de la bateria
This battery is designed for specific DBPOWER drone models. Refer to your drone's instruction manual for precise installation steps.
- Ensure the drone is powered off before installing or removing the battery.
- Locate the battery compartment on your DBPOWER drone.
- Carefully insert the DC-014 battery into the compartment, ensuring the connectors align correctly. Do not force the battery.
- Assegureu la tapa del compartiment de la bateria.
- To power on the drone, follow the instructions in your drone's manual.
- After use, power off the drone and remove the battery for storage.
7. Manteniment
Proper maintenance extends battery life and ensures safe operation:
- Emmagatzematge: Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to store Lithium-Ion batteries at approximately 50% charge.
- Neteja: If necessary, gently wipe the battery and its connectors with a dry, clean cloth. Do not use liquids or solvents.
- Inspecció: Regularly inspect the battery for any signs of damage, swelling, or corrosion on the terminals. If any issues are found, discontinue use.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La bateria no es carrega | Charging cable not properly connected; Faulty charging cable or power source; Damaged battery. | Ensure connections are secure. Try a different USB port or power adapter. If the problem persists, the battery or cable may be faulty; contact support. |
| Drone not powering on with battery | Battery not fully charged; Battery not correctly installed; Battery damaged. | Ensure the battery is fully charged. Reinstall the battery, ensuring proper alignment. If issues persist, try another fully charged battery if available. |
| Temps de vol curt | Bateria no completament carregada; Degradació de la bateria amb el temps. | Ensure the battery is fully charged before each flight. Battery capacity naturally decreases with age and charge cycles. Consider replacing old batteries. |
9. Especificacions
- Model: DC-014
- Tipus de bateria: Ió de liti
- Voltage: 7.4 Volts
- Reutilitzabilitat: Recarregable
- Nombre de bateries: 1 (in this set)
- Pes de la bateria: Aproximadament 26 grams
- Ús recomanat: DBPOWER Drones
- ASIN: B08XMGJRGK
10. Garantia i Suport
DBPOWER provides comprehensive customer support for its products.
- Garantia de qualitat: 12 mesos
- Return Validity Period: 30 dies
- Atenció al client: Expert customer support is available anytime with a 24-hour quick response service.
- Festius: Please note that customer support may have limited availability on Saturdays, Sundays, public holidays, year-end, New Year, Golden Week, and Obon holidays.
For further assistance, please scan the QR code below or visit the official support channels.
Image: QR code for DBPOWER customer support. You can also reach support via https://lin.ee/QdlW3a0.
