ABAC 8-Piece Compressor Accessory Kit G-810AL

Introducció

This manual provides essential information for the safe and effective use of your ABAC 8-Piece Compressor Accessory Kit. Please read all instructions carefully before operation to ensure proper functionality and to prevent damage or injury. This kit is designed for various DIY applications, offering versatility for tasks such as inflating, painting, washing, and blowing.

Producte acabatview

The ABAC G-810AL kit includes the following components:

• Tire Inflator Gun with 60mm Pressure Gauge and 40cm Flexible Connection Hose
• Pistola de bufat
• Paint Spray Gun with 1.5mm Nozzle and 1000ml Aluminum Tank
• Washing Gun with 900ml Aluminum Tank
• PE Spiral Hose with Quick Coupling and Connector (German profile)
• 3 Inflation Adapters (for bicycle valves, balls, and inflatable boats)

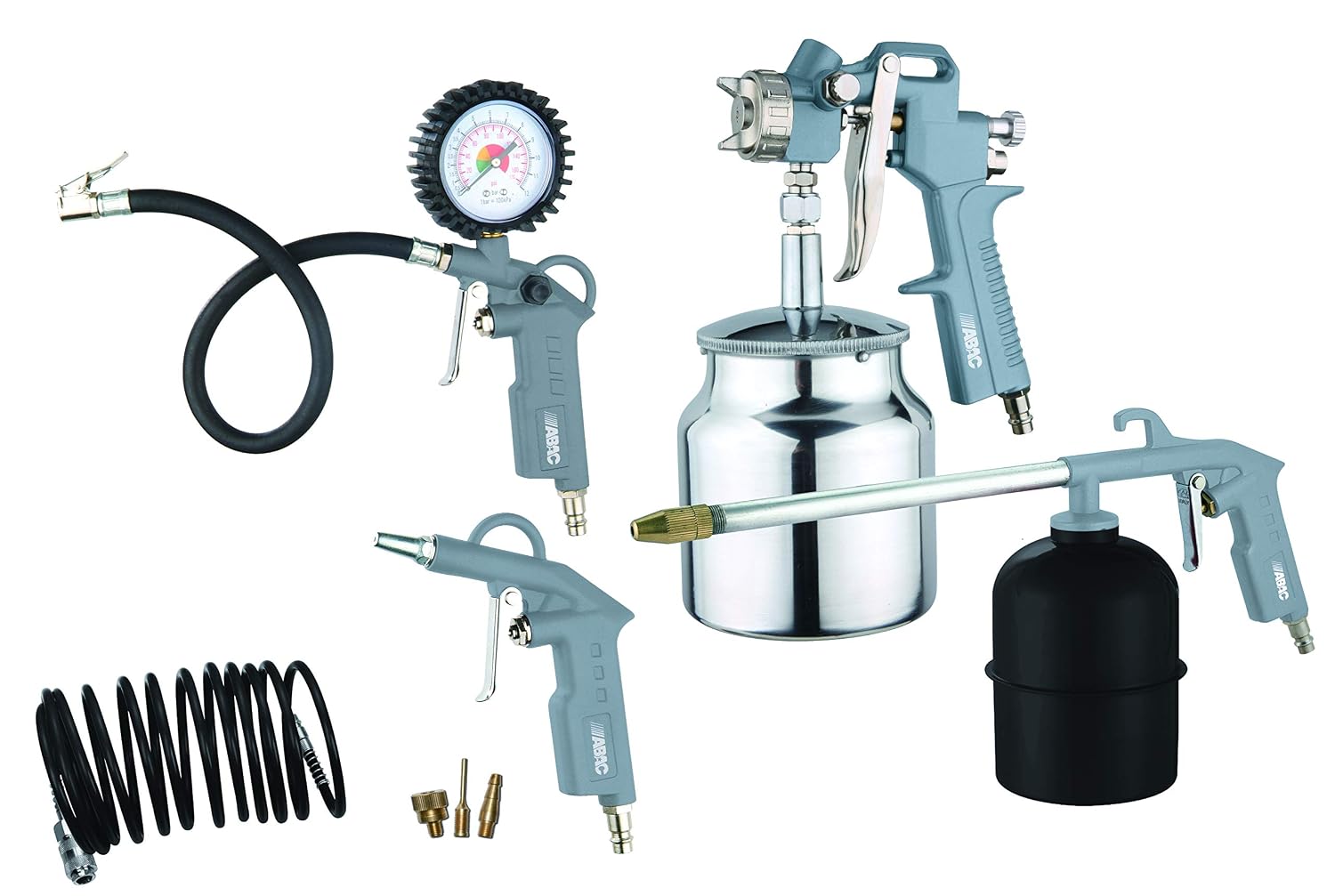

Figura 1: Mésview of the ABAC 8-Piece Compressor Accessory Kit, displaying all included tools and accessories.

Configuració

Before using any component of the kit, ensure your air compressor is properly set up and operating according to its own manual. All tools in this kit are designed for quick connection to standard air compressor outlets.

1. Connect the Spiral Hose: Attach one end of the PE spiral hose to your air compressor's quick-release coupling. Ensure a secure connection to prevent air leaks.
2. Adjuntar eines: Each tool (inflator, blow gun, paint gun, washing gun) features a quick-release connector. Simply push the tool's connector into the free end of the spiral hose until it clicks into place.
3. Prepare Tanks (Paint/Washing Guns): For the paint spray gun and washing gun, fill their respective aluminum tanks with the desired liquid (paint, cleaning solution) before attaching them to the gun body. Ensure the tank is securely screwed onto the gun.
4. Select Adapters (Inflator): For the tire inflator, choose the appropriate inflation adapter for the item you are inflating (e.g., bicycle valve, ball, inflatable boat) and screw it onto the inflator's nozzle.

Instruccions de funcionament

1. Tire Inflator Gun

Figure 2: Close-up of the Tire Inflator Gun, featuring a 60mm pressure gauge and flexible hose.

This tool is used for inflating tires, balls, and other inflatable items. The integrated pressure gauge allows for precise inflation.

• Connect the inflator gun to the spiral hose.
• Attach the appropriate inflation adapter to the item's valve.
• Press the trigger to begin inflation. Monitor the pressure gauge to reach the desired PSI/Bar.
• Release the trigger to stop inflation.

2. Blow Gun

Figure 3: The Blow Gun, used for dusting and drying applications.

Ideal for dusting, cleaning debris from workspaces, or drying surfaces.

• Connect the blow gun to the spiral hose.
• Point the nozzle towards the area to be cleaned or dried.
• Press the trigger to release a stream of air. Adjust air pressure at the compressor if needed.

3. Paint Spray Gun

Figure 4: The Paint Spray Gun, featuring a 1.5mm nozzle and a 1000ml aluminum tank.

Used for applying paint, varnish, or other coatings. Ensure proper ventilation when using this tool.

• Fill the 1000ml aluminum tank with the desired paint or coating. Ensure the liquid is properly thinned according to its manufacturer's instructions for spray application.
• Securely attach the tank to the spray gun.
• Connect the paint spray gun to the spiral hose.
• Test spray on a scrap surface to adjust pressure and spray pattern.
• Mantingueu una distància i una velocitat constants per a una aplicació uniforme.

4. Washing Gun

Figure 5: The Washing Gun, equipped with a 900ml aluminum tank for cleaning solutions.

Suitable for washing, degreasing, or applying cleaning solutions to various surfaces.

• Fill the 900ml aluminum tank with the appropriate cleaning solution or water.
• Securely attach the tank to the washing gun.
• Connect the washing gun to the spiral hose.
• Point the nozzle at the surface to be cleaned and press the trigger to spray.

5. PE Spiral Hose and Adapters

Figure 6: The PE Spiral Hose with quick coupling and the three included inflation adapters.

The 5-meter spiral hose provides flexibility and reach for your pneumatic tools. The included adapters ensure compatibility with various inflation needs.

• Always ensure the hose is free of kinks or damage before use.
• Store the hose coiled to maintain its shape and prevent tangling.
• Use the appropriate adapter for the specific valve type when inflating.

Manteniment

Proper maintenance extends the life of your ABAC accessory kit.

• Neteja: After each use, especially with the paint and washing guns, thoroughly clean the tanks and nozzles to prevent clogging. Use appropriate cleaning agents for the materials used.
• Lubricació: Periodically apply a few drops of pneumatic tool oil to the air inlet of each tool to lubricate internal components.
• Emmagatzematge: Store all components in a clean, dry place, away from direct sunlight and extreme temperatures. Keep the spiral hose coiled to prevent damage.
• Inspecció: Regularly inspect hoses for cracks, cuts, or wear. Check all quick couplings for secure connections and replace if worn.

Resolució de problemes

If you encounter issues with your ABAC accessory kit, refer to the following common problems and solutions:

Especificacions

• Número de model: 2809913650
• Marca: ABAC
• Nombre de peces: 8
• Material: Polietilè, alumini
• Color: Multicolor
• Tire Inflator Gauge: 60 mm de diàmetre
• Tire Inflator Hose Length: 40 cm
• Paint Spray Gun Nozzle: 1.5 mm
• Paint Spray Gun Tank Capacity: 1000 ml
• Washing Gun Tank Capacity: 900 ml
• Spiral Hose Length: 5m
• País d'origen: Xina
• Data de primera disponibilitat a Amazon.com.be: 31 de maig de 2022

Garantia i Suport

For warranty information and customer support, please refer to the documentation provided with your original purchase or visit the official ABAC website. Spare parts availability information is currently unavailable.
