Alpicool CX30 30L Portable Car Refrigerator Freezer
Manual d'usuari
1. Introducció
Thank you for choosing the Alpicool CX30 Portable Car Refrigerator Freezer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and keep it for future reference.
The Alpicool CX30 is designed to provide reliable cooling and freezing for various applications, including car travel, camping, home use, and dormitories. Its advanced compressor technology ensures rapid cooling and stable temperature control.
2. Instruccions de seguretat
- Font d'alimentació: Assegureu-vos que la font d'alimentació voltage matches the specifications of the appliance (DC 12/24V, AC 100-240V via adapter).
- Ventilació: Always ensure adequate ventilation around the refrigerator. Do not block the ventilation openings.
- Col·locació: Place the refrigerator on a stable, level surface. Avoid direct sunlight or heat sources.
- Exposició a l'aigua: Do not expose the refrigerator to rain or excessive moisture. Do not immerse it in water.
- Neteja: Disconnect from power before cleaning. Use a damp cloth; do not use abrasive cleaners or solvents.
- Nens: Keep out of reach of children. Supervise children to ensure they do not play with the appliance.
- Reparacions: No intenteu reparar o modificar l'aparell vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat per a les reparacions.
- Protecció de la bateria: Utilize the built-in 3-stage battery protection system to prevent vehicle battery depletion.
3. Producte acabatview i Característiques
The Alpicool CX30 is a versatile portable refrigerator freezer designed for convenience and performance.
Figure 3.1: Alpicool CX30 Portable Refrigerator showing its compact design and digital control panel, with a smartphone displaying its companion app for remote control.
Característiques principals:
- Refrigeració ràpida: Advanced refrigeration technology allows cooling from 25°C to 0°C in approximately 15 minutes.
- Doble font d'alimentació: Operates on both DC 12/24V (car cigarette lighter) and AC 100-240V (household outlet) via included adapters.
- Sistema de protecció de la bateria: Tres stage battery protection prevents vehicle battery drain.
- Portabilitat: Equipped with durable wheels and a telescopic handle for easy transportation.
- Disseny a prova de cops: Anti-vibration design ensures stable operation even on bumpy roads or inclines up to 40 degrees.
- Baix consum d'energia: Efficient compressor design minimizes power usage.
- Funcionament silenciós: Designed for low noise levels during operation.
Figure 3.2: The Alpicool CX30 demonstrating its portability with an extended telescopic handle and durable wheels, making it easy to move.
Figure 3.3: Visual representation of the Alpicool CX30's efficient cooling capabilities, highlighting its 60W power, fast cooling, energy-saving features, and quiet operation.
Figure 3.4: Illustration of the Alpicool CX30's shockproof design, showing its ability to operate normally on bumpy roads and inclines up to 40 degrees, ensuring stability during travel.
4. Configuració
4.1 Desembalatge
Carefully remove the refrigerator from its packaging. Inspect for any shipping damage. Keep the packaging materials for future transport or storage if needed.
4.2 Connexió d'alimentació
The Alpicool CX30 can be powered by two methods:
- Alimentació de CC (12V/24V): Use the provided DC power cord to connect the refrigerator to your vehicle's cigarette lighter socket. Ensure the vehicle's engine is running or the socket provides continuous power to avoid draining the vehicle battery.
- Alimentació CA (100-240 V): Use the provided AC adapter and power cord to connect the refrigerator to a standard household electrical outlet.

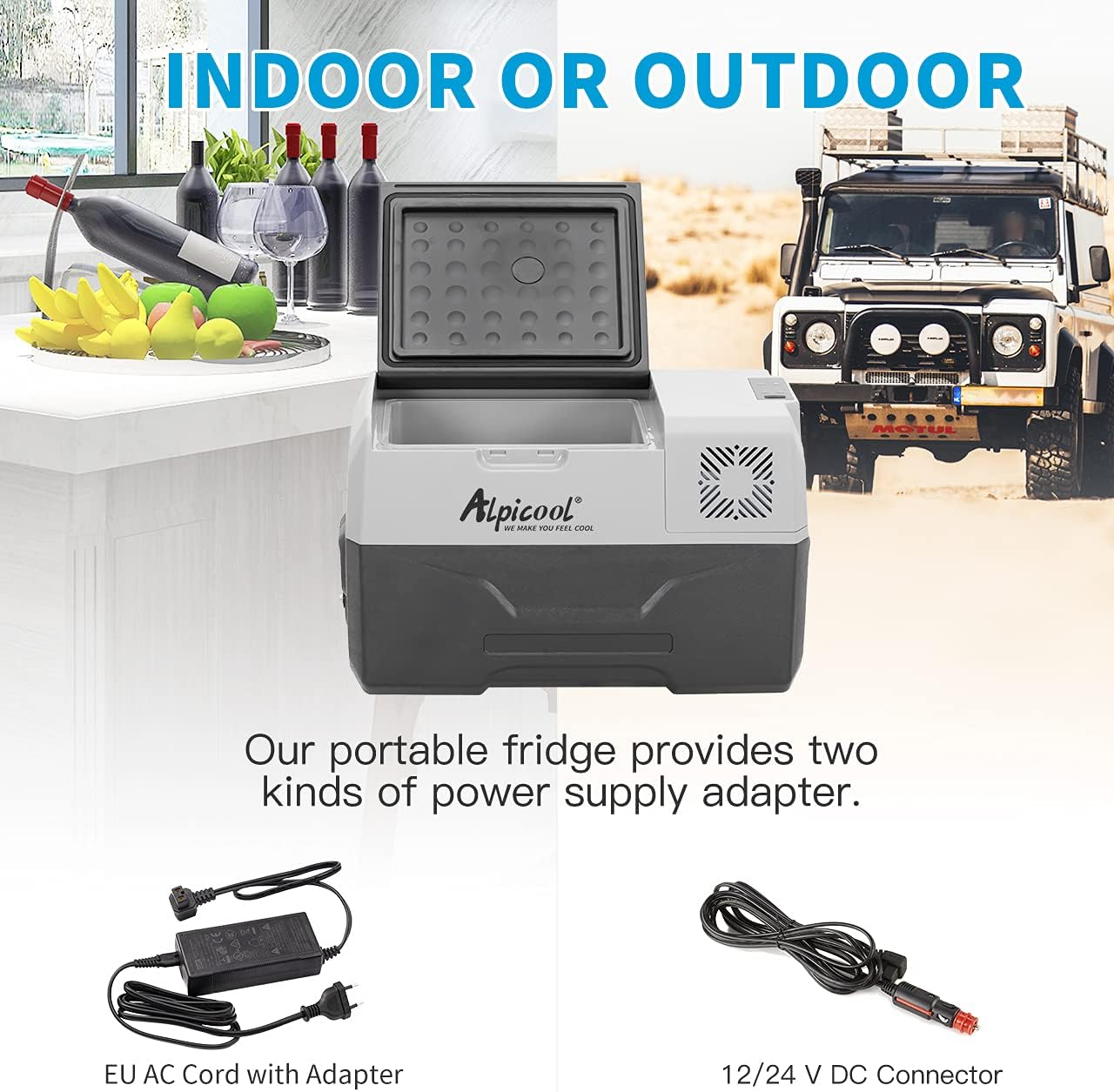

Figure 4.1: The Alpicool CX30 showing its versatility with both EU AC cord with adapter for indoor use and a 12/24V DC connector for vehicle use.
4.3 Ús inicial
Before first use, it is recommended to clean the interior of the refrigerator. After connecting to power, the display will light up, and you can begin setting your desired temperature.
5. Instruccions de funcionament
5.1 Tauler de control
The control panel typically includes a display screen, temperature adjustment buttons (+/-), a SET button, and a power button.
- Botó d'encesa: Premeu per engegar / apagar la unitat.
- Botó SET: Press to cycle through settings (e.g., temperature unit, battery protection mode, cooling mode).
- Botons +/-: Adjust the temperature setting or navigate through options.
5.2 Configuració de la temperatura
With the unit powered on, use the + or - buttons to set your desired temperature. The display will show the set temperature, then revert to the current internal temperature.
5.3 Modes de refrigeració (MAX/ECO)
Premeu el botó SET button repeatedly until the cooling mode indicator appears (e.g., MAX or ECO). Use + or - to switch between modes:
- Mode MAX: Proporciona la màxima potència de refrigeració per a una ràpida reducció de la temperatura.
- Mode ECO: Energy-saving mode, suitable for maintaining temperature with lower power consumption.
5.4 Configuració de la protecció de la bateria (H/M/L)
This feature protects your vehicle battery from excessive discharge. Press the SET button until the battery protection indicator appears (H, M, or L). Use + or - seleccionar:
- H (Alt): Highest protection, the refrigerator will stop operating at a higher battery voltage to prevent vehicle battery drain. Recommended for car battery.
- M (mitjana): Medium protection.
- L (baix): Lowest protection, allows the refrigerator to operate longer before cutting off. Recommended for external battery packs.
The refrigerator will automatically resume operation when the battery voltagi es recupera.
5.5 Control d'aplicacions per a telèfons intel·ligents
The Alpicool CX30 supports control via a smartphone application. Download the official Alpicool app from your device's app store. Follow the in-app instructions to pair your refrigerator via Bluetooth for remote temperature control and monitoring.
6. Manteniment
6.1 Neteja
- Interior: Disconnect the power. Use a soft cloth dampened with mild detergent and warm water to clean the interior. Wipe dry thoroughly. Do not use abrasive cleaners or harsh chemicals.
- Exterior: Netegeu l'exterior amb anunciamp cloth. Keep the ventilation grilles clean and free of dust.
- Condensador: Periodically clean the condenser coils (located near the fan) with a soft brush or vacuum cleaner to ensure efficient operation.
6.2 Emmagatzematge
If storing the refrigerator for an extended period, ensure it is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth. Store in a dry, well-ventilated area.
7. Solució De Problemes
Before contacting support, please check the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La nevera no s'encén. | No power, loose connection, blown fuse. | Check power cable connection. Test power outlet/cigarette lighter. Check vehicle fuse. |
| No refreda prou. | Blocked ventilation, door not sealed, ambient temperature too high, incorrect temperature setting. | Ensure clear ventilation. Check door seal. Move to cooler area. Adjust temperature setting lower. |
| La pantalla mostra el codi d'error. | Specific internal fault (e.g., low voltage, sensor error). | Refer to the specific error code in the full manual (if available) or contact customer support. For low voltage, check power source. |
| Soroll excessiu. | Unitat no anivellada, obstrucció del ventilador. | Ensure unit is on a stable, level surface. Check for debris near the fan. |
8. Especificacions
Technical specifications for the Alpicool CX30 Portable Car Refrigerator Freezer:
| Paràmetre | Valor |
|---|---|
| Model | CX30 |
| Capacitat total | 30 litres |
| Entrada d'alimentació (DC) | 12V / 24V |
| Corrent (CC) | 4.5 A (12 V) / 2.2 A (24 V) |
| Potència nominal | 60 watts |
| Interval de temperatura | -20 °C a 20 °C (-4 °F a 68 °F) |
| Consum mitjà d'energia | 60 Wh |
| Dimensions del producte (L x A x A) | 63.1 x 37.8 x 37.5 cm (24.8 x 14.9 x 14.8 polzades) |
| Pes de l'article | 11.4 quilos (25.1 lliures) |
| Material d'aïllament | Poliuretà |

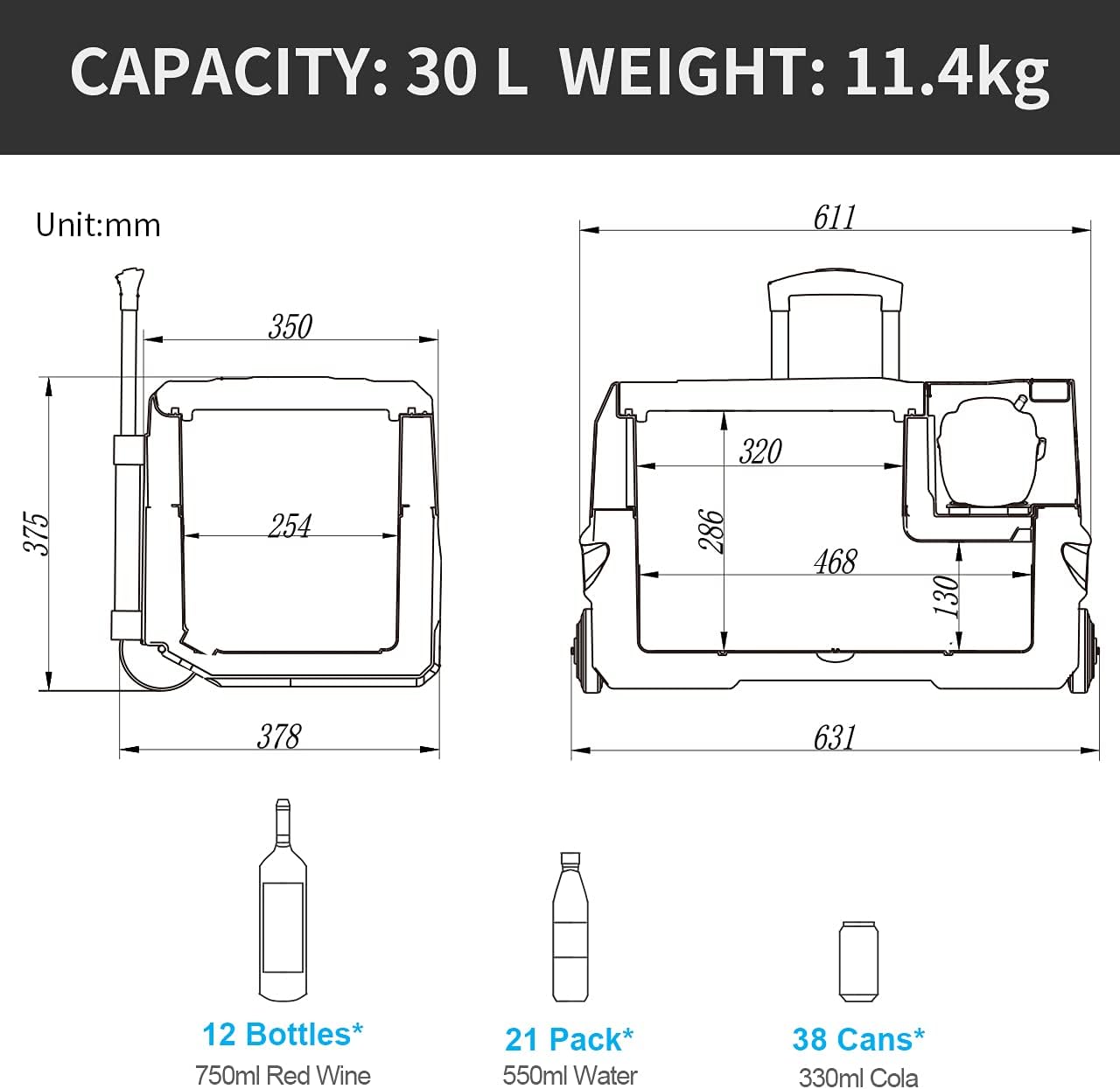

Figure 8.1: Detailed dimensions of the Alpicool CX30 and examples of its 30L capacity, showing it can hold 12 bottles of 750ml red wine, 21 packs of 550ml water, or 38 cans of 330ml cola.
Figure 8.2: The energy efficiency label for the Alpicool CX30, indicating an annual energy consumption of 60 kWh/annum and a noise level of 45 dB.
9. Garantia i Suport
Alpicool provides a one-year warranty for the CX30 Portable Car Refrigerator Freezer. This warranty covers manufacturing defects and malfunctions under normal use.
For technical support, warranty claims, or any operational issues, please contact Alpicool customer service. Provide your product model number (CX30) and purchase details when contacting support to facilitate faster service.
For the most up-to-date contact information, please refer to the official Alpicool weblloc web o la documentació de la compra.
