1. Introducció
Thank you for choosing the Alpicool CX40 Portable Refrigerator/Freezer. This appliance is designed to provide efficient cooling and freezing for various applications, including automotive, home, dormitory, and outdoor use. Please read this manual thoroughly before operating the unit to ensure safe and proper use.
Figure 1: Alpicool CX40 Portable Refrigerator/Freezer with mobile app interface.
2. Característiques del producte
- Rapid Cooling Technology: Achieves 0°C from 25°C in approximately 15 minutes, ensuring quick preservation of contents.
- Capacitat generosa de 40 L: Spacious interior capable of holding up to 57 x 330ml cans or 28 x 550ml bottles, suitable for various food and beverage storage needs.
- Protecció de la bateria del vehicle: Compta amb tres stage battery protection system to prevent vehicle battery discharge, ensuring your vehicle can always start.
- Doble font d'alimentació: Compatible with both DC (12V/24V) and AC (100-240V) power sources, offering versatile use in cars, homes, and outdoor settings.
- Portabilitat millorada: Equipped with durable wheels and a telescopic handle for easy transportation, even on uneven terrain.
- Disseny a prova de cops: Engineered to operate normally on bumpy roads and inclines up to 40 degrees, providing reliable performance during travel.
Figure 2: Key features of the Alpicool CX40.
3. Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- Alpicool CX40 Portable Refrigerator/Freezer Unit
- DC Power Cable (12V/24V for car cigarette lighter)
- AC Power Adapter (100-240V for home use)
- Manual d'usuari (aquest document)
4. Configuració
4.1 Desembalatge i col·locació
- Traieu amb cura la nevera del seu embalatge.
- Place the unit on a flat, stable surface. Ensure there is adequate ventilation around the unit (at least 10 cm clearance on all sides) to allow for proper heat dissipation.
- Before first use, it is recommended to let the unit stand upright for at least 6 hours if it has been transported horizontally.
4.2 Connexió d'alimentació
The Alpicool CX40 can be powered by two methods:
- Alimentació de CC (12V/24V): Connect the DC power cable to the unit's DC input port and plug the other end into your vehicle's cigarette lighter socket.
- Alimentació CA (100-240 V): Connect the AC power adapter to the unit's AC input port and plug it into a standard wall outlet.

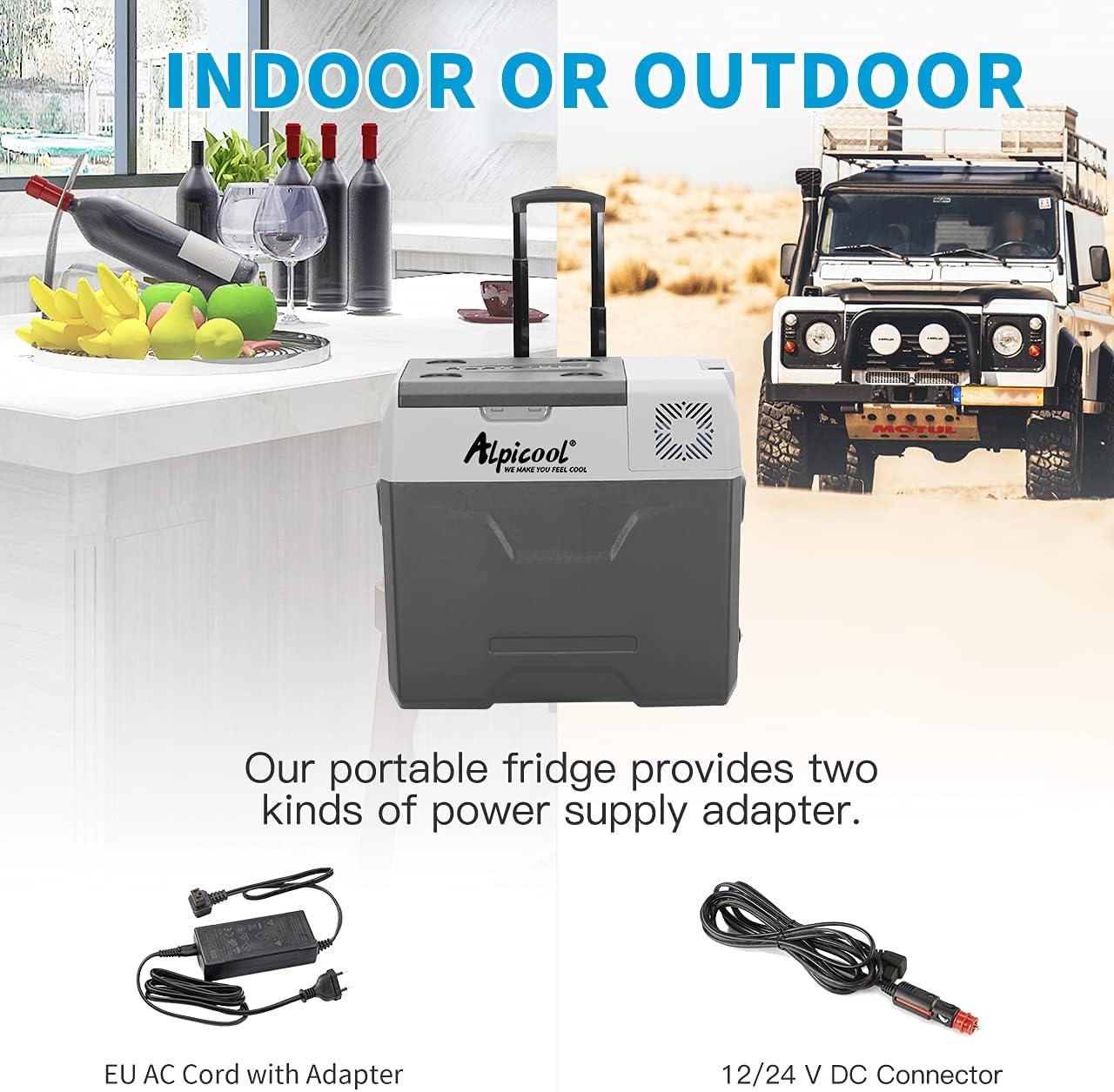

Figure 3: Power supply options for the Alpicool CX40.
5. Instruccions de funcionament
5.1 Tauler de control acabatview
The control panel is located on the top of the unit and features a digital display and control buttons.
Figure 4: Control panel of the Alpicool CX40.
5.2 Engegada/apagada
Premeu el botó Poder button to turn the unit on or off. The digital display will illuminate when the unit is on.
5.3 Configuració de la temperatura
Utilitza el + i - buttons to adjust the desired temperature. The display will show the set temperature, then revert to the current internal temperature.
5.4 Battery Protection Mode
The unit features three levels of battery protection (High, Medium, Low) to prevent your vehicle battery from draining. Press the Configuració button to cycle through these modes. Select the appropriate mode based on your vehicle's battery condition and usage.
5.5 port de càrrega USB
The Alpicool CX40 includes a USB charging port for convenience. You can use this port to charge small electronic devices like smartphones.
Figure 5: USB charging port for external devices.
6. Manteniment
6.1 Neteja
- Desconnecteu sempre la unitat abans de netejar-la.
- Netegeu les superfícies interiors i exteriors amb un damp drap i detergent suau. No utilitzeu netejadors abrasius ni dissolvents.
- Assegureu-vos que el forat de drenatge (si n'hi ha) estigui net per evitar l'acumulació d'aigua.
- Netegeu regularment les reixetes de ventilació per garantir un flux d'aire adequat i evitar el sobreescalfament.
6.2 Descongelació
If a thick layer of ice forms inside the unit, defrost it manually:
- Apagueu la unitat i desconnecteu-la.
- Elimina tot el contingut.
- Leave the lid open to allow the ice to melt naturally.
- Netegeu l'aigua fosa amb un drap net. No utilitzeu objectes punxeguts per treure el gel.
6.3 Emmagatzematge
Quan guardeu la unitat durant un període prolongat, assegureu-vos que estigui neta i seca i que la tapa estigui lleugerament entreoberta per evitar olors i floridura.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power supply; Faulty cable; Blown fuse. | Check power connection; Test cable; Replace fuse. |
| La unitat no refreda prou | Temperature set too high; Poor ventilation; Too much content; Door not sealed. | Lower temperature; Ensure proper clearance; Reduce contents; Check lid seal. |
| La pantalla mostra el codi d'error | Specific internal issue (e.g., sensor error, compressor fault). | Refer to specific error code in a more detailed service manual or contact support. |
| Soroll excessiu | Unitat no anivellada; obstrucció del ventilador. | Ensure unit is on a flat surface; Check for obstructions around fan. |
8. Especificacions
- Model: CX40
- Capacitat: 40 litres
- Pes: 12.7 quilos
- Dimensions (L x A x A): 63.1 x 37.8 x 48 cm
- Voltage: 12 volts (CC), 100-240 volts (CA)
- Potència nominal: 60 watts
- Nivell de soroll: Aproximadament 45 dB
- Característiques especials: Portable, Large Capacity, Shockproof Design
Figure 6: Alpicool CX40 dimensions and capacity examples.

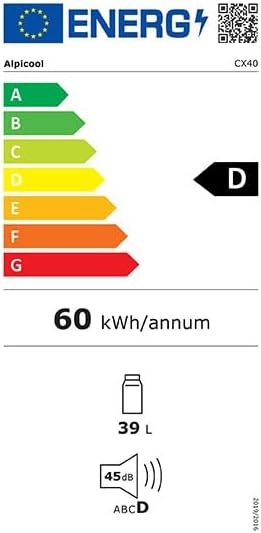

Figure 7: Alpicool CX40 Energy Label.
9. Garantia i Suport
For warranty information and technical support, please refer to the warranty card included with your product or contact Alpicool customer service directly. Keep your purchase receipt as proof of purchase.
