KEBETEME Aluminum Water Cooling Block User Manual

1. Introducció

This manual provides instructions for the installation, operation, and maintenance of your KEBETEME Aluminum Water Cooling Block. This high-quality aluminum block is designed for efficient heat dissipation in liquid cooling systems, suitable for CPU, laptop, and other electronic components requiring effective thermal management. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

2. Informació de seguretat

Always follow these safety guidelines to prevent damage to the product or injury:

• Ensure all power is disconnected from the system before installation or maintenance.
• Handle the cooling block carefully to avoid damage to its surfaces or ports.
• Utilitzeu les eines adequades per a la instal·lació.
• Verify all connections are secure and leak-free before powering on the system.
• Mantenir fora de l'abast dels nens.

3. Contingut del paquet

The package should contain the following item:

• 1 x KEBETEME Aluminum Water Cooling Block (Silver)

Image 1: The KEBETEME Aluminum Water Cooling Block, shown held in a hand for scale. This is the primary component for liquid cooling systems.

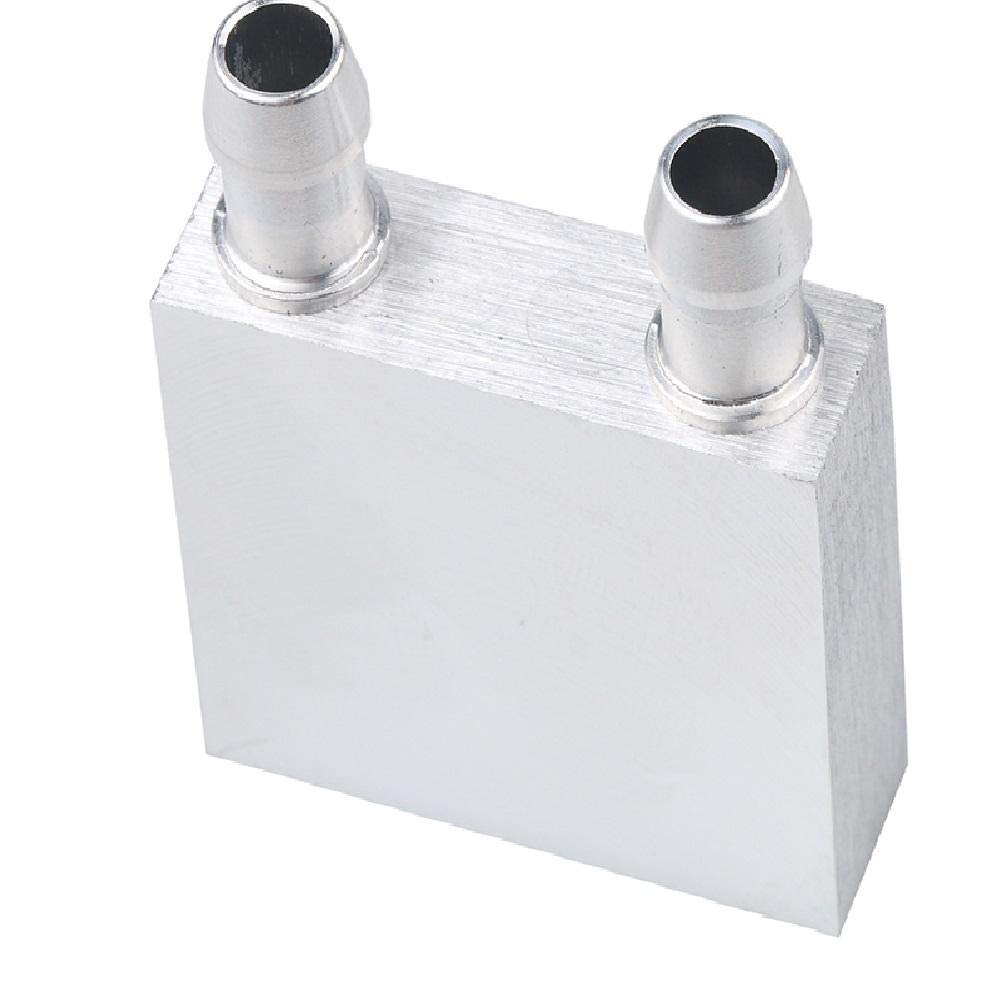

Imatge 2: Part superior view of the KEBETEME Aluminum Water Cooling Block, highlighting its two barb fittings for hose connections.

4. Configuració i instal·lació

This section outlines the general steps for installing the water cooling block. Specific installation may vary depending on your system configuration.

1. Prepareu el vostre sistema: Power off your computer or device and disconnect it from the power source. Open the casing to access the component requiring cooling.
2. Netegeu la superfície: Ensure the surface of the CPU, GPU, or other component where the cooling block will be mounted is clean and free of any old thermal paste or debris. Use isopropyl alcohol for best results.
3. Aplicar pasta tèrmica: Apply a thin, even layer of high-quality thermal paste to the center of the component's surface.
4. Mount the Cooling Block: Carefully place the KEBETEME Aluminum Water Cooling Block onto the thermal paste, ensuring proper alignment. Secure it using the appropriate mounting hardware for your system (not included with this block). This block features a frame mount type.
5. Connecteu les mànegues: Attach the liquid cooling hoses to the barb fittings on the cooling block. Ensure the connections are tight and secure to prevent leaks.
6. Integrate into Loop: Connect the other ends of the hoses to your pump, radiator, and reservoir to complete the liquid cooling loop.
7. Fill and Bleed: Fill the liquid cooling system with appropriate coolant and bleed any air bubbles from the loop.
8. Prova de fuites: Before powering on your system, perform a thorough leak test. Run the pump for several hours with the system off, checking for any signs of leaks.
9. Comprovació final: Once confident there are no leaks, close your system casing and reconnect power.

5. Instruccions de funcionament

Once installed and the liquid cooling loop is properly filled and tested, the KEBETEME Aluminum Water Cooling Block operates passively as part of your cooling system. Its primary function is to transfer heat from the component to the circulating coolant.

• Engegada del sistema: Power on your computer or device. The liquid cooling system, including the pump, should start circulating coolant.
• Monitor de temperatures: Use system monitoring software to observe the temperatures of the cooled component (e.g., CPU temperature). Ensure temperatures remain within safe operating limits.
• Funcionament normal: The cooling block will continuously dissipate heat as long as the liquid cooling system is functioning correctly.

6. Manteniment

Regular maintenance ensures the longevity and efficiency of your liquid cooling system and the water cooling block.

• Inspeccionar si hi ha fuites: Periodically check all connections and hoses for any signs of leaks or wear.
• Substitució del refrigerant: Follow the recommendations of your coolant manufacturer for replacement intervals, typically every 6-12 months.
• Clean Radiator and Fans: Dust accumulation on radiators and fans can reduce cooling performance. Clean them regularly.
• Comproveu si hi ha bloquejos: Over time, sediment can build up in the cooling loop. If you notice a significant drop in cooling performance, consider disassembling and cleaning the block and other components.
• Reaplicació de pasta tèrmica: If you disassemble the block for cleaning or other reasons, reapply thermal paste before reinstallation.

7. Solució De Problemes

If you encounter issues with your liquid cooling system, consider the following common troubleshooting steps:

Si els problemes persisteixen, consulteu un tècnic qualificat o poseu-vos en contacte amb el servei d'atenció al client.

8. Especificacions

9. Garantia i Suport

For warranty information or technical support, please refer to the retailer where you purchased this product or visit the official KEBETEME weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

Per obtenir més ajuda, també podeu contactar directament amb el venedor a través de la plataforma on vau comprar el producte.
