Brother Wireless All In One Ink Tank Printer User Manual

1. Introducció

This manual provides essential information for setting up, operating, and maintaining your Brother DCP-T720DW Wireless All-In-One Ink Tank Printer. Please read this manual thoroughly before using the printer to ensure safe and efficient operation.

Imatge: Frontal view of the Brother DCP-T720DW printer, showcasinel seu disseny compacte i la safata de paper de càrrega frontal.

2. Configuració

2.1 Desembalatge i comprovació de components

Traieu amb cura tots els components de l'embalatge. Assegureu-vos que hi hagi els elements següents:

• Brother DCP-T720DW Printer Unit
• Ink Bottles (Black, Cyan, Magenta, Yellow)
• Cable d'alimentació
• Cable USB
• Guia de configuració
• Guia de seguretat del producte

2.2 Omplir els dipòsits de tinta

Before initial use, the ink tanks must be filled. Follow these steps:

1. Obriu la tapa del dipòsit de tinta que es troba al costat dret de la impressora.
2. Uncap the corresponding ink bottle (e.g., Black ink for the Black tank).
3. Carefully invert the ink bottle over the tank's filling port. The ink will flow automatically.
4. Un cop el dipòsit estigui ple, retireu l'ampolla i tanqueu bé el tap del dipòsit.
5. Repeat for all four colors.

Image: A hand carefully pouring ink from a Brother ink bottle into the printer's ink tank, demonstrating the refill process.

2.3 Connexió d'alimentació i configuració inicial

Connect the power cord to the printer and then to a power outlet. Press the power button to turn on the printer. Follow the on-screen instructions on the LCD display to select your language and perform initial print head alignment.

2.4 Instal·lació de programari i controladors

Insert the installation CD (if provided) into your computer's CD-ROM drive, or download the latest drivers and software from the official Brother support website. Run the installer and follow the prompts to install the necessary drivers and utilities for printing, scanning, and copying.

2.5 Configuració de xarxa (Wi-Fi)

Per connectar la impressora a una xarxa sense fil:

1. Al tauler de control de la impressora, navegueu fins a Xarxa configuracions.
2. Seleccioneu WLAN i després Assistent de configuració.
3. The printer will search for available networks. Select your network's SSID from the list.
4. Enter your network password (security key) using the printer's keypad.
5. Confirm the settings. The printer will connect to your Wi-Fi network.

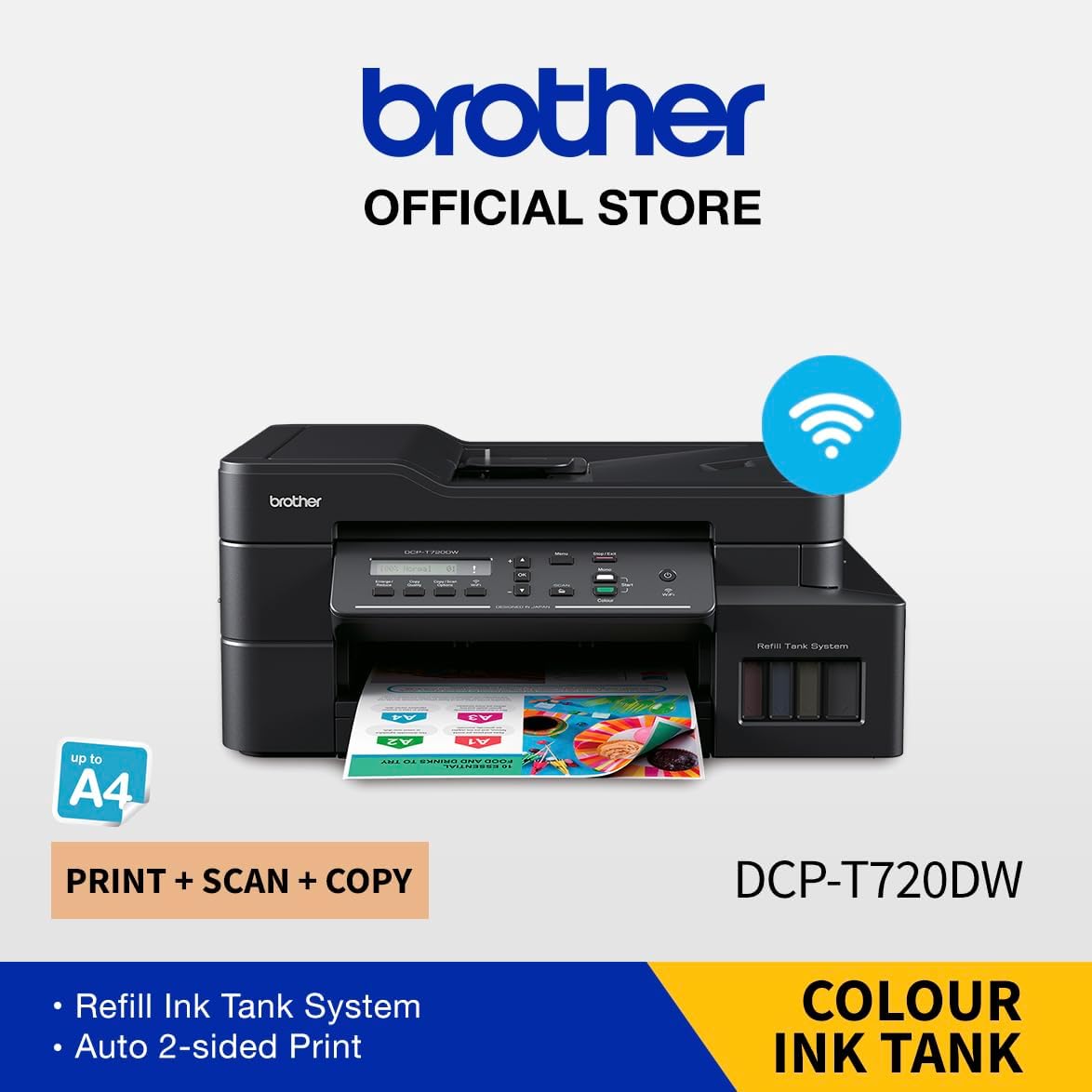

Image: The Brother DCP-T720DW printer with a Wi-Fi symbol indicating its wireless connectivity feature, ready for network setup.

3. Instruccions de funcionament

3.1 Impressió de documents

To print from your computer, open the document you wish to print, select Imprimeix from the application's menu, choose the Brother DCP-T720DW as your printer, and adjust settings as needed before clicking Imprimeix. For mobile printing, use the Brother iPrint&Scan app or other compatible mobile printing services like Apple AirPrint or Mopria Print Service.

3.2 Còpia de documents

Place the document face down on the scanner glass or face up in the Automatic Document Feeder (ADF). On the printer's control panel, press the Còpia button. Use the arrow keys to select the number of copies and adjust settings like color/mono, quality, or duplex. Press Comença per començar a copiar.

3.3 Escaneig de documents

Place the document on the scanner glass or in the ADF. You can initiate a scan from the printer's control panel by pressing Escaneja and selecting a destination (e.g., PC, Email, Cloud), or from your computer using the Brother iPrint&Scan software or other scanning applications. Ensure your computer is connected and the software is running.

Image: A person placing a document onto the scanner glass of the Brother DCP-T720DW printer, preparing for a scan operation.

3.4 Automatic 2-Sided (Duplex) Printing

The DCP-T720DW supports automatic duplex printing. When printing from your computer, select the duplex printing option in your printer driver settings. For copying, select the 2-sided copy option on the printer's control panel.

4. Manteniment

4.1 Comprovació dels nivells de tinta i reompliment

Regularly check the ink levels through the transparent ink tanks on the front of the printer or via the printer's LCD display. Refill tanks when ink levels are low to prevent air from entering the ink tubes, which can affect print quality.

4.2 Neteja del capçal d'impressió

If print quality degrades (e.g., missing lines, faded colors), perform a print head cleaning. From the printer's menu, navigate to Manteniment or Tintai, a continuació, seleccioneu Neteja. Follow the on-screen prompts. You may need to perform this multiple times for optimal results.

4.3 Neteja del vidre de l'escàner

Dust or smudges on the scanner glass can cause lines or spots on scanned or copied documents. Use a soft, lint-free cloth lightly dampened with glass cleaner to wipe the scanner glass and the white plastic backing. Do not spray cleaner directly onto the glass.

4.4 Eliminació d'embussos de paper

If a paper jam occurs, the printer's LCD will display an error message. Carefully open the printer covers as indicated in the error message and gently pull out any jammed paper in the direction of the paper path. Ensure no small pieces of paper remain inside.

5. Solució De Problemes

For more detailed troubleshooting, refer to the Brother support website or the full electronic manual.

6. Especificacions

7. Garantia i Suport

7.1 Informació de la garantia

This Brother DCP-T720DW printer comes with a 1 anys de garantia del fabricantSi us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de materials i fabricació en condicions d'ús normal.

7.2 Atenció al client

For technical assistance, driver downloads, FAQs, or further support, please visit the official Brother support weblloc web. També podeu trobar informació de contacte del servei d'atenció al client de la vostra regió al seu weblloc.
