Manual d'usuari del refrigerador d'aire evaporatiu portàtil Totalcool 3000

Introducció

The Totalcool 3000 is a compact and portable evaporative air cooler designed to provide personal cooling in various environments. Unlike traditional air conditioners, it operates by evaporating water to cool the air, making it an energy-efficient solution for small spaces such as caravans, boats, offices, and homes. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Totalcool 3000.

Informació de seguretat

• Always use the appliance on a stable, flat surface to prevent tipping and water spillage.
• No submergiu la unitat, el cable d'alimentació ni l'endoll en aigua ni altres líquids.
• Unplug the unit from the power source before cleaning, refilling, or performing any maintenance.
• Mantenir fora de l'abast dels nens i mascotes.
• Do not block the air inlets or outlets. Ensure adequate ventilation around the unit.
• Use only clean, cold tap water. Do not add any chemicals, oils, or other substances to the water tank.
• Si el cable d'alimentació està danyat, l'ha de substituir el fabricant, el seu agent de servei o persones qualificades de manera similar per evitar perills.
• This product is designed for indoor use or sheltered outdoor environments like tents or caravans.

Contingut del paquet

Marqueu la casella per als elements següents:

• Totalcool 3000 Evaporative Air Cooler Unit
• Cooling Pad (Filter) - 2 included
• Manual d'usuari
• Power Cord (12V/24V DC and AC Mains compatible)

Configuració

1. Desempaquetar la unitat: Carefully remove the Totalcool 3000 from its packaging.
2. Col·locar sobre una superfície estable: Position the unit on a flat, stable surface where you desire cooling. Ensure there is adequate space around the unit for proper airflow.
3. Install the Cooling Pad:

   The Totalcool 3000 comes with a cooling pad (filter) that needs to be saturated with water for optimal performance. Open the top lid of the unit and insert the cooling pad into its designated slot. Ensure it sits securely.



   Image: The cooling pad being inserted into the top opening of the Totalcool 3000 unit. The blue, porous pad is clearly visible.
4. Ompliu el dipòsit d’aigua:

   Open the water tank cap and fill the tank with cold tap water. It is recommended to saturate the filter first, then fill the tank up to the indicated fill line. The tank capacity is 1.5 liters. Using the coldest possible water will enhance cooling performance.



   Image: A person pouring water from a mug into the water tank of the Totalcool 3000. The unit is placed on a kitchen counter.

5. Connecteu-vos a l'alimentació: Plug the power cord into the unit's power input, then connect it to a suitable 12V, 24V DC power source (e.g., car, caravan, power bank) or an AC mains outlet. The unit is designed for low power consumption.
6. Initial Saturation: Allow a few minutes for the cooling pad to fully absorb the water before turning on the unit for the first time.

Instruccions de funcionament

The Totalcool 3000 is simple to operate with its intuitive controls.

Imatge: Frontal view of the Totalcool 3000 showing the two directional air vents and the control buttons on top.

Image: The Totalcool 3000 unit with overlaid text highlighting its key features: Battery Protection System, Uses Normal Tap Water, Low Current Draw, Directional Vents, 4 Speed Settings, and Tri Voltage (12V, 24V & AC Mains).

Encès/Apagat

• Premeu el botó Botó d'engegada (usually the leftmost button) to turn the unit on or off.

Ajust de la velocitat del ventilador

The Totalcool 3000 features 4 fan speed settings. Press the Botó de velocitat del ventilador (typically indicated by fan icons) to cycle through the speeds: Low, Medium, High, and Very High.

Image: A graphic illustrating the four fan speeds (Low, Medium, High, Very High) and their corresponding power consumption at 12V: 4W/hour, 7W/hour, 11W/hour, and 22W/hour respectively.

• Velocitat baixa: Ideal for quiet operation and minimal cooling. (Approx. 4W/hour @ 12V)
• Velocitat mitjana: Balanced cooling and noise level. (Approx. 7W/hour @ 12V)
• Alta velocitat: Stronger airflow for more effective cooling. (Approx. 11W/hour @ 12V)
• Very High Speed: Maximum cooling power. (Approx. 22W/hour @ 12V)

Directional Airflow

The Totalcool 3000 features adjustable directional vents on the front. Manually adjust these vents to direct the cool air precisely where you need it. This unit is designed to provide directional cooling rather than cooling an entire room.

Imatge: Un primer pla view of the Totalcool 3000's front, highlighting the two circular, adjustable air vents.

Sistema de protecció de la bateria

The unit includes an integrated battery protection system with automatic shut-off to prevent draining your power source (e.g., vehicle battery) below a safe level when operating on 12V or 24V DC.

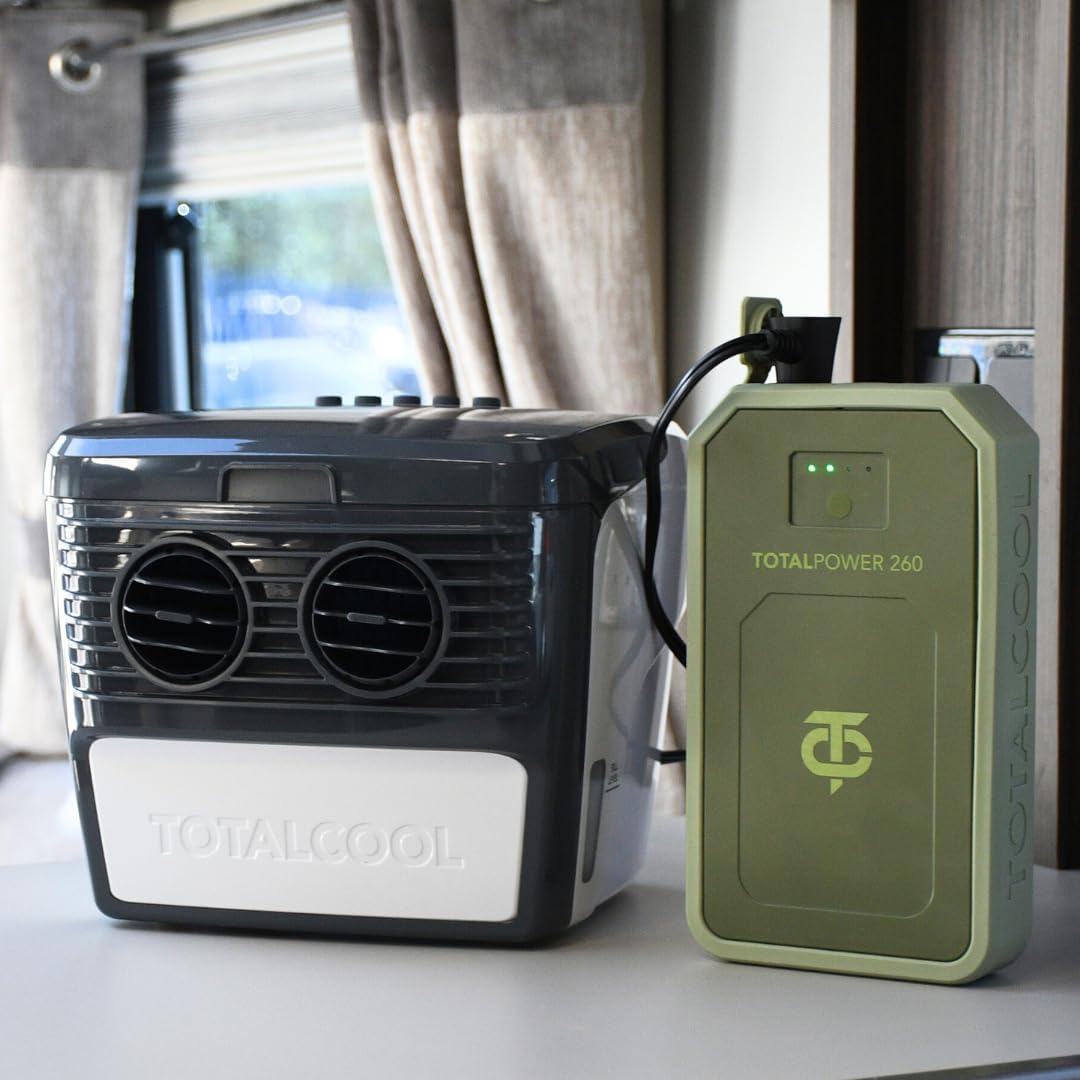

Image: The Totalcool 3000 unit placed next to a green Totalpower 260 power bank, both connected and in use within a caravan interior.

Image: The Totalcool 3000 and a Totalpower 260 power bank positioned on a wooden shelf inside a caravan, demonstrating portable use.

Image: A woman relaxing inside a rooftop tent, with the Totalcool 3000 unit providing cooling beside her.

Image: The Totalcool 3000 unit placed on a surface inside a caravan, demonstrating its compact size and portability for travel.

Manteniment

Regular maintenance ensures optimal performance and longevity of your Totalcool 3000.

• Neteja del dipòsit d'aigua: Regularly empty and clean the water tank to prevent mold and mildew growth. Use a soft cloth and mild detergent if necessary, then rinse thoroughly.
• Cooling Pad (Filter) Maintenance:
  • The cooling pads are biodegradable and designed for long-term use.
  • Periodically remove the cooling pad and rinse it under clean water to remove any dust or mineral buildup.
  • If the cooling pad shows signs of significant wear, damage, or persistent odor, it should be replaced. Replacement pads are available from Totalcool.
• Neteja exterior: Netegeu l'exterior de la unitat amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Emmagatzematge: If storing the unit for an extended period, ensure the water tank is empty and dry, and the cooling pad is clean and dry to prevent odors or mold. Store in a cool, dry place.

Resolució de problemes

Especificacions

Image: The Totalcool 3000 unit with its dimensions labeled: Length 260mm, Width 240mm, Height 210mm, and a stated Weight of 2kg.

Imatge: Part posterior view of the Totalcool 3000 unit, showing the circular fan grille and power input port.

Garantia i Suport

For warranty information, technical support, or to purchase replacement parts, please contact Totalcool directly through their official weblloc web o el distribuïdor on vau comprar el producte. Conserveu el comprovant de compra per a reclamacions de garantia.

Note: Information regarding spare parts availability is not provided in this manual. Please contact the manufacturer for details.
