BEPER P205DIF100

BEPER P205DIF100 Car Diffuser and Humidifier Instruction Manual

Model: P205DIF100

Introducció

The BEPER P205DIF100 is a versatile 2-in-1 car diffuser and humidifier designed to enhance your driving experience. It effectively diffuses fragrances and essential oils while also humidifying the air, creating a more comfortable and pleasant environment in your vehicle.

Informació de seguretat

  • Eviteu el contacte directe de la pell amb olis essencials sense diluir.
  • Keep the device and any essential oils out of reach of children and pets.
  • Ensure adequate ventilation in the car cabin during use.
  • Only use water-soluble essential oils to prevent clogging of the diffuser.

Producte acabatview

The BEPER P205DIF100 features a compact design with a 25 ml tank capacity, touch controls, an anti-drip closure system, and an operational LED indicator. It is designed to plug into a standard 12V car cigarette lighter socket.

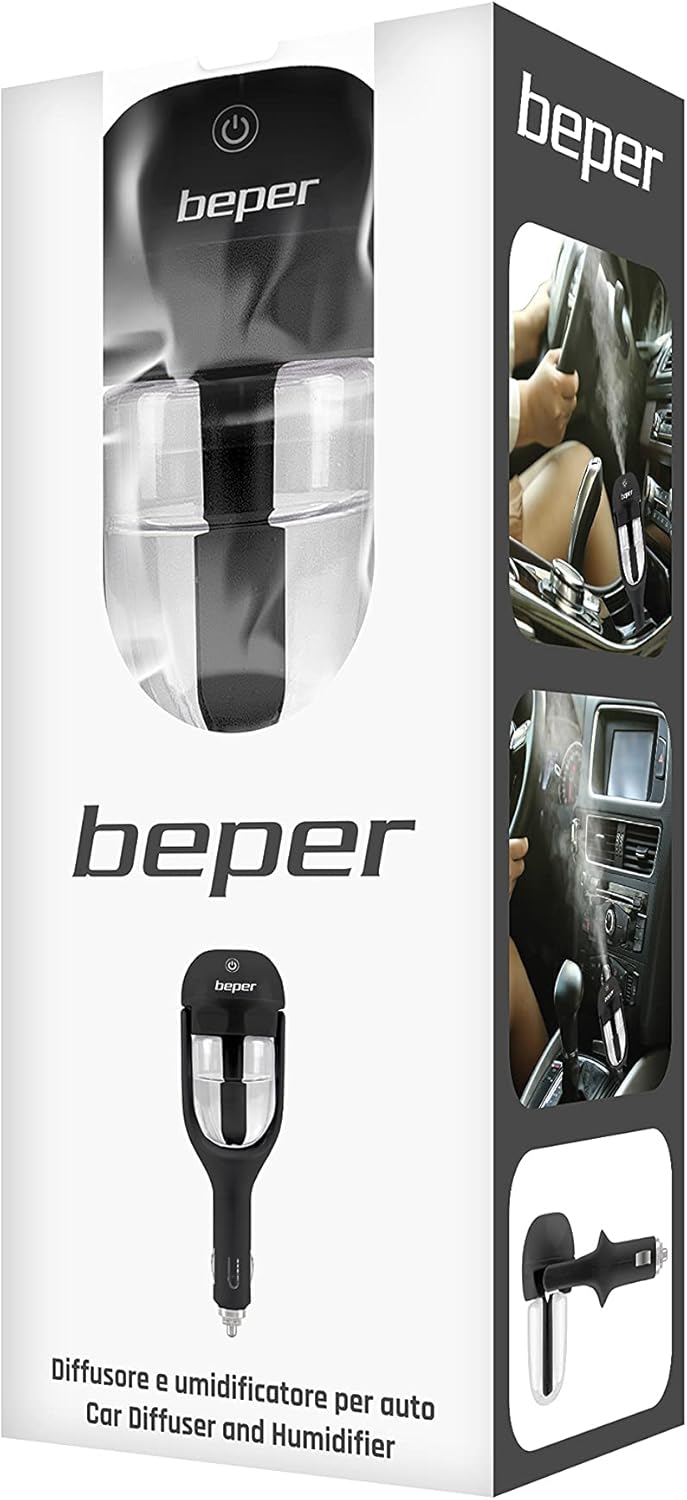

BEPER P205DIF100 Car Diffuser and Humidifier with empty bottle
Figure 1: BEPER P205DIF100 Car Diffuser and Humidifier with its empty essential oil bottle.

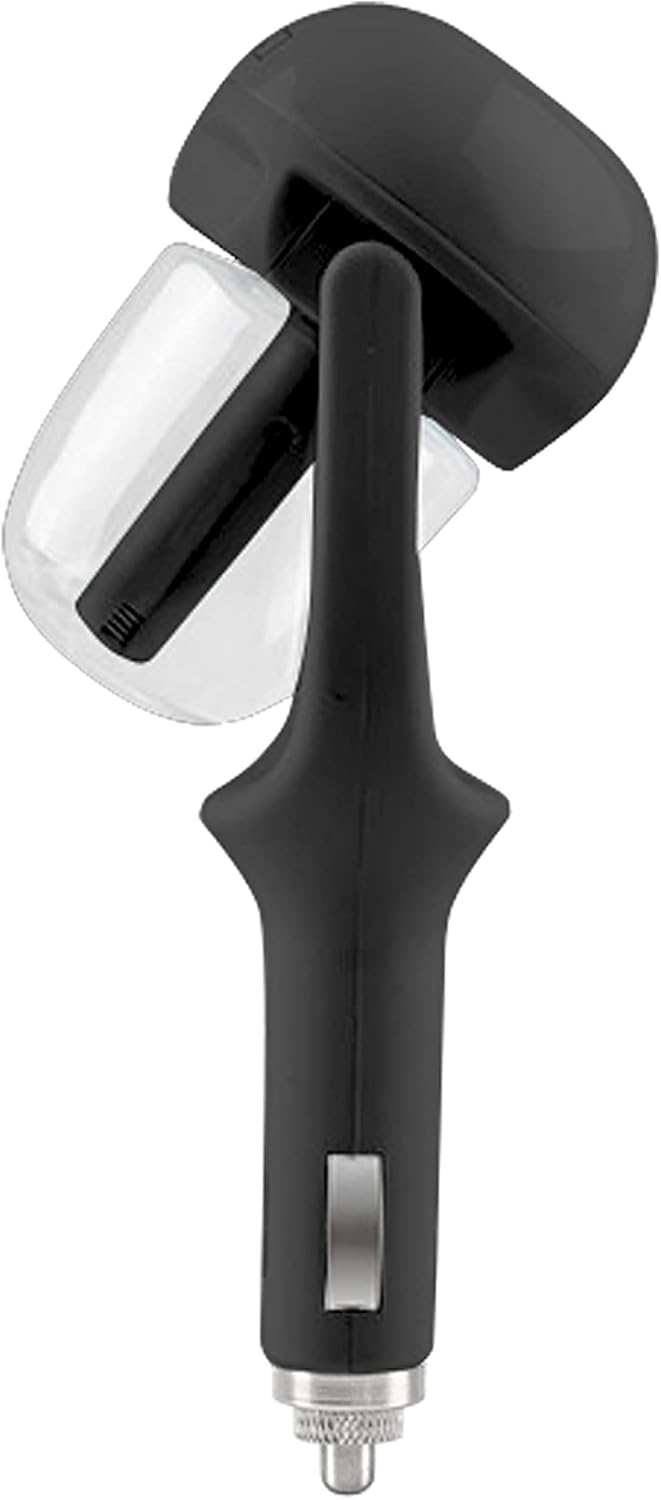

BEPER P205DIF100 Car Diffuser and Humidifier components
Figure 2: The main diffuser unit and the refillable bottle for water and essential oils.

Instruccions de configuració

  1. Prepareu el difusor: Unscrew the top part of the diffuser to access the water tank.
  2. Omplir el dipòsit: Carefully pour water into the tank. Do not exceed the maximum fill line.
  3. Afegiu olis essencials: Add a few drops of water-soluble essential oil to the water in the tank. A recommended ratio is 50ml of essential oils to 200ml of water.
  4. Tanca el difusor: Screw the top part back onto the diffuser securely, ensuring the anti-drip system is engaged.
  5. Connecteu-vos a l'alimentació: Insert the BEPER P205DIF100 into your car's 12V cigarette lighter socket.
  6. Initial Absorption: Before first use, allow the device to stand upright for approximately 10 minutes to ensure the cotton wick fully absorbs the liquid.
Diagram showing steps to fill and install the diffuser
Figure 3: Step-by-step guide for filling the water tank, adding essential oils, and inserting the diffuser into the car's cigarette lighter socket.
BEPER P205DIF100 Car Diffuser installed in a car's 12V socket
Figure 4: The diffuser correctly installed in a car's 12V power outlet.

Instruccions de funcionament

  1. Encès/apagat: The device is turned on and off via a touch button located near the atomizer.
  2. Continuous Humidification Mode: With a single touch on the touch button, the device enters continuous humidification mode, producing a steady mist.
  3. Intermittent Diffuser Mode: Pressing the ON/OFF button again switches the device to essential oil diffuser mode, with intermittent misting.
  4. Flux ajustable: The diffuser is designed to tilt up to 180° for personalized mist flow adjustment. The anti-drip closure system prevents spills from the reservoir.
BEPER P205DIF100 Car Diffuser operating in a car, producing mist
Figure 5: The diffuser actively releasing mist into the car cabin, enhancing air quality and fragrance.
BEPER P205DIF100 Car Diffuser tilted to adjust mist direction
Figure 6: The diffuser can be tilted up to 180 degrees to direct the mist flow as desired.

Manteniment

Regular cleaning is essential to ensure optimal performance and longevity of your BEPER P205DIF100 diffuser.

  • Buida el dipòsit: After each use or when changing essential oils, empty any remaining water from the tank.
  • Netegeu el dipòsit: Netegeu l'interior del dipòsit d'aigua amb un drap suau iamp cloth. For thorough cleaning, use a cotton swab dipped in rubbing alcohol to clean hard-to-reach areas.
  • Netegeu l'atomitzador: Gently wipe the atomizer plate with a cotton swab. Do not use abrasive materials or sharp objects, as this can damage the device.
  • Replace Cotton Wick: If the mist output decreases or the device stops producing mist, the cotton wick may need to be replaced. Refer to the included spare wicks or purchase replacements from an authorized dealer.
  • Assecar bé: Ensure all parts are completely dry before reassembling the diffuser or storing it.

Resolució de problemes

ProblemaCausa possibleSolució
Sense sortida de boiraLow water level; Clogged atomizer; Dry cotton wick; Power issueRefill water tank; Clean atomizer; Ensure wick is saturated; Check 12V connection.
Sortida de boira febleLow water level; Clogged atomizer; Old cotton wickRefill water tank; Clean atomizer; Replace cotton wick.
El dispositiu no s'encénNo power from 12V socket; Loose connectionCheck car's 12V socket; Ensure diffuser is firmly plugged in.
FuitesLid not screwed on tightly; Tank overfilledTighten lid; Do not overfill tank.

Especificacions

  • Nom del model: P205DIF100
  • Marca: BEPER
  • Dimensions: 5.6 x 5.6 x 16.5 cm
  • Pes: 100 g
  • Capacitat del dipòsit: 25 ml
  • Font d'alimentació: 12V Car Cigarette Lighter Socket
  • Material: Plàstic
  • Característiques especials: Touch On/Off, Anti-drip system, Operational LED
  • Ús recomanat: To create a pleasant and perfumed atmosphere in the car interior

Garantia i Suport

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions.
