Impex OV 2905 Electric Oven User Manual

1. Introducció

Thank you for choosing the Impex OV 2905 Electric Oven. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference. This electric oven is designed for baking, grilling, roasting, heating, and toasting, featuring a rotisserie function and precise temperature control.

2. Instruccions de seguretat importants

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.

• Read all instructions carefully before operating the oven.
• Do not touch hot surfaces. Always use oven mitts or gloves when handling hot items or reaching into the oven.
• To protect against electric shock, do not immerse the cord, plug, or any part of the oven in water or other liquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desconnecteu-lo de la presa de corrent quan no utilitzeu i abans de netejar-lo. Deixeu refredar abans de posar o treure peces.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• Do not use attachments not recommended by the appliance manufacturer, as they may cause hazards.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora d'una taula o taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'OFF', then remove the plug from the wall outlet.
• No utilitzeu l'aparell per a un altre ús que el previst.
• No s'han d'introduir aliments de gran mida ni utensilis metàl·lics al forn, ja que poden provocar un incendi o risc de descàrrega elèctrica.
• Es pot produir un incendi si el forn està cobert o toca material inflamable, incloses cortines, cortines, parets i similars, quan està en funcionament.
• Do not store any materials on top of the oven when in operation.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or similar items.
• Do not cover the crumb tray or any part of the oven with metal foil. This will cause the oven to overheat.
• Utilitzeu sempre el vol correctetage tal com s'indica a l'etiqueta de qualificació.

3. Producte acabatview i Components

Familiarize yourself with the various parts of your Impex OV 2905 Electric Oven for optimal use.

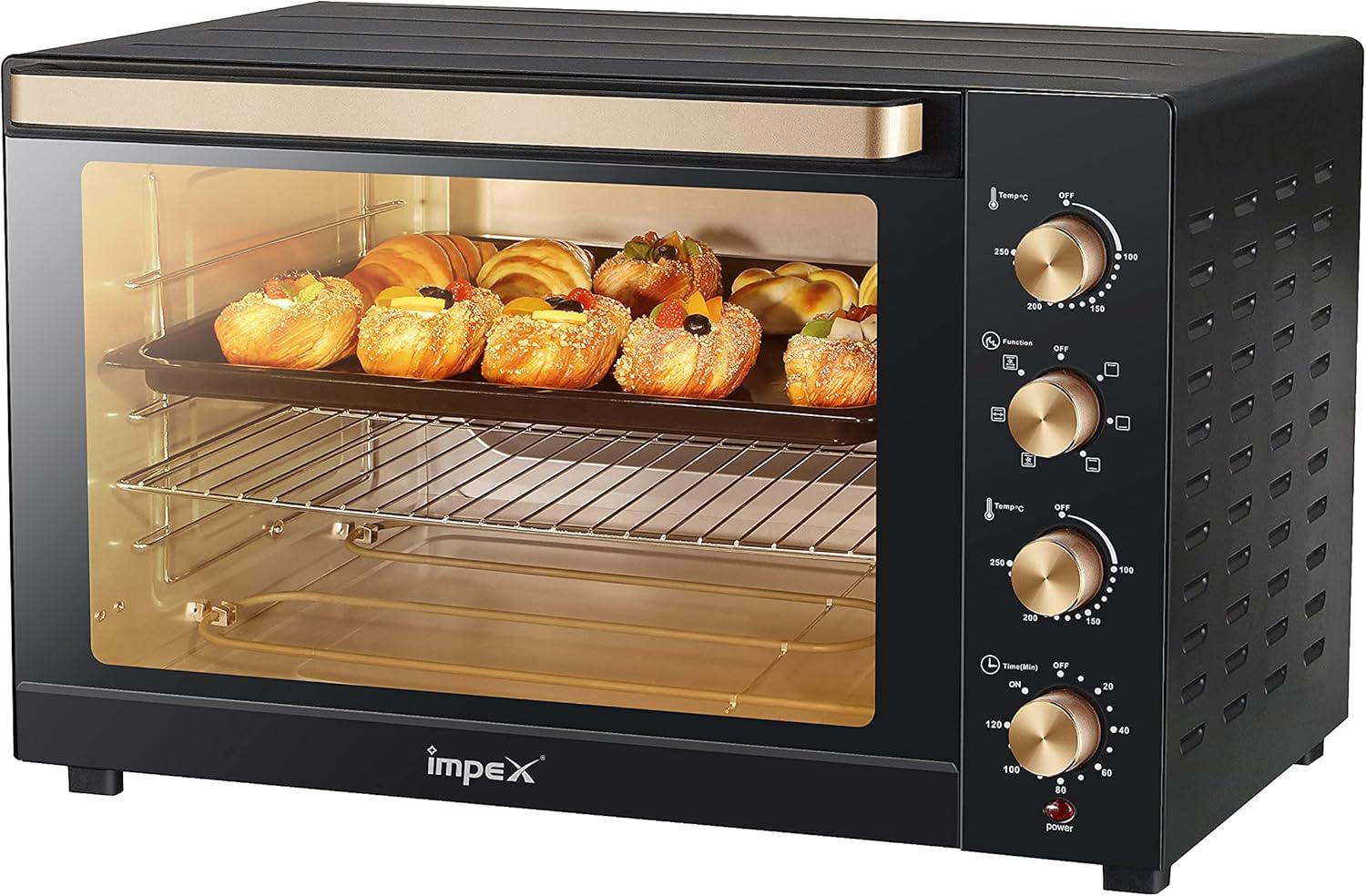

Figura 3.1: Frontal view of the Impex OV 2905 Electric Oven with control panel.

• Pom de control de temperatura: Ajusta la temperatura del forn de 70 °C a 230 °C.
• Botó selector de funcions: Selects heating modes (Off, Upper Heating, Lower Heating, Upper & Lower Heating, Rotisserie).
• Botó del temporitzador: Sets the cooking time up to 60 minutes with a bell ring.
• Llum indicador d'alimentació: S'il·lumina quan el forn està en funcionament.
• Porta del forn: Drop-down door with a metal handle.
• Elements de calefacció: Upper and lower stainless steel M-shape heating elements.
• Reixeta de forn: For placing baking trays and dishes.
• Safata de forn: Per a forn i rostits en general.
• Spit de rostit: Per rostir pollastres sencers o altres carns.
• Safata de molla: Recull les molles i les gotes per facilitar la neteja.

Figure 3.2: Impex OV 2905 Electric Oven with packaging, highlighting its capacity and rotisserie function.

4. Configuració

Proper setup ensures safe and efficient operation of your electric oven.

4.1 Desembalatge

1. Traieu amb cura el forn del seu embalatge.
2. Traieu tots els materials d'embalatge, incloses les pel·lícules o els adhesius protectors.
3. Check for any damage during transit. If the oven is damaged, do not operate it and contact customer support.

4.2 Col·locació

• Col·loqueu el forn sobre una superfície estable, resistent a la calor i anivellada.
• Ensure there is adequate ventilation around the oven. Maintain a minimum clearance of 10 cm (4 inches) on all sides and above the oven to allow for proper airflow.
• Do not place the oven near flammable materials such as curtains, tablecloths, or walls.
• Keep the oven away from water sources or damp ambients.

4.3 Neteja inicial

Before first use, clean the oven to remove any manufacturing residues.

1. Netegeu les superfícies interiors i exteriors del forn amb adamp drap i detergent suau.
2. Wash the baking rack, baking tray, and rotisserie accessories in warm, soapy water. Rinse thoroughly and dry completely.
3. Ensure all parts are dry before plugging in the oven.

4.4 Connexió d'alimentació

• Ensure the oven is switched off (all knobs in the 'OFF' position).
• Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra amb el volum correctetage (220-240V, 50/60 Hz).

5. Instruccions de funcionament

This section details how to operate your Impex OV 2905 Electric Oven for various cooking tasks.

5.1 Funcionament general

1. Lloc de menjar: Position the baking rack or tray with food inside the oven. For rotisserie, ensure the spit is correctly installed.
2. Temperatura establerta: Gireu el Pom de control de temperatura to the desired temperature (70°C - 230°C).
3. Seleccioneu la funció: Gireu el Selector de funcions to choose the desired heating mode:
   • Calefacció superior: Ideal for browning or grilling the top of food.
   • Calefacció inferior: Suitable for baking items that require heat from the bottom.
   • Calefacció superior i inferior: Standard mode for most baking and roasting.
   • rostit: Activates the rotisserie motor for even roasting.
4. Estableix el temporitzador: Gireu el Pom de temporitzador to the desired cooking time (up to 60 minutes). The oven will start heating, and the power indicator light will illuminate. The oven will automatically turn off when the timer reaches zero, and a bell will ring.
5. Monitor de cuina: You can observe the cooking process through the oven door.
6. Acabar la cocció: Once cooking is complete, carefully remove the food using oven mitts. Turn all knobs to the 'OFF' position and unplug the oven if not using it again immediately.

5.2 Preescalfament

For best results, especially in baking, pre-heat the oven to the desired temperature before placing food inside. Set the temperature and function, then set the timer for 10-15 minutes to allow the oven to reach the set temperature.

5.3 Funció del rostidor

The rotisserie function is perfect for roasting whole chickens or large cuts of meat evenly.

1. Secure the food onto the rotisserie spit using the forks provided. Ensure the food is centered and balanced.
2. Introduïu l'extrem punxegut de l'espiga a la presa de l'accionament del rostidor, al costat dret del forn.
3. Rest the square end of the spit on the support bracket on the left side.
4. Select the 'Rotisserie' function using the Function Selector Knob.
5. Establiu la temperatura i el temps de cocció desitjats.
6. When cooking is complete, use the rotisserie handle to carefully remove the hot spit from the oven.

6. Manteniment i Neteja

Regular cleaning and maintenance will prolong the life of your oven and ensure hygienic operation.

6.1 Abans de la neteja

• Desendolleu sempre el forn de la presa de corrent abans de netejar-lo.
• Allow the oven to cool down completely before attempting to clean any part of it.

6.2 Neteja exterior

• Netegeu les superfícies exteriors amb un damp tela.
• Do not use abrasive cleaners, scouring pads, or harsh chemicals, as they may damage the finish.
• Ensure no water enters the control panel area.

6.3 Neteja interior

• Remove the baking rack, baking tray, rotisserie spit, and crumb tray. Wash them in warm, soapy water, rinse, and dry thoroughly.
• Netegeu les parets interiors del forn amb anunciamp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for electric ovens can be used, following the product instructions carefully.
• Clean the crumb tray regularly to prevent grease buildup and potential fire hazards.
• Do not attempt to clean the heating elements directly. Any food residue on them will burn off during operation.

7. Solució De Problemes

If you encounter issues with your oven, refer to the following table for common problems and solutions.

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

Detailed technical specifications for the Impex OV 2905 Electric Oven.

9. Garantia i Suport

Your Impex OV 2905 Electric Oven comes with a 2-year warranty, as indicated by the product information. Please retain your proof of purchase for warranty claims.

Figure 9.1: Impex OV 2905 Electric Oven highlighting key features including a 2-year warranty.

9.1 Informació de la garantia

• The warranty covers manufacturing defects under normal household use.
• It does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.
• For specific warranty terms and conditions, please refer to the warranty card included with your product or contact Impex customer service.

9.2 Atenció al client

If you have any questions, require technical assistance, or need to make a warranty claim, please contact Impex customer support through your retailer or the official Impex website. Provide your product model number (OV 2905) and proof of purchase when contacting support.
