Manual d'usuari de l'inversor d'ona sinusoidal pura DATOUBOSS 2000W

1. Introducció

This manual provides essential information for the safe and efficient operation of your DATOUBOSS 2000W Pure Sine Wave Inverter. This inverter converts 12V DC power from batteries into stable 220V-240V AC 50Hz power, suitable for a wide range of electronic devices and household appliances. Please read this manual thoroughly before use and keep it for future reference.

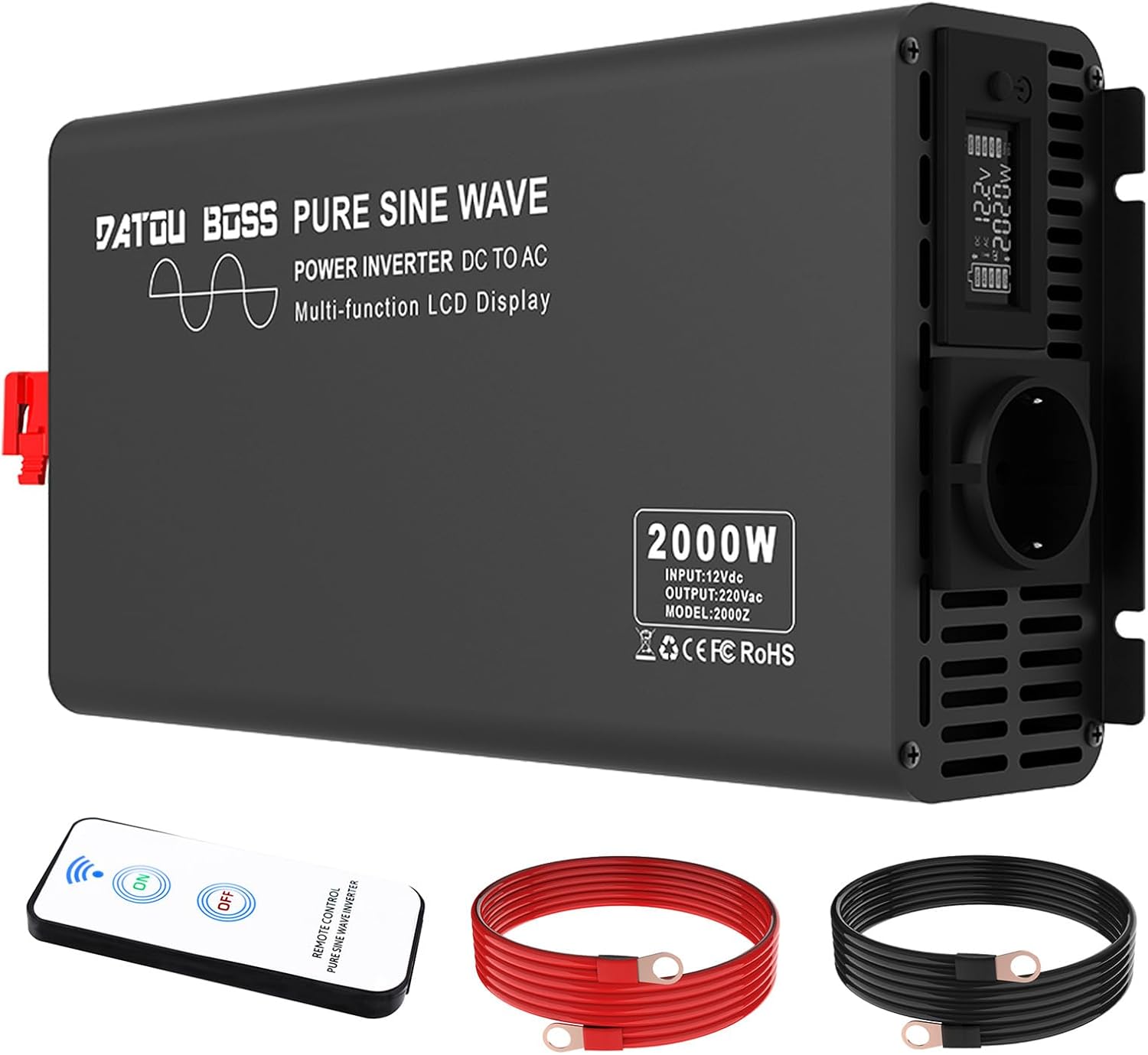

Image: The DATOUBOSS 2000W Pure Sine Wave Inverter, shown with its included remote control and power cables.

2. Informació important de seguretat

Avís: This product must be used with a 12V DC battery. Ensure that the positive and negative poles are connected correctly during the initial setup. If the device does not start, please check if the starting current of the connected device exceeds the rated power of the inverter. If you receive the product with damaged packaging, scratches, or functional problems, please contact us immediately. We will address your concerns as quickly as possible.

• Always connect the inverter to a 12V DC power source.
• Ensure correct polarity when connecting battery cables.
• Do not exceed the inverter's rated power (2000W continuous, 4000W peak).
• Avoid short circuits and reverse polarity connections.
• Assegureu-vos una ventilació adequada per evitar el sobreescalfament.
• Mantingueu l'inversor allunyat de l'aigua, la humitat i els materials inflamables.
• No intenteu desmuntar ni modificar l'inversor.

Image: Icons representing the inverter's safety features, including energy efficiency, rapid heat dissipation, undervoltage protection, overvoltage protection, overload protection, short circuit protection, overheating protection, and reverse polarity protection.

3. Característiques del producte

• Sortida d'ona sinusoïdal pura: Provides clean and stable power, comparable to grid electricity, making it safe for sensitive electronic devices such as laptops, smartphones, and other household appliances.
• Alta eficiència: Conversion efficiency of over 95% ensures minimal power loss during long-term use.
• Pantalla LCD: Automatically detects and displays input and output voltage, power, frequency, and battery level in real-time, providing clear operational status.
• Protecció avançada: Features Soft Start Technology and isolated input/output design. Includes comprehensive safety protections against undervoltage, sobrevaloraciótage, overheating, overload, short circuit, and reverse polarity.
• Construcció duradora: Robust aluminum casing provides advanced protection and promotes efficient heat dissipation, extending the inverter's lifespan.
• Integrated Cooling Fans: Built-in fans effectively circulate air within the inverter for optimal cooling.

Image: An illustration demonstrating the smooth, stable pure sine wave output of the inverter, highlighting its efficient and stable power delivery.

Imatge: Una explosió view of the inverter showing the internal cooling fans, illustrating how they provide effective air circulation.

4. Configuració i instal·lació

4.1 Contingut del paquet

Before installation, please verify that all items are present in the package:

• Manual d'usuari
• 2 x 20-Inch Cables (Red and Black)
• Inversor d'ona sinusoïdal pura de 2000 W
• 1 x comandament a distància

4.2 Connecting the Inverter

1. Prepareu la bateria: Ensure your 12V DC battery is fully charged and in good condition.
2. Connectar els cables:
   • Connect the red (positive) cable to the positive (+) terminal of the inverter and then to the positive (+) terminal of the battery.
   • Connect the black (negative) cable to the negative (-) terminal of the inverter and then to the negative (-) terminal of the battery.

   Important: Always ensure correct polarity. Incorrect connection can damage the inverter and battery.

3. Connexions segures: Tighten all connections firmly to prevent loose contacts and ensure optimal power transfer.
4. Col·locació: Place the inverter in a well-ventilated area, away from direct sunlight, heat sources, and moisture. Ensure there is enough space around the unit for proper airflow.

Imatge: Una imatge detallada view of the inverter's connection points, including the fan, pure copper terminals, power switch, and AC outlets, illustrating proper connection setup.

5. Funcionament

5.1 Engegada/apagada

1. Per encendre: After connecting the inverter to the battery, press the power button on the inverter. The LCD display will illuminate, showing real-time data.
2. Per apagar: Press the power button again. The LCD display will turn off.

5.2 Wireless Remote Control Pairing

If your model includes a remote control, follow these steps to pair it:

1. Press and hold the power button on the inverter until a blinking red dot appears on the display.
2. Point the remote control towards the inverter and press the power button on the remote control.
3. The pairing process between the inverter and the remote control is now complete.

5.3 Connexió d'aparells

Once the inverter is powered on, you can connect your AC appliances to the EU outlets on the inverter. Ensure the total wattagLa potència dels aparells connectats no supera la potència nominal contínua de l'inversor (2000 W).

Image: The inverter shown powering various household and electronic devices, including an iPad, mobile phones, microwave, laptop, camera, water kettle, hairdryer, chainsaw, and refrigerator, demonstrating its versatility.

Image: Icons illustrating common applications for the inverter, such as powering laptops, TVs, microwaves, coffee machines, hairdryers, and air conditioners.

Image: Icons illustrating the inverter's capability to power various tools, including electric chainsaws, electric drills, cutting machines, and circular saws.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre inversor.

• Neteja: Netegeu periòdicament l'exterior de l'inversor amb un drap sec i suau. No utilitzeu netejadors líquids ni dissolvents.
• Ventilació: Ensure the cooling vents are free from dust and obstructions. Blocked vents can lead to overheating.
• Connexions: Regularly check all cable connections to ensure they are secure and free from corrosion. Loose connections can cause power loss or overheating.
• Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu l'inversor en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.

7. Solució De Problemes

Si teniu problemes amb l'inversor, consulteu els següents problemes i solucions habituals:

If the problem persists after attempting these solutions, please contact DATOUBOSS customer support.

8. Especificacions

9. Garantia i Suport

DATOUBOSS is committed to providing high-quality products and excellent customer service. Your inverter comes with a manufacturer's warranty.

• Període de garantia: El producte està cobert per una garantia de 24 mesos.
• Política de devolució: Gaudeix d'una garantia de devolució incondicional de 30 dies.
• Atenció al client: DATOUBOSS offers 24/7 customer support. If you have any questions, concerns, or require assistance, please contact us. We are recognized by over 100,000 customers in more than 100 countries worldwide.

Image: A customer service representative ready to assist, alongside icons indicating 24-hour support, a 30-day return guarantee, and a 24-month warranty.

10. Aplicacions del producte

The DATOUBOSS Pure Sine Wave Inverter is an excellent choice for various applications, providing reliable power wherever you need it.

• Ús mòbil: Perfect for RVs, trucks, cars, and boats, allowing you to power devices on the go.
• Activitats a l'aire lliure: Ideal per camping, road trips, and outdoor events, providing power for lights, small appliances, and charging devices.
• Home and Office: Can be used as a backup power source for essential electronics during outages or for powering devices in remote areas.
• Work Sites: Suitable for powering various tools and equipment in field work or construction.

Image: A family enjoying an outdoor meal near their camper van, with the inverter providing power, illustrating its use in campescenaris de creació.

Image: A couple relaxing outdoors with a camper van in the background, using the inverter to power their devices, showcasing its utility in remote settings.

Image: People gathered around a barbecue, with the inverter visible, suggesting its use for outdoor gatherings and events.

Image: A couple enjoying a camping trip by a lake, with the inverter providing power for their setup.

Image: A couple camping and playing guitar, with the inverter nearby, highlighting its use for leisure activities.

Image: A collage of images showing the inverter being used in various situations: camping, outdoor office, emergency, field work, recreation, and during a power outage, emphasizing its versatility for converting power anytime, anywhere.

Image: A camper van parked by the sea with a solar panel, illustrating the inverter's use in mobile and off-grid setups.
