MAXXMEE Automatic Pasta Machine User Manual

1. Introducció

Thank you for choosing the MAXXMEE Automatic Pasta Machine. This appliance is designed to simplify the process of making fresh, homemade pasta, allowing you to enjoy various pasta types with minimal effort. Its automatic mixing, kneading, and dispensing functions ensure consistent results. Please read this manual thoroughly before first use to ensure safe and optimal operation.

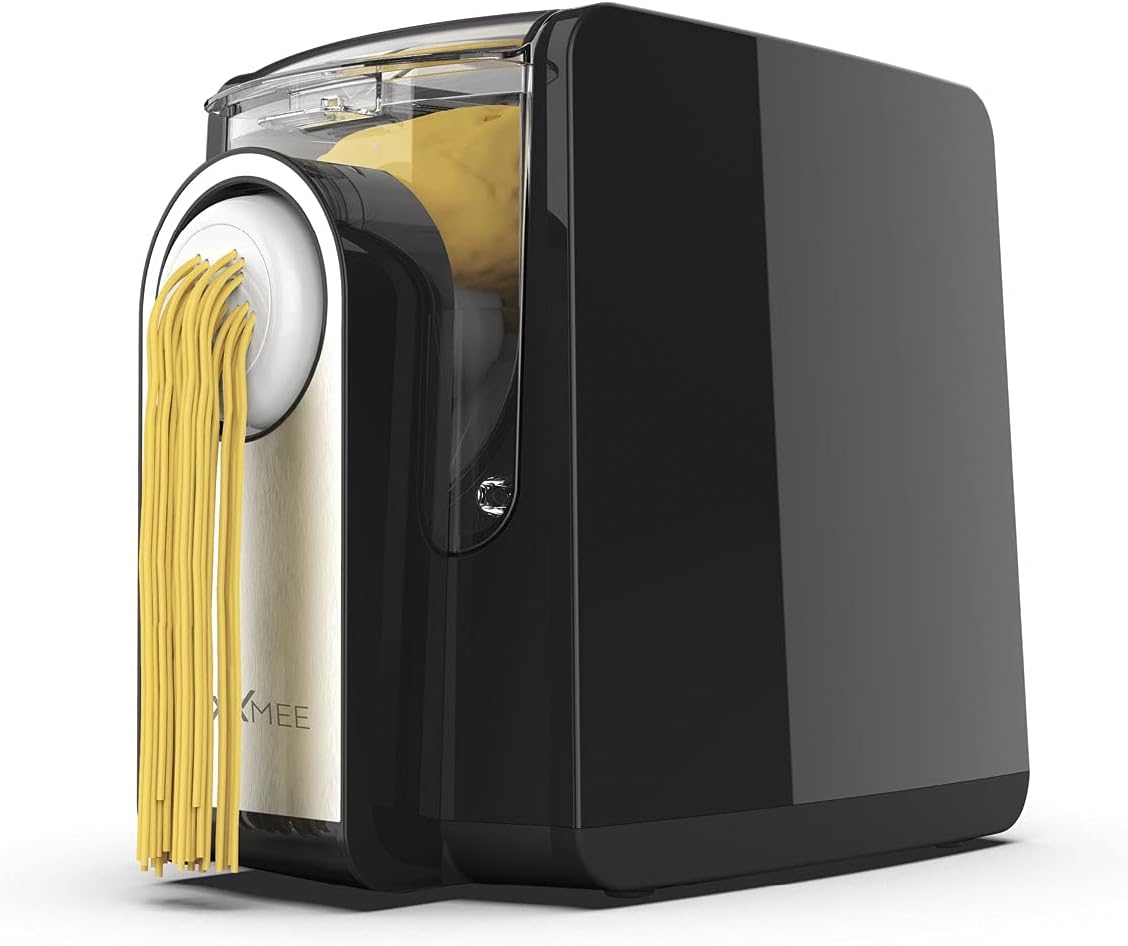

Image 1.1: The MAXXMEE Automatic Pasta Machine in operation, extruding fresh spaghetti.

2. Instruccions de seguretat importants

Per reduir el risc d'incendi, descàrrega elèctrica o lesions, seguiu sempre les precaucions de seguretat bàsiques quan feu servir aparells elèctrics.

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No submergiu la unitat principal, el cable ni l'endoll en aigua ni en altres líquids.
• Desendolleu la presa de corrent quan no estigui en ús, abans de posar o treure peces i abans de netejar.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Eviteu el contacte amb les peces mòbils.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Ensure all parts are correctly assembled before operating the machine.
• Never insert hands or utensils into the mixing chamber or extrusion opening while the machine is operating.

3. Components i peces

Familiarize yourself with the components of your MAXXMEE Automatic Pasta Machine:

Imatge 3.1: acabatview of the MAXXMEE Automatic Pasta Machine and its accessories.

• Unitat principal: Contains the motor, mixing chamber, and control panel.
• Tapa: Covers the mixing chamber.
• Extrusion Head: Where the molding discs are attached.
• Molding Discs (7 included): Interchangeable discs for various pasta shapes (e.g., spaghetti, linguine, fettuccine, macaroni).
• Ravioli Mold (1 included): For making homemade ravioli.
• Raspador: Tool for cleaning and assisting with pasta cutting.
• Measuring Cups (2 included): One for flour and one for liquid, ensuring precise ingredient ratios.

4. Configuració

Before first use, unpack all components and wash all removable parts (molding discs, mixing chamber, lid, measuring cups, scraper) with warm, soapy water. Rinse thoroughly and dry completely. The main unit should be wiped with a damp tela.

1. Place the main unit on a stable, flat, and dry surface. Ensure there is enough space around the machine for operation and ventilation.
2. Assemble the mixing chamber onto the main unit, ensuring it clicks securely into place.
3. Attach the extrusion head to the front of the mixing chamber.
4. Select the desired molding disc for your pasta type and insert it into the extrusion head. Secure it by twisting the locking ring.
5. Place the lid onto the mixing chamber.
6. Plug the power cord into a grounded electrical outlet. The digital display should illuminate.

Imatge 4.1: Primer pla view of the machine's front, showing the extrusion head and a molding disc.

5. Instruccions de funcionament

The MAXXMEE Automatic Pasta Machine simplifies pasta making into a few easy steps.

5.1 Preparació dels ingredients

The key to perfect pasta is the correct ratio of flour to liquid. Use the provided measuring cups for accuracy. Typically, a ratio of 1 cup of liquid (water or egg mixture) to 2.5-3 cups of flour is a good starting point, but this can vary based on flour type and humidity. The dough should be crumbly, not sticky or too dry.

5.2 Making Pasta

1. Ensure the machine is properly assembled and the desired molding disc is in place.
2. Add the measured flour into the mixing chamber.
3. Slowly pour the measured liquid (water, egg mixture) into the liquid inlet on the lid while the machine is running. The machine will automatically begin mixing and kneading the dough.
4. Monitor the dough consistency. It should form small, crumbly pieces. If it's too wet, add a small amount of flour; if too dry, add a few drops of water.
5. Once the dough is kneaded to the correct consistency, the machine will automatically begin extruding the pasta through the selected molding disc.
6. As the pasta extrudes, use the provided scraper or a knife to cut the pasta to your desired length.
7. Collect the fresh pasta on a drying rack or a floured surface.
8. Repeat the process until all dough is extruded.

Image 5.1: The pasta machine actively extruding fresh pasta.

5.3 Panell de control digital

The digital control panel allows you to start and stop the machine. It also features a countdown function, indicating the remaining time for mixing and kneading before extrusion begins.

6. Neteja i Manteniment

Regular cleaning ensures the longevity and hygienic operation of your pasta machine.

1. Always unplug the machine from the power outlet before cleaning.
2. Disassemble all removable parts: lid, mixing chamber, extrusion head, molding disc, ravioli mold, and measuring cups.
3. Most removable parts (made of PVC polypropylene) are dishwasher safe. Alternatively, wash them by hand with warm, soapy water. Use the scraper to remove any stubborn dough residue from the discs and chamber.
4. Netegeu la unitat principal amb l'anunciamp tela. No submergiu la unitat principal a l'aigua.
5. Assegureu-vos que totes les peces estiguin completament seques abans de tornar a muntar o emmagatzemar la màquina.
6. Guardeu la màquina i els seus accessoris en un lloc net i sec.

7. Solució De Problemes

If you encounter issues with your MAXXMEE Automatic Pasta Machine, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact MAXXMEE customer support.

8. Especificacions

9. Garantia i Suport

Specific warranty information for the MAXXMEE Automatic Pasta Machine is not available in the provided product data. Please refer to the product packaging, the manufacturer's official weblloc web o el vostre punt de compra per obtenir els termes i condicions detallats de la garantia.

For technical support, spare parts, or further assistance, please contact MAXXMEE customer service through the contact information provided with your product or on the official MAXXMEE weblloc.
