1. Introducció
This manual provides comprehensive instructions for the installation, operation, and maintenance of your new Generic Helmet Sink. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.
2. Producte acabatview
The Generic Helmet Sink is a durable and elegantly designed kitchen sink made from high-quality Stainless Steel. It features a classic style and is designed for countertop installation, making it a versatile addition to various kitchen setups.
Característiques principals:
- Material: acer inoxidable
- Design: Classic & Elegant
- Instal·lació: taulell
- Origin: Made In India
3. Configuració i instal·lació
Before beginning installation, ensure you have all necessary tools and components. It is recommended to have a qualified plumber perform the installation.
3.1 Desembalatge i inspecció
Carefully remove the sink and all accessories from the packaging. Inspect all components for any signs of damage. If any parts are missing or damaged, do not proceed with installation and contact customer support immediately.

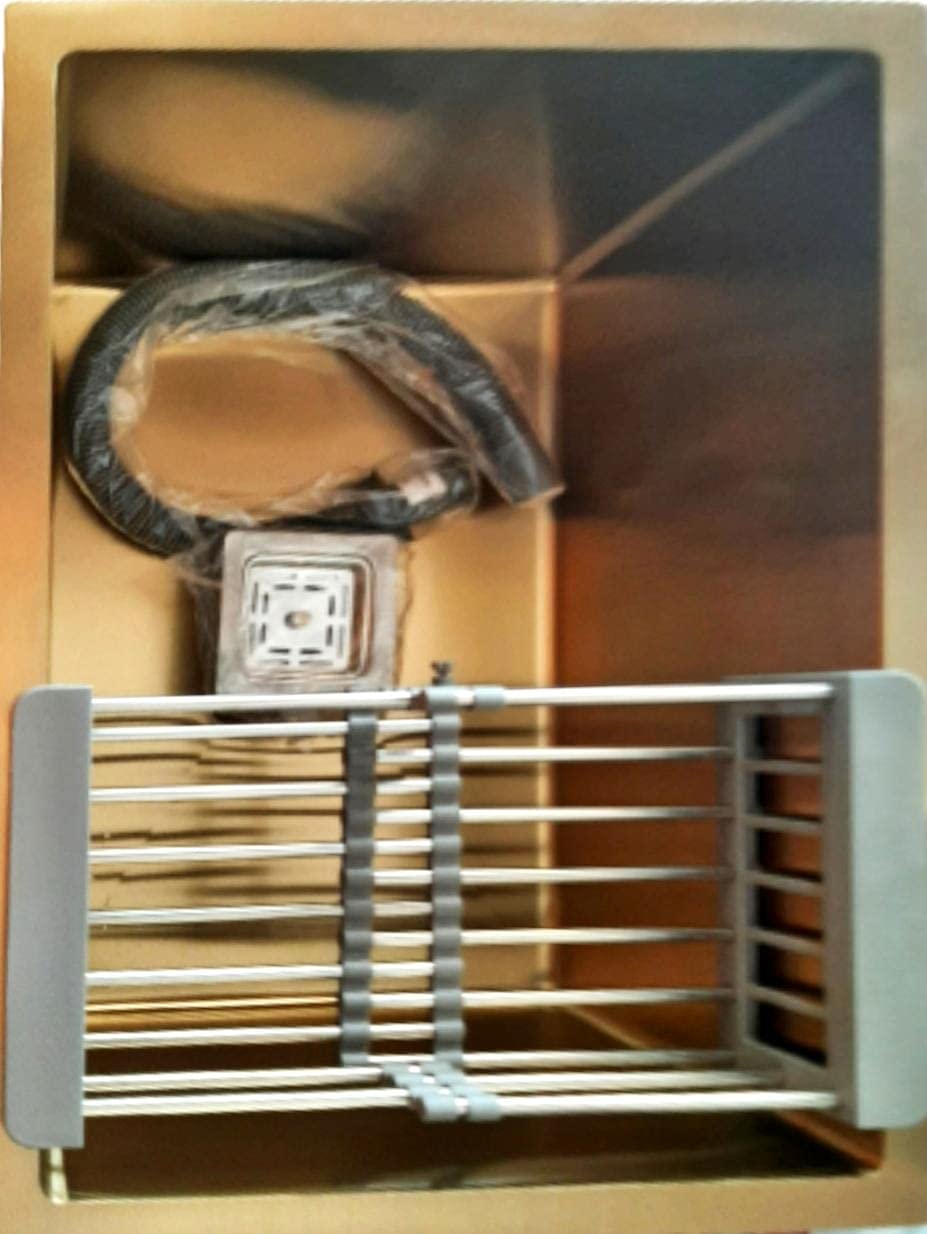

Image: Contents of the Helmet Sink package, showing the sink basin, a flexible drain pipe, a square drain assembly, and a roll-up drying rack.
3.2 Eines necessàries (no incloses)
- Cinta mètrica
- Llapis
- Jigsaw or appropriate cutting tool for countertop material
- Trepant
- Silicone sealant and caulk gun
- Clau ajustable
- Joc de tornavís
3.3 Installation Steps (Countertop)
- Preparar el taulell: Place the sink upside down on the countertop in the desired location. Trace the outline of the sink onto the countertop. Measure and mark the cut-out line, ensuring it is slightly smaller than the sink's rim to allow for proper support.
- Talla l'obertura: Carefully cut the opening in the countertop using a jigsaw or appropriate cutting tool. Ensure the edges are smooth.
- Install Faucet and Drain Assembly: Before placing the sink into the countertop, install the faucet (if applicable) and the drain assembly onto the sink according to their respective instructions. Apply plumber's putty or sealant around the drain opening as required.
- Aplicar segellador: Apply a bead of silicone sealant around the perimeter of the countertop opening.
- Col·locació de la pica: Carefully lower the sink into the countertop opening, ensuring it is properly aligned. Press down firmly to create a seal with the silicone.
- Assegura la pica: Attach the mounting clips (if provided with the sink or countertop) to the underside of the sink and tighten them to secure the sink to the countertop.
- Connecteu la fontaneria: Connect the drain pipe to the P-trap and the water supply lines to the faucet. Ensure all connections are tight to prevent leaks.
- Prova de fuites: Turn on the water supply and check all connections for leaks. Run water into the sink to ensure proper drainage.
4. Instruccions de funcionament
The Generic Helmet Sink is designed for standard kitchen use. Its primary function is for washing dishes, food preparation, and general kitchen tasks.
4.1 Ús general
- Ensure the drain stopper is open for proper drainage during use.
- Avoid pouring harsh chemicals or abrasive substances directly into the sink, as this may damage the finish.
- Do not place extremely hot items directly on the sink surface for extended periods, although stainless steel is highly heat resistant.
4.2 Drain Assembly
The sink is equipped with a central drain. Ensure the drain basket is regularly cleared of food debris to prevent clogs and maintain efficient drainage.
5. Manteniment i cura
Proper care and maintenance will extend the life and preserve the appearance of your Stainless Steel Helmet Sink.
5.1 Neteja diària
- Després de cada ús, esbandiu bé l'aigüera amb aigua tèbia per eliminar qualsevol resta o residu de menjar.
- Netegeu amb un drap sec: For best results and to prevent water spots, wipe the sink surface dry with a soft, clean cloth after each use.
5.2 Neteja profunda
- Use a mild dish soap or a non-abrasive stainless steel cleaner with a soft sponge or cloth.
- Always rub in the direction of the grain of the stainless steel to avoid scratching.
- Rinse thoroughly and dry immediately to prevent water stains.
5.3 What to Avoid
- Netejadors abrasius: Do not use steel wool, abrasive pads, or harsh scouring powders, as these can scratch the surface.
- Bleach and Acids: Avoid cleaners containing chlorine bleach, hydrochloric acid, or other strong acids, as they can corrode stainless steel.
- Objectes metàl·lics: Do not leave steel or cast iron objects in the sink for prolonged periods, as they can cause rust stains.
6. Solució De Problemes
This section addresses common issues you might encounter with your Helmet Sink.
| Problema | Causa possible | Solució |
|---|---|---|
| Drenatge lent | Food debris or grease buildup in the drain. | Clear the drain basket. Use a drain cleaner suitable for kitchen sinks, or a plunger. For severe clogs, professional help may be required. |
| Water Spots/Stains | Hard water deposits or not drying the sink after use. | Wipe the sink dry after each use. For existing spots, use a vinegar solution (diluted) or a stainless steel cleaner, then rinse and dry. |
| Esgarrapades a la superfície | Use of abrasive cleaners or sharp objects. | Minor scratches can sometimes be blended with a fine abrasive pad (e.g., Scotch-Brite) rubbing in the direction of the grain. Avoid abrasive materials in the future. |
| Leaking from Connections | Loose plumbing connections or worn seals. | Tighten all connections. Check and replace any worn washers or seals. If the leak persists, consult a plumber. |
7. Especificacions
| Atribut | Detall |
|---|---|
| Marca | Genèric |
| Model | Helmet Sink (ASIN: B09C8GM23V) |
| Material | Acer inoxidable |
| Mida | Mitjana |
| Estil | Clàssic |
| Tipus d'instal·lació | Taulell |
| Tipus d'acabat | Raspallat |
| Forma | Rectangular |
| Tipus de drenatge | Central |
| Instruccions de cura del producte | Netegeu amb un drap sec |
| Fabricant | casc |
8. Informació de la garantia
This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact the manufacturer directly.
9. Atenció al client
If you have any questions, require assistance with installation, or need to report an issue, please contact our customer support team. For the most up-to-date contact information, please visit the official Generic brand weblloc web o consulteu la documentació de la compra.
Thank you for choosing Generic.
