EPEVER 5000W Pure Sine Wave Inverter User Manual

1. Producte acabatview

The EPEVER 5000W Pure Sine Wave Inverter is an advanced off-grid power solution designed to provide uninterruptible power. It integrates an inverter, an 80A MPPT solar charge controller, and a battery charger into a single unit. This hybrid inverter supports both battery and non-battery modes to efficiently charge loads, making it suitable for various applications including household appliances, power tools, and industrial equipment.

Figure 1: EPEVER 5000W Pure Sine Wave Inverter and included accessories.

2. Característiques clau

• Sistema integrat: Combines a 5KW off-grid inverter, an 80A MPPT solar charge controller, and a battery charger.
• Funcionament flexible: Supports operation with or without a battery, offering versatility for different power setups.
• Sortida d'ona sinusoïdal pura: Provides stable AC 220V-230V output, suitable for sensitive electronics.
• Ampli rang d'entrada: Accepts 220-230Vac input and supports up to 4000W solar input with a maximum PV open circuit voltage de 500V.
• Compatibilitat de la bateria: Compatible with Lead-Acid (AGM, Flooded, User-defined) and Lithium batteries, with settable charging and discharging currents.
• Múltiples modes de càrrega: Features three charging modes: Solar Priority, Utility & Solar, and Solar Only.
• Modes de sortida: Offers two output modes: Utility Priority and Inverter Priority.
• Proteccions integrals: Includes protection against PV reversal, utility over-voltage/sub-voltage, battery over-charge/over-discharge, anti-surge, anti-reverse, output overload, and short circuit.
• Comunicació: Galvanic isolated RS-485 port for communication, with optional external BMS-link module for battery management system integration.
• Visualització: Features a 4.2-inch display for real-time status and comprehensive settings.

Figura 2: Mésview of the EPEVER 5000W Solar Inverter's capabilities.

3. Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet. Si falta algun element o està malmès, poseu-vos en contacte amb el vostre proveïdor immediatament.

• EPEVER 5000W Pure Sine Wave Inverter Unit
• Manual d'usuari
• Maquinari de muntatge (cargols, ancoratges)
• Connection Terminals and Accessories (e.g., MC4 connectors, screwdriver, wrench)

Figure 3: Contents of the EPEVER Inverter package, including the main unit, user manual, and various connection accessories.

4. Informació de seguretat

Before installation and operation, please read all instructions carefully. Failure to follow these instructions may result in electric shock, fire, or severe injury. Keep this manual for future reference.

• La instal·lació ha de ser realitzada per personal qualificat.
• Assegureu-vos que tot el cablejat estigui correctament dimensionat i aïllat.
• Do not expose the inverter to rain, snow, spray, or any liquids.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de l'inversor per evitar el sobreescalfament.
• Disconnect all power sources (PV, battery, utility) before performing any maintenance or wiring.
• This inverter is designed for single-phase systems and does not support parallel operation.

5. Instal·lació i configuració

5.1 Muntatge de l'inversor

Mount the inverter vertically on a solid surface, ensuring sufficient clearance for ventilation. Avoid direct sunlight, high temperatures, and humid environments.

5.2 Connexions de cablejat

Follow the connection diagram carefully. Ensure all connections are secure and polarity is correct.

• Connexió de la bateria: Connect the 48V DC battery bank to the inverter's battery terminals. Observe correct polarity (+ to + and - to -).
• Connexió del panell fotovoltaic: Connect the solar panel array to the MPPT solar input terminals. Ensure the PV open circuit voltage no supera els 500V.
• Connexió d'entrada de CA: Connect the utility grid or generator AC input to the inverter's AC input terminals.
• Connexió de sortida de CA: Connect your loads (home appliances) to the inverter's AC output terminals.

Figure 4: Typical connection diagram for the EPEVER Inverter, illustrating connections for PV, generator/utility, battery storage, and household appliances. Note: This model does not support parallel stacking.

Figura 5: Part posterior i inferior views of the inverter, highlighting the connection ports and the product specification label.

6. Modes de funcionament

The inverter offers various operating modes to optimize power usage based on your specific needs.

6.1 modes de càrrega

• Prioritat solar: Solar power is the primary source for charging batteries and supplying loads. Utility power is used only when solar power is insufficient.
• Utility & Solar: Both solar and utility power are used to charge batteries and supply loads simultaneously.
• Només solar: Only solar power is used for charging and supplying loads. Utility power is not utilized.

6.2 Modes de sortida

• Prioritat d'utilitat: Utility power is the primary source for loads. The inverter only provides power when utility power is unavailable.
• Prioritat de l'inversor: The inverter is the primary source for loads, drawing power from batteries (charged by solar). Utility power is used as a backup.

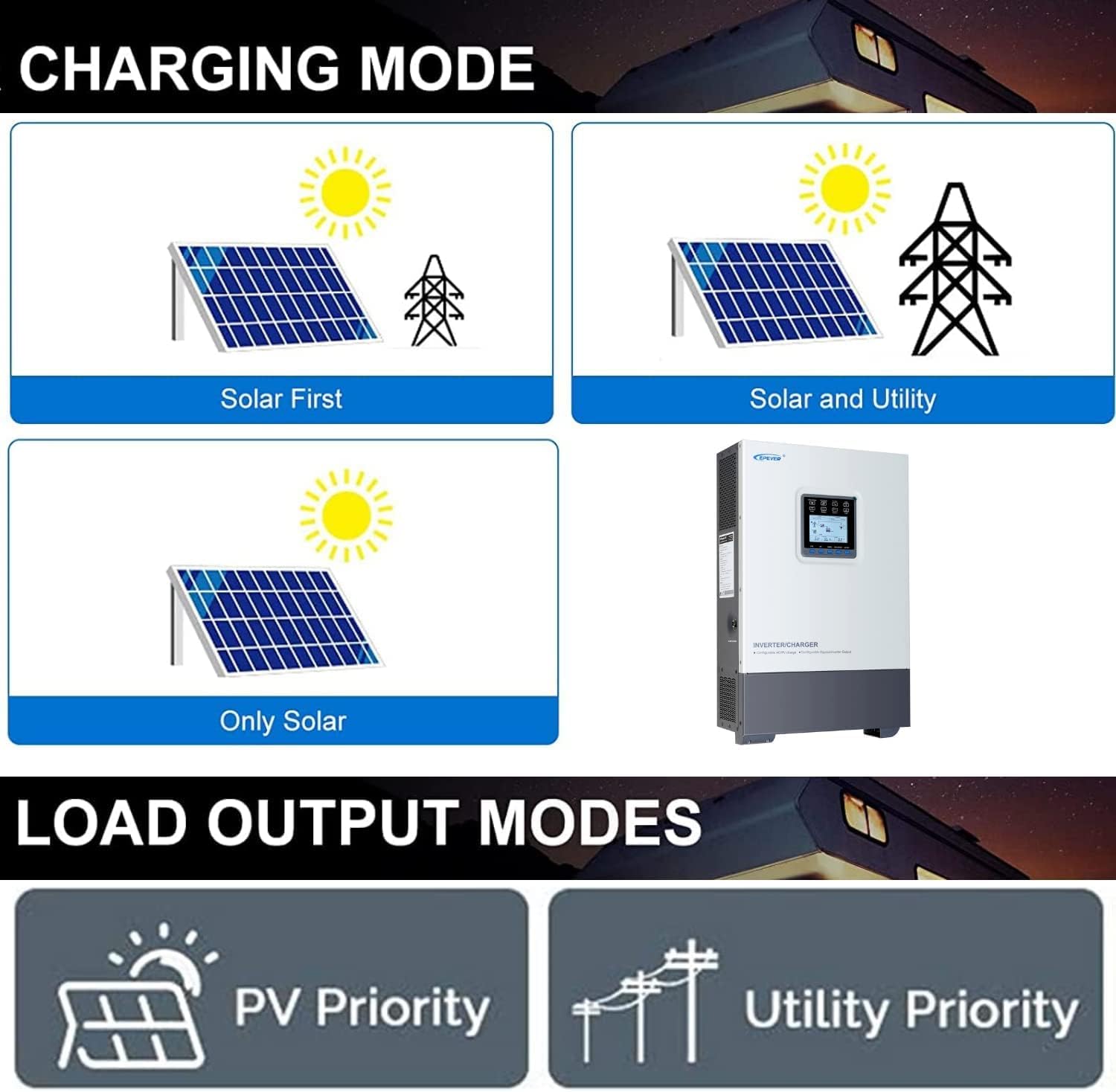

Figure 6: Visual representation of the available charging modes (Solar First, Solar and Utility, Only Solar) and load output modes (PV Priority, Utility Priority).

6.3 Battery vs. Non-Battery Mode

The inverter can operate with or without a connected battery bank.

• Mode de bateria: The system utilizes a battery bank for energy storage, providing backup power and enabling off-grid operation. This mode supports various battery types including Lead-Acid (AGM, Flooded, User-defined) and Lithium-ion batteries.
• Non-Battery Mode: The inverter can operate directly from solar and/or utility power to supply loads without a battery. This is useful for direct solar consumption or grid-tied applications without storage.

Figure 7: Diagrams illustrating the power flow in Non-Battery Mode (charging with solar and utility simultaneously) and Battery Mode (utilizing battery storage).

Figure 8: The inverter supports various 48V battery types, including AGM, Flooded, User-defined Lead-Acid, Lithium, and Lithium-ion batteries.

7. Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del vostre inversor.

• Neteja: Periodically clean the inverter's exterior and ventilation openings to prevent dust buildup. Use a dry, soft cloth.
• Connexions: Annually check all electrical connections for tightness and corrosion. Re-tighten if necessary.
• Medi ambient: Assegureu-vos que l'entorn d'instal·lació es mantingui dins dels rangs de temperatura i humitat especificats.
• Firmware: Comproveu el del fabricant weblloc web per a qualsevol actualització de firmware disponible.

Figure 9: Illustration of how to access internal components for inspection or maintenance by removing the bottom cover.

Figure 10: Internal component layout of the inverter, showing key parts such as H-bridge, control circuit, and communication interfaces.

8. Solució De Problemes

Aquesta secció ofereix solucions a problemes comuns que podeu trobar.

9. Especificacions

Detailed technical specifications for the EPEVER 5000W Pure Sine Wave Inverter.

Figure 11: Dimensions and summarized electrical specifications of the EPEVER 5000W Solar Inverter.

10. Garantia i Suport

For warranty information and technical support, please refer to the official EPEVER weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Fabricant: SEMPRE

Weblloc: www.epever.com (Nota: Això és un marcador de posició) URL. Refer to your product documentation for the official support weblloc.)
