Informació important de seguretat
Please read and understand all instructions before installing and using this product. Failure to follow these instructions could result in injury or death. Keep this manual for future reference.
- Superviseu sempre els nens al voltant de la banyera d'hidromassatge.
- Do not use the hot tub if the temperature exceeds 40°C (104°F).
- Consulteu un metge abans d'utilitzar-lo si teniu problemes de salut, esteu embarassada o sou una persona gran.
- No utilitzeu aparells elèctrics a prop de la banyera d'hidromassatge.
- Ensure the hot tub is placed on a flat, stable surface capable of supporting its full weight when filled.
- Always use the fitted cover when the hot tub is not in use to retain heat and prevent unsupervised access.
Contingut del paquet
Verifiqueu que tots els components que s'enumeren a continuació s'inclouen al paquet:
- (1) Inflatable Hot Tub Unit
- (1) Filter Pump Unit
- (1) Fitted Cover
- (1) Mànega inflable
- (1) Coixinet de terra
- (1) Kit de reparació
- (1) Remote Control (for pump and lights)
- (1) LED Light Strip
Image: All components included with the SereneLife Inflatable Hot Tub.
Instruccions de configuració
- Tria la ubicació: Select a flat, stable, and level surface free from sharp objects. Ensure the area can support the hot tub's weight when filled (approximately 910L/240Gal of water plus occupants).
- Lay Ground Pad: Place the included ground pad on the chosen surface.
- Unfold Hot Tub: Carefully unfold the inflatable hot tub unit on top of the ground pad.
- Inflate Hot Tub: Connect the inflatable hose to the hot tub's inflation valve and the pump unit. Use the pump to inflate the hot tub until it is firm but not over-inflated.
- Connecteu la bomba del filtre: Attach the filter pump unit to the hot tub's water inlet and outlet connections. Ensure all connections are secure.
- Omplir amb aigua: Fill the hot tub with fresh water to the recommended fill line.
- Instal·lar llums LED: Position the LED light strip as desired around the base or inside the hot tub.

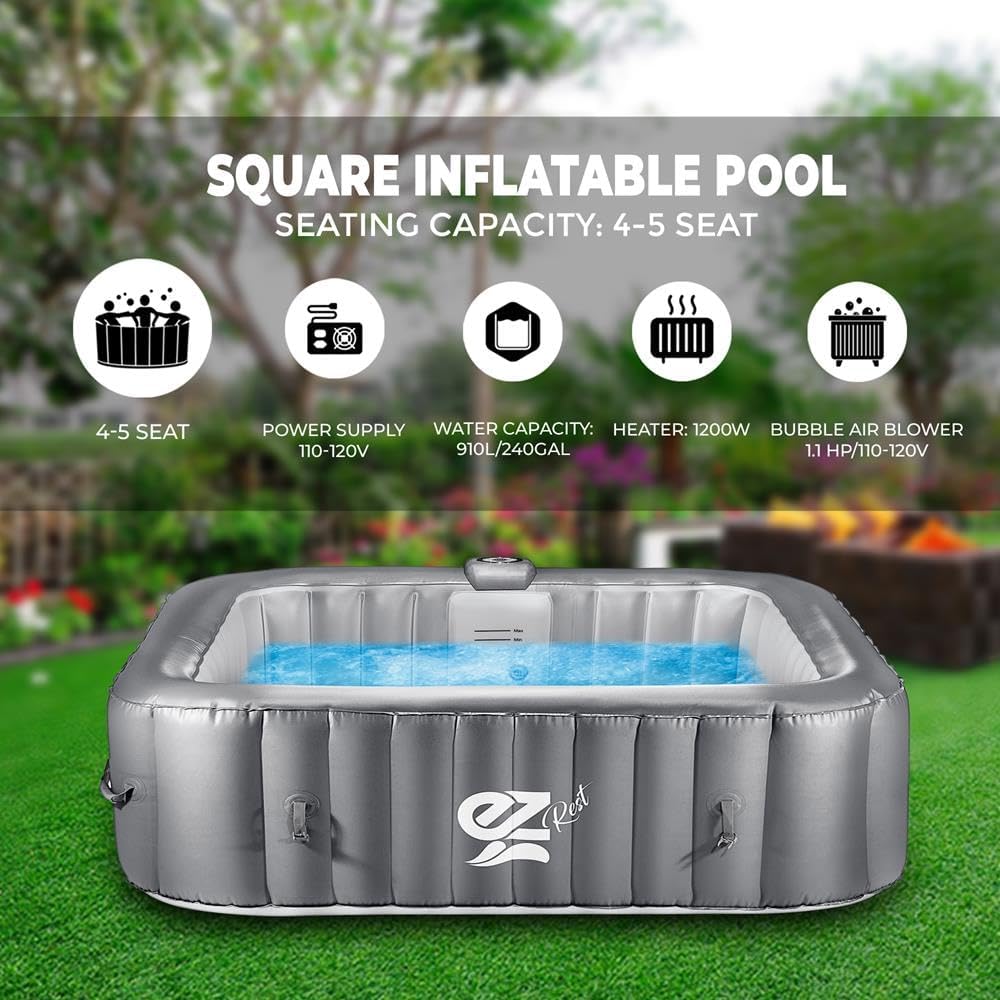

Image: Inflatable hot tub during the setup process.
Instruccions de funcionament
The hot tub features a digital control panel and a remote control for easy operation.
Panell de control digital
- Potència: Press to turn the hot tub system on or off.
- Escalfador: Activate the heater to warm the water. The temperature range is 38°C to 40°C (100.4°F to 104°F). Heating time will vary based on ambient temperature and initial water temperature.
- Bombolles de bombolles: Press to activate the 130 high-powered bubble jets. The bubble jets will automatically stop after 20 minutes of continuous operation. To restart, wait 10 minutes and press the button again.
- Filtre: Activates the water filtration system.
Control remot
The remote control allows you to manage the pump temperature, massage system, and LED lights from within or near the hot tub.
Image: Remote control for operating the hot tub functions.
Il·luminació LED
The integrated LED lights offer 7 different colors (White, Green, Yellow, Blue, Red, Purple, Light Blue) and two lighting modes (single color or color changing).
Image: Hot tub with LED lighting displaying multiple color options.
Manteniment
- Cartutx de filtre: Regularly clean and replace the filter cartridge to ensure optimal water quality and pump performance. Refer to the filter pump manual for specific instructions.
- Tractament de l'aigua: Use appropriate hot tub chemicals to maintain proper water chemistry. Test water regularly and adjust as needed.
- Neteja: Periodically drain and clean the hot tub interior with a mild, non-abrasive cleaner. Rinse thoroughly.
- Cura de la coberta: Keep the fitted cover clean and free of debris. Ensure it is securely fastened when not in use to protect the hot tub and retain heat.
- Emmagatzematge: When not in use for extended periods, drain, clean, and thoroughly dry the hot tub. Deflate and store in a cool, dry place.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Hot tub not heating. | Filter dirty, low water level, ambient temperature too low, heater malfunction. | Clean/replace filter, ensure water is at correct level, allow more time for heating in cold weather, contact support if heater fails. |
| Bubble jets not working. | Automatic shut-off activated, air blower malfunction. | Wait 10 minutes and press bubble button again. If issue persists, contact support. |
| La qualitat de l'aigua és deficient. | Dirty filter, improper chemical balance. | Clean/replace filter, test and adjust water chemistry. |
| Hot tub losing air. | Leak in inflatable structure, valve not sealed properly. | Check all valves for secure closure. Use repair kit for small punctures. Contact support for larger leaks. |
Especificacions
- Model: SLSPA6SQA
- Capacitat de seients: 6-Seients
- Capacitat d'aigua: 910 L / 240 Gal
- Dimensions del producte (L x A x A): 73'' x 73'' x 25''
- Materials de construcció: Banyera d'hidromassatge i coberta superior de PVC laminat i durador amb paper d'alumini a l'interior
- Bubble Air Blower: 1.1 hp / 110-120V
- Escalfador: 1200W
- Font d'alimentació: 110-120V
- Caudal: 420 Gal/Hr.
- Interval de temperatura: 38-40 °C (100.4-104 °F)
- Bombolles de bombolles: 130
- LED Light Length: 17.1 peus
- Comandament a distància: Battery Operated for LED, requires (1) x Button Battery
- Pes de l'article: 63.9 lliures
Image: Key dimensions of the hot tub.
Garantia i Suport
For warranty information, technical support, or to order replacement parts, please contact SereneLife customer service. Refer to the product packaging or the official SereneLife weblloc web per obtenir les dades de contacte més actualitzades.
Weblloc: SereneLife Official Store
