Liectroux i5 Pro Cordless Wet and Dry Vacuum Cleaner User Manual

1. Informació de seguretat

Please read all instructions carefully before operating the Liectroux i5 Pro vacuum cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• No submergiu l'aparell, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
• Use only the power adapter supplied with the appliance.
• Do not use the appliance if the power cord or plug is damaged. Contact customer service for repair.
• Do not vacuum flammable or combustible materials, such as gasoline, or use in areas where they may be present.
• Ensure all tanks and filters are correctly installed before operation.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.

2. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Liectroux i5 Pro Main Unit
• Muntatge del mànec
• Base de càrrega
• Adaptador d'alimentació
• Ultra-soft Fiber Brush Roller (for hard floors)
• Stiff Fiber Brush Roller (for carpets)
• Eina de neteja
• Manual d'usuari

3. Producte acabatview

The Liectroux i5 Pro is a versatile cordless wet and dry vacuum cleaner designed for comprehensive floor care. It integrates vacuuming, washing, and UV sterilization functions to provide a thorough cleaning experience.

An 'All in One' design allows simultaneous vacuuming and washing of floors. Key components include a brushless motor, noise-isolating materials, and an intelligent display screen.

Característiques principals:

• Neteja 3 en 1: Simultaneously vacuums, washes, and UV sterilizes surfaces.
• Sistema de doble tanc: Separates clean and dirty water to prevent cross-contamination.
• Capacitat multisuperfície: Effective on hard floors, hardwood, porcelain tiles, and various carpet types.
• Funció d'auto-neteja: Automatic brush roller cleaning for easy maintenance.
• Esterilització UV: Integrated 254nm UV light for bacterial protection.
• Pantalla LED intel·ligent: Provides real-time operational status and alerts.

The dual tank design prevents secondary pollution by keeping clean water separate from dirty water. It features a 750ml clear water tank and a 450ml sewage tank.

4. Configuració

1. Muntar el mànec: Carefully insert the handle assembly into the main unit until you hear a click, ensuring it is securely locked in place.
2. Càrrega inicial: Place the Liectroux i5 Pro onto the charging dock. Connect the power adapter to the charging dock and then plug it into a suitable wall outlet. Allow the unit to fully charge before its first use. The intelligent LED display will show the charging status.
3. Omplir el dipòsit d'aigua neta: Locate the clean water tank on the main unit. Open the tank cap and fill the tank with clean tap water. For enhanced cleaning, you may add a recommended floor cleaning solution. Do not exceed the maximum fill line. Close the cap securely to prevent leaks.

5. Instruccions de funcionament

Before operating, ensure the unit is fully charged and the clean water tank is filled.

The Liectroux i5 Pro is designed for effective wet and dry vacuuming on both carpets and hard floors.

1. Encès: Press the power button located on the handle to turn on the vacuum cleaner. The LED display will illuminate.
2. Selecció de superfície: The Liectroux i5 Pro is equipped with intelligent sensors that automatically adjust suction power based on the floor type. For optimal performance, ensure the appropriate brush roller (ultra-soft for hard floors, stiff for carpets) is installed.
3. Comença a netejar: Gently tilt the main unit back with your foot and begin moving it across the floor. Move the vacuum cleaner in a steady, overlapping motion for best results.
4. Funció de polvorització d'aigua: For stubborn stains or heavily soiled areas, press the dedicated water spray button on the handle. This will release additional cleaning solution onto the floor.
5. Esterilització UV: The 254nm UV sterilization lamp activates automatically during operation, providing an additional layer of hygiene by sanitizing the cleaned surfaces.
6. Apagar: When finished cleaning, press the power button again to turn off the device.

6. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your Liectroux i5 Pro.

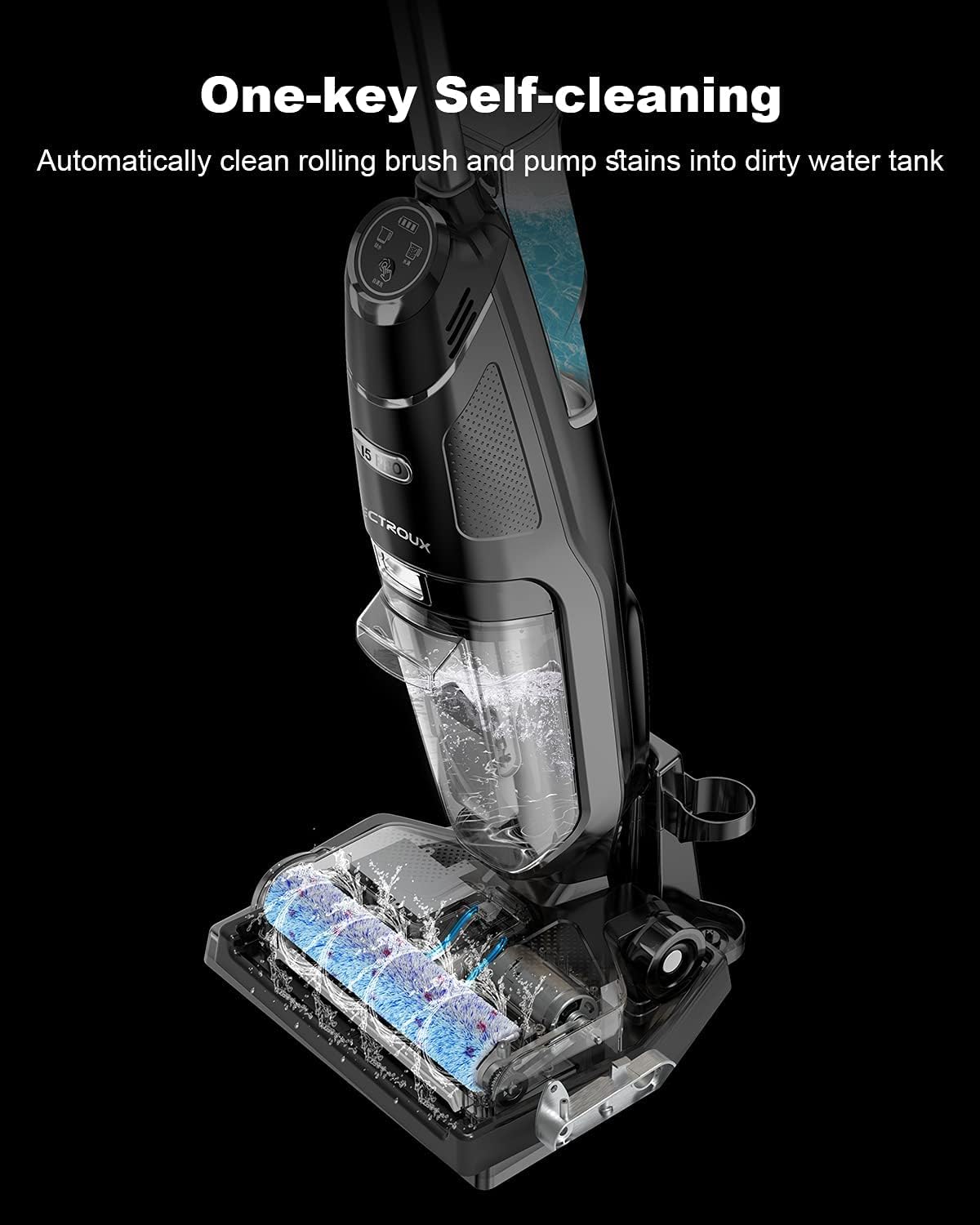

The one-key self-cleaning function automatically cleans the rolling brush and pumps dirty water into the sewage tank when docked, simplifying maintenance.

1. Buidar i netejar el dipòsit d'aigua bruta: After each use, remove the dirty water tank from the main unit. Open the lid and dispose of the collected dirty water and debris. Rinse the tank thoroughly with clean water and allow it to air dry before re-installing.
2. Initiate Self-Cleaning Cycle: Place the vacuum cleaner back onto its charging dock. Press the dedicated self-cleaning button (refer to the LED display for specific instructions if needed). The unit will automatically perform a cleaning cycle for the brush roller, removing dirt, hair, and debris.
3. Clean Brush Rollers: Periodically, or if you notice reduced cleaning performance, remove the brush roller from the head unit. Use the provided cleaning tool to remove any tangled hair or stubborn debris. Rinse the brush roller with water and allow it to dry completely before re-inserting.
4. Manteniment del filtre: The filter, located within the dirty water tank, should be cleaned regularly. Remove the filter, rinse it under running water, and ensure it is completely dry before placing it back into the tank.
5. Emmagatzematge: Store the Liectroux i5 Pro on its charging dock in a dry, cool place.

The integrated UV sterilization feature protects against bacteria with an effective sterilization rate of over 98%.

7. Solució De Problemes

If you encounter issues with your Liectroux i5 Pro, refer to the following common problems and solutions:

8. Especificacions

9. Garantia i Suport

Informació de la garantia:

The Liectroux i5 Pro comes with a garantia de dos anys from the original date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase (receipt or invoice) as it will be required for any warranty claims.

The warranty does not cover damage caused by misuse, neglect, unauthorized repairs, accidents, or normal wear and tear.

Atenció al client:

For technical assistance, troubleshooting, or to inquire about warranty services, please contact Liectroux customer support. Detailed contact information can typically be found on the official Liectroux weblloc web o a l'embalatge del producte.

When contacting support, please have your product model (i5 Pro) and proof of purchase readily available to expedite the service process.
