Vogel's Comfort TVM 3645 Full-Motion TV Wall Bracket

Introducció

The Vogel's Comfort TVM 3645 Full-Motion TV Wall Bracket is designed to provide a stylish, safe, and flexible viewing experience for your television. This robust wall mount is suitable for TVs ranging from 40 to 77 inches and can support weights up to 77 lbs (35 kg). Its innovative 'One-Finger Movement' allows for effortless adjustment of the viewing angle up to 180 degrees, ensuring optimal visibility from anywhere in the room. The mount is universally compatible with major TV brands including Samsung, LG, Panasonic, Sony, TCL, Philips, and Hisense. For added safety and convenience, it is TÜV certified and includes integrated cable clips for neat cable management. Installation is simplified with the free DrillRight AR App, guiding you through the process.

The Vogel's Comfort TVM 3645 Full-Motion TV Wall Bracket, showcasing its robust design and full articulation capabilities.

Informació important de seguretat

• Ensure the wall structure can safely support the combined weight of the TV mount and your television. Consult a professional if unsure about your wall type.
• No supereu la capacitat màxima de pes de 77 lliures (35 kg).
• Always use the provided mounting hardware and follow the installation instructions precisely.
• Mantingueu els nens i les mascotes allunyats de la zona d'instal·lació durant la configuració.
• Reviseu periòdicament tots els cargols i connexions per assegurar-vos que estiguin ben fixats.
• This product is TÜV certified, indicating it has undergone rigorous safety testing.

Contingut del paquet

Before beginning installation, verify that all components are present in the box:

• Muntatge de paret
• Interface strips (for TV attachment)
• Interface bars (for TV attachment)
• Instruccions de seguretat
• Tapes decoratives
• Clips de cable
• Nivell d'esperit
• Pedaços protectors de TV
• TV fasteners kit (various screws and spacers)
• Wall fasteners kit (screws and plugs for wall mounting)

Un acabatview of the components included with the Vogel's Comfort TVM 3645 wall mount, laid out for inspection.

Configuració i instal·lació

Follow these steps carefully for a secure and successful installation.

Pas 1: enganxeu les tires al televisor

Place your TV face down on a soft, clean surface. Fix the protective TV patches to the back of the TV near the VESA mounting holes. Attach the interface strips to the TV using the appropriate screws from the TV fasteners kit. Ensure they are securely fastened but do not overtighten. Slide the interface bars through the interface strips and tighten the thumbnuts, ensuring they are not fully screwed in yet.

The back of a television with the interface strips and bars attached, ready for mounting.

Pas 2: fixeu el suport de paret a la paret

For precise placement, use the free DrillRight AR App (available on Android & iOS) to mark the first drilling hole. Alternatively, use the included drilling template. Once the first hole is marked, use the template and the spirit level to mark the remaining holes. Drill the holes according to the recommended drill bit size for your wall type (e.g., 10mm for concrete/brick, 5mm for wood studs). Insert the appropriate wall plugs. Attach the wall mount to the wall using the provided screws and washers, starting with the middle screw. Use the included spirit level to ensure the wall mount is perfectly level before fully tightening all screws.

The included spirit level being used to ensure a perfectly level installation of the wall mount.

Pas 3: connecteu el televisor al suport de paret

Carefully lift the television and hook the interface bars onto the wall mount. Ensure the TV is securely seated. Tighten the upper thumbnut on the interface bars to secure the TV in place. Place the lower thumbnut into its designated slot to prevent accidental dislodgement. Use the spirit level on the TV to confirm it is perfectly level. Finally, attach the decorative covers to the wall mount for a clean finish.

Gestió de cables

Utilize the integrated cable clips on the mount's arm to neatly guide your TV cables from the television to the wall. This helps maintain a tidy appearance and prevents cable damage.

Primer pla view of the integrated cable clips on the TV mount arm, designed for organized cable routing.

Instruccions de funcionament

The Vogel's Comfort TVM 3645 offers exceptional flexibility for optimal viewing.

One-Finger Movement

Thanks to its special bearings and precision steel shafts, you can effortlessly swivel your TV with just one finger. Gently push or pull the edge of your TV to adjust its position.

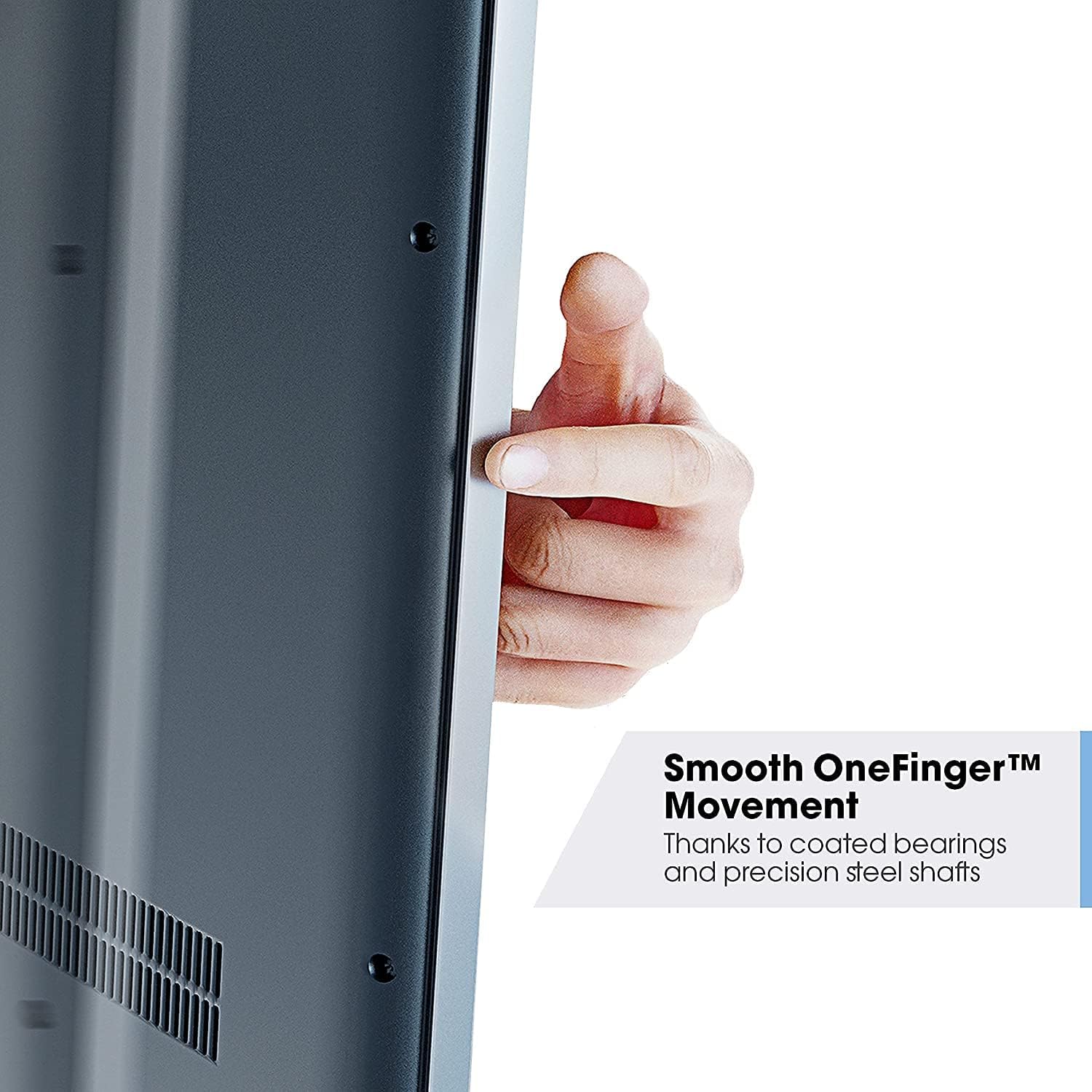

A hand demonstrating the 'One-Finger Movement' feature, allowing for smooth and easy adjustment of the television's position.

Ajust de gir i inclinació

The full-motion design allows your TV to swivel up to 180 degrees (depending on TV size) and tilt up to 20 degrees. This enables you to find the perfect viewing angle from various positions in your room and reduce glare from windows or lights. The unique TiltAnchor™ button allows you to easily lock and release the TV from its home position for tilting.

The TV mount fully extended and swiveled, illustrating its impressive 180-degree rotation capability.

A close-up of the TiltAnchor™ mechanism, which allows for easy and secure locking and releasing of the TV's tilt angle.

Manteniment

To ensure the longevity and optimal performance of your Vogel's TV mount, follow these simple maintenance guidelines:

• Neteja: Dust the mount regularly with a soft, dry cloth. For stubborn marks, use a slightly damp cloth with mild soap and water, then dry thoroughly. Avoid abrasive cleaners or solvents.
• Comprovacions periòdiques: Every few months, visually inspect all screws and connections to ensure they are still tight. If any looseness is detected, carefully re-tighten them.
• Moviment: If the movement feels stiff over time, gently clean the moving parts. Do not apply lubricants unless specifically recommended by Vogel's.

Resolució de problemes

If you encounter any issues with your TV mount, refer to the following common problems and solutions:

• El televisor no està anivellat: Ensure the wall mount itself is level. Use the spirit level to check and adjust the wall mount's position if necessary. The TV's interface bars also allow for minor leveling adjustments.
• El suport sembla fluix a la paret: Re-check all wall mounting screws and ensure they are securely tightened. Verify that the wall plugs are correctly installed and suitable for your wall type.
• TV is difficult to move/swivel: Ensure no cables are snagged or obstructing movement. Check that the interface bars are not overtightened on the TV. The 'One-Finger Movement' should be smooth; if not, inspect for any obstructions or damage.
• TV is not securely attached to the mount: Ensure the upper thumbnut on the interface bars is fully tightened and the lower thumbnut is correctly placed to prevent accidental release.

For persistent issues or complex problems, please contact Vogel's customer support.

Especificacions tècniques

Detailed dimensions of the Vogel's Comfort TVM 3645 wall mount, showing VESA compatibility and extension range.

Garantia i assistència al client

Vogel's products are designed and manufactured to the highest standards. For specific warranty information regarding your TVM 3645 wall mount, please refer to the warranty card included in your product packaging or visit the official Vogel's website. For any questions, technical assistance, or support, you can contact Vogel's customer care directly through their website's contact section.
