TECKNET Wireless Doorbell System User Manual

Introducció

Thank you for choosing the TECKNET Wireless Doorbell System. This manual provides detailed instructions for the installation, operation, and maintenance of your new doorbell. This system is designed for convenience and reliability, featuring a self-powered transmitter and two plug-in receivers with pass-through sockets. Please read this manual thoroughly before use to ensure proper functionality and longevity of the product.

Image: The TECKNET Wireless Doorbell Kit, showing the two plug-in receivers and the single push-button transmitter.

Contingut del paquet

• 1 x Self-Powered Doorbell Transmitter
• 2 x Plug-in Doorbell Receivers with Pass-Through Sockets
• Mounting Hardware (Screws, Anchors, Adhesive Tape)
• Manual d'usuari

Característiques clau

• Self-Powered Transmitter: No batteries required for the push button. It generates its own power when pressed.
• Endolls de pas: Receivers feature integrated EU sockets, allowing you to use the outlet for other devices.
• Wide Wireless Range: Up to 400 meters (1300 feet) in open areas.
• Transmissor impermeable IP65: Dissenyat per suportar diferents condicions meteorològiques.
• 32 Selectable Melodies: Choose from a variety of chimes.
• 5 nivells de volum ajustables: From 0dB (mute) to 110dB.
• Indicador de flaix LED: Visual alert for the hearing impaired or noisy environments.

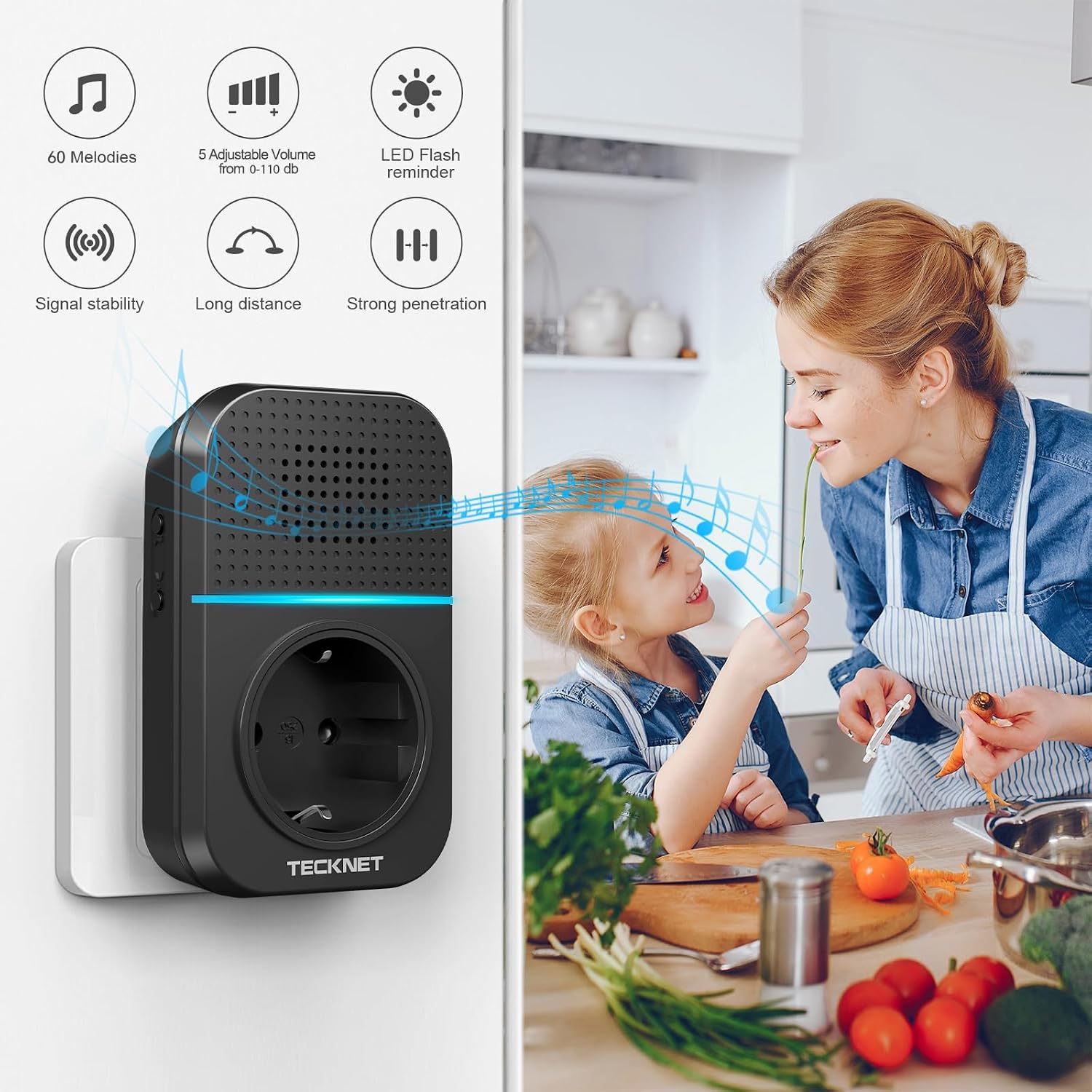

Image: Visual representation of the doorbell's features, including melody options, volume control, LED indicator, and signal strength.

Image: Diagram illustrating the 400-meter wireless range of the doorbell system across a property.

Configuració i instal·lació

Instal·lació del transmissor

The doorbell transmitter can be installed using either the provided adhesive tape or screws and anchors.

1. Using Adhesive Tape (Method A):
   • Clean the desired mounting surface thoroughly to ensure it is dry and free of dust or grease.
   • Peel off one side of the protective film from the adhesive tape and apply it firmly to the back of the transmitter.
   • Peel off the remaining protective film and press the transmitter firmly onto the cleaned surface for at least 30 seconds.
2. Using Screws and Anchors (Method B):
   • Marqueu els punts de perforació desitjats a la paret utilitzant els forats de muntatge del transmissor com a guia.
   • Drill holes at the marked points and insert the wall anchors.
   • Alineeu el transmissor amb els forats i fixeu-lo amb els cargols proporcionats.

Configuració del receptor

Simply plug the receivers into any standard EU wall outlet. The integrated pass-through socket ensures that the outlet remains available for other electrical devices.

Image: Detailed instructions for installing the transmitter using adhesive or screws, and a visual of the receiver's EU plug.

Image: The doorbell receiver plugged into a wall outlet, demonstrating how its pass-through socket allows another plug to be inserted.

Funcionament

Changing Melodies

To change the melody, press the 'Music' button on the side of the receiver. Each press will cycle through the available 32 melodies. Stop at your desired chime.

Ajust de volum

To adjust the volume, press the 'Volume' button on the side of the receiver. There are 5 volume levels, including a mute option (0dB) and a maximum of 110dB. Cycle through the levels until you reach your preferred volume.

Vinculació dels dispositius

The doorbell kit is pre-paired at the factory. If re-pairing is needed or if you wish to pair additional transmitters/receivers:

1. Connecteu el receptor.
2. Press and hold the pairing button on the receiver for approximately 3 seconds until you hear a "Ding-Dong" sound and the LED indicator flashes. The receiver is now in pairing mode.
3. Immediately press the transmitter button. The receiver will make another "Ding-Dong" sound, indicating successful pairing.
4. To exit pairing mode, wait for 5 seconds or press the pairing button again.

Manteniment

To ensure optimal performance and longevity of your doorbell system, follow these simple maintenance guidelines:

• Neteja: Wipe the transmitter and receivers with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Col·locació del transmissor: While the transmitter is IP65 waterproof, avoid submerging it in water or exposing it to extreme conditions beyond its operating temperature range (-20°C to 60°C / -4°F to 140°F).
• Col·locació del receptor: Keep receivers in a dry indoor environment.

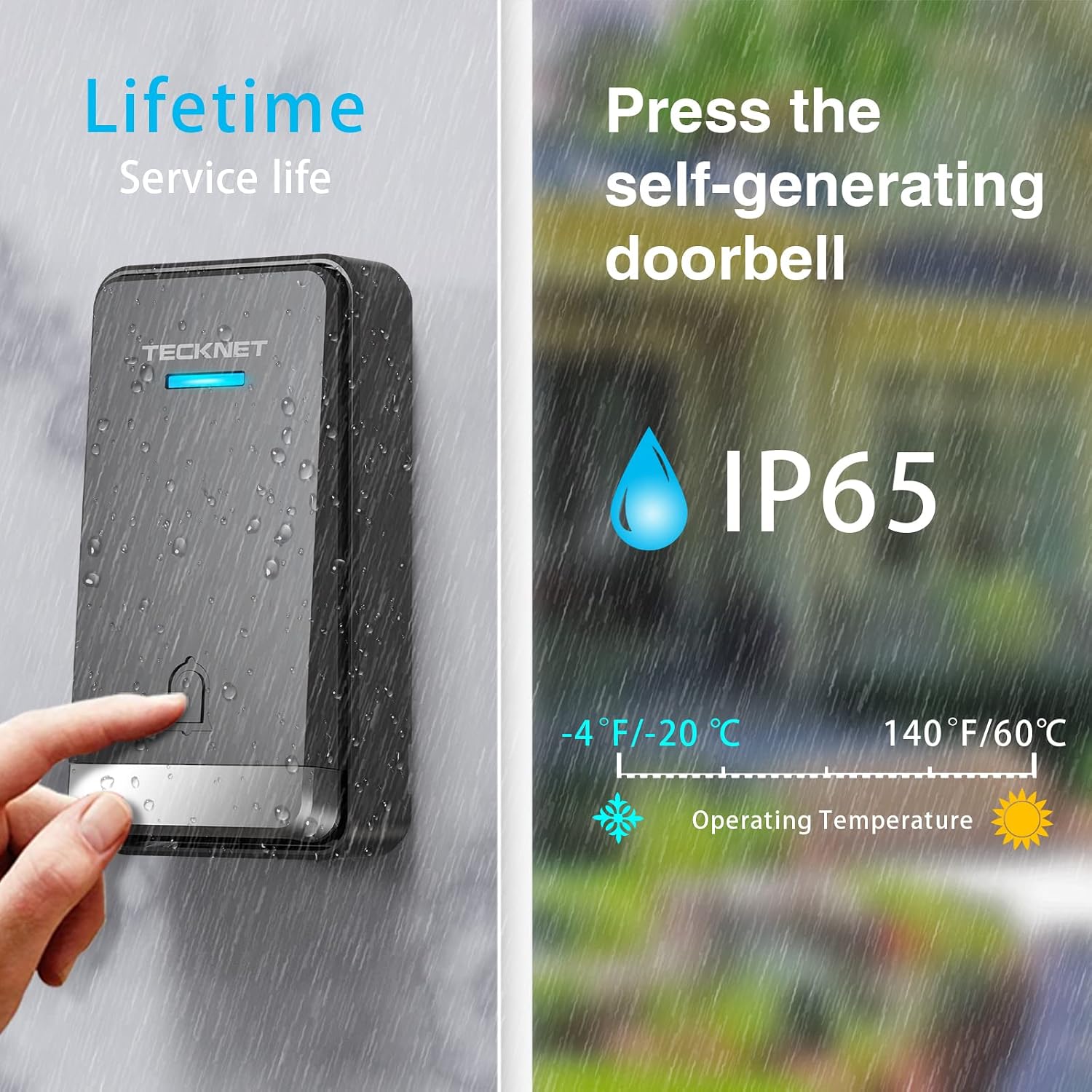

Image: The doorbell transmitter being exposed to water, highlighting its IP65 waterproof rating and specified operating temperature range.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information and customer support, please refer to the contact details provided with your product packaging or visit the official TECKNET weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
