Inkbirdplus Moisture Meter

Introducció

The Inkbirdplus WM700 Digital Pin Type Moisture Meter is a precision instrument designed for fast and accurate measurement of moisture content in various materials. It is an essential tool for woodworkers, building inspectors, contractors, and homeowners to prevent material waste and identify potential moisture-related issues in structures.

This device features high-precision pins, a backlit LCD for clear readings, and 7 preset material modes to ensure accurate measurements across different material types. It also displays ambient temperature and humidity, offering comprehensive environmental data.

The Inkbirdplus WM700 is a professional tool for accurate moisture measurement in woodworking.

The meter is suitable for multiple uses, including measuring moisture in various woods and construction materials.

Informació de seguretat

• Precaució: The measurement pins are sharp. Handle the device with care to avoid injury. Keep the protection cap on when not in use.
• Do not attempt to measure live electrical circuits. This device is not designed for electrical testing.
• Keep the device dry. Avoid exposure to water or excessive humidity, which can damage the internal components.
• Guardeu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Dispose of batteries according to local regulations. Do not mix old and new batteries.

Producte acabatview

Familiarize yourself with the components and display elements of your Inkbirdplus WM700 Moisture Meter.

Davant i darrere view of the Inkbirdplus WM700 Moisture Meter, showing the display, buttons, and battery compartment.

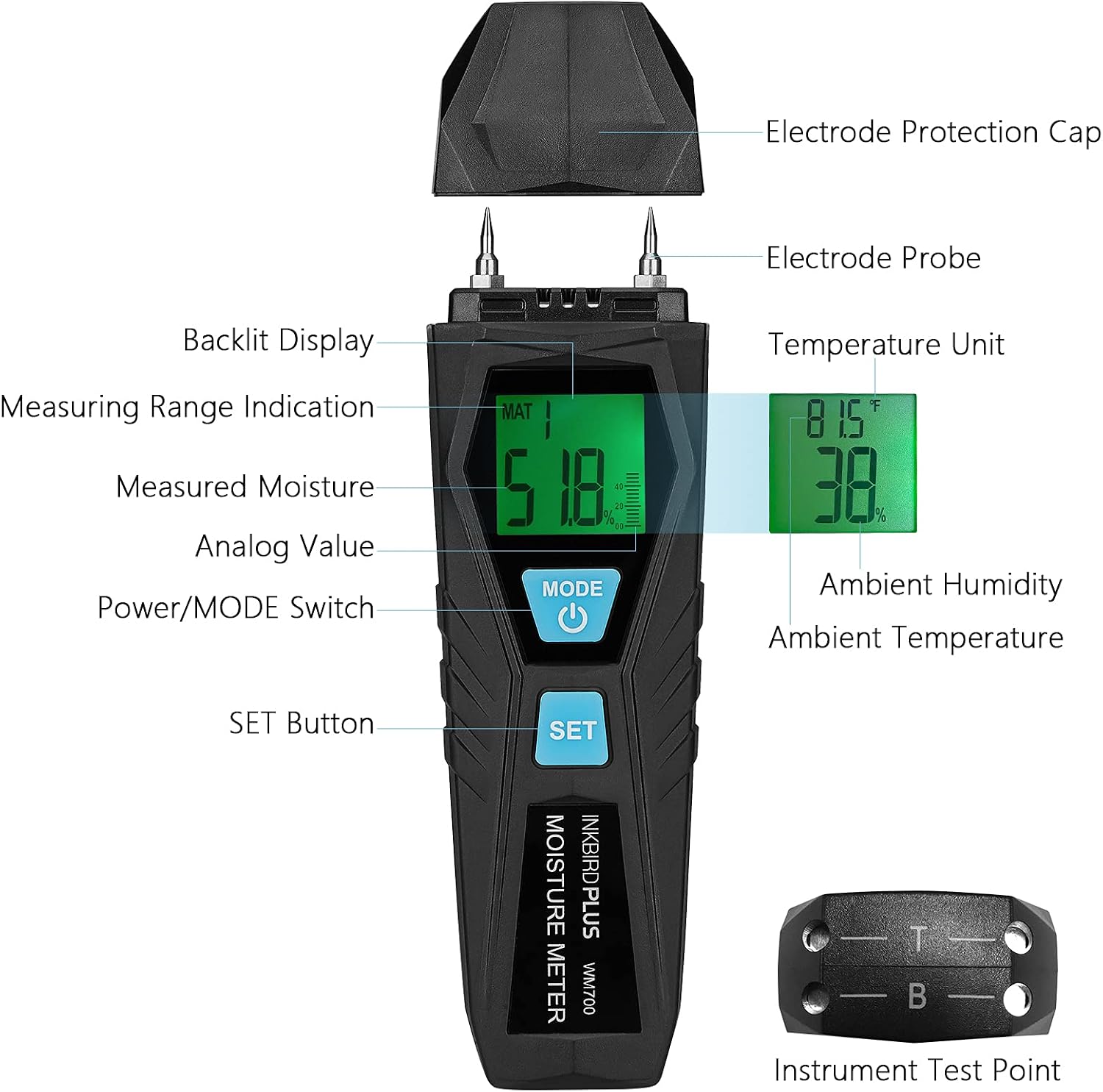

Key components include the Electrode Protection Cap, Electrode Probe, Power Switch, SET Key, and Display Screen.

The backlit display shows Measured Moisture, Analog Value, Measuring Range Indication, Ambient Humidity, Ambient Temperature, and Temperature Unit.

Un primer pla view of the high-precision measurement pins and the instrument test points located on the protection cap.

Configuració

Contingut del paquet

Before first use, please verify that all items are included in the package:

The package includes the User Manual, Moisture Meter, Protection Bag, Packing Box, 2 AAA Batteries, and a Screwdriver.

Instal·lació de la bateria

The Inkbirdplus WM700 requires 2 AAA batteries (included). Follow these steps to install them:

1. Localitzeu el compartiment de la bateria a la part posterior del dispositiu.
2. Use the included screwdriver to open the battery compartment cover.
3. Introduïu 2 piles AAA, assegurant-vos de la polaritat correcta (+ i -).
4. Substituïu la tapa del compartiment de la bateria i fixeu-la amb el cargol.

Instruccions de funcionament

Mesura Bàsica

To take a moisture reading:

1. Remove the protective cap from the measurement pins. The cap also contains 4 datum test points for calibration.

Carefully remove the protection cap before taking measurements.
2. Premeu el botó MODE botó per encendre el dispositiu.
3. Select the appropriate material mode (MAT1-MAT7) by pressing the SET button repeatedly until the desired mode is displayed. Refer to the 'Material Mode Selection' section for details.
4. Carefully insert the measurement pins into the material you wish to test. Ensure both pins fully penetrate the surface for an accurate reading.


Insert the pins into the material to obtain a moisture reading.

5. Llegiu el percentatge d'humitattage es mostra a la pantalla LCD.
6. After use, remove the pins from the material and replace the protective cap.
7. The device will automatically turn off after 10 seconds of inactivity to save power. You can also press and hold the MODE button to manually turn it off.

Selecció del mode de material

The WM700 offers 7 preset material modes (MAT1 to MAT7) to optimize measurement accuracy for different types of materials. Press the SET button to cycle through these modes. Refer to the table below for material types and their corresponding measurement ranges:

Select the appropriate material mode (MAT1-MAT7) for accurate readings.

Display de temperatura i humitat

The WM700 also displays ambient temperature and humidity. To switch between Celsius (°C) and Fahrenheit (°F) temperature units, press and hold the SET button for approximately 2 seconds while the device is on.

The meter displays ambient temperature and humidity, with an option to switch between Celsius and Fahrenheit.

Manteniment

• Neteja: Netegeu el dispositiu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
• Emmagatzematge: Always replace the protective cap over the pins when the meter is not in use. Store the meter in its protection bag in a dry, dust-free environment.
• Substitució de la bateria: If the battery low indicator appears on the display, replace both AAA batteries promptly to ensure accurate readings.
• Calibració: The protection cap includes 4 datum test points. Periodically test the meter against these points to ensure its accuracy. If readings are inconsistent, refer to the troubleshooting section or contact support.

Resolució de problemes

Especificacions

Garantia i Suport

Inkbirdplus products are manufactured to high-quality standards and are warranted against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Inkbirdplus weblloc.

If you encounter any issues or have questions regarding the operation or maintenance of your WM700 Moisture Meter, please contact Inkbirdplus customer support. Our team is available to assist you with technical support and service inquiries.

Informació de contacte: Please refer to the contact details provided on the product packaging or the official Inkbirdplus weblloc web per obtenir la informació d'assistència més actualitzada.
