POWERPLUS POWXG90500 Pressure Washer 2200W User Manual

Introducció

Thank you for choosing the POWERPLUS POWXG90500 Pressure Washer. This powerful 2200W high-pressure cleaner is designed for effective cleaning of various outdoor surfaces, vehicles, and equipment. With a maximum pressure of 170 bar and a flow rate of 450 liters per hour, it provides excellent cleaning performance. This manual contains important information regarding the safe operation, assembly, maintenance, and troubleshooting of your pressure washer. Please read it thoroughly before first use and keep it for future reference.

Instruccions de seguretat

Sempre observeu les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Llegeix totes les instruccions: Familiaritzeu-vos amb els controls i l'ús correcte de la rentadora a pressió.
• Seguretat elèctrica: Assegureu-vos que la font d'alimentació coincideixi amb el voltage specified on the rating plate. Always use a residual current device (RCD) with a tripping current not exceeding 30 mA. Do not operate the appliance with a damaged cord or plug.
• Connexió d'aigua: Connect the pressure washer to a cold water supply only. Do not connect to the potable water mains without a backflow preventer.
• Protecció personal: Wear appropriate personal protective equipment, including safety glasses, hearing protection, and protective footwear. Do not direct the water jet at people, animals, electrical equipment, or the appliance itself.
• Infants i espectadors: Mantenir els nens i els espectadors allunyats de la zona d'operacions.
• Estabilitat: Feu funcionar la rentadora a pressió sobre una superfície estable i anivellada per evitar que bolqui.
• Manteniment: Disconnect the power plug from the socket before performing any cleaning or maintenance.
• Productes químics: Use only detergents recommended for pressure washers. Follow the detergent manufacturer's instructions.

Contingut del paquet

Upon unpacking, please ensure all items listed below are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• POWERPLUS POWXG90500 Pressure Washer Unit
• High-pressure hose (8 meters)
• Cable d'alimentació (5 metres)
• Spray gun with adjustable lance
• Broquet ajustable
• Broquet turbo
• Patio cleaner attachment
• Raspall de neteja
• Integrated detergent tank (850 ml)
• Manual d'instruccions

Imatge: The POWERPLUS POWXG90500 Pressure Washer shown with its integrated hose reel, detergent tank, and a selection of included accessories like the adjustable nozzle, turbo nozzle, patio cleaner, and brush.

Muntatge i muntatge

1. Fixeu les rodes i el mànec: If not pre-assembled, attach the wheels and handle to the main unit according to the diagrams in the separate assembly guide (if provided). Ensure they are securely fastened.
2. Connecteu la mànega d'alta pressió: Connect one end of the 8-meter high-pressure hose to the high-pressure outlet on the front of the unit. Connect the other end to the spray gun. Ensure all connections are tight to prevent leaks.
3. Connectar el subministrament d'aigua: Connecteu una mànega de jardí (no inclosa) a l'entrada d'aigua de la rentadora a pressió. Assegureu-vos que el subministrament d'aigua estigui net i lliure de residus. Obriu l'aixeta completament.
4. Encebar la bomba: Before connecting to power, squeeze the trigger on the spray gun to allow water to flow through the system and expel any air. Continue until a steady stream of water emerges from the nozzle. This prevents damage to the pump.
5. Omplir el dipòsit de detergent (opcional): If using detergent, open the cap of the integrated 850 ml detergent tank and fill it with a suitable pressure washer detergent. Close the cap securely.
6. Connectar l'alimentació: Plug the 5-meter power cable into a grounded electrical outlet. Ensure the outlet is protected by a Residual Current Device (RCD).

Imatge: The pressure washer in operation, highlighting the 5-meter power cable and 8-meter high-pressure hose, providing ample reach for cleaning tasks.

Instruccions de funcionament

1. Inici de la unitat: Once the water supply is connected and the pump is primed, turn the ON/OFF switch to the "ON" position. The pressure washer features an automatic start/stop system; the motor will only activate when the spray gun trigger is pressed.
2. Selecció de broquets:
   • Broquet ajustable: Provides a versatile spray pattern, from a concentrated jet to a wide fan spray, suitable for general cleaning.
   • Broquet turbo: Delivers a powerful, rotating jet for removing stubborn dirt and grime from hard surfaces like concrete.
   • Netejador de patis: Ideal for cleaning large flat surfaces efficiently and without splashing.
   • Raspall de neteja: Use for gentle scrubbing on delicate surfaces or for applying detergent.


   Imatge: Un primer pla view of the various spray patterns and attachments available with the pressure washer, including the adjustable nozzle, turbo nozzle, patio cleaner, and brush.

3. Ús de detergent: Attach the appropriate nozzle (often the adjustable nozzle set to a wide spray or the cleaning brush) and ensure the detergent tank is filled. The pressure washer will automatically draw detergent when operating at low pressure.
4. Tècnica de neteja: Always start cleaning from a distance and move closer to the surface as needed. Avoid directing the high-pressure jet at sensitive areas or materials. Work from top to bottom when cleaning vertical surfaces.
5. Apagant:
   • Deixeu anar el disparador de la pistola.
   • Turn the ON/OFF switch to "OFF".
   • Tanqueu el subministrament d'aigua.
   • Premeu el gallet de la pistola polvoritzadora per alliberar la pressió restant al sistema.
   • Desconnecteu l’endoll de la presa de corrent.
   • Disconnect the water supply hose and high-pressure hose.

Imatge: The control panel of the pressure washer, indicating its 2200W power and the "ANFANGS-/END-SYSTEM" (Start/Stop System) for energy and water saving.

Manteniment i emmagatzematge

• Neteja de la unitat: Després de cada ús, netegeu l'exterior de la rentadora a pressió amb un anunci.amp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Drenatge d'aigua: Before storing, especially in freezing temperatures, ensure all water is drained from the pump, hose, and spray gun to prevent damage. Run the unit for a few seconds with the water supply disconnected and the trigger pressed until no more water comes out.
• Hose and Cable Storage: Utilize the integrated hose reel for the high-pressure hose and the cable holder for the power cable to keep them tidy and prevent tangling.
• Neteja de broquets: If the nozzle becomes clogged, use the included nozzle cleaning tool (if applicable) or a thin wire to clear any obstructions.
• Emmagatzematge: Store the pressure washer in a dry, frost-free location, away from direct sunlight and out of reach of children.

Imatge: The pressure washer being easily transported using its handle and wheels, emphasizing its portability and 9 kg weight for convenient storage.

Resolució de problemes

Especificacions tècniques

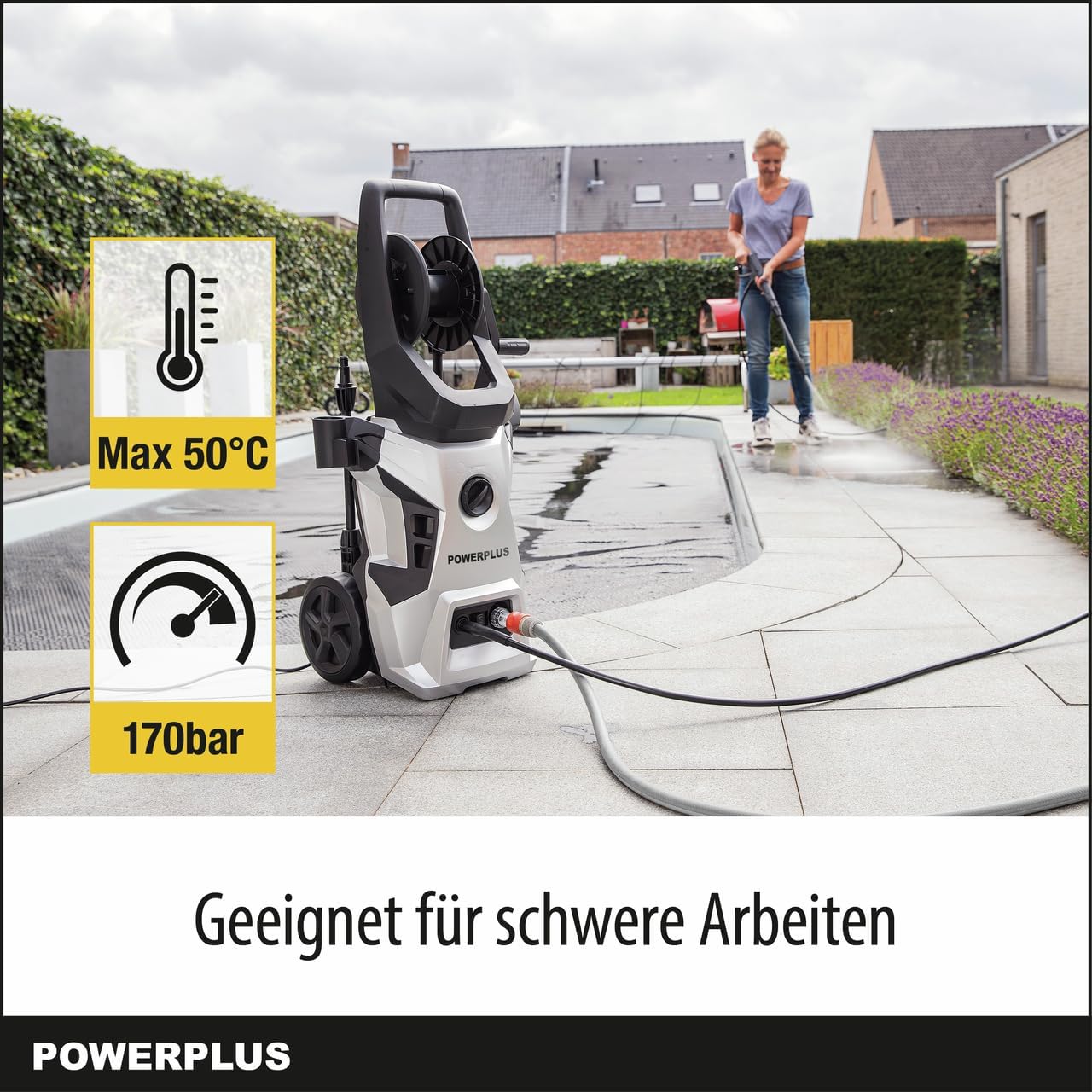

Imatge: The pressure washer in use, illustrating its capability for heavy-duty tasks with a maximum pressure of 170 bar and a maximum water temperature of 50°C.

Garantia i Suport

Your POWERPLUS POWXG90500 Pressure Washer comes with a manufacturer's warranty. Please refer to the warranty card included in your package or contact your retailer for specific warranty terms and conditions. For technical support, spare parts, or service inquiries, please contact the POWERPLUS customer service department or your authorized dealer. Always have your model number (POWXG90500) and purchase date available when contacting support.
