VLAND Taillights Instruction Manual for 2010-2012 Ford Mustang

1. Producte acabatview

This manual provides detailed instructions for the installation, operation, and maintenance of your VLAND LED Taillights. These taillights are designed as a direct replacement for the original equipment on specific Ford Mustang models, offering enhanced lighting performance and a modern aesthetic.

Compatibilitat:

• 2010-2012 Ford Mustang 5th Generation (Base, Boss 302, GT, V6, Cobra JET)

Contingut del paquet:

• One (1) set of left and right VLAND LED Taillights
• Un (1) Manual d'usuari (aquest document)
• One (1) Brake Wiring Harness

Imatge 1.1: posterior view of a silver Ford Mustang with VLAND LED taillights installed.

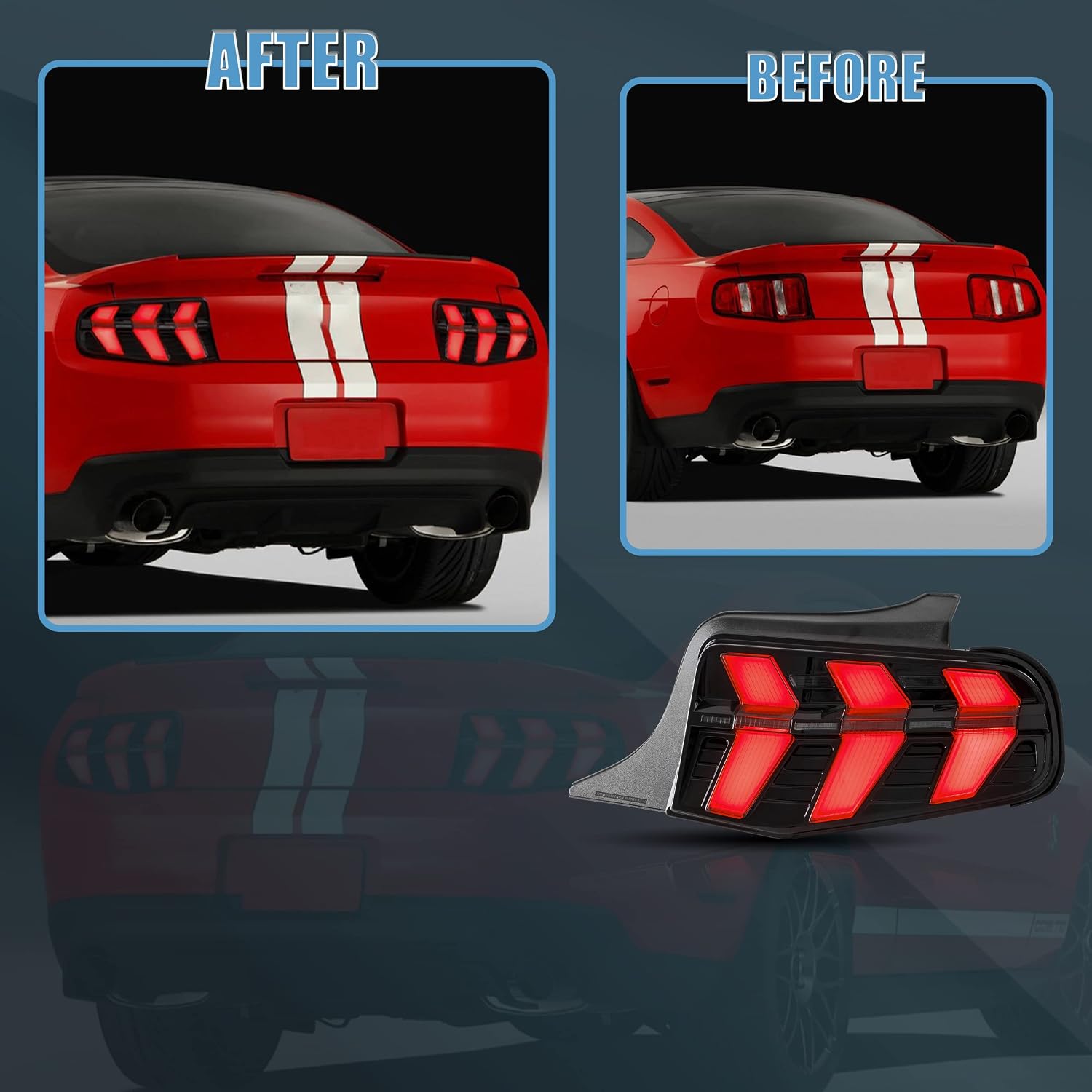

Image 1.2: Before and After comparison of taillight installation on a red Ford Mustang.

2. Característiques del producte

The VLAND LED Taillights incorporate advanced lighting technology to enhance visibility and the appearance of your vehicle. Key features include:

• LED Running Lights: Provide consistent illumination for improved daytime and nighttime visibility.
• LED Yellow Sequential Turn Signals: Modern sequential indicators for clear signaling.
• LED Brake Lights: Brighter and faster-illuminating brake lights for increased safety.
• LED Reverse Lights: Enhanced illumination for backing up.
• Construcció duradora: Made with PC, ABS, PMMA, and GLASS materials, ensuring a fully sealed, waterproof, dust, and corrosion-resistant design.
• Certificacions: DOT or SAE certified, meeting safety and quality standards.

Image 2.1: Illustration of taillight functions including running, brake, turn, and reverse lights.

Image 2.2: Demonstration of the sequential turn signal functionality.

3. Configuració i instal·lació

The VLAND LED Taillights are designed for a plug-and-play installation, directly replacing your vehicle's original taillights. No splicing or complex wiring modifications are typically required. Professional installation is recommended to ensure proper functionality and safety.

Passos d'instal·lació (Guia general):

1. Preparació: Ensure your vehicle is turned off and the parking brake is engaged. Gather necessary tools (e.g., screwdriver, socket wrench).
2. Access Original Taillights: Open the trunk or tailgate to access the mounting bolts for the original taillights. Remove any trim panels if necessary.
3. Remove Original Taillights: Unscrew the mounting bolts and carefully pull the original taillight assembly away from the vehicle. Disconnect the electrical connectors.
4. Connect VLAND Taillights: Connect the wiring harness of the new VLAND taillights to the vehicle's existing electrical connectors. Ensure connections are secure.
5. Mount VLAND Taillights: Position the new taillight assembly into the vehicle's opening and secure it with the mounting bolts.
6. Funcionalitat de prova: Before reassembling any trim, test all light functions (running lights, brake lights, turn signals, reverse lights) to ensure they operate correctly.
7. Assemblea final: Torneu a instal·lar els panells de guarnició que hàgiu tret.

OEM Part Numbers for Reference:

• OEM: Left / Right: AR3Z13405B
• Right: AR3Z13404B
• Partslink #: Left / Right: FO2818137
• Right: FO2819137

Imatge 3.1: Ex.ample of the plug-and-play electrical connector.

Imatge 3.2: posterior view of the taillight assembly with wiring harness.

4. Instruccions de funcionament

Once installed, the VLAND LED Taillights operate in conjunction with your vehicle's existing lighting controls. The advanced LED technology provides bright and efficient illumination for various driving conditions.

Funcions de llum:

• Llums de funcionament: Activate when your vehicle's headlights or parking lights are on.
• Llums de fre: Illuminate brightly when the brake pedal is pressed.
• Senyals de gir: The yellow LEDs will illuminate in a sequential pattern when the turn signal lever is activated.
• Llums de marxa enrere: Activate when the vehicle is shifted into reverse gear.

5. Manteniment

VLAND LED Taillights are designed for durability and minimal maintenance. Follow these guidelines to ensure their longevity:

• Neteja: Clean the taillight lenses with a soft cloth and mild automotive soap. Avoid abrasive cleaners or harsh chemicals that could damage the lens material.
• Inspecció: Periodically inspect the taillights for any signs of damage, cracks, or loose connections.
• Disseny impermeable: The taillights are designed to be waterproof (IP68/IP67 rated), but avoid directing high-pressure water jets directly at the seals for extended periods.

6. Solució De Problemes

If you encounter any issues with your VLAND LED Taillights, refer to the common questions and solutions below. For further assistance, please contact customer support.

Preguntes freqüents:

• Q: How can I confirm if the product is compatible with my vehicle model?


  A: You can send us pictures of your car or provide the exact model and year for verification.

• Q: What should I do if there is a problem with the product upon receipt or during use?


  A: Please provide videos or pictures of the issue. We will arrange for replacement parts. Products damaged in transit do not need to be returned.

• Q: Where can I find help during the installation process?


  A: Related product installation videos are often available on the product page. This package also includes an instruction manual. We are available to assist you further if needed.

7. Especificacions

Detailed technical specifications for the VLAND LED Taillights:

Image 7.1: Product certifications including DOT and SAE standards.

Image 7.2: Summary of product information and specifications.

8. Garantia i Suport

Informació de la garantia:

Your VLAND LED Taillights come with a 1 any de garantia des de la data de compra, que cobreix els defectes de fabricació. A més, Política de devolució de 30 dies is available for refund or replacement.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.

Atenció al client:

For any questions, concerns, or assistance with installation or troubleshooting, please contact VLAND customer support. You can typically find contact information on the seller's page or through the VLAND official weblloc.

When contacting support, please have your product model number (YAB-LMT-0357-01) and purchase details ready.
