ODK L-Shaped Computer Gaming Desk User Manual

Model: B01XS01737JP | Brand: ODK

Welcome to Your New ODK L-Shaped Desk

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your ODK L-Shaped Computer Gaming Desk. Designed for versatility and durability, this desk offers ample space for both work and play. Please read this manual carefully before assembly and use to ensure safe and optimal performance.

Precaucions de seguretat

  • Assegureu-vos que totes les peces estiguin presents i no estiguin danyades abans de començar el muntatge. No utilitzeu el producte si hi falta alguna peça o si està trencada.
  • Munta l'escriptori sobre una superfície suau i neta per evitar ratllades.
  • It is recommended that two people assemble this desk for ease and safety.
  • Do not exceed the maximum load capacity of 60kg for the main tabletop and 25kg for each shelf.
  • Mantingueu les peces petites allunyades dels nens durant el muntatge.
  • Reviseu regularment tots els cargols i connexions per assegurar-vos que estiguin ben ajustats.
  • Eviteu col·locar objectes calents directament sobre la superfície de l'escriptori sense protecció.

Què s'inclou

Before you begin, please verify that all components listed below are present in your package. If anything is missing or damaged, please contact customer support.

PartDescripcióQuantitat
Tabletop PanelsMain L-shaped desk surfaces2
Panells de prestatgeriesPrestatges d'emmagatzematge ajustables2
Components del marc d'acerLegs and support beamsDiversos
Cross BracingFor enhanced stability1
Peus ajustablesFor leveling the desk4
Suport de monitorElevated platform for monitor1
Ganxo per a auricularsConvenient storage for headphones1
Passerella de cablePer a la gestió de cables1
Maquinari de muntatgeScrews, bolts, Allen wrenchDiversos
Manual d'instruccionsAquest document1

Instruccions de muntatge

Follow these steps carefully to assemble your ODK L-Shaped Desk. It is recommended to have a second person assist with assembly.

  1. Desempaquetar i identificar les peces: Lay out all components on a soft, clean surface. Refer to the "What's Included" section to identify each part.
  2. Muntar el marc principal: Attach the steel frame components to the main tabletop panels using the provided screws. Ensure all connections are secure but do not overtighten yet.
  3. Install Cross Bracing: Secure the cross-bracing at the back of the desk frame. This enhances stability and prevents wobbling.
    Image showing the sturdy structure of the desk with cross bracing.

    Image: The desk's sturdy structure with cross bracing for enhanced stability.

  4. Fixeu els suports de les prestatgeries: Fasten the shelf supports to the designated areas on the left side of the desk frame. Note: The shelves are designed for the left side only for this model.
  5. Insert Shelf Panels: Slide the shelf panels into the supports. These shelves are adjustable in height to accommodate various items.

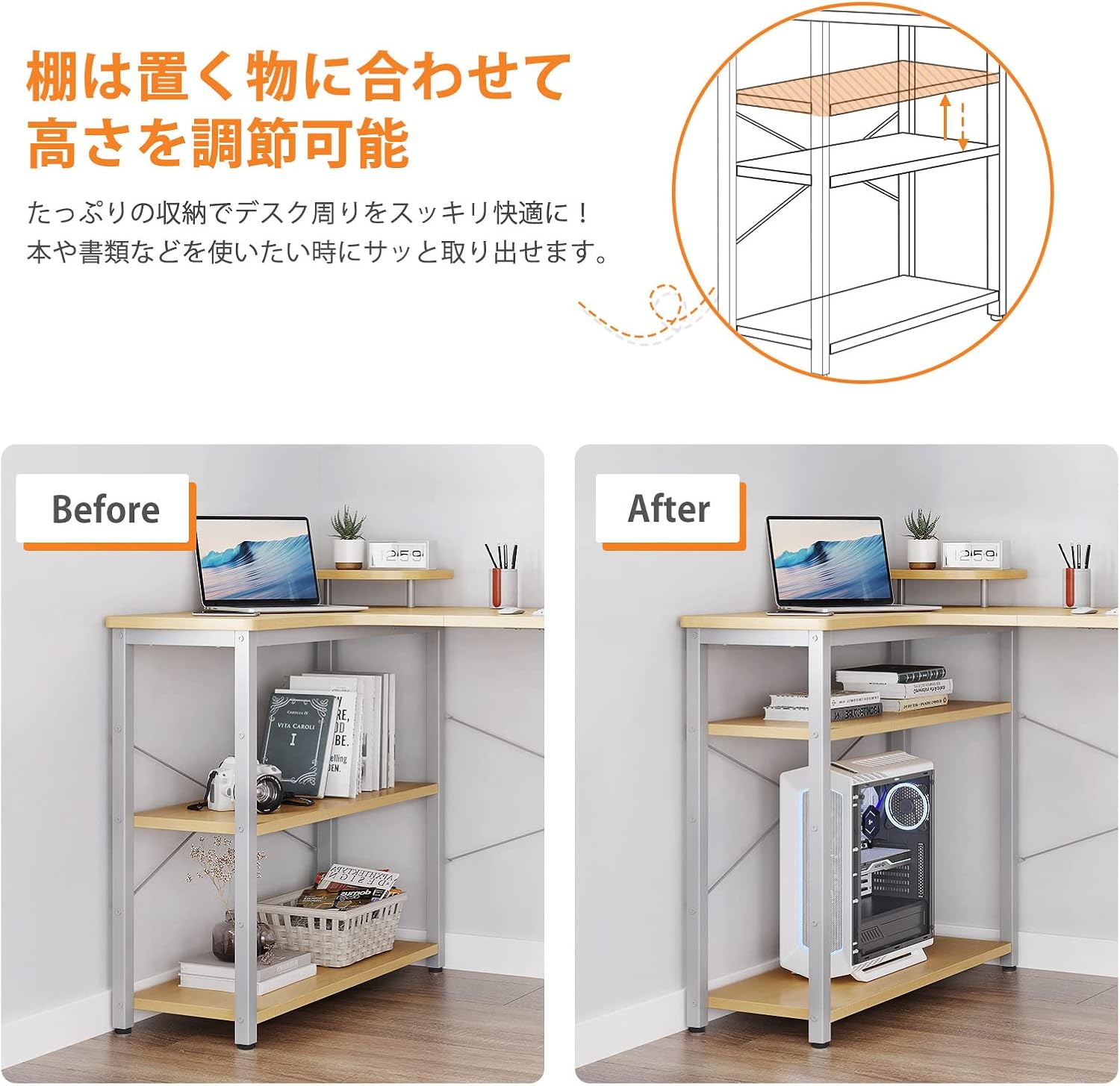

    Image showing the adjustable shelves of the desk.

    Image: The adjustable shelves provide flexible storage options.

  6. Instal·leu els peus ajustables: Screw the adjustable feet into the bottom of each leg. These can be rotated to level the desk on uneven floors.
    Close-up image of the adjustable foot on the desk leg.

    Image: Adjustable feet for leveling the desk on uneven surfaces.

  7. Attach Monitor Stand: Place the monitor stand on the designated area of the desk.
    Image of the monitor stand on the desk.

    Image: The elevated monitor stand helps improve posture.

  8. Install Headphone Hook and Cable Grommet: Attach the headphone hook to the side of the desk frame and insert the cable grommet into the pre-drilled hole for cable management.
    Image of the headphone hook attached to the desk.

    Image: Convenient headphone hook for easy access.


    Image of the cable management grommet.

    Image: Cable management grommet keeps your workspace tidy.

  9. Ajustament final: Un cop totes les peces estiguin al seu lloc, estrenyeu amb cura tots els cargols i perns. No els estrenyeu massa.
Desk dimensions and load capacities.

Image: Desk dimensions (110x80x74cm) and load capacities (60kg for tabletop, 25kg per shelf).

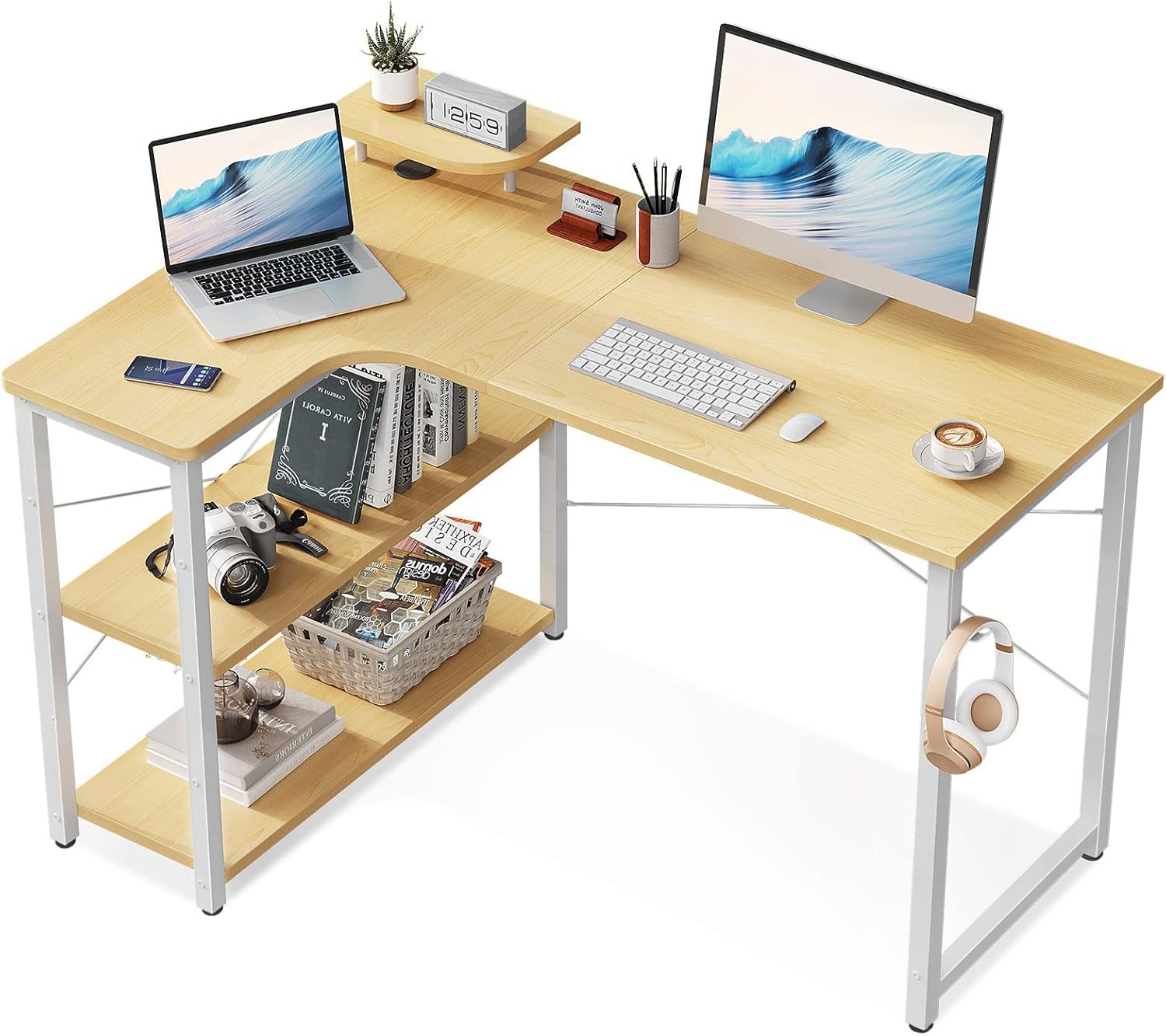

Fully assembled ODK L-shaped desk with computer and accessories.

Image: The ODK L-shaped desk fully assembled and ready for use.

Pautes d'ús

Your ODK L-Shaped Desk is designed for versatile use in various environments, including home offices, gaming setups, and study areas. Here are some guidelines for optimal use:

  • Maximize Workspace: The L-shaped design allows you to utilize corner spaces efficiently, providing a large surface area for multiple monitors, laptops, and other equipment.
    Image showing a spacious workspace on the L-shaped desk.

    Image: Enjoy a spacious and comfortable workspace.

  • Utilitza l'emmagatzematge: The integrated shelves provide convenient storage for books, documents, and other office supplies, keeping your main desk surface clutter-free.

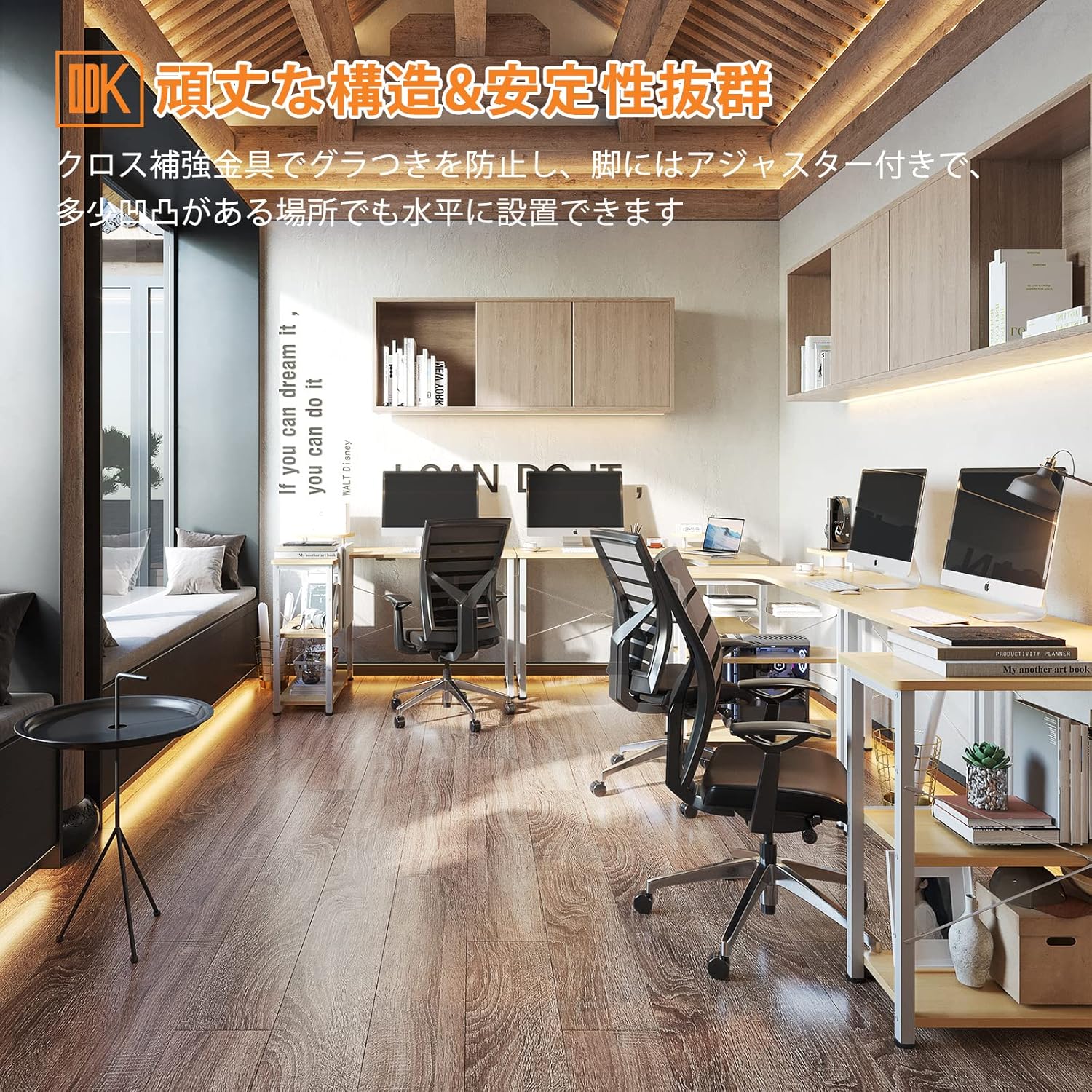

    Image showing the desk in an office setting with items stored on shelves.

    Image: The integrated shelves offer practical storage solutions.

  • Configuració ergonòmica: Use the included monitor stand to elevate your screen to an ergonomic eye level, which can help improve posture and reduce strain during long work or gaming sessions.
    Image showing the desk set up for gaming with a monitor stand.

    Image: Ideal for gaming setups, providing ample space for equipment.

  • Gestió de cables: Route your cables through the built-in grommet to maintain a tidy and organized workspace.
  • Vores de seguretat: The desk features a fillet design on the tabletop edges, which is a rounded corner for enhanced safety and to prevent accidental bumps.
    Close-up image of the fillet design on the desk edge.

    Image: The fillet design on the tabletop edges enhances safety.

Cura i Manteniment

To ensure the longevity and appearance of your ODK L-Shaped Desk, follow these simple care instructions:

  • Neteja: Netegeu la superfície de l'escriptori amb un damp cloth. For stubborn stains, use a mild soap solution and dry immediately. Avoid abrasive cleaners or harsh chemicals.
  • Vessaments: Promptly wipe up any spills to prevent water damage or staining, especially since the melamine surface is water-resistant but not waterproof.
  • Protecció de calor: Always use coasters or protective pads under hot items to prevent heat marks on the tabletop.
  • Exposició a la llum solar: Eviteu l'exposició prolongada a la llum solar directa, que pot causar decoloració o esvaïment amb el temps.
  • Comprovacions periòdiques: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal per mantenir l'estabilitat.

Resolució de problemes comuns

If you encounter any issues with your ODK L-Shaped Desk, please refer to the table below for common problems and their solutions. If the problem persists, contact customer support.

ProblemaCausa possibleSolució
L'escriptori està inestableLoose screws or uneven floorTighten all assembly screws. Adjust the leveling feet at the bottom of the legs.
Parts do not fitIncorrect orientation or wrong partsRefer to the assembly instructions and diagrams. Ensure you are using the correct parts for each step. Do not force parts together.
Esgarrapades a la superfícieSharp objects or abrasive cleaningUse protective mats for sharp items. Clean with a soft cloth and avoid abrasive materials.
Missing hardwareError d'embalatgeCheck all packaging materials thoroughly. Contact customer support for replacement parts.

Especificacions del producte

CaracterísticaDetall
MarcaODK
Número de modelB01XS01737JP
Dimensions (L x A x A)110 x 80 x 74 cm (aprox.)
PesAprox. 14.5 kg
MaterialEngineered Wood (Melamine Laminated Board), Metal (Steel Frame)
ColorNatural
Capacitat de càrrega de sobretaula60 kg
Capacitat de càrrega del prestatge25 kg per prestatge
Muntatge obligatoriYes (Customer Assembly)
Característiques especialsL-shaped design, Integrated storage shelves, Monitor stand, Headphone hook, Cable grommet, Adjustable feet, Fillet edge design

Garantia i assistència al client

ODK provides a Garantia del fabricant de 1 anys for this product, covering defects in materials and workmanship from the date of purchase. This warranty does not cover damage caused by improper assembly, misuse, accidents, or normal wear and tear.

If you experience any issues or have questions regarding your ODK L-Shaped Desk, please do not hesitate to contact our customer support team. We are committed to providing high-quality products and services.

For support, please refer to the contact information provided on your purchase receipt or visit the official ODK store on Amazon: ODK Amazon Store.
