Introducció
Thank you for choosing the JOROTO MR290 Water Rower. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before use and retain it for future reference.
Informació de seguretat
Before beginning any exercise program, consult with your physician. It is crucial to understand and follow all safety precautions to prevent injury and ensure proper operation of the JOROTO MR290 Water Rower.
- Assegureu-vos que tots els cargols i femelles estiguin ben ajustats abans de cada ús.
- Place the rower on a flat, stable surface.
- Mantingueu els nens i les mascotes lluny de l'equip durant el funcionament.
- No supereu el pes màxim de l'usuari 150 kg (330 lliures).
- Porteu roba i calçat adequats per fer exercici.
- Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.
- Regularly inspect the rower for any signs of wear or damage. Do not use if damaged.
- Mantingueu les mans i els peus allunyats de les parts mòbils.
Contingut del paquet
The JOROTO MR290 Water Rower is shipped 98% pre-assembled. Carefully unpack all components and verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support.
- JOROTO MR290 Rower main frame (partially assembled)
- Seient
- Pedals
- Monitor LCD
- Water pump and water treatment tablets
- Eines i maquinari de muntatge
- Manual d'usuari
Instruccions de muntatge
The JOROTO MR290 Water Rower is designed for quick assembly, typically taking around 10 minutes due to its 98% pre-assembled state. Follow these steps to complete the setup.
Step 1: Unpacking and Initial Placement
Remove all packaging materials. Place the main rower frame on a clear, level surface where you intend to use it.
Figura 1: The JOROTO MR290 Rower is 98% pre-assembled, allowing for quick setup in approximately 10 minutes.
Step 2: Attaching Remaining Components
Attach the seat, footplates, and LCD monitor according to the detailed diagrams in the included printed manual. Ensure all connections are secure.
Pas 3: omplir el dipòsit d'aigua
Use the provided pump to fill the Dipòsit d'aigua de 16 l with clean tap water. Do not overfill. Add one water treatment tablet to prevent algae growth. Refer to the water tank image for visual guidance on water levels.
Figura 2: The 16L Premium XL Water Tank provides adjustable resistance. Resistance levels range from Level 1 (196N) for active use to Level 6 (410N) for athletic training.
Instruccions de funcionament
Primers passos
- Sit on the seat and secure your feet in the adjustable footplates with the straps.
- Grasp the handle with both hands, palms down.
- Begin rowing with a smooth, controlled motion: push with your legs, then lean back slightly, and finally pull the handle towards your abdomen.
- Reverse the motion smoothly: extend arms, lean forward, then bend legs.
Ús de la pantalla intel·ligent
The JOROTO MR290 features a Smart Display (LCD monitor) to track your workout progress. It provides real-time data to help you monitor your performance.

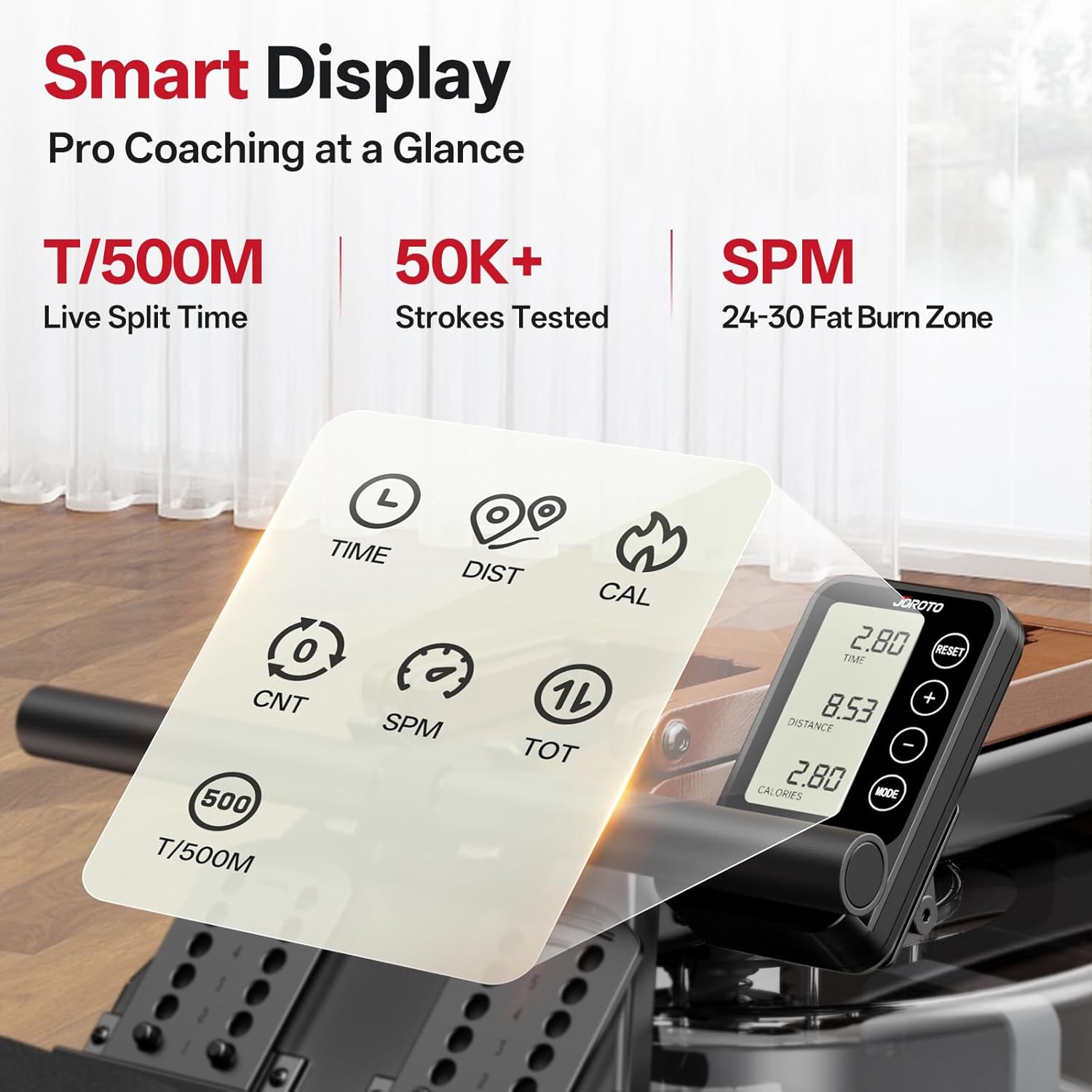

Figura 3: The Smart Display provides key workout metrics for effective training.
- HORA: Durada del teu entrenament.
- DIST: Distance rowed.
- CAL: Calories cremades estimades.
- CNT: Current stroke count.
- SPM: Strokes Per Minute.
- TOT: Total strokes accumulated.
- T/500M: Time to complete 500 meters.
- Utilitza el MODE button to cycle through display functions.
- Premeu RESET to clear current workout data.
- The display is compatible with various iPad stands for convenience.
Ajust de resistència
The resistance of the water rower is determined by the amount of water in the tank and the intensity of your stroke. More water or a stronger stroke increases resistance. The MR290 offers a natural water resistance feel, ranging from light (Level 1) to intense (Level 6) based on stroke power.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your JOROTO MR290 Water Rower.
- Neteja: Netegeu el remer amb anunciamp drap després de cada ús. Eviteu productes de neteja abrasius.
- Tractament de l'aigua: Add a water treatment tablet to the tank every 6-12 months, or as needed, to prevent algae and bacterial growth. Use only approved water treatment tablets.
- Substitució d'aigua: Replace the water in the tank annually or if it becomes discolored.
- Inspecció del marc: Periodically check the oak wood frame for any signs of wear or damage. The solid oak wood is designed for low maintenance and warp-proof durability.
- Parts mòbils: Inspect the seat rollers and sliding rails for smooth operation. Keep the rails clean and free of debris. The ultra-quiet sliding rails are designed for durability.
- Maquinari: Ensure all bolts and nuts remain tight. Retighten as necessary.
Figura 4: The JOROTO MR290 features a pure solid oak wood frame, ensuring durability and low maintenance.
Emmagatzematge
The JOROTO MR290 Water Rower is designed for ultimate space-saving with its quick-folding mechanism.
- Ensure the rower is clean and dry.
- Carefully lift the rear section of the rower until it folds vertically.
- Secure the folded position if a locking mechanism is present (refer to your printed manual for specifics).
- The folded rower occupies a compact 0.2 m² (2.2 sq ft) footprint.
- Store in a dry, temperate environment away from direct sunlight.
Figura 5: The JOROTO MR290 Rower folds quickly for compact storage, requiring only 0.2 m² of floor space.
Resolució de problemes
This section addresses common issues you might encounter with your JOROTO MR290 Water Rower.
| Problema | Causa possible | Solució |
|---|---|---|
| No es mostra al monitor LCD | Piles gastades o connexió fluixa. | Replace batteries. Check cable connections to the monitor. |
| Resistance feels too low/high | Incorrect water level or inconsistent stroke technique. | Check water level in the tank. Adjust stroke intensity. |
| Soroll de grinyol o fregament | Loose hardware, dirty rails, or worn seat rollers. | Tighten all bolts. Clean the sliding rails. Inspect seat rollers for damage. |
| Water in tank is discolored or cloudy | Algae or bacterial growth. | Add a water treatment tablet. If severe, drain and replace water. |
If you encounter an issue not listed here, or if the suggested solutions do not resolve the problem, please contact JOROTO customer support.
Especificacions del producte
Detailed technical specifications for the JOROTO MR290 Water Rower.
| Característica | Detall |
|---|---|
| Número de model | MR290 |
| Mecanisme de resistència | Aigua |
| Material del marc | Solid Oak Wood, Metal |
| Dimensions del producte (L x A x A) | 182 cm x 49.5 cm x 55 cm (71.65" x 19.49" x 21.65") |
| Pes del producte | 28.5 kg (62.8 lliures) |
| Pes màxim de l'usuari | 150 kg (330 lliures) |
| Alçada recomanada per a l'usuari | 120 cm - 195 cm |
| Capacitat del dipòsit d'aigua | 16 litres |
| Tipus de visualització | Monitor LCD |
| Font d'alimentació (pantalla) | Manual (Battery-powered for display) |

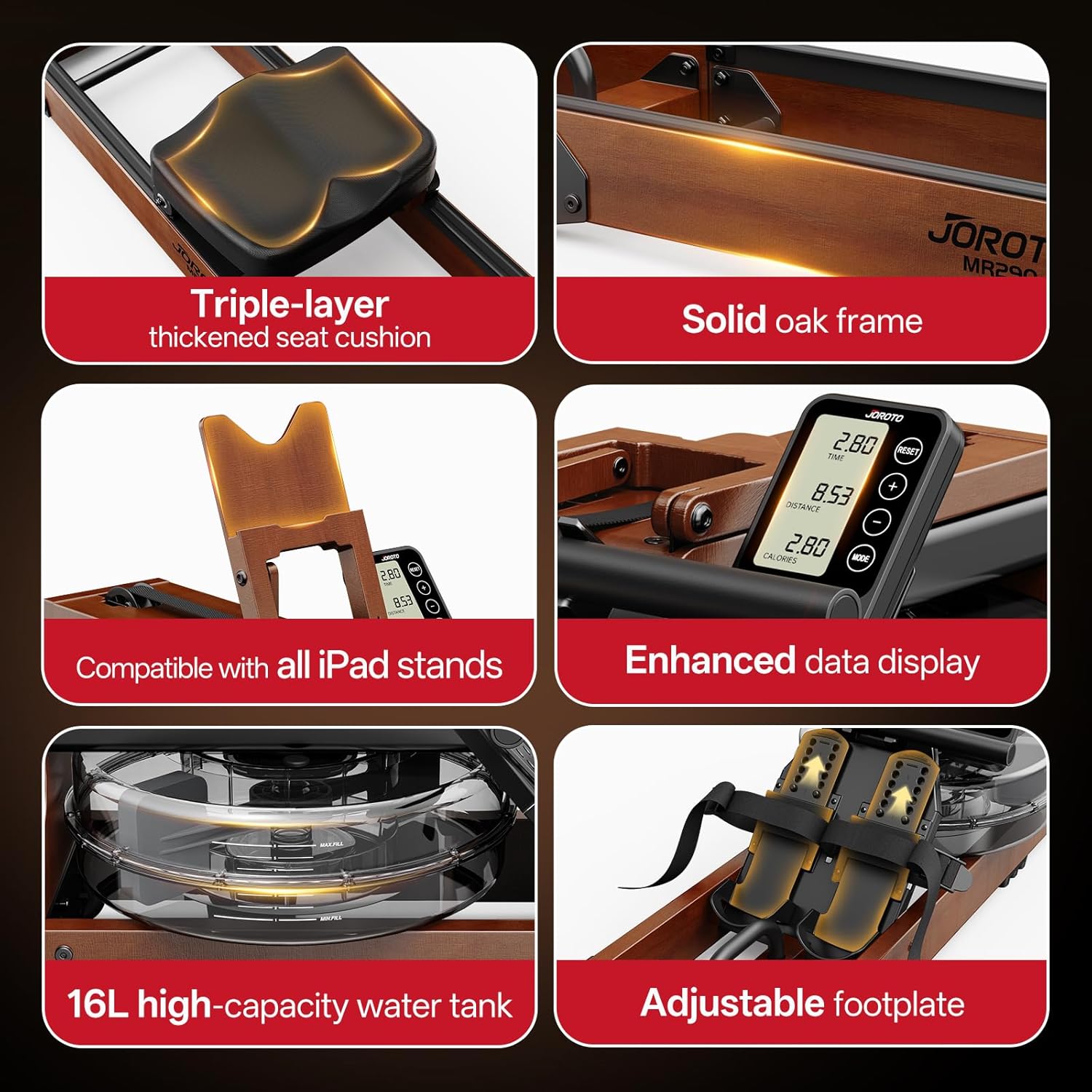

| Característiques especials | Home use design, oak wood frame, quick-folding, ultra-quiet sliding rails, adjustable footplate, triple-layer thickened seat cushion. |
| Folded Footprint | 0.2 m² (2.2 sq ft) |
Garantia i Suport
For specific warranty details, please refer to the warranty card included with your product or visit the official JOROTO website. If you require technical assistance, replacement parts, or have any questions regarding your JOROTO MR290 Water Rower, please contact JOROTO customer support directly. Have your model number (MR290) and purchase information ready when contacting support.
