KXD 703A 49cc 2-Stroke Dirt Bike User Manual

1. Introducció

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your KXD 703A 49cc 2-stroke dirt bike. Please read this manual thoroughly before operating the vehicle to ensure proper use and to prevent injury or damage.

The KXD 703A is designed for off-road use on gravel, grass, and varied terrain. It features a single-cylinder 49cc 2-stroke air-cooled engine, a robust steel frame, and off-road tires for dynamic riding. This model is suitable for beginners and experienced riders, offering a controlled riding experience with its 3-stage speed limiter.

2. Informació de seguretat

WARNING: Operating this dirt bike can be dangerous. Always follow safety guidelines to minimize risks.

• Equip de protecció: Always wear a helmet, eye protection, gloves, long pants, and sturdy boots when operating the dirt bike.
• Supervisió d'adults: Children should only operate this dirt bike under direct adult supervision.
• Entorn de funcionament: Use the dirt bike only in designated off-road areas, away from public roads, traffic, and pedestrians. Ensure the terrain is suitable and free of obstacles.
• Inspecció prèvia a la marxa: Before each ride, check brakes, tire pressure, chain tension, and all fasteners.
• Manipulació de combustible: Fuel is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Avoid spilling fuel.
• Speed Limiter: Utilitza les 3-stage speed limiter, especially for beginners, to control the maximum speed.
• No Passengers: This dirt bike is designed for a single rider only.
• Calor del motor: El motor i el sistema d'escapament s'escalfen molt durant el funcionament. Eviteu el contacte per evitar cremades.

3. Muntatge i muntatge

Your KXD 703A dirt bike may require some assembly upon arrival. Follow these steps carefully.

3.1 Desembalatge i inspecció inicial

• Traieu amb cura tots els components de l'embalatge.
• Inspeccioneu si hi ha hagut danys durant l'enviament. Poseu-vos en contacte amb el vostre distribuïdor immediatament si trobeu danys.
• Verify all parts are present according to the packing list (not provided in this manual, refer to product packaging).

3.2 Instal·lació del manillar

Attach the handlebars to the steering column using the provided bolts and clamps. Ensure they are centered and tightened securely.

3.3 Fuel Preparation and Filling

The KXD 703A uses a 2-stroke engine, requiring a specific fuel mixture.

• Mescla de combustible: Barregeu gasolina sense plom amb oli de motor de 2 temps en una proporció de 1:25 (oil to petrol). Use a dedicated fuel mixing container.
• Omplir el dipòsit: With the engine off and cool, carefully pour the prepared fuel mixture into the 1.9-liter fuel tank. Do not overfill. Securely close the fuel cap.

3.4 Comprovacions prèvies a la conducció

• Frens: Ensure both front and rear disc brakes engage effectively.
• Pneumàtics: Check tire pressure. The off-road tires (2.5-10) should be adequately inflated for optimal traction.
• Tensió de la cadena: Verify the drive chain has appropriate tension. Adjust if too loose or too tight.
• Elements de fixació: Confirm all bolts and nuts are securely tightened.

Image: KXD 703A Dirt Bike with key dimensions. The bike measures approximately 128 cm in length, 56 cm in width (handlebars), and 85 cm in height. The seat height is approximately 60 cm.

4. Instruccions de funcionament

4.1 Arrencada del motor

• Ensure the fuel valve is open (if applicable).
• If the engine is cold, engage the choke.
• Pull the rope starter firmly and smoothly until the engine starts. Do not pull the rope to its full extension or let it snap back.
• Once the engine starts, gradually disengage the choke as the engine warms up.

Imatge: Primer pla view of the KXD 703A engine, showing the air filter and the red handle of the rope starter mechanism.

4.2 Control de l'accelerador

The throttle is located on the right handlebar. Twist it towards you to increase engine speed and release it to decrease speed. Always apply throttle smoothly.

4.3 Frenades

The KXD 703A is equipped with disc brakes. The front brake lever is on the right handlebar, and the rear brake lever is on the left handlebar. Apply both brakes gently and evenly for controlled stopping. Avoid sudden, hard braking, especially on loose surfaces.

Imatge: Detallada view of the rear wheel and disc brake system of the KXD 703A dirt bike, highlighting the caliper and rotor.

4.4 Speed Limiter Adjustment

The dirt bike features a 3-stage speed limiter. This mechanism allows you to restrict the maximum speed, which is particularly useful for new riders or in confined spaces. Consult your dealer or the product packaging for specific adjustment instructions.

4.5 Parar el motor

To stop the engine, locate the kill switch (usually on the handlebars) and press it. Ensure the engine is fully off before dismounting.

5. Manteniment

Regular maintenance is crucial for the longevity and safe operation of your KXD 703A dirt bike.

5.1 Daily/Pre-Ride Checks

• Inspeccioneu els pneumàtics per detectar danys i la pressió correcta.
• Check brake function and adjustment.
• Verify chain tension and lubrication.
• Ensure all visible fasteners are tight.

5.2 Fuel System Care

Always use the correct 1:25 oil/petrol mixture. Store fuel in an approved container. Clean the fuel filter periodically.

5.3 Neteja del filtre d'aire

The air filter should be cleaned regularly, especially after riding in dusty conditions. Remove the air filter, clean it with appropriate cleaner, and re-oil if necessary before reinstalling.

5.4 Inspecció de la bugia

Inspect the spark plug for wear and proper gap. Replace if fouled or worn. Refer to the engine manufacturer's specifications for the correct spark plug type and gap.

5.5 Chain Lubrication and Adjustment

Keep the drive chain clean and well-lubricated with chain lubricant. Check chain tension regularly and adjust as needed to prevent excessive slack or tightness.

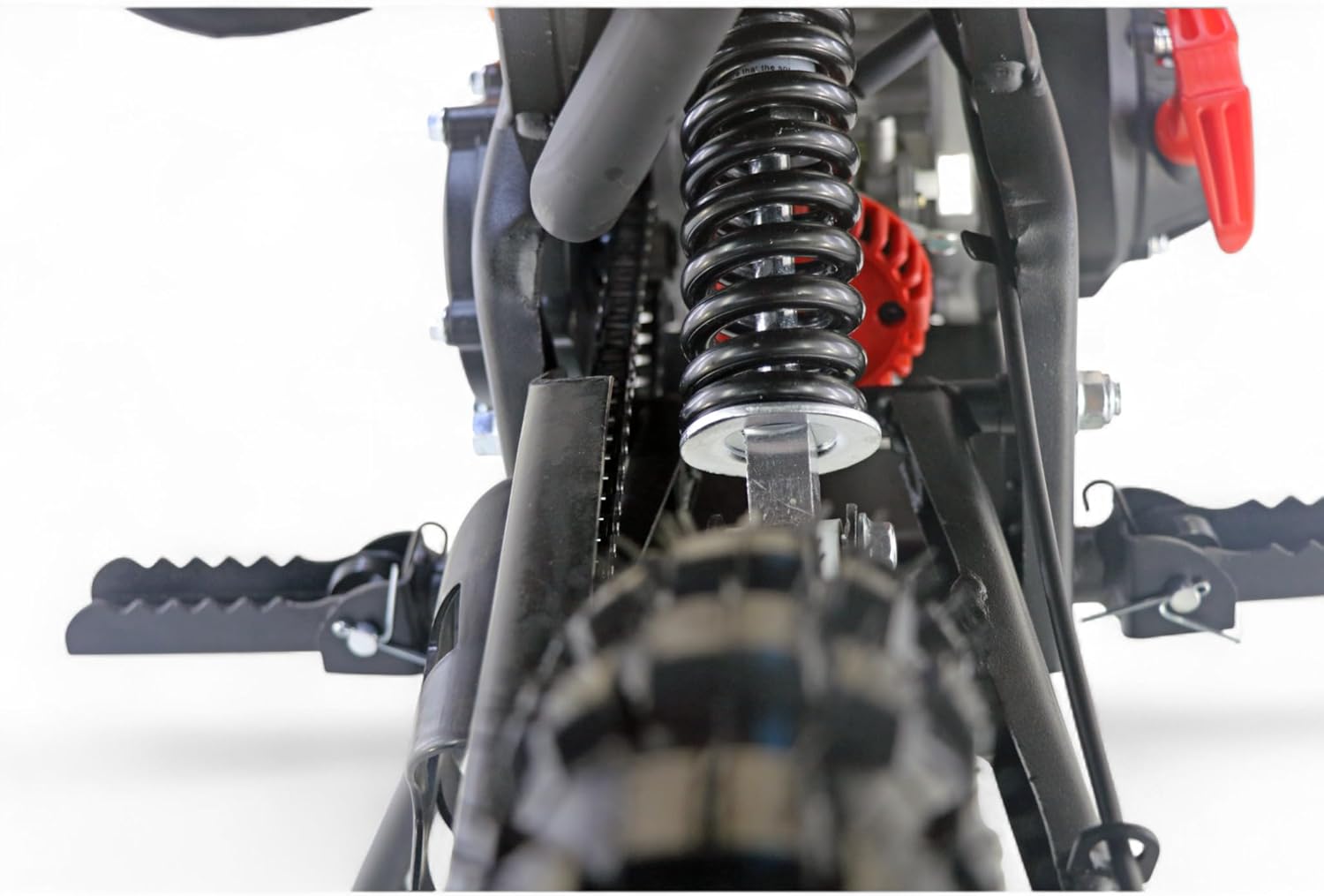

Imatge: View of the rear mono-shock suspension and drive chain of the KXD 703A, showing components that require regular inspection and maintenance.

5.6 Emmagatzematge

When storing the dirt bike for extended periods, ensure the fuel tank is drained or stabilized, clean the bike thoroughly, and store it in a dry, secure location.

6. Solució De Problemes

This section addresses common issues you might encounter with your KXD 703A dirt bike.

If you cannot resolve an issue using this guide, please contact KXD customer support or a qualified service technician.

7. Especificacions

Technical details for the KXD 703A 49cc 2-Stroke Dirt Bike.

8. Garantia i Suport

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or spare parts, please contact KXD customer service or your authorized dealer.
