Producte acabatview
The DEDRA SAS+ALL DED7051 18V Cordless Angle Grinder is designed for cutting and grinding tasks. This tool features a powerful motor capable of reaching speeds up to 8500 RPM, compatible with 125 mm and 115 mm diameter discs. Its ergonomic design, lightweight construction (2.2 kg), and fiberglass-reinforced nylon housing ensure durability and comfortable operation.
Key features include a safety switch that interrupts power if excessive pressure is applied to the workpiece, preventing damage or overheating. The quick-release system for discs, a two-position side handle, and a rubberized grip enhance user comfort and control. The disc changing key is conveniently stored within the side handle.

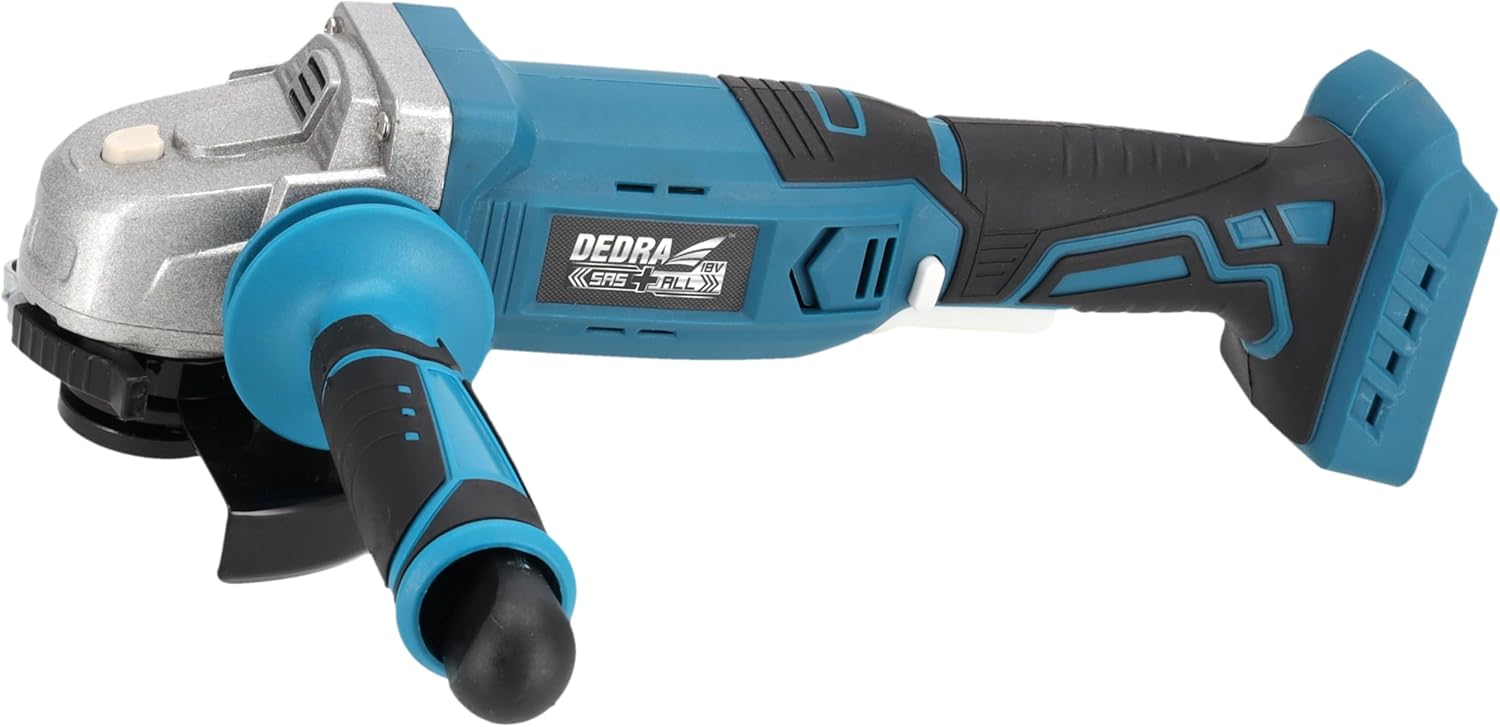

Image: DEDRA 18V Cordless Angle Grinder, showing the main unit with the side handle and disc guard installed.
Informació de seguretat
Llegiu i comprengueu sempre tots els avisos de seguretat, instruccions, il·lustracions i especificacions que s'inclouen amb aquesta eina elèctrica. Si no seguiu totes les instruccions que s'indiquen a continuació, podeu patir descàrregues elèctriques, incendis i/o lesions greus.
- Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques poden provocar accidents. No utilitzeu eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
- Seguretat elèctrica: Eviteu el contacte corporal amb superfícies posades a terra, com ara canonades, radiadors, estufes i neveres. Hi ha un major risc de descàrrega elèctrica si el vostre cos està connectat a terra o a terra.
- Seguretat personal: Always wear eye protection. Use personal protective equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions.
- Ús i cura de l'eina: No forceu l'eina elèctrica. Utilitzeu l'eina elèctrica adequada per a la vostra aplicació. L'eina elèctrica correcta farà la feina millor i més segura a la velocitat per a la qual va ser dissenyada.
- Interruptor de seguretat: The grinder is equipped with a safety switch that cuts off power if excessive pressure is applied to the workpiece. This prevents damage to the tool and potential overheating. Do not attempt to bypass or disable this safety feature.
- Compatibilitat del disc: Only use grinding and cutting discs with a diameter of 125 mm or 115 mm that are rated for the grinder's maximum RPM.
Què hi ha a la caixa
En obrir el paquet, comproveu que tots els components siguin presents i no estiguin danyats:
- 1 x DEDRA 18V Cordless Angle Grinder (Main Unit)
- 1 x Auxiliary Side Handle
- 1 x Disc Guard
- 1 x Two-hole Wrench for Disc Change
- Note: Battery and charger are NOT included and must be purchased separately.
Image: A visual reminder that the battery and charger are sold separately from the angle grinder unit.
Configuració
- Fixació de la nansa lateral:
The auxiliary side handle can be screwed into either of the two threaded holes on the grinder's gear housing, depending on your preferred working position and hand dominance. Ensure it is tightened securely.
Image: The angle grinder with the side handle attached, demonstrating its position.
- Mounting the Disc Guard:
Position the disc guard over the spindle housing. Rotate it until it covers the disc adequately for your application, providing maximum protection. Tighten the guard's clamping mechanism firmly to prevent movement during operation.
- Installing the Grinding/Cutting Disc:
Ensure the grinder is switched off and the battery is removed before installing or changing discs. Press the spindle lock button to secure the spindle. Place the inner flange onto the spindle, then position the grinding or cutting disc onto the inner flange. Secure the disc with the outer flange and tighten it using the provided two-hole wrench. Release the spindle lock.
Imatge: Superior view of the angle grinder showing the disc guard and the spindle assembly where the disc is mounted.
- Inserció de la bateria:
Align the battery pack with the battery slot at the rear of the grinder handle. Slide the battery into place until it clicks securely. Ensure it is fully seated before operation.
Imatge: Part posterior view of the angle grinder, highlighting the battery insertion slot.
Instruccions de funcionament
- Engegar el molinet:
With the battery inserted and disc securely mounted, hold the grinder firmly with both hands. Press the power switch to start the tool. Allow the disc to reach full speed before making contact with the workpiece.
- Grinding and Cutting:
Apply light, consistent pressure. Do not force the tool. The integrated safety switch will activate and cut power if excessive pressure is detected, protecting the tool from overload and overheating. If this occurs, reduce pressure and restart the tool.
- Aturar el molinet:
Release the power switch to stop the tool. Wait for the disc to come to a complete stop before setting the grinder down or performing any adjustments.
Manteniment
- Neteja: Regularly clean the ventilation openings of the grinder to prevent dust accumulation, which can lead to overheating. Use a soft brush or compressed air.
- Inspecció de disc: Abans de cada ús, inspeccioneu el disc de mòlta o de tall per detectar esquerdes, estelles o desgast excessiu. Substituïu els discs danyats immediatament.
- Emmagatzematge: Store the grinder in a dry, secure place, out of reach of children. Remove the battery when storing for extended periods.
- Cura de la bateria: Follow the manufacturer's instructions for charging and storing the battery pack. Do not expose batteries to extreme temperatures or moisture.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El molinet no arrenca. | Bateria no inserida correctament o descarregada. | Assegureu-vos que la bateria estigui completament col·locada. Carregueu la bateria si cal. |
| El molinet s'atura durant el funcionament. | Excessive pressure applied (safety switch activated). | Reduce pressure on the workpiece. Restart the tool. |
| Vibracions o sorolls excessius. | Disc mal instal·lat o danyat. | Check disc installation. Replace disc if damaged or worn. |
| L'eina se sent calenta. | Overuse or blocked ventilation. | Allow tool to cool down. Clean ventilation openings. |
Especificacions
| Atribut | Valor |
|---|---|
| Marca | Dedra |
| Número de model | DED7051 |
| Font d'alimentació | Funciona amb bateria (18 V) |
| RPM màxim | 8500 RPM/min |
| Outer Disc Diameter | 125 Millimeters (also compatible with 115 mm) |
| Disc Bore Diameter | 22.2 mm |
| Material | Nylon (fiberglass-reinforced) |
| Pes de l'article | 2 quilos |
| Dimensions del paquet | 37 x 14 x 11 cm |
| Piles incloses | No |
| Piles necessàries | Yes (Lithium-Manganese Dioxide type) |
Garantia i Suport
Dedra products are designed for quality and reliability, undergoing testing at every stage of their lifecycle to ensure high standards. While specific warranty details are not provided in this manual, for any product support, technical assistance, or warranty claims, please contact Dedra customer service or refer to the official Dedra weblloc per obtenir la informació més actualitzada.
You can visit the official Dedra store on Amazon for more information and contact options: Dedra Store
