Walfront FS8233 Digital Multimeter User Manual

1. Introducció

The Walfront FS8233 Digital Multimeter is a versatile and intelligent universal meter designed for various electrical measurements in home and industrial settings. It features a large LCD screen for clear display, non-contact voltage detection for safety, and robust construction from ABS and PVC materials. This manual provides detailed instructions for the safe and effective use of your FS8233 Digital Multimeter.

2. Informació de seguretat

Always observe the following safety precautions when using the multimeter to prevent electric shock or damage to the instrument:

• No supereu el volum màximtage or current ratings specified for each function.
• Ensure the test leads are properly connected and the function switch is set to the correct range before making any measurements.
• No feu servir el multímetre si sembla danyat o si els cables de prova estan desgastats.
• Aneu amb extrema precaució quan treballeu amb voltagper sobre de 30 V CA RMS, 42 V pic o 60 V CC. Aquests voltagsuposen un risc de xoc.
• Desconnecteu sempre l'alimentació del circuit i descarregueu totes les emissions d'alt volum.tage capacitors before measuring resistance or continuity.
• Substituïu la bateria quan aparegui l'indicador de bateria baixa per garantir lectures precises.
• The integrated anti-explosion ceramic fuse tube provides overload protection. Do not bypass or replace with an incorrect fuse type.

3. Producte acabatview

The Walfront FS8233 Digital Multimeter is designed for ease of use and accuracy. Key features include:

• Pantalla LCD gran: Provides a clear and easy-to-read display with backlight for visibility in dark conditions.
• Vol. Sense contactetagDetecció de e (NCV): Safely detects voltage without direct contact, minimizing electric shock risk.
• Protecció de sobrecàrrega: Features an integrated anti-explosion ceramic fuse tube and wide-range reverse polarity protection.
• Capacitats de mesura versàtils: Mesures AC/DC voltage, AC/DC current, resistance, and capacitance.
• Funcions addicionals: Includes diode test, live wire detection, data hold, flashlight, and automatic shutdown.
• Construcció duradora: Made from high-quality ABS and PVC materials for durability and wear resistance.

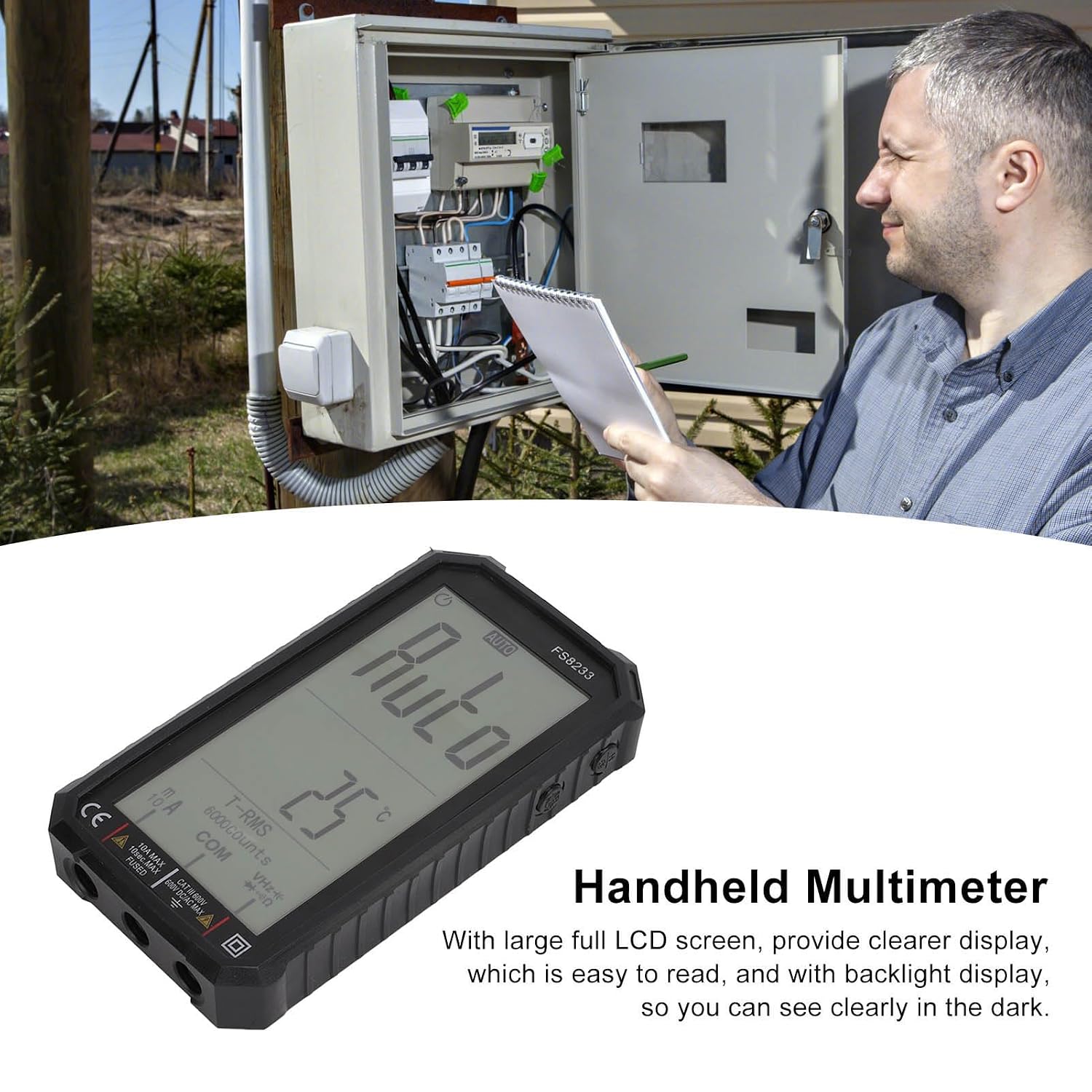

Figura 3.1: Frontal view of the Walfront FS8233 Digital Multimeter, showing the large LCD screen and input jacks.

Figure 3.2: The Walfront FS8233 Digital Multimeter shown with its included test leads and K-type thermocouple cable.

4. Configuració

4.1 Instal·lació de la bateria

The Walfront FS8233 Digital Multimeter requires 2 x 1.5V AAA batteries (not included) for operation.

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del multímetre.
2. Utilitzeu un tornavís per obrir el compartiment de la bateria.
3. Introduïu dues piles AAA d'1.5 V, assegurant-vos de la polaritat correcta (+ i -).
4. Substituïu la tapa del compartiment de la bateria i fixeu-la amb el cargol.

4.2 Connexió del cable de prova

Proper connection of test leads is crucial for accurate and safe measurements. The multimeter has three input jacks:

• COM (Common) Jack: This is the negative (-) input for all measurements. The black test lead is always inserted here.
• VΩHz→•CAP (Voltage, Resistance, Frequency, Diode, Continuity, Capacitance) Jack: This is the positive (+) input for voltage, resistance, frequency, diode, continuity, and capacitance measurements. The red test lead is inserted here for these functions.
• 10A MAX (Current) Jack: This is the positive (+) input for current measurements up to 10A. The red test lead is inserted here when measuring current.

Important: When measuring current, the black test lead is inserted into the COM jack, and the red test lead is inserted into the 10A MAX jack. For all other functions (voltage, resistance, etc.), the black test lead is in COM and the red test lead is in the VΩHz→•CAP jack.

5. Instruccions de funcionament

Before operating, ensure the multimeter has fresh batteries and test leads are correctly connected for the desired measurement.

5.1 Encès/Apagat

Press the power button (usually marked with a power symbol) to turn the multimeter on or off. The device features an automatic shutdown function to conserve battery life if inactive for a period.

5.2 Volum de mesuratage (AC/DC)

Per mesurar voltage:

1. Insert the black test lead into the COM jack and the red test lead into the VΩHz→•CAP jack.
2. Seleccioneu el vol adequattage range (AC or DC) using the function switch. The FS8233 often features auto-ranging, simplifying this step.
3. Connect the test leads in parallel across the component or circuit to be measured.
4. Llegeix el voltage valor a la pantalla LCD.

5.3 Mesura del corrent (CA/CC)

Per mesurar el corrent:

1. Crucial: Insert the black test lead into the COM jack and the red test lead into the 10A MAX jack.
2. Select the appropriate current range (AC or DC) using the function switch.
3. Connect the multimeter in series with the circuit. This means breaking the circuit and inserting the multimeter so that the current flows through it.
4. Read the current value on the LCD screen.

5.4 Mesura de la resistència

Per mesurar la resistència:

1. Insert the black test lead into the COM jack and the red test lead into the VΩHz→•CAP jack.
2. Select the resistance (Ω) function.
3. Ensure the circuit is de-energized before connecting the test leads across the component.
4. Read the resistance value on the LCD screen.

5.5 Prova de continuïtat

Per realitzar una prova de continuïtat:

1. Insert the black test lead into the COM jack and the red test lead into the VΩHz→•CAP jack.
2. Select the continuity (→•) function.
3. Touch the test leads across the circuit or component. If the resistance is less than 50Ω, the buzzer will sound, indicating continuity.

5.6 Vol. sense contactetage (NCV) Detecció

The NCV function allows for safe detection of live AC voltagi sense contacte directe.

1. Select the NCV function on the multimeter.
2. Move the top part of the multimeter (where the NCV sensor is located) close to the wire or outlet you suspect has AC voltage.
3. The multimeter will indicate the presence of voltage through an audible beep and/or visual indicator (e.g., LED lights).

Figure 5.1: The Walfront FS8233 Digital Multimeter being used for electrical measurements, demonstrating its practical application.

6. Especificacions

7. Manteniment

Un manteniment adequat garanteix la longevitat i la precisió del vostre multímetre.

• Neteja: Netegeu el cas amb l'anunciamp cloth and mild detergent. Do not use abrasives or solvents. Ensure the device is off and dry before use.
• Substitució de la bateria: Replace batteries promptly when the low battery indicator appears to prevent inaccurate readings or damage from battery leakage.
• Emmagatzematge: Store the multimeter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries.
• Cables de prova: Inspect test leads regularly for any signs of damage, such as cuts, cracks, or frayed insulation. Replace damaged leads immediately.

8. Solució De Problemes

If you encounter issues with your Walfront FS8233 Digital Multimeter, refer to the following common problems and solutions:

• Sense pantalla o pantalla tènue:
  • Check if the batteries are installed correctly and have sufficient charge. Replace if necessary.
  • Assegureu-vos que el botó d'encesa estigui premut amb fermesa.
• Lectures incorrectes:
  • Verify that the test leads are properly connected to the correct input jacks for the selected function.
  • Ensure the function switch is set to the appropriate measurement type (e.g., ACV for AC voltage, DCV for DC voltagi).
  • Check if the batteries are low; low battery can affect accuracy.
  • Ensure the circuit is de-energized when measuring resistance or continuity.
• El brunzidor no sona durant la prova de continuïtat:
  • Confirm the continuity function is selected.
  • Check if the resistance of the circuit is above 50Ω. The buzzer only sounds for resistance below this value.
• Sense detecció de NCV:
  • Ensure the NCV function is selected.
  • The NCV sensor needs to be close to the live AC voltage font.

9. Garantia i Suport

Walfront products are manufactured to high-quality standards. For information regarding warranty coverage or technical support, please refer to the retailer's return policy or contact Walfront customer service through their official channels. A 30-day return/refund policy is typically offered by sellers for this product.
