KXD M3 49ccm 2-Stroke Mini ATV User Manual

1. Introducció

This manual provides essential information for the safe assembly, operation, and maintenance of your KXD M3 49ccm 2-Stroke Mini ATV. Please read this manual thoroughly before using the ATV to ensure proper function and safety. Keep this manual for future reference.

2. Informació de seguretat

ADVERTIMENT: Operating this Mini ATV can be dangerous. Always follow these safety guidelines to prevent serious injury or death.

• Supervisió d'un adult requerit: This Mini ATV is intended for children under strict adult supervision only. Never allow a child to operate the ATV unsupervised.
• Equip de protecció: Always wear appropriate safety gear, including a helmet, eye protection, gloves, long pants, and sturdy footwear.
• Entorn de funcionament: Operate the ATV only in safe, open areas free from obstacles, traffic, and pedestrians. Avoid public roads, steep inclines, and uneven terrain.
• Inspecció prèvia a la marxa: Before each use, check tires, brakes, steering, and all fasteners to ensure they are in good working order.
• Manipulació de combustible: Handle fuel with extreme care. Fuel is highly flammable. Refuel in a well-ventilated area with the engine off and cool.
• Límit de pes: Do not exceed the recommended weight limit for the ATV.
• No Passengers: This ATV is designed for a single rider only. Do not carry passengers.
• Calor del motor: El motor i el sistema d'escapament s'escalfen molt durant el funcionament. Eviteu el contacte per evitar cremades.

3. Producte acabatview

Familiarize yourself with the main components of your KXD M3 Mini ATV.

Figura 3.1: Frontal view of the KXD M3 Mini ATV, showcasing the headlights and robust front bumper.

Figura 3.2: costat dret view of the KXD M3 Mini ATV, showing the seat, footrests, and rear wheel.

Figura 3.3: posterior view of the KXD M3 Mini ATV, highlighting the rear axle and exhaust.

Key Controls and Indicators:

• Manillar: For steering control.
• Acceleració: Typically on the right handlebar, controls engine speed.
• Frens: Levers on handlebars for front and rear brakes.
• Interruptor d'encesa: Per engegar i aturar el motor.
• Interruptor endavant/enrere: Located near the handlebars for direction selection.
• Indicador de bateria: Mostra el nivell de càrrega actual de la bateria.

Figure 3.4: Detail of the forward/reverse switch, clearly marked for 'Forward', 'Off', and 'Reverse' positions.

Figure 3.5: Detail of the right handlebar, showing the throttle grip and the battery charge indicator lights.

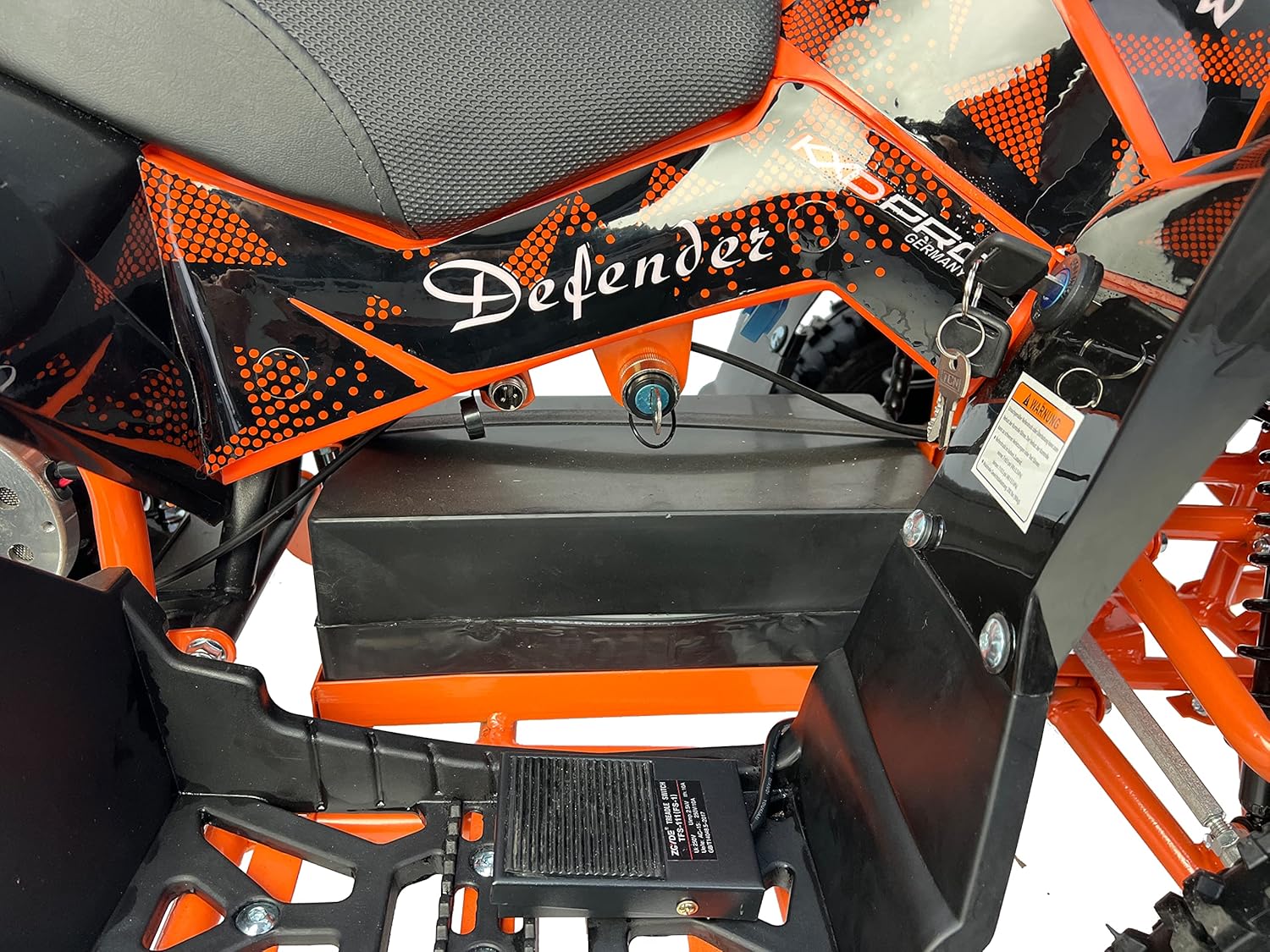

Figura 3.6: View of the battery compartment and engine area, located beneath the seat and footrests.

4. Muntatge i muntatge

The KXD M3 Mini ATV requires some assembly. Please follow these general steps. Refer to the included assembly diagram for detailed instructions specific to your model.

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Comproveu si hi ha algun dany o si falten peces.
2. Instal·lació del manillar: Attach the handlebars to the steering column. Ensure all bolts are securely tightened.
3. Fixació de la roda: Install the wheels, ensuring they are properly aligned and secured with the provided nuts and washers.
4. Fender/Body Panel Attachment: Secure any loose fenders or body panels.
5. Battery Connection (if applicable): If the battery is disconnected for shipping, connect it according to the polarity markings. Ensure a full charge before first use.
6. Controls de fluids: Check engine oil and fuel levels. For 2-stroke engines, ensure the correct fuel/oil mixture is used.
7. Ajust del fre: Verify that the brakes are functioning correctly and adjust if necessary.
8. Inspecció final: Double-check all connections, bolts, and moving parts before initial operation.

5. Instruccions de funcionament

Always ensure the rider is wearing all necessary safety gear and is under direct adult supervision.

1. Arrencada del motor:
   • Ensure the ATV is on a flat, stable surface.
   • Gireu la clau d'encesa a la posició "ON".
   • If equipped with a choke, engage it for cold starts.
   • Use the pull-start mechanism or electric starter (if available) to start the engine.
   • Once started, disengage the choke.
2. Selecting Direction: Use the Forward/Reverse switch (refer to Figure 3.4) to select the desired direction. Ensure the ATV is stationary before changing direction.
3. Acceleració: Slowly and smoothly twist the throttle grip (Figure 3.5) to accelerate. Avoid sudden movements.
4. Direcció: Use the handlebars to steer the ATV. Lean into turns for better control.
5. Frenatge: Gently squeeze the brake levers to slow down or stop. Apply both front and rear brakes evenly for stable stopping.
6. Aturar el motor: Turn the ignition key to the "OFF" position.

6. Manteniment

Regular maintenance is crucial for the longevity and safe operation of your ATV.

• Pressió dels pneumàtics: Check tire pressure before each ride. Maintain recommended PSI as specified on the tire sidewall or in the full product manual.
• Frens: Regularly inspect brake pads and cables for wear. Adjust or replace as needed.
• Lubricació de la cadena: Keep the drive chain clean and properly lubricated.
• Elements de fixació: Periodically check all nuts, bolts, and fasteners for tightness. Tighten any loose components.
• Filtre d'aire: Netegeu o substituïu el filtre d'aire regularment, especialment quan utilitzeu el vehicle en condicions de pols.
• Bujía: Inspect and clean the spark plug. Replace if worn.
• Sistema de combustible: Ensure the fuel tank and lines are free of leaks. Use fresh, correctly mixed fuel.
• Neteja general: Clean the ATV after each use to prevent dirt and debris buildup.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

9. Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries regarding parts, please contact KXD customer service or the seller directly. Keep your proof of purchase handy when contacting support.

Número de peça del fabricant: 173667605
