Introducció
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Bagtecs XS45 Motorcycle Aluminium Top Box. Please read this manual thoroughly before using the product to ensure proper function and safety. This top box is designed to provide secure and convenient storage for your motorcycle.
Producte acabatview
Figura 1: Part frontal view of the Bagtecs XS45 Top Box, securely mounted on the rear rack of a motorcycle. The robust black aluminium construction and prominent silver latches are visible.

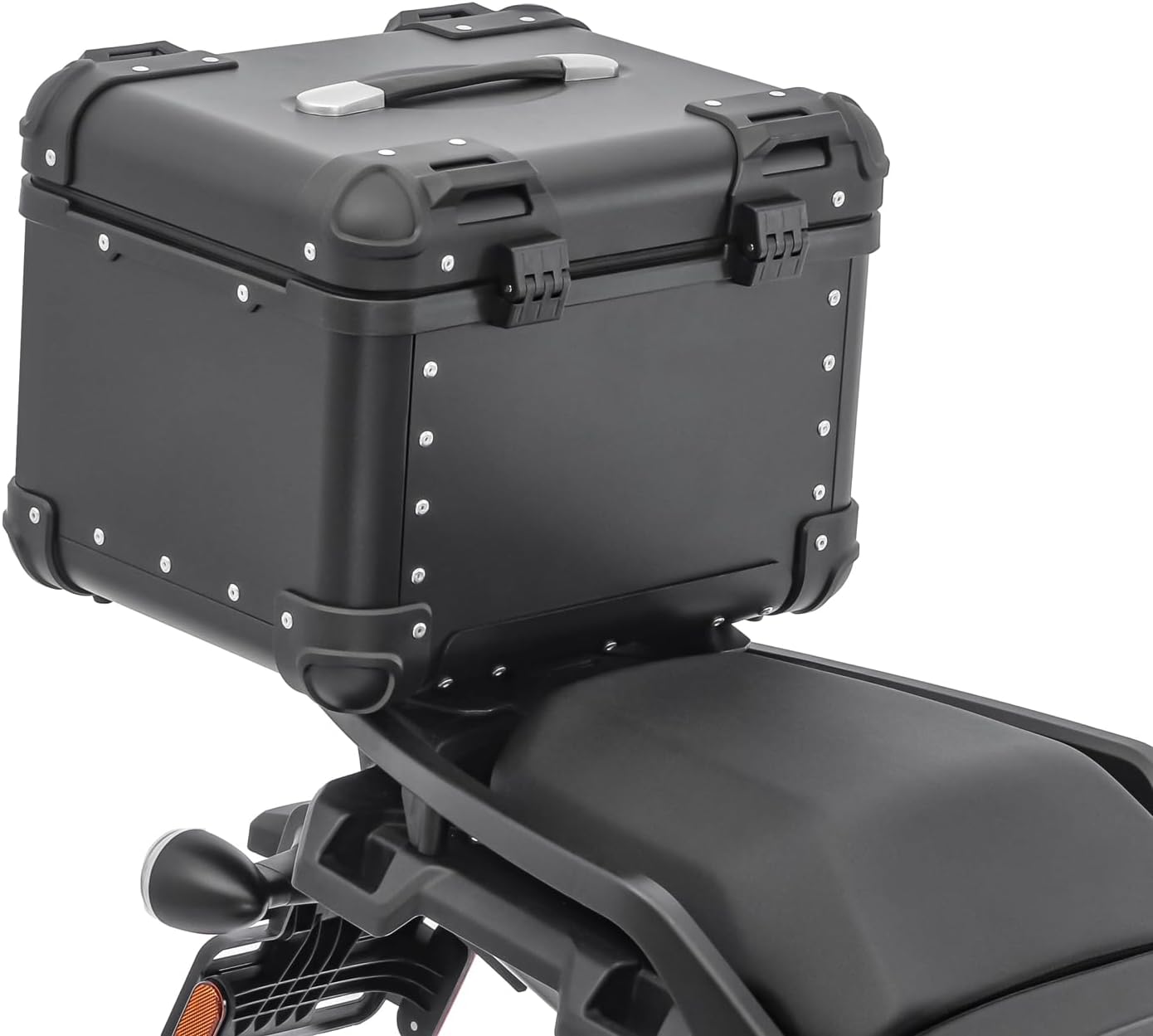

Figura 2: Part posterior view of the Bagtecs XS45 Top Box installed on a motorcycle. This angle highlights the compact design and how it integrates with the motorcycle's rear section.
Figure 3: Direct rear view of the Bagtecs XS45 Top Box on a motorcycle, emphasizing the secure mounting points and the lower latch mechanism.

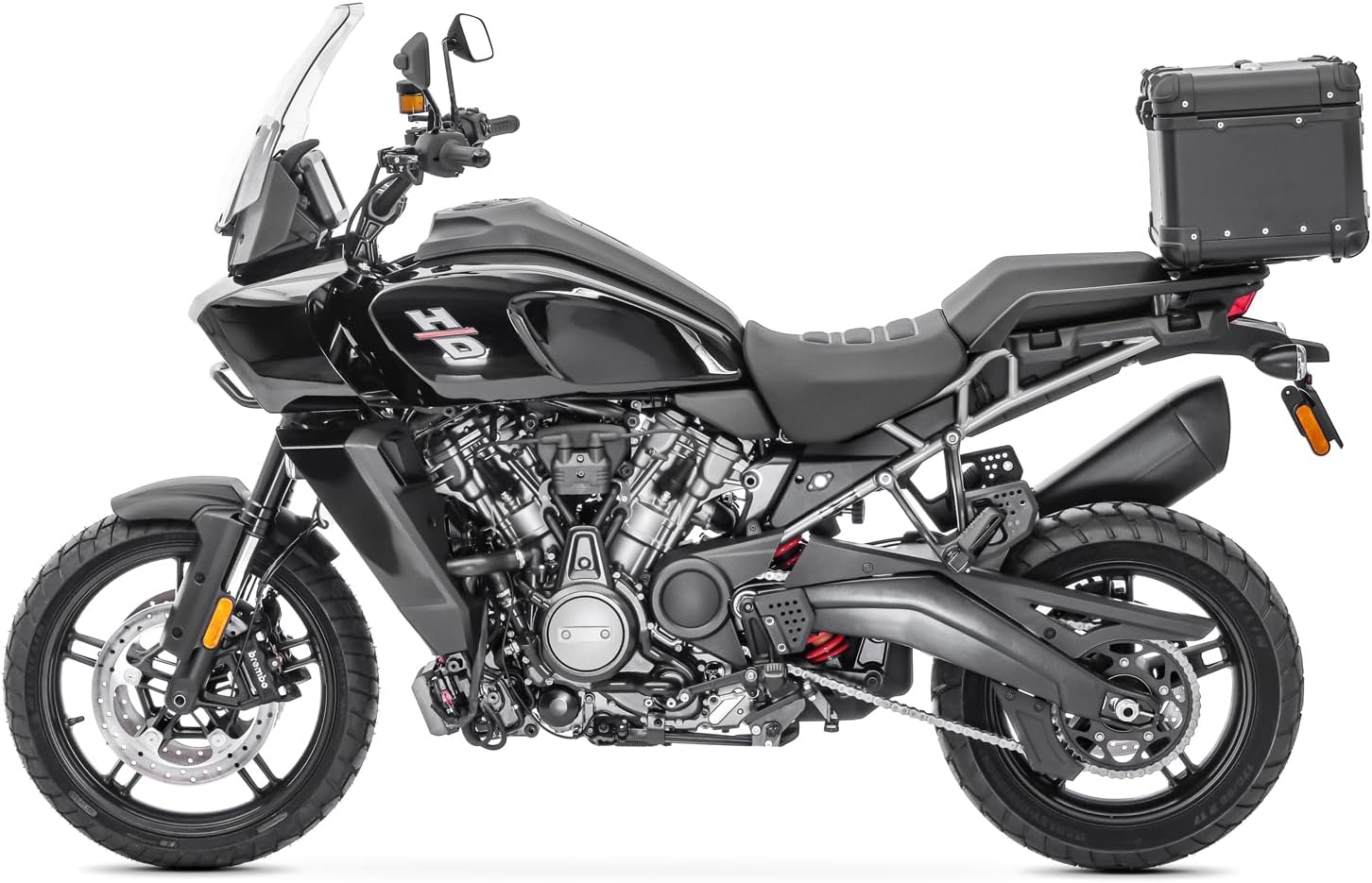

Figure 4: Full side profile of a motorcycle with the Bagtecs XS45 Top Box attached, illustrating the overall aesthetic and proportion of the top box relative to the motorcycle.
Figura 5: Frontal view of the Bagtecs XS45 Top Box, highlighting the two robust locking latches and the integrated carrying handle on the lid.
Figura 6: lateral view of the Bagtecs XS45 Top Box, showcasing its sturdy construction, reinforced corners, and the ergonomic carrying handle.

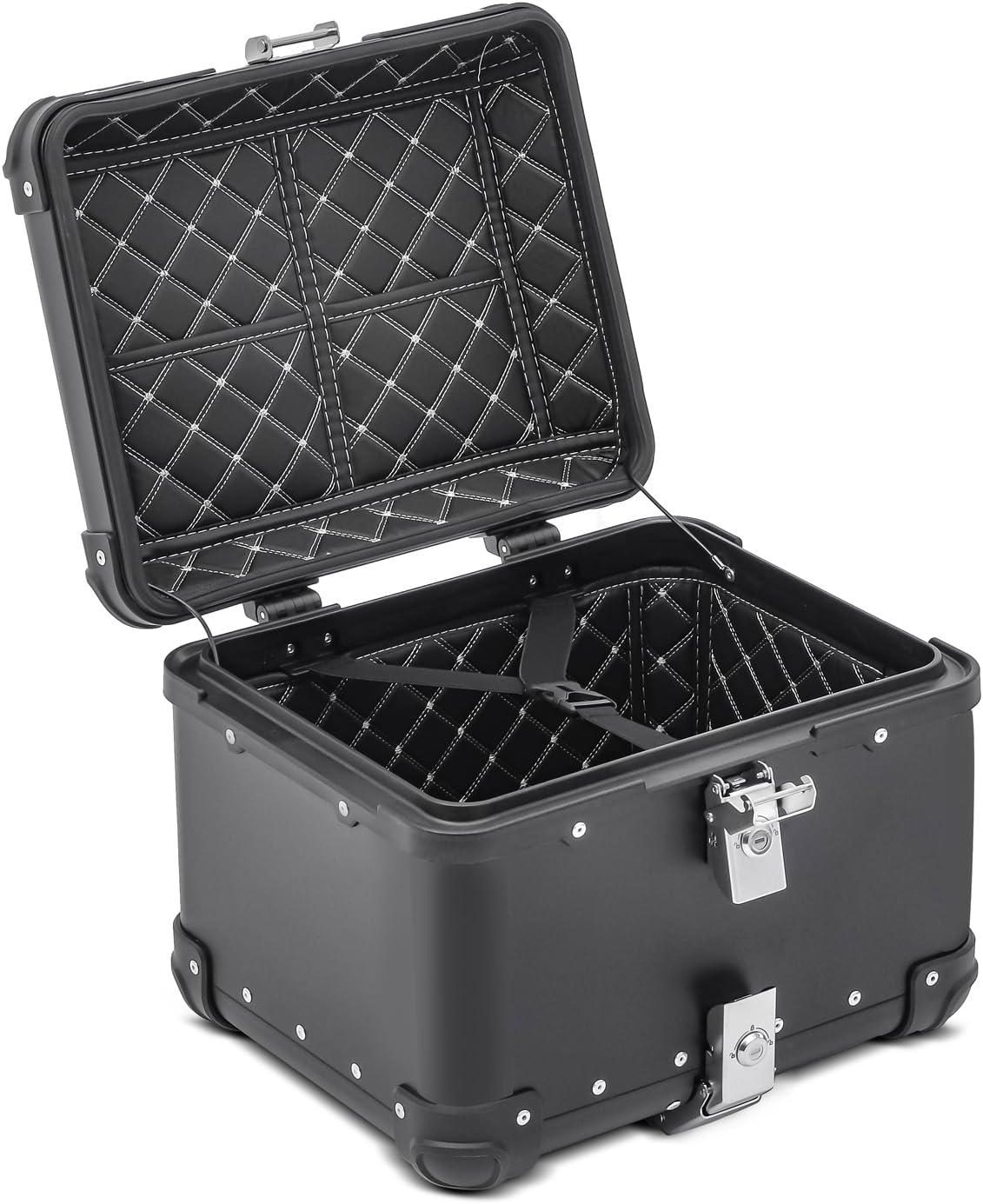

Figura 7: Interior view of the Bagtecs XS45 Top Box with the lid open, revealing the quilted inner lining for protection and the internal retention straps to secure contents.
Figure 8: The Bagtecs XS45 Top Box displayed alongside its universal mounting plate and various installation hardware, including bolts, washers, and keys.
Figure 9: A three-quarter view of the Bagtecs XS45 Top Box, providing a comprehensive look at its design, including the handle, latches, and overall robust appearance.
Informació de seguretat
Always prioritize safety when installing and using the top box. Failure to follow these instructions may result in injury or damage to the product or motorcycle.
- Ensure the top box is securely mounted before each ride.
- Do not exceed the maximum weight capacity specified for your motorcycle's rear rack or the top box itself.
- Distribute weight evenly inside the top box to maintain motorcycle stability.
- Be aware that adding a top box can affect the motorcycle's handling, especially at high speeds or in crosswinds.
- Regularly check all mounting hardware for tightness.
Configuració i instal·lació
The Bagtecs XS45 Top Box comes with a universal mounting plate and hardware for installation on most standard motorcycle rear racks. Professional installation is recommended if you are unsure about any steps.
Eines necessàries:
- Wrench set (appropriate sizes for included bolts)
- Hex key set (if hex bolts are included)
- Measuring tape (optional, for precise positioning)
Passos d'instal·lació:
- Preparació de la motocicleta: Ensure your motorcycle is on a stable, level surface. If your motorcycle has a passenger seat, it may need to be removed to access the rear rack mounting points.
- Col·loqueu la placa de muntatge: Place the universal mounting plate (Figure 8) onto your motorcycle's rear rack. Adjust its position to ensure it is centered and does not obstruct any lights or other motorcycle components.
- Assegureu la placa de muntatge: Use the provided U-bolts, clamps, washers, and nuts to secure the mounting plate to the rear rack. Tighten all nuts evenly to ensure the plate is firmly attached without wobbling. Do not overtighten.
- Attach the Top Box: Align the bottom of the Bagtecs XS45 Top Box with the mounting plate. The top box typically slides onto a locking mechanism or aligns with specific attachment points on the plate.
- Lock the Top Box: Once positioned, engage the locking mechanism on the top box to secure it to the mounting plate. Use the provided keys to lock the box in place. Verify that the top box is firmly attached by gently attempting to lift it.
- Comprovació final: Double-check all bolts and nuts for tightness. Ensure the top box is stable and does not interfere with the motorcycle's operation or passenger comfort.
Instruccions de funcionament
Opening and Closing the Top Box:
- Per obrir: Insert the key into the main latch (Figure 5) and turn to unlock. Press the release button or lever, then lift the lid.
- Tancar: Lower the lid firmly until the latch engages. Insert the key and turn to lock the box. Always ensure the box is locked before riding.
Loading the Top Box:
- Place heavier items at the bottom and center of the box to maintain a low center of gravity.
- Utilize the internal retention straps (Figure 7) to secure items and prevent them from shifting during transit.
- Do not overload the top box. Refer to your motorcycle's manual for maximum load capacity on the rear rack.
Manteniment
Regular maintenance will prolong the life and appearance of your Bagtecs XS45 Top Box.
- Neteja: Clean the exterior with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the finish. Wipe dry with a soft cloth.
- Mecanisme de bloqueig: Periodically lubricate the lock and latch mechanisms with a silicone-based lubricant to ensure smooth operation.
- Maquinari de muntatge: Regularly inspect all mounting bolts and nuts for tightness. Vibrations from riding can cause them to loosen over time.
- Segells: Check the rubber seals around the lid for any signs of wear or damage. Damaged seals can compromise the water resistance of the box.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Top box feels loose or wobbly. | Els accessoris de muntatge estan solts. | Tighten all bolts and nuts securing the mounting plate and the top box to the plate. |
| Lid is difficult to open or close. | Latching mechanism is stiff or dirty. | Clean and lubricate the latch and lock mechanisms with a silicone spray. |
| Water inside the top box. | Damaged or misaligned rubber seal. Lid not fully closed. | Inspect the rubber seal for damage and replace if necessary. Ensure the lid is fully closed and latched. |
| Key is stuck or difficult to turn. | Lock cylinder is dirty or corroded. | Apply a small amount of graphite powder or lock lubricant into the keyhole and work the key gently. |
Especificacions
- Marca: Bagtecs
- Model: XS45
- Número de model: A306563
- Material: Alumini
- Color: Negre
- Capacitat: Aproximadament 45 litres
- Pes de l'article: 8.13 kg
- Tipus de servei de vehicles: Motocicleta
Informació de la garantia
Bagtecs products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Bagtecs weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client
If you have any questions or require assistance with your Bagtecs XS45 Top Box, please contact Bagtecs customer support through their official website or the retailer from whom you purchased the product. Provide your model number (A306563) and purchase details when contacting support.
Per a més informació, visiteu: www.bagtecs.de
