PRIOS 9917019
PRIOS Aureka LED Ceiling Light
Model: 9917019
Producte acabatview
The PRIOS Aureka LED Ceiling Light is a versatile lighting solution designed for both recessed and surface mounting. Its timeless round shape and white finish make it suitable for various indoor environments. This multi-functional light features an integrated motion sensor and a DIP switch for adjusting the light color before installation, making it ideal for both private and commercial use.

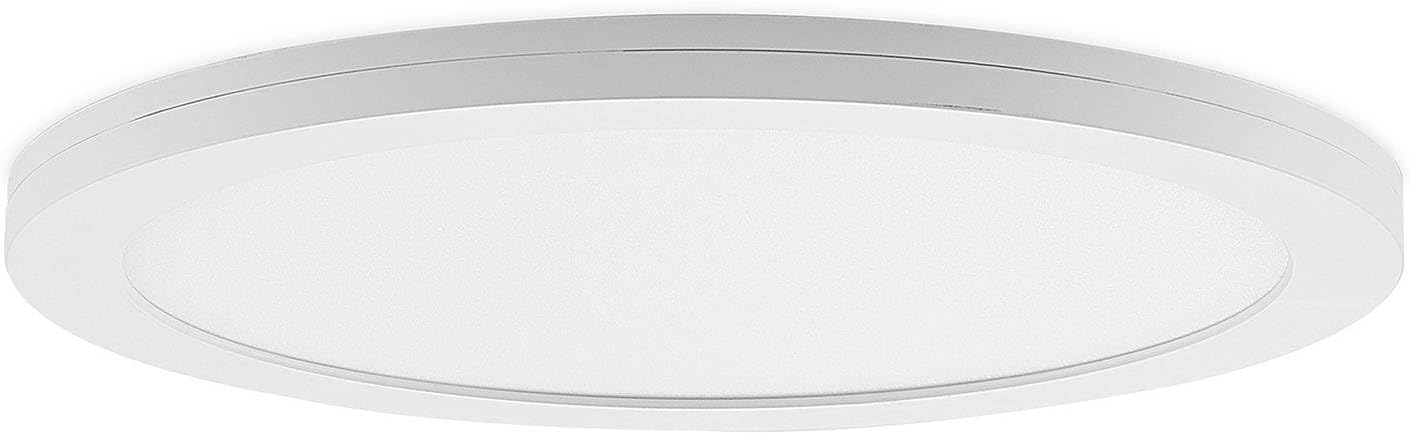

Imatge: Frontal view of the PRIOS Aureka LED Ceiling Light, showcasing its sleek, round design.
Informació de seguretat
Please read these safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other injuries.
- La instal·lació ha de ser realitzada per un electricista qualificat d'acord amb les normatives locals de cablejat.
- Assegureu-vos que el subministrament elèctric estigui desconnectat abans de la instal·lació, el manteniment o la neteja.
- No modifiqueu el producte de cap manera.
- This product is designed for indoor use only (IP20 protection class).
- No exposeu el producte a l'aigua ni a una humitat elevada.
- Mantenir els materials d'embalatge fora de l'abast dels nens.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- PRIOS Aureka LED Ceiling Light fixture (with integrated LED light source)
- Mounting hardware (screws, anchors, mounting bracket)
- Manual d'instruccions (aquest document)
Image: The PRIOS Aureka LED Ceiling Light and its accompanying mounting hardware.
Configuració i instal·lació
1. Consideracions prèvies a la instal·lació
Before installation, determine whether you will be surface mounting or recessing the light. Ensure the chosen location has adequate space and a stable surface for mounting.
Image: Dimensions of the light fixture: 330mm diameter and 19mm height.
Image: Recessed depth required for installation: 42mm.
2. Adjusting Light Color (DIP Switch)
The Aureka ceiling light features a DIP switch that allows you to select the desired light color (color temperature) before installation. This switch is located on the back of the fixture. Choose between warm white, neutral white, or cool white settings according to your preference.
Image: Detail of the DIP switch on the back of the light fixture, used to select color temperature.
Nota: This adjustment must be made before the light is fully installed and connected to power.
3. Muntatge del dispositiu
- Desconnecteu l'alimentació principal al disjuntor.
- Mark the drilling points on the ceiling according to the mounting bracket.
- Perforeu forats i inseriu ancoratges de paret adequats si cal.
- Fixeu el suport de muntatge al sostre amb els cargols proporcionats.
- Connect the electrical wires (Live, Neutral, Earth) from the ceiling to the corresponding terminals on the light fixture. Ensure connections are secure.
- Attach the light fixture to the mounting bracket, ensuring it is firmly secured.
- Restore power supply and test the light.
Instruccions de funcionament
Funcionalitat del sensor de moviment
The PRIOS Aureka LED Ceiling Light is equipped with an intelligent, integrated motion sensor. This sensor detects movement within its range and automatically switches the light ON. After a period of no detected movement, the light will automatically switch OFF.
- Interval de detecció: Approximately 4-6 meters.
- Durada de la il·luminació: The light remains on for approximately 40 seconds after the last detected movement.
Nota: The motion sensor is designed to save energy by ensuring the light is only active when needed.
Image: The ceiling light in operation, demonstrating its illumination in various settings.
Light Color Adjustment (Pre-Installation)
As mentioned in the setup section, the light color is set via a DIP switch before installation. Once installed, the light will operate at the selected color temperature.
Image: Visual representation of the different light color options available (warm, neutral, cool white).
Manteniment
The PRIOS Aureka LED Ceiling Light requires minimal maintenance.
- Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau, sec o lleugerament sec.amp cloth to wipe the surface. Do not use abrasive cleaners or solvents.
- Font de llum LED: La font de llum LED està integrada i no la pot substituir l'usuari.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | Sense subministrament elèctric; cablejat solt; accessori defectuós. | Check circuit breaker. Ensure wiring connections are secure. If problem persists, contact a qualified electrician. |
| El sensor de moviment no detecta moviment. | Sensor obstructed; incorrect placement; environmental factors. | Ensure sensor lens is clean and unobstructed. Verify placement is within optimal range (4-6m). Avoid placing near heat sources or strong air currents. |
| La llum es manté encesa contínuament. | Constant movement in detection area; sensor malfunction. | Ensure no continuous movement is within the sensor's range. If the area is clear and the light remains on, contact support. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | PRIOS |
| Número de model | 9917019 |
| Dimensions del producte | 33 x 33 x 1.9 cm (Diàmetre x Diàmetre x Alçada) |
| Pes de l'article | 722 grams |
| Material | Alumini, policarbonat (PC) |
| Color | White / Opal |
| Estil | Modern |
| Tipus de font de llum | LED integrat |
| Consum d'energia | 30 watts |
| Flux lluminós | 2700 lm |
| Temperatura de color | Adjustable (via DIP switch) |
| Índex de reproducció del color (CRI) | 80.00 |
| Voltage | 230 Volts |
| Classe de protecció (IP) | IP20 |
| Classe de protecció elèctrica | II |
| Característiques especials | Energy efficient, Motion sensor |
| Àrea d'aplicació | Indoor (Living/Dining room, Hallway, Kitchen) |
| Recessed Depth | 4.2 cm |

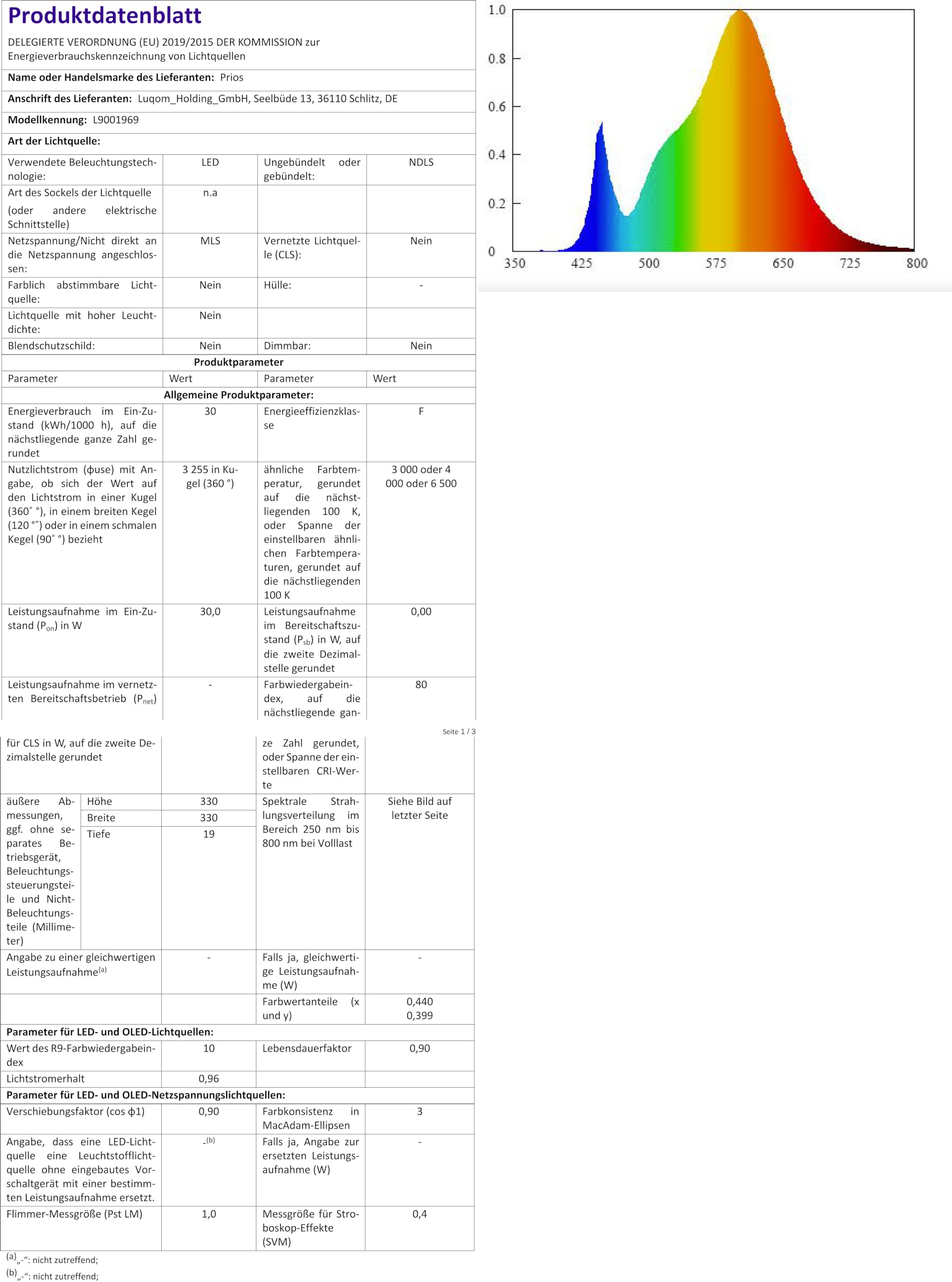

Image: Energy efficiency label (Class F) and detailed product fiche.
Reciclatge i eliminació
This product contains electronic components and an integrated LED light source. It should not be disposed of with general household waste.
- Reciclatge: Please dispose of this product at designated collection points for electrical and electronic equipment. This helps protect the environment and human health.
- Eliminació de L trencat o danyatamps: Mànec trencat lamps with care. Avoid direct contact with broken parts. Dispose of them safely at appropriate recycling facilities.
- For more information on the energy efficiency of this product, you can refer to the EPREL database: https://eprel.ec.europa.eu/qr/745130
Garantia i Suport
PRIOS products are manufactured to high-quality standards. For information regarding warranty terms, technical support, or service inquiries, please refer to the purchase documentation or contact your retailer. You may also visit the official PRIOS weblloc per obtenir més ajuda.
Fabricant: PRIOS
Contacte: Refer to your point of purchase or the manufacturer's official website for support channels.
