Manual d'usuari del congelador convertible de doble porta Haier HFC-500DM5

1. Informació de seguretat

Please read all safety instructions carefully before operating the appliance to prevent injury and damage. Keep this manual for future reference.

Seguretat elèctrica

• Ensure the appliance is connected to a properly grounded 220V power outlet.
• The freezer is designed to operate within a wide voltage range of 160V-260V. However, for optimal performance and safety, avoid extreme voltage fluctuacions.
• No utilitzeu cables d'extensió ni adaptadors sense connexió a terra.
• Never pull the power cord to disconnect the appliance. Always grasp the plug firmly.

Seguretat general

• Mantenir les obertures de ventilació lliures d'obstruccions.
• No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
• No utilitzeu dispositius mecànics o altres mitjans per accelerar el procés de descongelació, diferents dels recomanats pel fabricant.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.

2. Producte acabatview

The Haier HFC-500DM5 is a 439-liter double-door convertible deep freezer designed for efficient and flexible storage. It features a 5-star energy rating for low power consumption and advanced cooling technologies to keep your food fresh for extended periods.

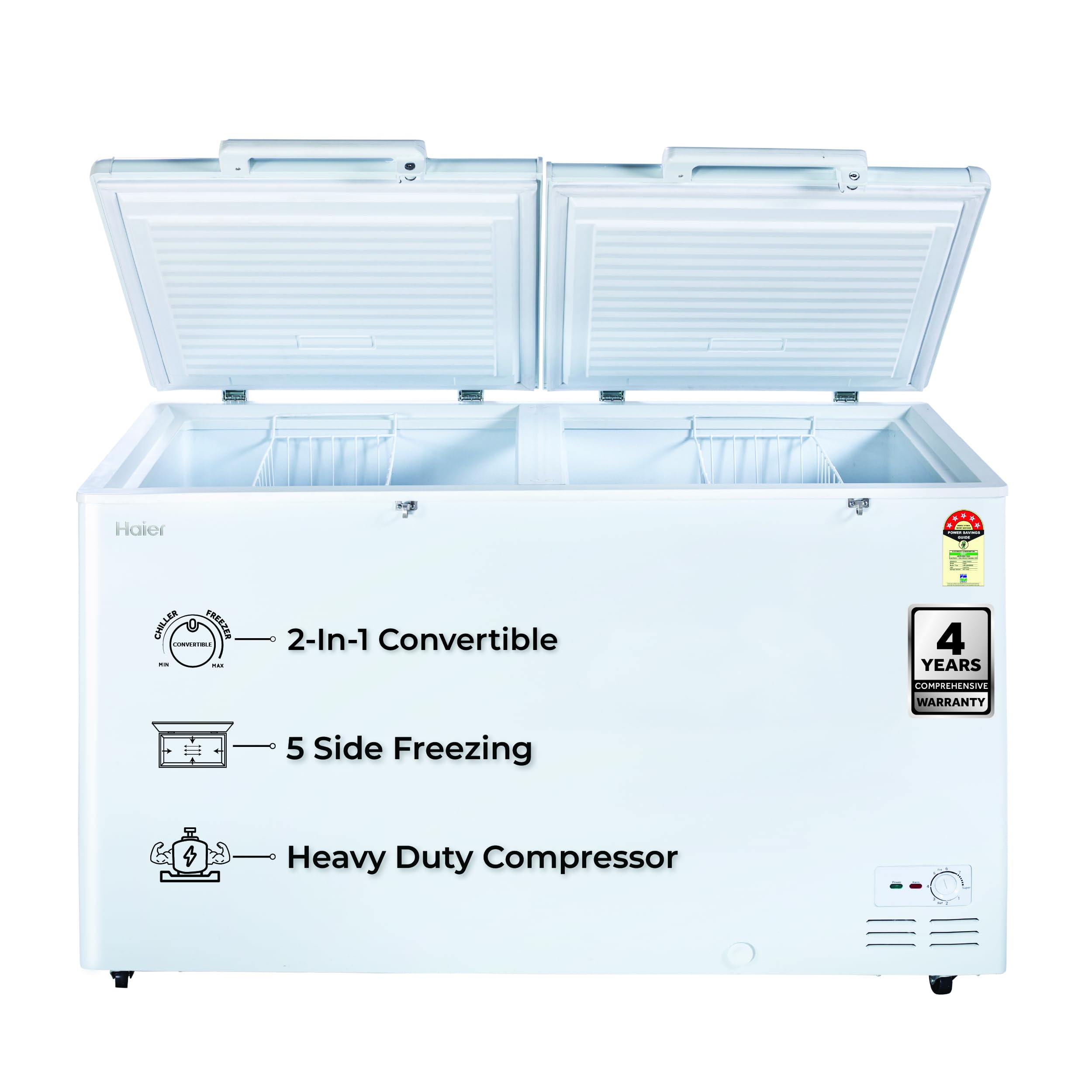

Image: The Haier HFC-500DM5 deep freezer with its double doors. This model is designed for efficient and flexible storage of frozen or chilled goods.

Característiques clau

• Classificació energètica de 5 estrelles: Ensures ultra-low energy consumption for cost-efficient operation.
• Convertible Modes: Easily switch between Chiller and Freezer modes with a temperature range from -26°C to 10°C.
• 225 Hours Cooling Retention: Maintains optimal temperature for up to 9 days during power failures.
• Congelació uniforme 5D: Delivers 2X faster freezing with even cooling across all 5 sides of the freezer.
• Dual Condenser: Releases heat faster, allowing quicker cooling even in hotter conditions with less energy consumption.
• Compressor de gran resistència: Provides powerful and efficient cooling for freshness.
• Folre interior PCM en relleu: Offers enhanced durability and reduces the frequency of defrosting.
• 70mm PUF Thickness: Superior insulation to maintain internal temperature for longer periods.
• Vol. Amplitage Range (160V-260V): Ensures stable operation during voltage fluctuacions.

3. Instal·lació

Proper installation is crucial for the performance and longevity of your deep freezer.

Desembalatge

• Traieu amb cura tots els materials d'embalatge, inclosa la cinta adhesiva i les pel·lícules protectores.
• Inspeccioneu el congelador per detectar qualsevol dany durant l'enviament. Informeu immediatament al vostre distribuïdor de qualsevol dany.
• Mantenir els materials d'embalatge fora de l'abast dels nens.

Col·locació

• Col·loqueu el congelador sobre una superfície ferma i plana que pugui suportar el seu pes quan estigui completament ple.
• Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 10 cm (4 inches) from walls and other objects to allow for proper heat dissipation.
• Eviteu col·locar el congelador sota la llum solar directa o a prop de fonts de calor com ara fogons, calefactors o radiadors.
• Do not install the freezer in areas with high humidity.

Image: Illustration showing the dimensions of the Haier HFC-500DM5 deep freezer (905mm height, 1405mm width, 745mm depth) and its 5-star energy rating label, indicating efficient operation.

Connexió elèctrica

• Abans de connectar-lo, assegureu-vos que el volumtagLa corrent i la freqüència indicades a la placa de dades coincideixen amb la presa de corrent de la vostra llar.
• Plug the freezer into an exclusive, grounded wall outlet. Do not share the outlet with other appliances.
• Allow the freezer to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.

4. Funcionament

Operating your Haier HFC-500DM5 deep freezer is straightforward. Follow these guidelines for optimal performance.

Temperature Control and Convertible Modes

The freezer features a convertible function, allowing you to switch between freezer and chiller modes. Use the control dial, typically located on the front or side of the unit, to select your desired temperature setting.

• Mode congelador: Set the dial to achieve temperatures down to -26°C for long-term storage of frozen goods.
• Mode refrigerador: Adjust the dial to maintain temperatures up to 10°C for chilling beverages or other items that do not require freezing.

Image: Diagram illustrating 5-side uniform freezing for efficient cooling and a control dial indicating the convertible function to switch between freezer and chiller modes (from -26°C to 10°C).

Carregant el congelador

• Do not overload the freezer. Allow space for air circulation to ensure efficient cooling.
• For optimal freezing, distribute items evenly. The 5D Uniform Freezing system ensures consistent cooling throughout the compartment.
• Eviteu posar els aliments calents directament al congelador; deixeu-los refredar primer.

Cooling Retention

In the event of a power failure, the Haier HFC-500DM5 is designed to retain cooling for up to 225 hours (approximately 9 days), keeping your food safe and fresh for an extended period. Minimize opening the doors during power outages to preserve the internal temperature.

5. Manteniment

Regular maintenance helps ensure the efficiency and longevity of your deep freezer.

Neteja

• Desendolla sempre el congelador abans de netejar-lo.
• Netegeu l'interior amb un drap suau dampEsbandiu amb una solució de detergent suau. Esbandiu amb aigua neta i assequeu-ho bé.
• The embossed PCM inner liner is designed for durability and easier cleaning.
• Netegeu l'exterior amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Periodically clean the condenser coils at the back of the unit with a soft brush or vacuum cleaner to maintain efficiency.

Imatge: Secció transversal view highlighting the 70mm PUF thickness for superior insulation and a close-up of the embossed PCM inner liner, which contributes to durability and reduced defrosting needs.

Descongelació

Frost buildup can reduce cooling efficiency. Defrost the freezer when the frost layer reaches approximately 5-10 mm (0.2-0.4 inches) thick.

• Turn off the freezer and unplug it from the power outlet.
• Traieu tots els aliments i guardeu-los en un altre congelador o nevera.
• Leave the freezer doors open to allow the frost to melt naturally. Place towels at the bottom to absorb water.
• Do not use sharp objects or heating devices to remove frost, as this can damage the appliance.
• Un cop descongelat, netegeu i eixugueu bé l'interior abans de tornar-lo a endollar i tornar els aliments.

6. Solució De Problemes

Abans de contactar amb el servei tècnic, comproveu els següents problemes i solucions habituals:

If the problem persists after checking these points, please contact Haier customer service for assistance.

7. Especificacions

Detailed technical specifications for the Haier HFC-500DM5 Deep Freezer.

8. Garantia i Suport

Informació de la garantia

The Haier HFC-500DM5 Deep Freezer comes with a Garantia integral de 1 anys on the entire unit, and an additional 3 years warranty on the compressorSi us plau, conserveu el rebut de compra per a reclamacions de garantia.

Atenció al client

For any service requests, technical assistance, or warranty claims, please contact Haier customer support. Refer to the contact information provided in your purchase documentation or visit the official Haier weblloc per obtenir més informació.
