COSTWAY 45L Electronic Security Safe User Manual

1. Introducció

Thank you for choosing the COSTWAY 45L Electronic Security Safe. This manual provides essential information for the correct installation, operation, and maintenance of your safe. Please read these instructions thoroughly before use and retain them for future reference. This safe is designed to protect your valuables with its robust construction, digital keypad, and advanced alarm system.

2. Instruccions de seguretat importants

• Always keep the emergency keys in a secure location away from the safe and not inside it.
• Do not store the user manual or emergency keys inside the safe.
• Assegureu-vos que la caixa forta estigui ben muntada per evitar que es pugui retirar sense autorització.
• Keep the safe away from moisture and direct heat sources.
• Canvieu les piles immediatament quan aparegui l'indicador de bateria baixa per garantir un funcionament continu.
• Do not attempt to force the safe open if you forget the code or if the batteries are depleted. Use the emergency override methods described in this manual.

3. Configuració i instal·lació

3.1 Contingut del paquet

Abans de la instal·lació, comproveu que hi hagi tots els components:

• 1 x Electronic Safe
• 2 x Main Keys
• 2 claus d'emergència
• 2 x Cargols d'expansió
• 1 x manual d'instruccions

3.2 Instal·lació de muntatge a la paret

For enhanced security, it is recommended to mount the safe to a wall or floor. The safe includes pre-drilled holes and expansion bolts for this purpose.

1. Trieu una ubicació adequada: Select a discreet and secure spot, such as inside a closet or cabinet.
2. Marca els punts de perforació: Place the safe in the desired position and mark the locations for the mounting holes on the wall or floor using a pencil.
3. Perforar forats: Using an appropriate drill bit, drill holes at the marked points. Ensure the depth and diameter are suitable for the expansion bolts.
4. Insert expansion bolts: Insert the expansion bolts into the drilled holes.
5. Secure the safe: Align the safe's mounting holes with the expansion bolts and tighten them securely.

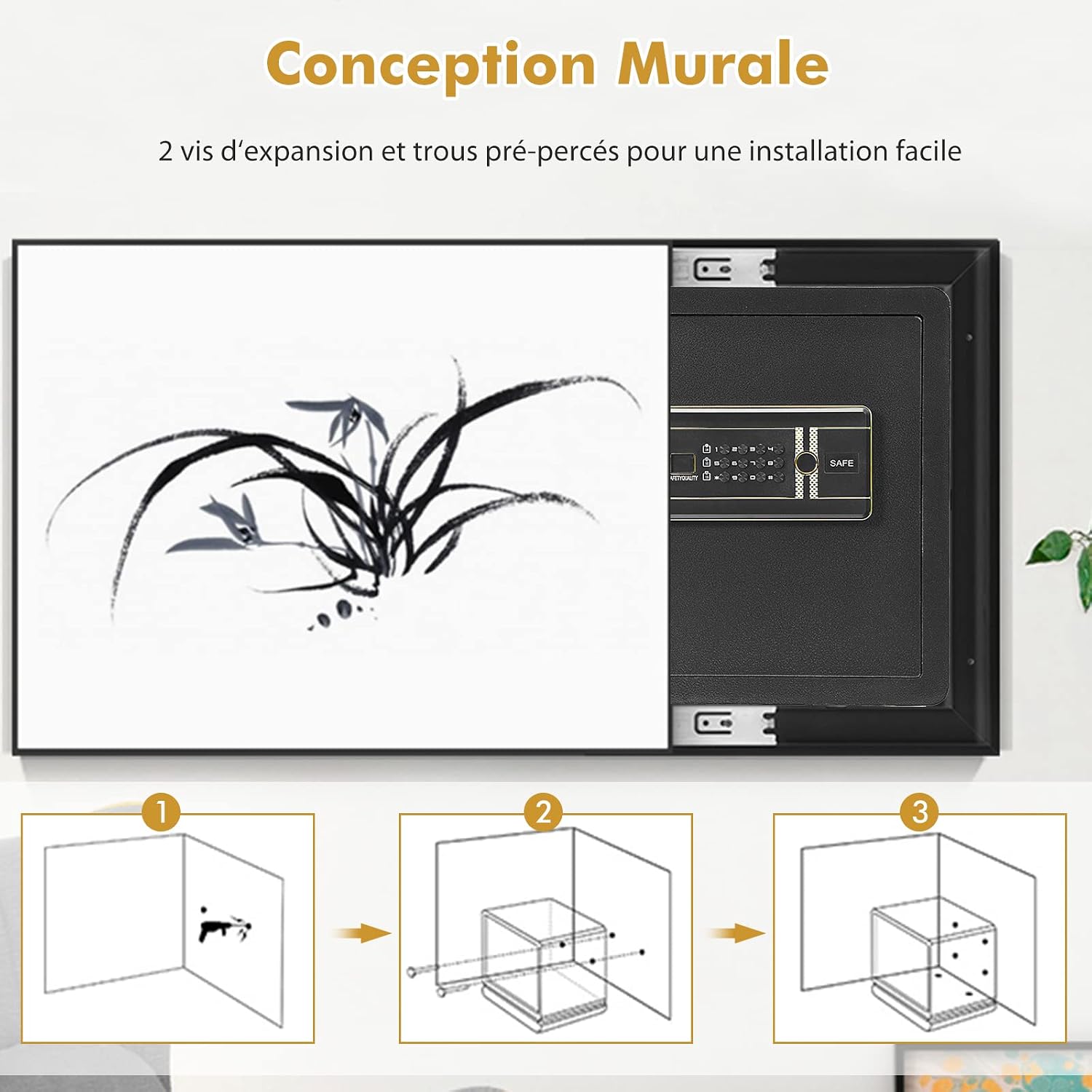

Image: Illustration of the wall mounting process for the security safe.

3.3 Instal·lació de la bateria

The safe requires batteries for the electronic keypad to function. The battery compartment is typically located on the inside of the safe door.

1. Open the safe using the emergency key (refer to section 4.1 if needed).
2. Localitzeu la tapa del compartiment de la bateria a la part interior de la porta.
3. Remove the cover and insert the required batteries (usually AA or AAA, check the compartment for specific type and polarity).
4. Substituïu la tapa del compartiment de la bateria.

4. Instruccions de funcionament

4.1 Obrir la caixa forta

Your safe offers three methods for opening:

1. Daily Use (Personal Password + Main Key):
   Enter your personal password on the digital keypad, then turn the main key clockwise to open the safe door.
2. Forgotten Password (Main Key + Emergency Key):
   If you forget your personal password, insert the main key and the emergency key into their respective keyholes. Turn both keys simultaneously to open the safe.
3. Low Battery (Main Key + Personal Password + Portable Charger):
   If the batteries are depleted, connect a portable charger (e.g., power bank) to the Micro-USB interface on the keypad. Then, enter your personal password and turn the main key to open the safe.

Image: Visual guide to the three methods for opening the COSTWAY security safe.

4.2 Setting/Changing the Personal Password

Per definir o canviar la vostra contrasenya personal:

1. With the safe door open, press the reset button located on the inside of the door (usually a small red or green button).
2. The indicator light on the keypad will flash, indicating it is ready for a new password.
3. Enter your desired 3-8 digit password on the keypad.
4. Press the '#' key to confirm. The indicator light will stop flashing, confirming the new password is set.

4.3 Anti-Peeping Technology

This safe features anti-peeping technology to prevent others from guessing your password. You can enter any random numbers before or after your correct password. The safe will only recognize the correct sequence within the entered digits.

Image: Explanation of the anti-peeping function, allowing dummy digits around the actual code.

Sistema d'alarma 4.4

The safe is equipped with a sensitive alarm system:

• Alarma d'entrada incorrecta: If three consecutive incorrect password entries are made, or if the safe experiences violent vibrations, the alarm will activate with a loud beep and a flashing red light.
• Manual Alarm Activation: You can manually activate the alarm by pressing the '*' key on the keypad.

Image: Visual representation of the safe's double alarm system.

4.5 Capacitat d'emmagatzematge i prestatge extraïble

The 45L capacity safe provides ample space for various valuables such as cash, jewelry, passports, and cameras. It features a removable interior shelf, allowing you to adjust the storage space to accommodate larger items as needed. The interior is lined with leather to protect your belongings from scratches and wear.

Imatge: Interior view of the 45L safe demonstrating its storage capacity and dimensions.

Image: The removable shelf feature, offering flexible storage options within the safe.

5. Manteniment

• Neteja: Netegeu l'exterior de la caixa forta amb un drap suau iamp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat.
• Substitució de la bateria: Replace batteries when the low battery indicator illuminates or if the keypad becomes unresponsive. Always use new batteries of the specified type.
• Atenció clau: Keep keys clean and dry. Do not force keys into the lock.

6. Solució De Problemes

7. Especificacions del producte

Image: Detailed product specifications and package contents.

8. Garantia i Suport

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact COSTWAY customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
