Freeman PE20VFN64 20 Volt Cordless 16-Gauge 2-1/2" Straight Finish Nailer Kit User Manual

Introducció

This manual provides detailed instructions for the safe and effective operation and maintenance of your Freeman PE20VFN64 20 Volt Cordless 16-Gauge 2-1/2" Straight Finish Nailer Kit. Please read this manual thoroughly before initial use and keep it for future reference.

The Freeman PE20VFN64 Cordless Finish Nailer Kit, complete with nailer, battery, charger, and carrying bag.

Informació important de seguretat

Seguiu sempre les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Always wear appropriate eye protection when operating the nailer.
• Mantingueu la vostra zona de treball neta i ben il·luminada per evitar accidents.
• No utilitzeu l'eina en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Mantenir els nens i els espectadors allunyats de la zona d'operacions.
• Vestiu-vos correctament; eviteu roba ampla o joies que es puguin enganxar a les parts mòbils.
• Estigueu alerta, observeu el que feu i feu servir el sentit comú quan utilitzeu l'eina.
• Feu servir l'eina correcta per a la vostra aplicació. No forceu una eina o accessori petit per fer la feina d'una eina de gran capacitat.
• Desconnecteu la bateria de l'eina abans de fer cap ajust, canviar accessoris o guardar l'eina.
• Guardeu les eines inactives fora de l'abast dels nens i de les persones no formades.
• Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation.
• Use only accessories that are specified by the manufacturer for your model.
• Feu que una persona de reparació qualificada faci reparar la vostra eina elèctrica que utilitzi només peces de recanvi idèntiques.
• Always ensure the safety contact is pressed firmly against the workpiece before pulling the trigger to drive a fastener.
• Never attempt to bypass or disable any safety mechanisms on the tool.

Contingut del paquet

Your Freeman PE20VFN64 kit includes:

• 20 Volt Cordless 16-Gauge 2-1/2" Straight Finish Nailer
• Bateria de ions de liti de 20 V 2.0 Ah
• Carregador ràpid
• Ganxo de cinturó
• Bossa de lona
• 16-Gauge 2" Straight Finish Nails (200 count)

Característiques del producte

The Freeman PE20VFN64 nailer is designed for efficiency and user comfort, incorporating several key features:

• Rendiment superior: Drives up to 1300 fasteners per charge and 90 pieces per minute for increased productivity.
• Portabilitat sense fil: Powered by a high-capacity 20 volt 2.0 Ah lithium-ion battery featuring enhanced battery life, a power level indicator, and a 45-minute recharge time.
• Construction Applications: Perfect for base molding, crown molding, furniture construction, chair rails, door and window casing, and cabinetry.
• Compatible Nails: Uses 16 gauge glue collated straight finish nails from 1" – 2-1/2".
• Select Fire Button: Fast and easy to switch between single sequential firing for precision or bump firing for speed.
• Tool-free Depth Adjust: Simply turn the depth adjustment wheel by hand to change the driving depth of nails for various projects and materials.
• Quick Jam Release: Allows for easy access clearing in the event of a jammed fastener so you can get right back to work.
• Textured Rubber Grip: Provides maximum comfort during long shifts and increases accuracy of fastener placement.
• No Mar Safety Contact: Prevents damage to work surface and ensures professional results.
• Llum LED brillant: Illuminates dimly lit work areas for increased visibility, and also warns of low battery.

An annotated diagram showcasing the key features of the Freeman PE20VFN64 nailer.

Configuració i ús inicial

Carregant la bateria

Before first use, fully charge the included 20V 2.0 Ah Lithium-Ion Battery using the rapid charger. The charger indicates charging status and completion. A full charge takes approximately 45 minutes.

Inserció de la bateria

Align the battery with the battery slot on the nailer handle and slide it in until it clicks securely into place. Ensure it is fully seated before operation.

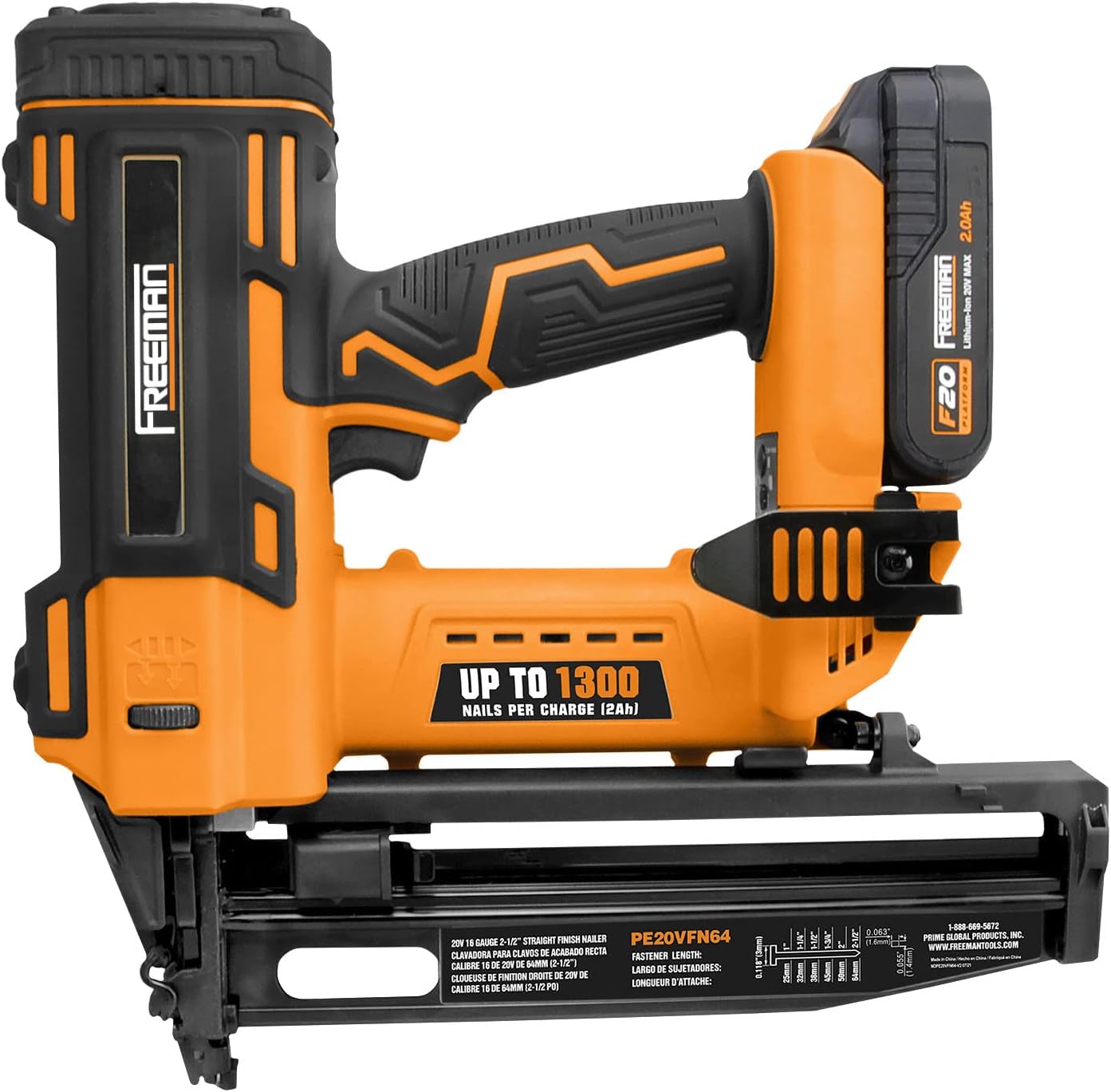

Proper insertion of the 20V Lithium-Ion battery into the nailer.

Càrrega de fixacions

To load nails, pull back the magazine follower until it locks. Insert a strip of 16 gauge straight finish nails (1" to 2-1/2" length) into the magazine. Release the follower to secure the nails.

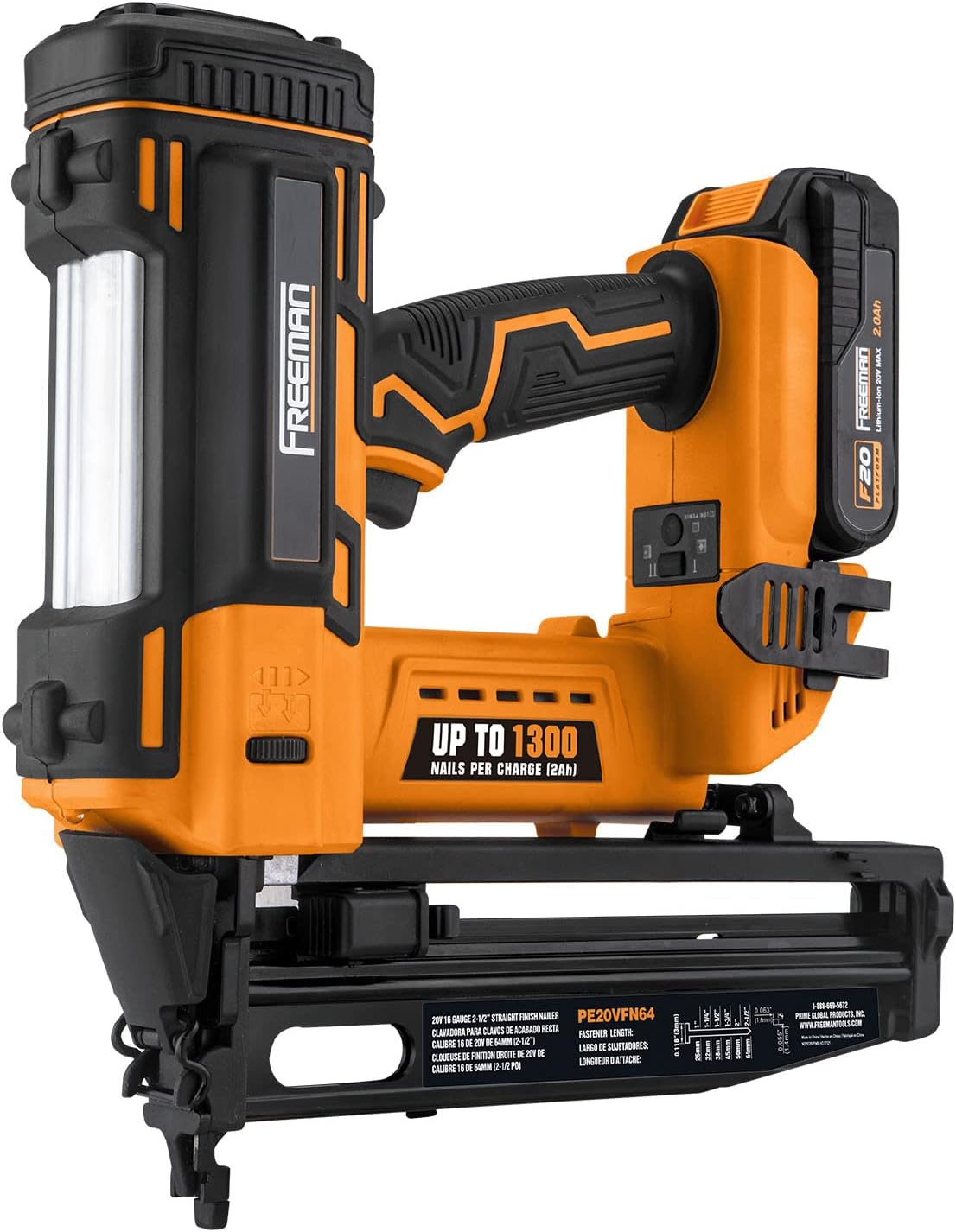

The nailer's magazine, prepared for loading 16-gauge finish nails.

Ajust de profunditat

The nailer features a tool-free depth adjustment wheel located near the nose. Rotate the wheel to increase or decrease the driving depth of the nails, allowing for flush driving or countersinking based on your application.

Primer pla view of the tool-free depth adjustment wheel.

Selecting Firing Mode

Use the select fire button to switch between single sequential firing and bump firing modes. Single sequential mode requires the safety contact to be pressed and the trigger pulled for each nail. Bump fire mode allows for rapid firing by holding the trigger and bumping the safety contact against the workpiece.

The select fire button for choosing between single sequential and bump firing modes.

Operating the Nailer

Mode de foc únic

In single fire mode, press the safety contact firmly against the workpiece, then pull the trigger to drive a single nail. Release the trigger and lift the tool before moving to the next fastening point. This mode is ideal for precision work.

Mode Bump Fire

For rapid fastening, select bump fire mode. Hold the trigger down, then repeatedly press the safety contact against the workpiece to drive nails quickly. This mode is suitable for high-volume applications.

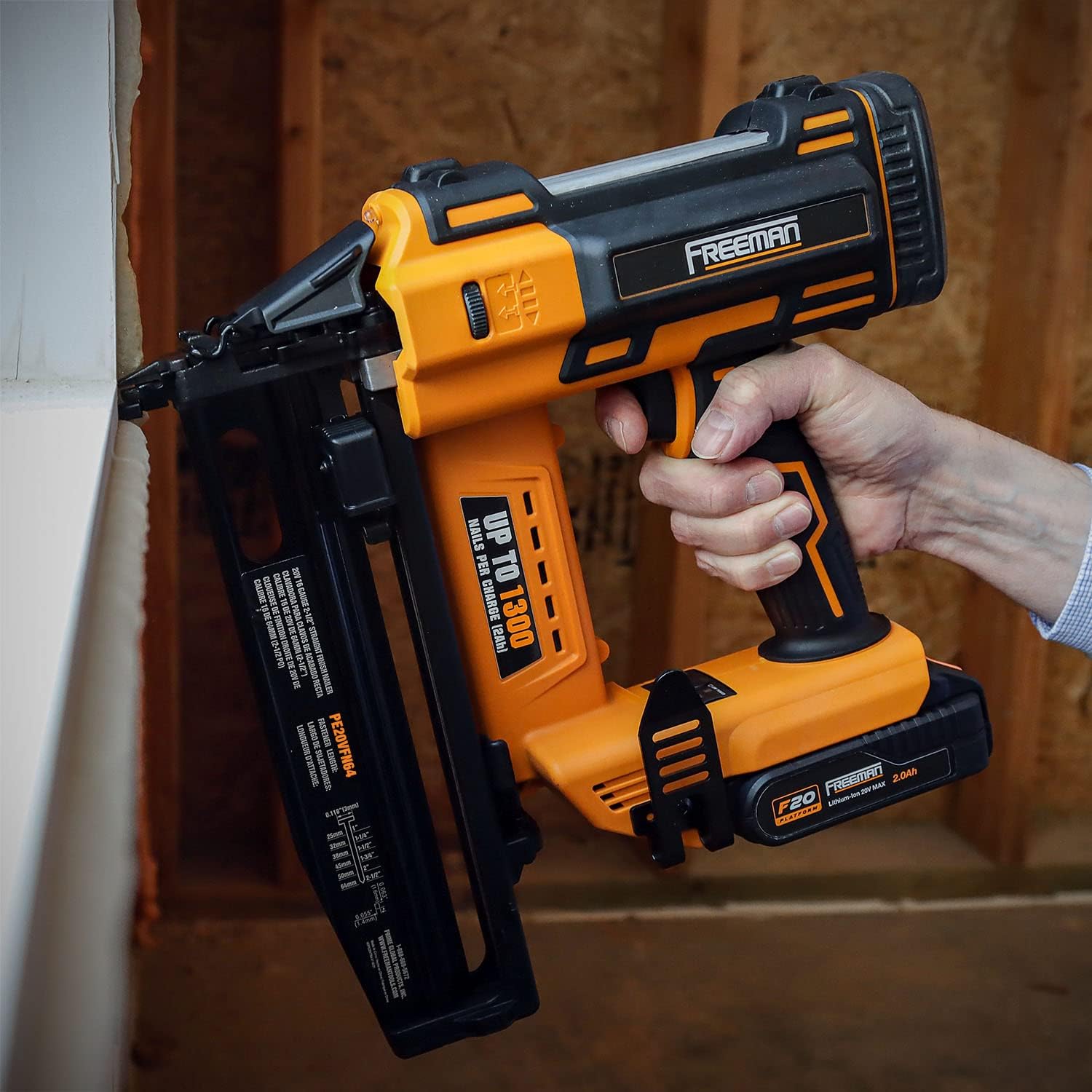

The nailer in use, highlighting its comfortable grip.

Manteniment

Eliminació d'un embús

In the event of a nail jam, activate the quick jam release mechanism located near the nose of the tool. This allows for easy access to clear the jammed fastener. Always disconnect the battery before attempting to clear a jam.

A visual representation of the quick jam release feature.

Atenció General

Regularly inspect the nailer for any signs of wear or damage. Keep the tool clean and free of debris. Store the nailer and battery in a dry, secure location away from extreme temperatures.

Resolució de problemes

Especificacions

Detailed technical specifications for the Freeman PE20VFN64 nailer.

For detailed specifications, refer to the image above. Key specifications include:

• Model: PE20VFN64 / PE20VT64 (Tool Only)
• Entrada Voltage: DC 20V màx
• Tipus de bateria: Freeman F20
• Capacitat de la revista: 16 GA Straight finish nails: 100 pcs
• Fastener Type and Range: 16 GA Straight finish nails: 1" - 2-1/2"
• Velocitat de tir: 90 unitats/min
• Fasteners Per Charge: Up to 1,300 pcs/charge (2Ah)

Garantia i Suport

This Freeman PE20VFN64 nailer is covered by Freeman's Professional 1 Year Limited Warranty. For warranty claims, technical support, or to purchase replacement parts, please visit the official Freeman Store o poseu-vos en contacte amb el seu servei d'atenció al client.
