Producte acabatview
The Alpicool TAW35 Portable Freezer is a versatile 37-quart (35-liter) 12-volt refrigerator designed for travel, camping, fishing, and outdoor activities. It features dual-zone temperature control, allowing each compartment to function independently as a refrigerator or freezer. Equipped with wheels and a draw bar, it offers enhanced portability. Additional features include an inner LED light, drain plug, storage baskets, and a cutting board for convenience.
Image: The Alpicool TAW35 Portable Freezer, showcasing its compact design, wheels, and pull-out handle for easy transport.
Característiques clau
- Capacitat de 37 quarts: Spacious interior for various food and beverage items.
- Control de temperatura de doble zona: Cada compartiment es pot configurar independentment com a nevera o congelador.
- Disseny portàtil: Equipped with wheels and a draw bar for easy transportation.
- Protecció de la bateria del cotxe: Three levels (Low, Med, High) to prevent vehicle battery drain.
- Sistema de refrigeració d'alta eficiència: Achieves temperatures down to -4°F (-20°C) with low noise.
- Accessoris convenients: Includes inner LED light, drain plug, storage baskets, and a cutting board.
- Antivibració i antixocs: Designed to operate safely even at a 45° incline for short periods.
Image: Visual representation of the 37-quart capacity and product dimensions, illustrating how various items can be stored.
Image: The portable freezer positioned on uneven terrain, highlighting its anti-shake and anti-shock capabilities for stable operation during travel.
Configuració
Desembalatge i col·locació inicial
- Traieu amb cura el congelador portàtil del seu embalatge.
- Inspeccioneu la unitat per detectar qualsevol signe de danys durant el transport.
- Place the freezer on a flat, stable surface. Ensure adequate ventilation around the unit, especially near the compressor vents.
- Allow the unit to stand upright for at least 6 hours before connecting to power, especially if it was transported horizontally. This allows the refrigerant to settle.
Connexió d'alimentació
The Alpicool TAW35 supports multiple power input options:
- 12V/24V CC: Connect the DC power cord to your vehicle's cigarette lighter socket or a dedicated 12V/24V power outlet.
- 100-240V CA: Use the AC adapter to connect the freezer to a standard household power outlet.
- Panell solar/central elèctrica: The unit can also be powered by a compatible solar panel or portable power station (sold separately) for off-grid use.
Ensure the power source matches the unit's requirements to prevent damage.
Instruccions de funcionament
Funcionament del tauler de control
The freezer features an intuitive LCD control panel for temperature adjustment and monitoring.
- Encès/apagat: Premeu el botó d'encesa per encendre o apagar la unitat.
- Ajust de temperatura: Use the '+' and '-' buttons to set the desired temperature for each zone. The LCD panel displays the current temperature and settings.
- Selecció del mode: Switch between MAX (fast cooling) and ECO (energy-saving) modes as needed.

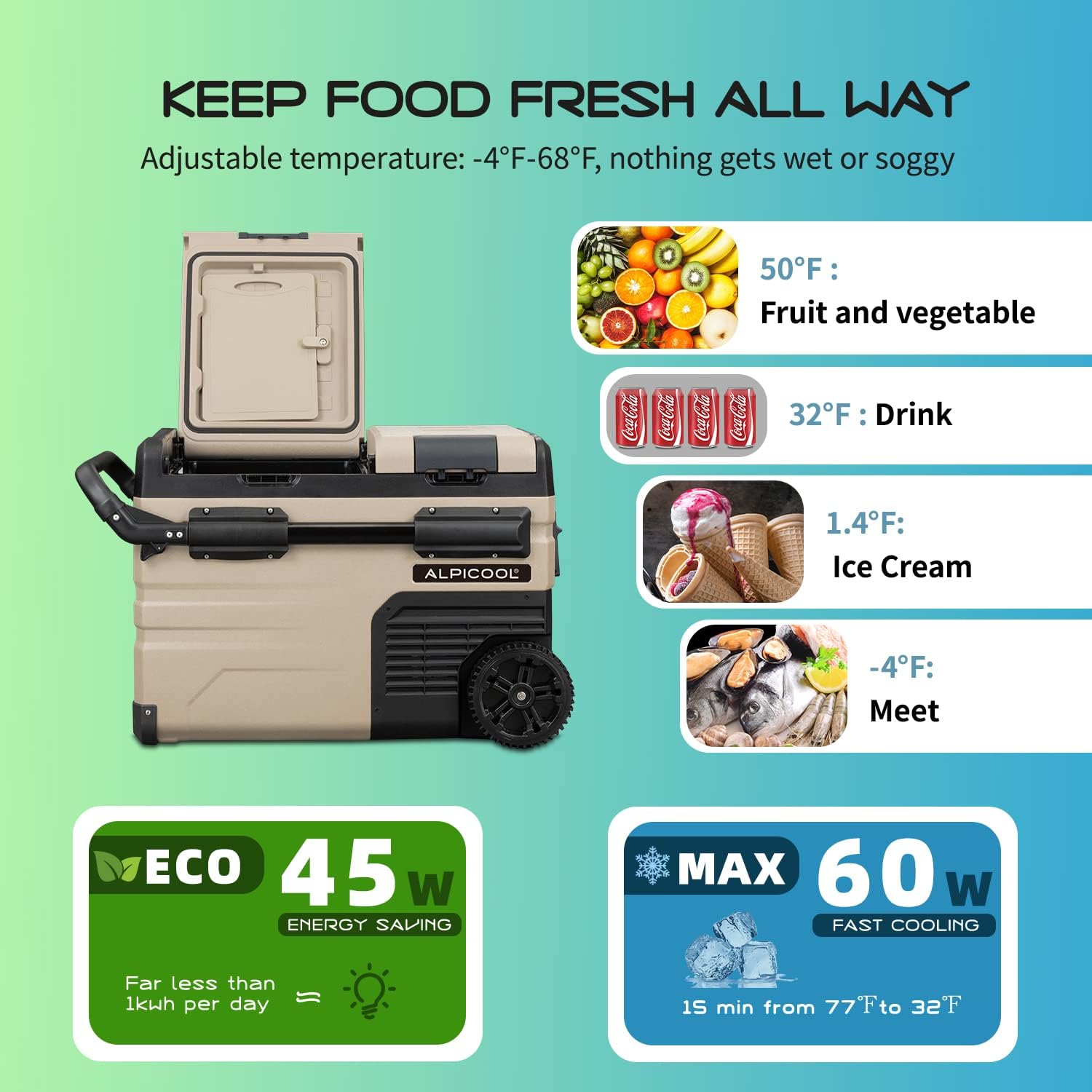

Image: The control panel displaying temperature settings and the options for ECO and MAX cooling modes.
Control d'aplicacions per a telèfons intel·ligents
For added convenience, the Alpicool TAW35 can be controlled via a smartphone app (Bluetooth connectivity required). This allows you to monitor and adjust temperatures remotely.
- Download the official Alpicool app from your device's app store.
- Activeu el Bluetooth al vostre telèfon intel·ligent i obriu l'aplicació.
- Follow the in-app instructions to pair your device with the freezer.
- Once connected, you can adjust temperatures, switch modes, and monitor battery status from your phone.
Video: An official Alpicool video demonstrating the features of the TAW series car fridge freezer, including its portability, temperature control, and smartphone app connectivity.
Control de temperatura
The Alpicool TAW35 features dual-zone temperature control, allowing you to set different temperatures for each compartment. This enables simultaneous refrigeration and freezing.
- Cooling range: -4°F (-20°C) to 68°F (20°C).
- The LCD panel provides precise temperature readings for both zones.
- You can reverse the lid to change the opening direction for convenience.
Image: An illustration of the dual compartments, highlighting the independent temperature control for each side, allowing for both refrigeration and freezing.
Image: Different configurations for the dual compartments, demonstrating flexibility in setting both sides as fridge, freezer, or a combination.
Protecció de la bateria
The unit is equipped with a car battery protection system to prevent excessive discharge of your vehicle's battery. There are three protection levels: Low, Med, and High.
- Alt: Provides maximum protection for your vehicle battery, cutting off power at a higher voltage.
- Med: A balanced setting for typical use.
- Baix: Allows for deeper discharge of the battery before cutoff, suitable when the freezer is connected to a dedicated auxiliary battery.
Adjust the setting based on your vehicle's battery health and usage scenario. Refer to the diagram below for specific cut-off voltages.
Image: A visual guide to the three battery protection levels (High, Med, Low) and their corresponding cut-off voltagés per a sistemes de 12V i 24V.
Modes d'alimentació
The Alpicool TAW35 offers flexible power options to suit various environments:
- 12V/24V CC: Directly connect to your car, truck, or RV's DC power outlet.
- 100-240V CA: Use the provided AC adapter for home or standard electrical outlets.
- Solar Panel + Power Station: For extended off-grid use, the unit can be powered by a compatible portable power station and solar panel setup (accessories not included).
Image: A visual guide illustrating the different power supply options available for the Alpicool TAW35, including car, home, and solar/power station connections.
Manteniment
Proper maintenance ensures the longevity and optimal performance of your portable freezer.
- Neteja: Netegeu les superfícies interiors i exteriors amb un damp cloth and mild detergent. Avoid abrasive materials that could scratch the finish.
- Drenatge: Utilize the integrated drain plug for easy water removal during cleaning or defrosting.
- Emmagatzematge: When not in use for extended periods, ensure the unit is clean and dry. Store in a well-ventilated area, away from direct sunlight and extreme temperatures.
- Avoid Submergence: No submergiu la unitat en aigua.
- Protegiu-vos de les inclemències del temps: While designed for outdoor use, prolonged exposure to extreme weather conditions (e.g., heavy rain, intense heat) should be avoided.
Imatge: Detallada views of key features such as the secure latch, integrated cutting board, removable storage basket, internal LED light, and convenient drain plug, all contributing to ease of use and maintenance.
Resolució de problemes
If you encounter issues with your Alpicool TAW35, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | No power, loose connection, blown fuse. | Check power cable connection, ensure power outlet is functional, check vehicle's fuse. |
| Not cooling effectively. | Poor ventilation, overloaded, door not sealed, high ambient temperature. | Ensure proper ventilation, do not overfill, check door seal, consider moving to a cooler environment. |
| Codi d'error a la pantalla. | Sensor fault, voltage tema. | Refer to the full manual for specific error codes. Try restarting the unit. |
| Soroll excessiu. | Unitat no anivellada, obstrucció del ventilador. | Place on a level surface, check for obstructions around the fan. |
If the issue persists after attempting these solutions, please contact Alpicool customer support.
Especificacions
- Marca: Alpicool
- Model: TAW35
- Capacitat: 37 quarts (35 litres)
- Dimensions del producte: 18.11 "P x 28" W x 17.36" H
- Pes de l'article: 44.2 lliures
- Material: Plàstic
- Interval de refrigeració: -4 °C (20 °F) a 68 °C (20 °F)
- Entrada d'alimentació: 12V/24V CC, 100-240V CA
- Característiques especials: Dual Zone Temperature Control, Wheels, Draw Bar, Car Battery Protection, Inner LED Light, Drain Plug, Storage Baskets, Cutting Board.
- Material d'aïllament: Escuma de poliuretà
- Usos recomanats: Camping, Fishing, Traveling, Outdoor
Garantia i Suport
Per obtenir informació sobre la garantia, assistència tècnica o consultes de servei, consulteu la targeta de garantia inclosa amb el producte o visiteu el lloc web oficial d'Alpicool. website. You can also visit the Alpicool Brand Store on Amazon for more information and product support.
