1. Introducció
Thank you for choosing the LANDMANN Rexon cook PTS 6.1 Gas Grill. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new gas grill. Please read all instructions carefully before use to ensure optimal performance and safety.
The LANDMANN Rexon cook PTS 6.1 Gas Grill, a robust outdoor cooking appliance.
2. Informació important de seguretat
WARNING: Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.
- Només per a ús exterior: This grill is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
- Comprovació de fuites de gas: Always perform a leak test on all gas connections before initial use and after any gas cylinder change. Use a soapy water solution; never use an open flame.
- Ventilació: Ensure adequate ventilation around the grill. Do not obstruct ventilation openings.
- Liquidació: Maintain a minimum distance of 1 meter (3 feet) from combustible materials to the sides and rear of the grill.
- Nens i animals de companyia: Mantingueu els nens i les mascotes allunyats de la graella en tot moment, especialment durant el funcionament.
- Superfícies calentes: Les superfícies de la graella s'escalfen molt durant l'ús. Feu servir guants resistents a la calor i eines adequades.
- Cilindre de gas: Use only approved LP gas cylinders. Ensure the cylinder is upright and securely fastened. Disconnect the gas cylinder when the grill is not in use.
- No deixeu mai una graella encesa sense vigilància.
3. Producte acabatview i Característiques
The LANDMANN Rexon cook PTS 6.1 Gas Grill is equipped with advanced features for a versatile grilling experience. Key components include:
- 6 Main Stainless Steel Burners: Individually adjustable for precise temperature control across different cooking zones, providing 21 kW total power.
- 1 Side Burner (Cookzone): An integrated 3 kW side burner, perfect for preparing sauces, side dishes, or using a wok.
- Double-Walled Lid: Enhances heat retention and features an integrated thermometer for monitoring internal cooking temperature.
- Enameled Cast Iron Grill Grates: Durable and provide excellent heat distribution for consistent cooking.
- Large Grilling Surface: Approximately 94 x 43 cm, suitable for cooking for up to 12 people.
- Enameled Warming Rack: Keeps cooked food warm without overcooking.
- Foldable Side Table: Provides convenient extra workspace and storage for accessories.
- Battery-Free Piezo Ignition: For quick and reliable startup of burners.
- LED Control Knobs: For enhanced visibility and control.
- Removable Timer: Assists with optimal cooking control.
- Removable Fat Collection Tray: Simplifica la neteja i el manteniment.
A collage showing the six main burners, the side burner (Cookzone), the 94x43 cm grill surface, and the foldable side table.
The Modulus system grill grate with a removable circular insert, allowing for various cooking accessories.
4. Muntatge i muntatge
Assembly of the LANDMANN Rexon cook PTS 6.1 Gas Grill is required. Please follow the detailed assembly instructions provided in the separate assembly guide included with your product. Ensure all components are present and undamaged before beginning assembly.
4.1 Gas Cylinder Connection
- Assegureu-vos que la vàlvula de la bombona de gas estigui tancada.
- Connect the regulator hose to the gas cylinder valve. Tighten securely by hand, then use a wrench to ensure a snug fit. Do not overtighten.
- Connect the other end of the regulator hose to the grill's gas inlet.
- Perform a leak test on all connections before opening the gas supply.
4.2 Initial Burn-Off
Before cooking food for the first time, perform an initial burn-off to remove any manufacturing residues. Light all burners on high for 10-15 minutes with the lid closed. Allow the grill to cool completely afterward.
5. Instruccions de funcionament
5.1 Encendre els cremadors principals
- Obriu la tapa de la graella.
- Assegureu-vos que tots els botons de control del cremador estiguin en la posició "OFF".
- Open the gas supply valve on the LP cylinder.
- Push in and turn one main burner control knob counter-clockwise to the 'HIGH' position.
- Press the piezo ignition button (if applicable) or use a long-stem lighter to ignite the burner. You should hear a click and see a flame.
- Once the first burner is lit, you can light adjacent burners by turning their control knobs to 'HIGH'.
- Close the lid and preheat the grill to the desired temperature.
5.2 Using the Side Burner (Cookzone)
- Obriu la tapa lateral del cremador.
- Push in and turn the side burner control knob counter-clockwise to the 'HIGH' position.
- Press the piezo ignition button or use a long-stem lighter to ignite.
- Adjust the flame as needed.
A cast iron wok filled with shrimp and vegetables cooking on the integrated side burner (Cookzone).
A close-up of the high-heat sizzle zone, ideal for searing meats.
5.3 Control de temperatura
The integrated lid thermometer displays the internal temperature of the grill. Adjust burner control knobs to achieve and maintain your desired cooking temperature. For lower temperatures, use fewer burners or set them to a lower setting.
The gas grill in operation on a patio, with various foods cooking on the main grates and a wok on the side burner.

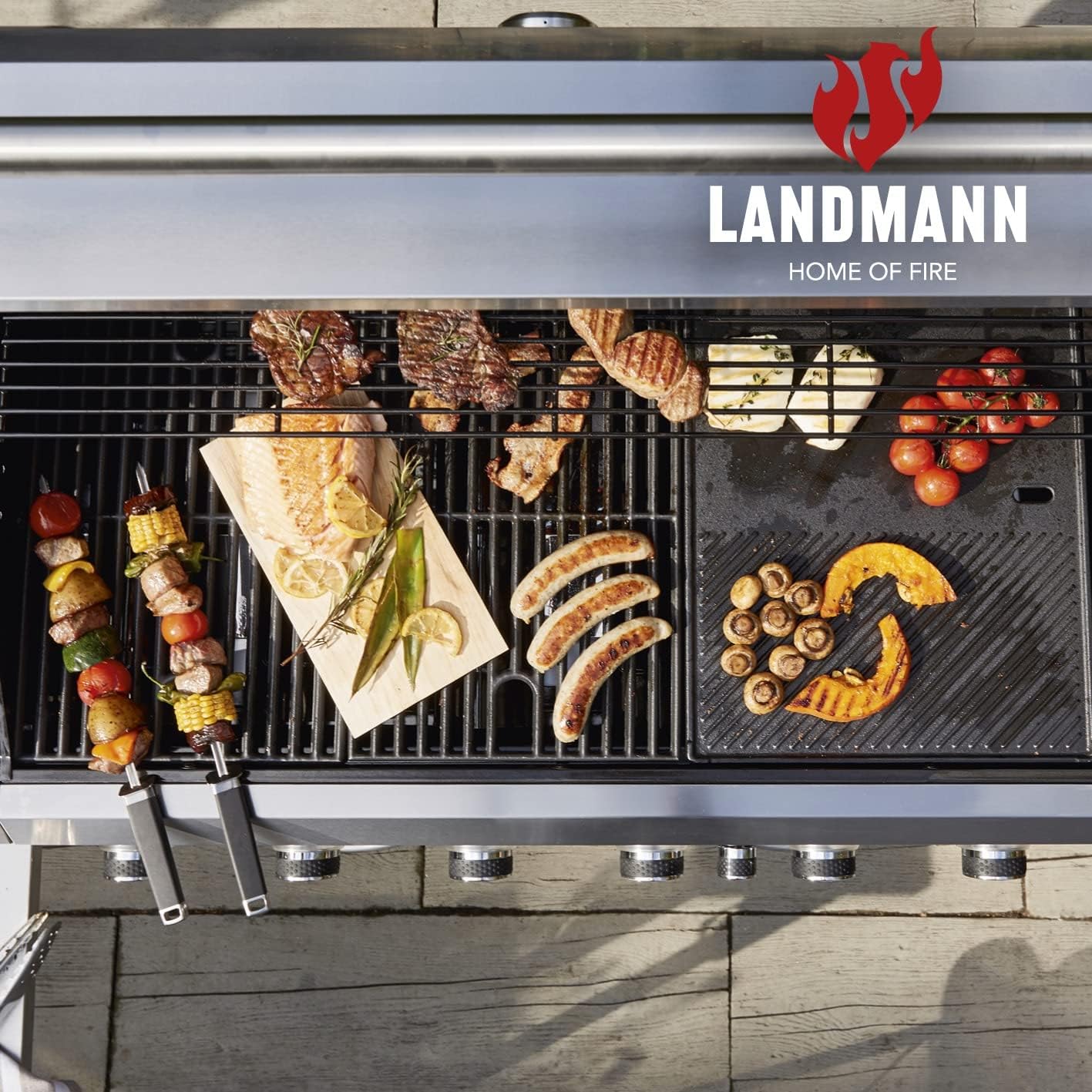

Una sobrecàrrega view espectacleasing different foods, including meat, vegetables, and sausages, cooking on the grill's main grates and a solid plate.
A pizza stone with a pizza being placed onto the grill, demonstrating accessory compatibility.
6. Manteniment i Neteja
Una neteja i un manteniment regulars allargaran la vida útil de la barbacoa i garantiran un funcionament segur.
6.1 Grill Grates
After each use, once the grill has cooled slightly but is still warm, use a grill brush to remove food residue from the enameled cast iron grates. For deeper cleaning, remove the grates and wash with warm soapy water, then rinse and dry thoroughly.
6.2 Fat Collection Tray
The removable fat collection tray should be emptied and cleaned regularly to prevent grease fires. Allow the tray to cool completely before removing and cleaning with warm soapy water.
6.3 Exterior Surfaces
Clean stainless steel and painted surfaces with a mild detergent and a soft cloth. Avoid abrasive cleaners or scouring pads, which can scratch the finish. For stainless steel, wipe in the direction of the grain.
6.4 cremadors
Periodically inspect burner ports for blockages (e.g., from insects). Use a wire brush or paper clip to clear any obstructions. Ensure gas flow is unobstructed.
6.5 Emmagatzematge d'hivern
If storing the grill for an extended period, especially during winter, disconnect the gas cylinder, clean the grill thoroughly, and cover it with a weather-resistant grill cover. Store the LP cylinder in a well-ventilated outdoor area, away from direct sunlight and heat sources.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El cremador no s'encén | No gas flow, clogged burner port, faulty igniter | Check gas cylinder, ensure valve is open. Clear burner ports. Check igniter electrode and wire connection. |
| Calor desigual | Clogged burner ports, low gas pressure | Clean burner ports. Check gas regulator for proper function. |
| Olor de gas | Fuita de gas | IMMEDIATELY turn off gas supply. Perform a leak test. If leak persists, do not use the grill and contact a qualified service technician. |
| Yellow or orange flames | Improper air/gas mixture, clogged burner | Clean burner ports. Ensure air shutters (if adjustable) are correctly set. |
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Landmann |
| Nom del model | Rexon 6.1 cooK |
| Número de model | 01955 |
| Dimensions del producte (P x A x A) | 55 de profunditat x 162 d'amplada x 120 d'alçada cm |
| Tipus de combustible | Gas (LP) |
| Total Heat Output | 24 Kilowatts (21 kW main burners + 3 kW side burner) |
| Cremadors principals | 6 (Stainless Steel, infinitely adjustable) |
| Cremadors laterals | 1 (Cookzone) |
| Amplada de la superfície de cocció | Approximately 94 x 43 cm (4022 cm²) |
| Material | Stainless Steel, Cast Iron (grates) |
| Tipus d'acabat | Inoxidable |
| Tipus d'encesa | Battery-free Piezo |
| Característiques especials | Foldable side table, Integrated lid thermometer, LED control knobs, Removable timer, Removable fat collection tray |
| Ús recomanat | Outdoor grilling of various foods, preparing side dishes, serving large groups |
| Muntatge obligatori | Sí |
Diagram showing the dimensions of the gas grill: 163 cm width, 56 cm depth, 121 cm height.
9. Garantia i Suport
For warranty information, please refer to the warranty card included with your product or visit the official Landmann website. If you require technical support or have questions not covered in this manual, please contact Landmann customer service through their official channels.
