1. Introducció
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your new VLAND Full LED Taillights. These taillights are designed to enhance the rear lighting system of compatible Mini Cooper R-Series vehicles. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Compatibilitat del vehicle
These VLAND Full LED Taillights are compatible with the following Mini Cooper R-Series models:
- Mini Cooper R55 (2007-2013)
- Mini Cooper R56 (2007-2013)
- Mini Cooper R58 (2007-2013)
All trims for these models are supported. If you are unsure about your vehicle's model code, please consult your vehicle's documentation or a qualified technician.
3. Contingut del paquet
En obrir el paquet, comproveu que tots els components hi són i no estan danyats:
- 2 x LED Taillights (Left and Right sides)
- 1 x Manual d'instruccions (Aquest document)
- 2 x Adapter Cables (for 2007-2010 models)
4. Informació de seguretat
Always prioritize safety during installation and operation. Failure to follow safety guidelines may result in injury or damage to the product or vehicle.
- Desconnecteu la bateria del vehicle abans de començar qualsevol treball elèctric.
- Utilitzeu equips de protecció individual adequats, com ara guants i ulleres de protecció.
- Assegureu-vos que el vehicle estigui aparcat en una superfície plana amb el fre d'estacionament accionat.
- If you are not confident in your ability to perform the installation, seek professional assistance.
- Do not modify the taillight assembly or wiring.
5. Configuració i instal·lació
Professional installation is highly recommended for optimal performance and to avoid potential issues. The following steps provide a general overview; refer to the detailed instructions included in your package for specific guidance.
5.1 Comprovació prèvia a la instal·lació
- Inspect both taillight units for any signs of damage from shipping.
- Confirm vehicle compatibility (Mini Cooper R55, R56, R58, 2007-2013).
- Gather necessary tools (e.g., screwdrivers, trim removal tools).
5.2 Removal of Existing Taillights
- Open the vehicle's trunk or tailgate.
- Locate the access panels or fasteners securing the original taillight assemblies.
- Carefully disconnect the wiring harness from the existing taillights.
- Remove the mounting screws or clips and gently pull the taillight assembly away from the vehicle body.
5.3 Installation of VLAND LED Taillights
- Connect the main plug of the new VLAND LED taillight to the vehicle's wiring harness.
- For 2007-2010 models, use the provided adapter cables to ensure proper connection.
- Reverse Light Function: The taillights feature a selection button for the reverse light function. Ensure this is correctly set. "0" typically indicates the reverse function is active. Refer to the diagram below.
- Carefully position the new taillight assembly into the vehicle's taillight opening.
- Secure the taillight with the original mounting screws or clips.
- Repetiu el procés per a l'altre costat.
Image: Main plug and adapter cables for 2007-2010 models.

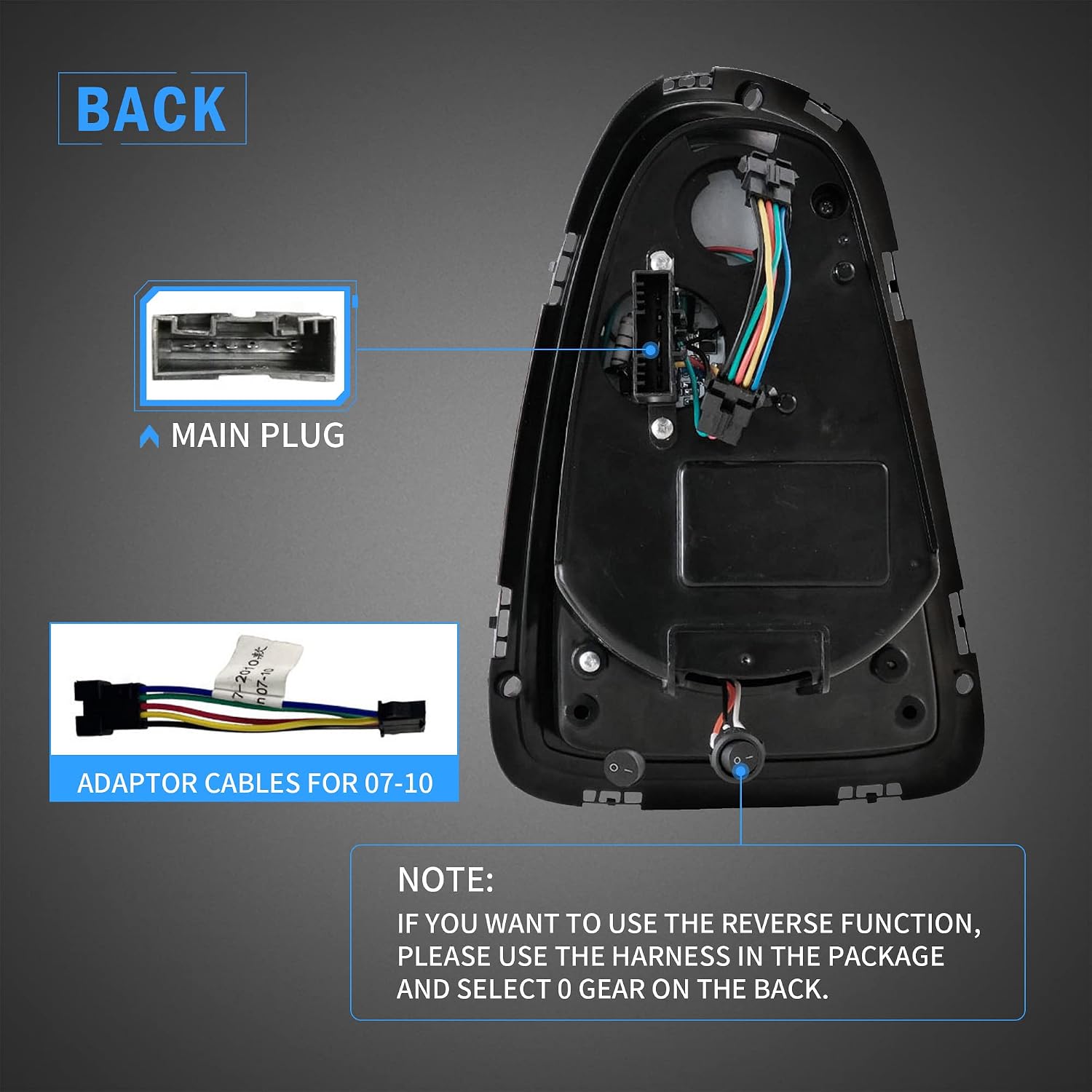

Image: Reverse light function selection button. Set to '0' for reverse function.
5.4 Comprovació posterior a la instal·lació
- Torneu a connectar la bateria del vehicle.
- Test all lighting functions: running lights, brake lights, reverse lights, and turn signals.
- Ensure all lights illuminate correctly and the sequential turn signals operate as intended.
- Verify that no warning lights appear on the dashboard.
6. Instruccions de funcionament
The VLAND Full LED Taillights offer several advanced lighting functions:
6.1 Running Lights with Dynamic Animation
When your vehicle's headlights are on, the LED running lights will illuminate with a distinctive dynamic animation. This feature provides a modern aesthetic and increased visibility.
6.2 Brake Lights
The integrated LED brake lights provide bright and immediate illumination when the brake pedal is pressed, enhancing safety by clearly signaling braking to following vehicles.
6.3 Reverse Lights (2007-2010 Models)
For 2007-2010 models, the reverse lights are integrated. Ensure the reverse light function selection button is set to "0" for proper operation when the vehicle is in reverse gear.
6.4 Sequential Turn Signals
The amber LED turn signals feature a sequential illumination pattern, providing a clear and dynamic indication of your turning intentions.
6.5 Dynamic Animation Upon Lock/Unlock
These taillights feature a dynamic animation that activates when you lock or unlock your vehicle, providing a unique visual welcome or farewell sequence.
Imatge: Més deview of taillight functions including running, brake, reverse, and sequential turn signals.

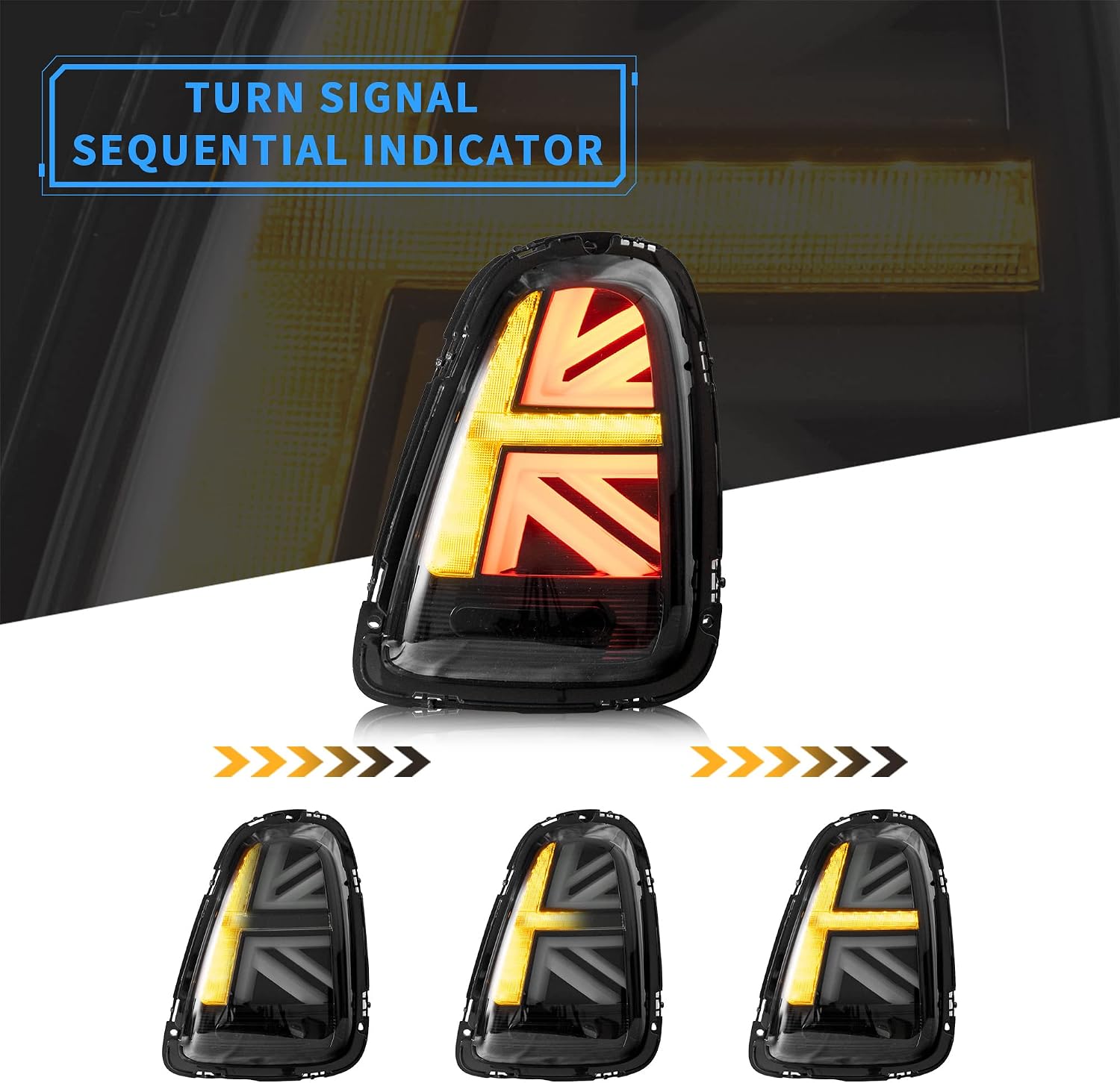

Image: Sequential turn signal operation.
Image: Dynamic animation sequence.
7. Manteniment
These VLAND LED Taillights are designed for durability and minimal maintenance. They are hermetically sealed to prevent moisture intrusion and are rated IP67 waterproof.
- Neteja: Clean the lens with a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners or harsh chemicals.
- Inspecció: Periodically check the taillights for any signs of damage or loose connections.
- Sense substitució de bombeta: These are full LED units and do not require bulb replacement.
Image: Taillights demonstrating waterproof (IP67), dust-proof, and shock-proof capabilities.
8. Solució De Problemes
If you encounter any issues with your VLAND LED Taillights, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Taillights not illuminating | Loose connection, incorrect wiring, blown fuse. | Check all wiring connections. Ensure adapter cables (if applicable) are correctly installed. Inspect vehicle's fuse box for blown fuses related to taillights. |
| Sequential turn signals not working | Incorrect wiring, module malfunction. | Verify turn signal wiring. If issue persists, contact VLAND support. |
| Dashboard warning light (bulb out) | Vehicle's CAN bus system detects lower power draw from LEDs compared to halogen bulbs. | This may require the installation of load resistors (not included) to simulate the power draw of original halogen bulbs. Consult a professional auto electrician for installation of load resistors if this issue occurs. |
| Moisture inside lens | Deteriorament del segellat, canvis extrems de temperatura. | Minor condensation can occur due to temperature fluctuations and usually dissipates. If significant moisture or water ingress is observed, contact VLAND support as this may indicate a seal defect. |
If you experience any other issues or the above solutions do not resolve the problem, please contact VLAND customer support for further assistance.
9. Especificacions
| Característica | Detall |
|---|---|
| Tipus de bombeta | Full LED (No external bulbs needed) |
| Classificació impermeable | IP67 |
| Certificacions | Certificat DOT |
| Vol. Operatiutage | 12 V |
| Wattage | 55W |
| Funcions | LED Running Light, Reverse Light (07-10), Brake Light, Amber Sequential Turn Signal |
| Color de l'habitatge | Negre |
| Color de la lent | Fumat |
| Material de l'habitatge | Plàstic ABS |
| Material de la lent | Policarbonat (PC) |
| Número de peça del fabricant | YAB-MN-0327-07 |
| Dimensions del paquet | 34 x 32 x 26 cm |
| Pes | 2.32 kg |
Image: Product packaging and key features.
Image: VLAND LED taillights installed on a Mini Cooper.
10. Informació de la garantia
VLAND provides a manufacturer warranty for one year from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
To claim warranty service, please retain your proof of purchase and contact VLAND customer support.
11. Suport
For any questions, technical assistance, or warranty inquiries, please contact VLAND customer support. You can typically find contact information on the VLAND official weblloc web o a través de la vostra plataforma de compra.
Manufacturer Contact Information: C/O 5 Paget Rd, Brampton, Ontario, Canada, L6T 5S2
