CAMKORY WF102 Digital Photo Frame User Manual

1. Introducció

Thank you for choosing the CAMKORY WF102 Digital Photo Frame. This manual provides essential information for setting up, operating, and maintaining your device. Please read these instructions carefully before use to ensure optimal performance and longevity of your photo frame. Keep this manual for future reference.

2. Producte acabatview

2.1 Contingut del paquet

• CAMKORY WF102 Digital Photo Frame
• Adaptador d'alimentació
• Suport desmuntable
• Manual d'usuari

2.2 Ports i controls

Familiarize yourself with the various ports and controls located on the back and sides of your digital photo frame.

Imatge 2.2.1: posterior view of the CAMKORY WF102 Digital Photo Frame. This image clearly labels the ON/OFF switch, SD card slot, Micro USB port, standard USB port, and DC IN port for power connection. These ports facilitate memory expansion and device power.

• Interruptor ON / OFF: Encén o apaga el dispositiu.
• Ranura per a targeta SD: For inserting an SD memory card to expand storage or transfer photos.
• Port micro USB: Per connectar-se a un ordinador o altres dispositius.
• Port USB: For connecting a USB flash drive to expand storage or transfer photos.
• DC IN: Power input port for the included power adapter.
• Pantalla tàctil: The front display is an HD IPS touchscreen for interactive control.

3. Configuració

3.1 Desembalatge i col·locació

1. Traieu amb cura tots els components de l'embalatge.
2. Attach the detachable stand to the back of the photo frame.
3. Place the frame on a stable, flat surface, away from direct sunlight, heat sources, and moisture.

3.2 Connexió d'alimentació

1. Connect the power adapter to the DC IN port on the back of the frame.
2. Connecteu l'adaptador d'alimentació a una presa de corrent estàndard.

3.3 Initial Power On and Wi-Fi Connection

1. Flip the ON/OFF switch to the 'ON' position. The frame will power on and display the startup screen.
2. Segueix les instruccions que apareixen a la pantalla per seleccionar l'idioma i la zona horària.
3. When prompted, select your Wi-Fi network from the list and enter the password. Ensure a stable internet connection for optimal functionality.

3.4 Instal·lació i emparellament de l'aplicació

The CAMKORY WF102 can be controlled and receive photos via a dedicated mobile application. The app is often referred to as 'Linklemo' or a similar name.

Imatge 3.4.1: The CAMKORY WF102 Digital Photo Frame in operation, displaying a family photo. A smartphone next to it shows the associated mobile application, indicating connectivity and control features.

1. Download the companion app (e.g., 'Linklemo') from your smartphone's app store (Google Play Store for Android or Apple App Store for iOS).
2. Obre l'aplicació i crea un compte o inicia la sessió.
3. Follow the app's instructions to pair your smartphone with the digital photo frame. This typically involves scanning a QR code displayed on the frame or entering a unique device ID.

4. Instruccions de funcionament

4.1 Navegació per la interfície de pantalla tàctil

The frame features an intuitive HD IPS touchscreen for easy navigation and control.

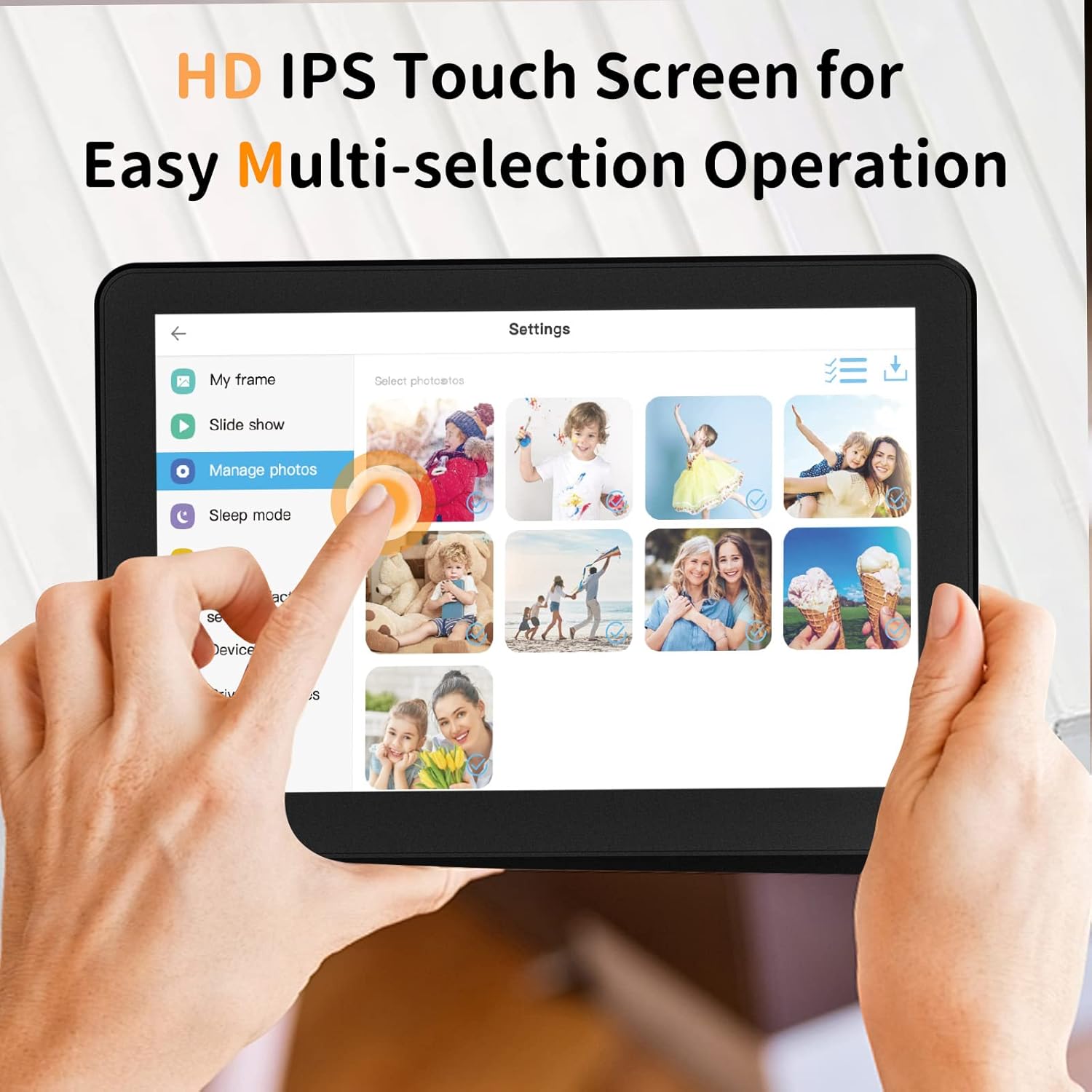

Imatge 4.1.1: Hands interacting with the HD IPS touchscreen of the CAMKORY WF102 Digital Photo Frame. This illustrates the ease of multi-selection and navigation within the frame's settings and photo management interface.

• Toca: Seleccioneu un element o obriu un menú.
• Llisca: Navega per fotos, menús o configuracions.
• Pessiga per fer zoom: Adjust photo size (if supported by the software).

4.2 Transferring Photos and Videos

The CAMKORY WF102 offers multiple ways to transfer your media.

Imatge 4.2.1: This diagram demonstrates various methods for transferring photos to the CAMKORY WF102 Digital Photo Frame, including via a cloud service, a dedicated mobile application, and email, highlighting the convenience of wireless data transfer.

4.2.1 Via Mobile App

Imatge 4.2.2: The CAMKORY WF102 Digital Photo Frame being controlled through its mobile application. The app interface on the phone shows options for adding descriptions and uploading photos, while the frame displays a gallery of images. Icons above suggest features like synchronization, collaboration, and secure operation.

1. Open the paired mobile app on your smartphone.
2. Select the photos or videos you wish to send to the frame.
3. Follow the app's instructions to upload the selected media. The frame will automatically receive and display them.

4.2.2 Via Email

You can send photos directly to your frame's unique email address.

Imatge 4.2.3: This image demonstrates the remote photo sharing capability of the CAMKORY WF102 Digital Photo Frame. It shows a person holding the frame, with circular portraits of other family members and an email icon, symbolizing how multiple individuals can send photos to the same frame via email.

1. Locate your frame's unique email address in the frame's settings menu or within the companion app.
2. From any email client, send photos as attachments to this address.
3. The frame will automatically download and display the emailed photos.

4.2.3 Via USB Drive or SD Card

1. Inseriu una unitat flaix USB al port USB o una targeta SD a la ranura per a targetes SD.
2. Navigate to the 'Manage Photos' or 'Import' section on the frame's touchscreen.
3. Select the external storage device and choose the photos/videos you wish to import to the frame's internal memory.

4.3 Gestió de fotos

Access the 'Gallery' or 'Manage Photos' section on the frame's touchscreen to organize, delete, or view details of your stored media.

4.4 Configuració de la presentació de diapositives

Personalitza la teva experiència de presentació de diapositives:

• Efectes de transició: Choose from various visual transitions between photos.
• Interval de visualització: Defineix la durada que es mostra cada foto.
• Play Order: Select sequential or random playback.

4.5 Mode de repòs

Configure sleep mode settings to automatically turn off the screen during specific hours (e.g., overnight) to save energy. This can be found in the 'Settings' menu.

5. Manteniment

5.1 Neteja de la pantalla

To clean the touchscreen, gently wipe it with a soft, lint-free cloth. For stubborn smudges, slightly dampRenta el drap amb aigua o una solució netejadora de pantalles. Evita productes químics agressius o materials abrasius.

5.2 Atenció general

• Keep the frame away from extreme temperatures and humidity.
• Eviteu deixar caure el dispositiu o sotmetre-lo a forts impactes.
• Do not attempt to disassemble the frame; this will void the warranty.

6. Solució De Problemes

If you encounter issues with your CAMKORY WF102 Digital Photo Frame, refer to the following common solutions:

• El marc no s'encén: Ensure the power adapter is securely connected to both the frame and a working electrical outlet. Try a different outlet if necessary.
• Problemes de connexió Wi-Fi: Verify your Wi-Fi password is correct. Ensure the frame is within range of your Wi-Fi router. Restart both the frame and your router.
• App connectivity issues (e.g., 'Linklemo' app): Ensure your smartphone has a stable internet connection. Confirm the app is updated to the latest version. If the app constantly disconnects or fails to find your account, try reinstalling the app or contacting customer support.
• Fotos que no es mostren: Check if the photos are in a supported format (e.g., JPEG, PNG). Ensure they have been successfully transferred to the frame's internal memory or connected external storage.
• Falta de resposta de la pantalla: Try restarting the frame by turning it off and on. If the issue persists, perform a factory reset (refer to the 'Settings' menu for this option, noting it will erase all data).

7. Especificacions

8. Garantia i Suport

For warranty information and technical support, please refer to the warranty card included with your product or visit the official CAMKORY website. You may also contact CAMKORY customer service directly for assistance with product issues or inquiries.
