BODEGA Wine Cooler Refrigerator User Manual

Informació important de seguretat

Please read all instructions carefully before using this appliance to ensure safe and optimal performance. Keep this manual for future reference.

• Assegureu-vos una ventilació adequada al voltant de l'aparell.
• No danyeu el circuit de refrigerant.
• No feu servir aparells elèctrics dins dels compartiments d'emmagatzematge, tret que siguin del tipus recomanat pel fabricant.
• Aquest aparell està dissenyat només per a ús domèstic.
• Mantenir les obertures de ventilació lliures d'obstruccions.
• Desendolleu l'aparell abans de netejar-lo o fer-ne el manteniment.

Producte acabatview

The BODEGA 174 Bottle Dual Zone Wine Cooler Refrigerator is designed to store your wine collection at optimal temperatures, offering both built-in and freestanding installation options. It features dual temperature zones, a double-layer tempered glass door, and a temperature memory function.

Imatge: Frontal view of the BODEGA 174 Bottle Dual Zone Wine Cooler, showcasing its sleek stainless steel design and glass door with blue interior lighting.

Característiques clau

• Capacitat de 174 ampolles: Large capacity with 15 shelves, including a bottom shelf designed to accommodate Champampolles d'agne.
• Control de temperatura de doble zona: Upper zone (43℉-53.6℉) and lower zone (53.6℉-68℉) to accommodate different wine types.
• Professional Refrigeration: Powerful compressor and fan for even cooling and stable temperatures.
• Disseny d'estalvi d'energia: Efficient operation meeting international energy consumption standards.

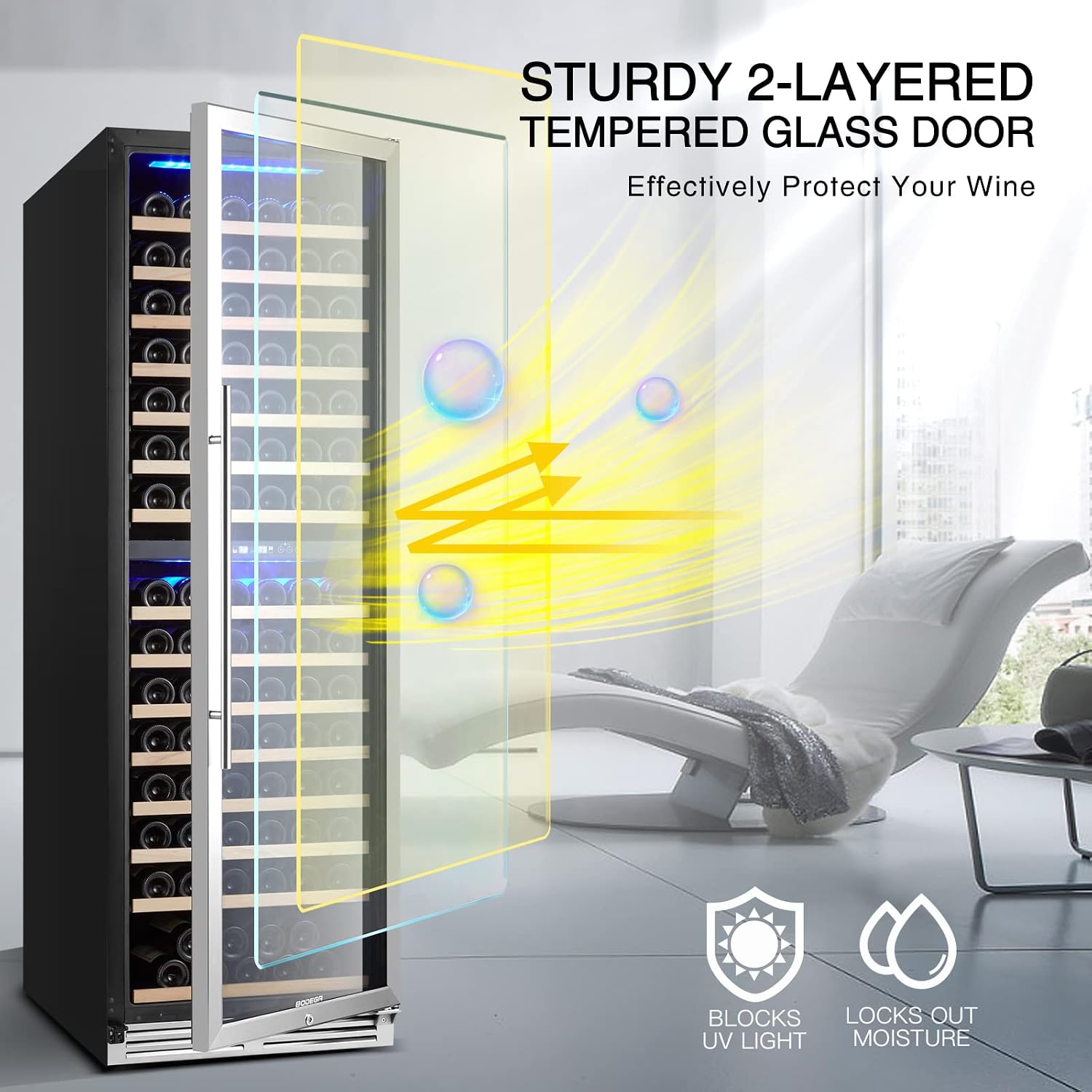

• Porta de vidre temperat de doble capa: Effectively protects wines from harmful UV rays.
• Control tàctil digital: Intuitive thermostat with indicator light and modern temperature display.
• Llum LED blava: Showcases wine collection elegantly and aids in bottle selection.
• Filtre de carbó: Absorbs odors to maintain wine quality.
• Bloqueig de seguretat: Provides security for your wine collection.
• Funció de memòria de temperatura: Restores previous temperature settings after a power outage.
• Built-in or Freestanding Installation: Versatile design with front ventilation.

Image: Diagram illustrating the dual temperature zones and recommended storage temperatures for various wine types (dry white, rose, semi-dry white, sparkling champagne, dry red, sweet, brandy, semi-dry red).

Configuració i instal·lació

Desembalatge

Carefully remove the wine cooler from its packaging. Inspect for any shipping damage. Keep all packaging materials until you are satisfied with the product.

Col·locació

This wine cooler is designed for both built-in and freestanding applications. Ensure adequate clearance around the unit for proper ventilation.

Image: Technical drawing showing the dimensions of the wine cooler (23.4 inches W x 27.5 inches D x 70.8 inches H) and suggested installation sizes.

Anivellació

Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. This is crucial for proper door operation and cooling efficiency.

Connexió d'alimentació

Plug the unit into a dedicated grounded electrical outlet. Do not use extension cords.

Instruccions de funcionament

Tauler de control

The wine cooler features a digital touch control panel located inside the unit, allowing for easy temperature adjustments and light control.

Image: Close-up of the digital touch control panel with icons for Power On/Off, Unit Conversion (Celsius/Fahrenheit), Temperature Lock, Increase Temperature, Decrease Temperature, and Light Control.

Configuració de la temperatura

Use the "+" and "-" buttons on the control panel to adjust the desired temperature for each zone. The display will show the current temperature.

Funció de bloqueig de pantalla

The control panel automatically locks if there is no operation within 3 minutes. To unlock, press the "lock" and "plus" buttons simultaneously.

Il·luminació interior

Press the light bulb icon on the control panel to turn the interior blue LED light on or off.

Imatge: Interior view of the wine cooler with bottles illuminated by the blue LED lighting, highlighting the dual cooling zones.

Funció de memòria de temperatura

In case of a power interruption, the wine cooler will automatically restore to the last set temperature when power is restored.

Emmagatzematge i Organització

The wine cooler is equipped with metal shelves with wooden front panels that slide out for easy access.

Imatge: Interior view of the wine cooler showing the wooden shelves, some partially pulled out, demonstrating the ease of access to bottles.

Càrrega d'ampolles

Arrange bottles to allow for proper air circulation. The shelves are designed to hold standard Bordeaux (750 ml) wine bottles. The bottom shelf can accommodate larger bottles like Champagne.

Manteniment i cura

Neteja de l'interior

Unplug the unit before cleaning. Use a soft cloth and a mild, non-abrasive cleaner to wipe down the interior surfaces and shelves. Do not use harsh chemicals or abrasive pads.

Neteja de l'exterior

Wipe the exterior with a soft cloth and mild detergent. For stainless steel surfaces, use a stainless steel cleaner.

Substitució del filtre de carbó

The carbon filter helps to protect against odors. Replace it periodically as recommended by the manufacturer (refer to the full user manual for specific intervals).

Image: Close-up of the carbon filter inside the wine cooler, designed to absorb odors and maintain air quality.

Descongelació

This unit features a frost-free defrost system, minimizing the need for manual defrosting.

Resolució de problemes

If you experience issues with your wine cooler, please refer to the following common problems. For more detailed troubleshooting or persistent issues, contact customer support.

• La unitat no refreda: Check power connection, thermostat settings, and ensure the door is properly closed.
• Soroll excessiu: Ensure the unit is level and not touching any walls or cabinets.
• Temperature fluctuations: Verify door seal and proper ventilation.

For comprehensive troubleshooting steps, please consult the full user manual available for download.

Especificacions

Vídeo oficial del producte

Video: An official product video from BODEGA showcasing the features and design of the 24-inch wine cooler, including its sleek appearance, double-layered glass, interior fan, carbon filter, and control panel.

Garantia i Suport

BODEGA products are designed for quality and durability. For warranty information and customer support, please refer to the contact details provided in the original packaging or visit the official BODEGA weblloc.

This product is CE and ETL certified.

For further assistance, you may contact the seller "ONETREE HOME USA" via Amazon.
