Scheppach Compact 8T Vertical Log Splitter 400V Instruction Manual

1. Introducció

Thank you for choosing the Scheppach Compact 8T Vertical Log Splitter. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your log splitter. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.

The Scheppach Compact 8T Vertical Log Splitter is designed for splitting hard and soft wood logs up to 1070 mm in length and 350 mm in diameter, offering a powerful splitting force of 7.95 tons. Its compact design and 400V motor make it suitable for various wood processing tasks.

2. Instruccions de seguretat

Advertències generals de seguretat:

• Utilitzeu sempre l'equip de protecció individual (EPI) adequat, com ara ulleres de seguretat, protecció auditiva, guants i calçat resistent.
• Ensure the log splitter is placed on a firm, level surface before operation.
• Mantingueu els nens i els vianants a una distància segura de la zona d'operació.
• Never operate the machine under the influence of alcohol, drugs, or medication that may impair judgment.
• No intenteu partir troncs que continguin claus, filferro o altres objectes estranys.
• Always use both hands to operate the controls and keep hands clear of the splitting wedge.
• Disconnect the power supply before performing any maintenance, cleaning, or when the machine is not in use.
• Regularly inspect the machine for damage or wear. Do not operate if damaged.

Seguretat elèctrica:

• This machine operates on 400V. Ensure your power supply matches the machine's requirements.
• Use only extension cords rated for outdoor use and appropriate for the machine's power requirements.
• Protect electrical cables from heat, sharp edges, and moving parts.

3. Producte acabatview

The Scheppach Compact 8T Log Splitter is designed for efficient and safe wood splitting. Familiarize yourself with its main components:

• Falca de divisió: The primary component for splitting logs.
• Log Retaining Arms: Holds the log securely in place during splitting.
• Adjustable Work Table: Allows for different working heights to accommodate various log lengths.
• Control Levers: Two-hand operation for safety.
• Rodes de transport: Per a una fàcil maniobrabilitat.
• Motor: Powerful 400V, 3500W motor.
• Collection Bows: Located on both sides for collecting split wood.

Figura 1: Principal view of the Scheppach Compact 8T Vertical Log Splitter. This image shows the overall structure of the log splitter, including the splitting wedge, log retaining arms, and base.

Figure 2: The log splitter with a log positioned for splitting. This illustrates the machine's capacity and how logs are placed.

4. Muntatge i muntatge

Before operating your log splitter, ensure it is correctly assembled and positioned.

1. Desembalatge: Carefully remove all components from the packaging. Check against the packing list for completeness. Included components are: Log Splitter, Fixing Device, Transport Wheels, Retaining Stirrup.
2. Attaching Transport Wheels: Mount the transport wheels to the base of the log splitter as per the diagram in your detailed assembly guide. These wheels facilitate moving the heavy unit.
3. Posicionament: Place the log splitter on a stable, level, and solid surface. Ensure there is ample clear space around the machine for safe operation and log handling.
4. Connexió elèctrica: Connect the 400V power cable to a suitable power outlet. Ensure the circuit is protected by a residual current device (RCD).
5. Adjusting Work Table: The work table can be adjusted to different heights. Select the appropriate height for the length of logs you intend to split.

Figure 3: Close-up of the adjustable work table. This image highlights the mechanism for changing the work table height, allowing for ergonomic operation with different log sizes.

Figure 4: The log splitter in its compact storage position, showing a height of 990 mm. This demonstrates the space-saving design for storage when not in use.

5. Instruccions de funcionament

Seguiu sempre les pautes de seguretat abans i durant l'operació.

1. Preparació del registre: Ensure logs are cut to appropriate lengths (max 1070 mm) and diameters (max 350 mm). Avoid logs with branches or knots that could cause uneven splitting.
2. Posicionament del tronc: Place the log vertically on the work table, ensuring it is stable and centered under the splitting wedge. Use the log retaining arms to secure it.
3. Two-Handed Operation: To initiate the splitting process, simultaneously engage both control levers. This safety feature prevents hands from being near the splitting wedge during operation.
4. Divisió: The wedge will descend, splitting the log. Once split, release the control levers to retract the wedge.
5. Collecting Split Wood: The integrated collection bows on both sides help gather the split wood, making it easier to manage.
6. Reposicionament: For larger logs that do not split completely on the first pass, reposition them and repeat the splitting process.

Figure 5: A user operating the log splitter, demonstrating proper posture and log handling. This image shows the machine in active use, with a log being split.

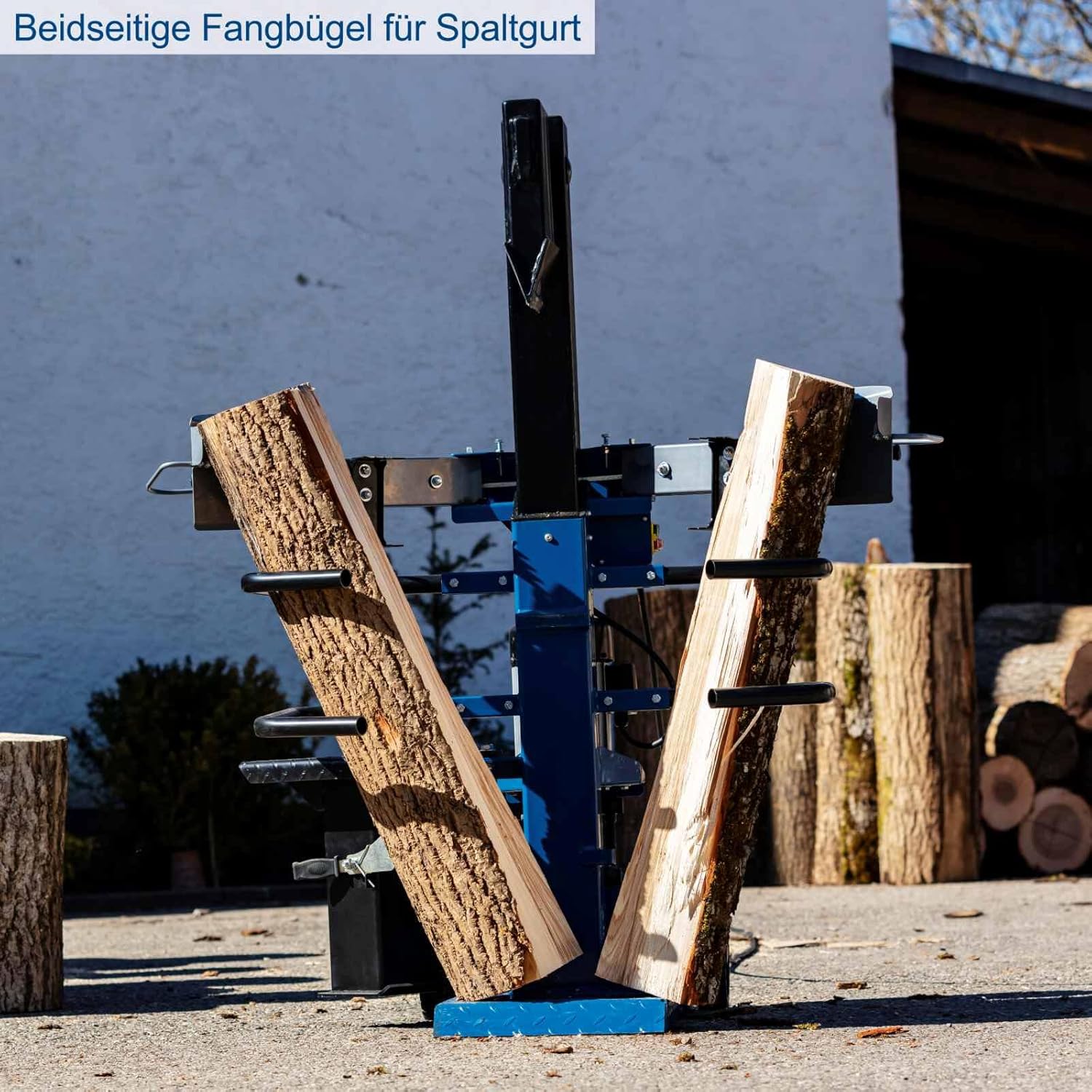

Figure 6: Split logs resting against the retaining arms. This illustrates the effectiveness of the collection bows in holding split wood.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your log splitter.

• Neteja: After each use, clean the machine of wood chips, sawdust, and debris. Use a brush or compressed air. Do not use water directly on electrical components.
• Lubricació: Periodically lubricate moving parts, especially the splitting wedge and guide rails, with appropriate grease or oil.
• Fluid hidràulic: Check the hydraulic fluid level regularly. Refer to the detailed service manual for instructions on checking and refilling hydraulic fluid. Use only recommended hydraulic fluid types.
• Inspeccions:
  • Comproveu que tots els cargols i femelles estiguin estancats.
  • Inspect the power cable for any signs of damage or wear.
  • Examine the splitting wedge for dullness or damage. Sharpen or replace if necessary.
  • Ensure the log retaining arms move freely and are not bent or damaged.
• Emmagatzematge: When not in use, store the log splitter in a dry, secure location, preferably in its compact storage position (990 mm height).

7. Solució De Problemes

This section addresses common issues you might encounter. For problems not listed here, contact qualified service personnel.

8. Especificacions tècniques

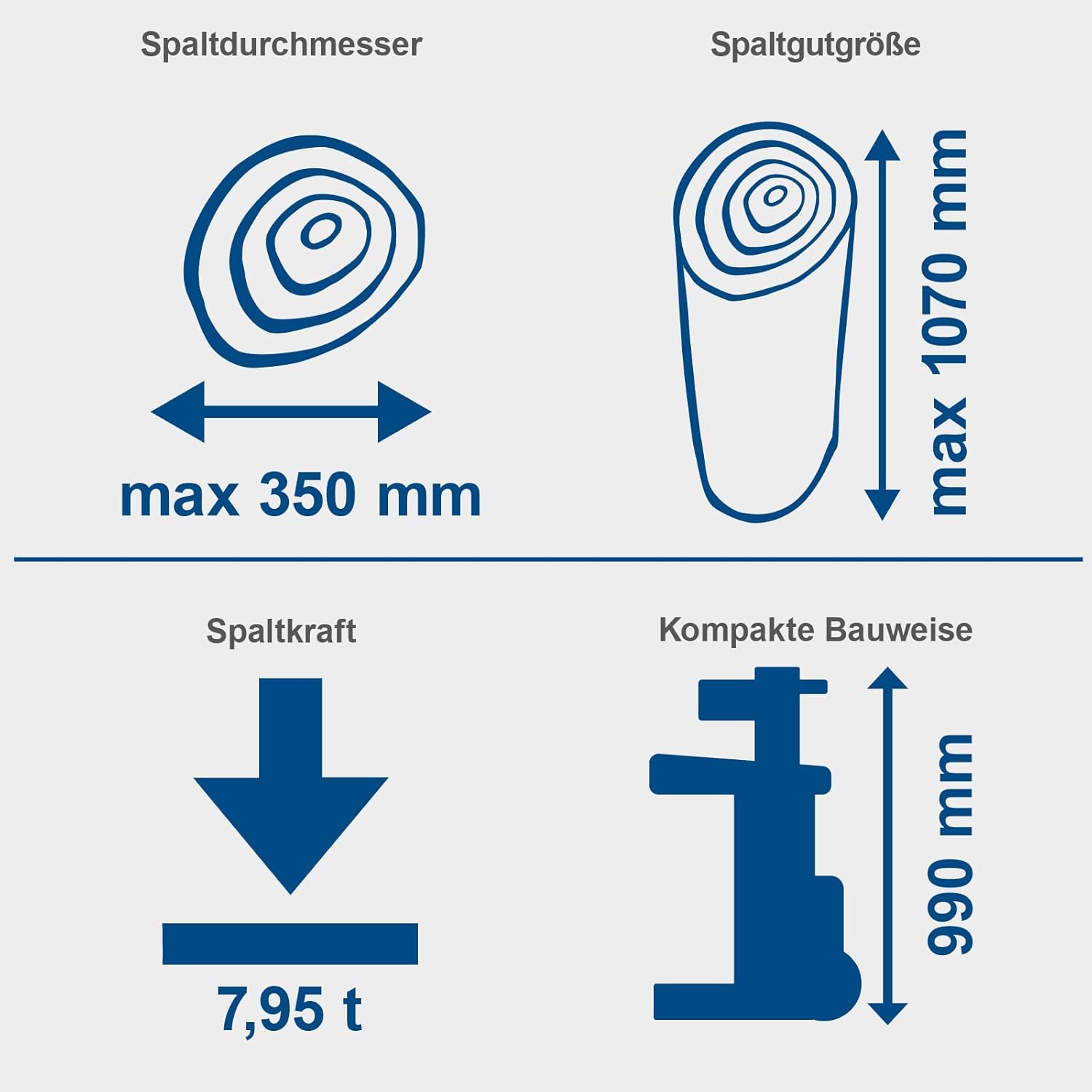

Figure 7: Diagram illustrating key technical specifications such as max splitting diameter (350mm), max splitting length (1070mm), splitting force (7.95t), and compact height (990mm).

Figure 8: Diagram highlighting features like the Vario Splitting System, GS certified safety, worldwide patented splitting technology, and its unique capability as Europe's only meter log splitter under 8 tons.

9. Garantia i Suport

Scheppach products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to your purchase documentation for warranty terms and conditions. For technical support, spare parts, or service inquiries, please contact your authorized Scheppach dealer or visit the official Scheppach weblloc web. Si us plau, tingueu a mà el número de model (5905419902) i la data de compra quan us poseu en contacte amb el servei d'assistència.

Fabricant: Scheppach

Weblloc: www.scheppach.com
