1. Introducció
Thank you for choosing the Winado 12000 BTU Window Air Conditioner. This unit is designed to provide efficient and quiet cooling for rooms up to 550 square feet. Its user-friendly design, including a washable filter and remote control, ensures a comfortable environment in various small spaces such as offices, kitchens, bedrooms, and living rooms.
This manual provides detailed instructions for the safe operation, installation, maintenance, and troubleshooting of your air conditioner. Please read it thoroughly before installation and use, and retain it for future reference.
2. Informació de seguretat
Per evitar lesions a l'usuari o altres persones i danys a la propietat, s'han de seguir les instruccions següents. Un funcionament incorrecte a causa d'ignorar les instruccions pot causar danys o danys.
- Connecteu sempre a una presa de corrent amb connexió a terra.
- No feu funcionar la unitat amb les mans mullades.
- No bloquegeu les entrades o sortides d'aire.
- Ensure the unit is installed securely in the window opening.
- Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament.
- Desconnecteu la unitat abans de netejar-la o fer-ne el servei.
- No intenteu reparar la unitat vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat.
3. Producte acabatview
3.1 Components de la unitat
Familiarize yourself with the main parts of your Winado Window Air Conditioner.
Figura 3.1: Frontal view of the Winado 12000 BTU Window Air Conditioner, showing the control panel and air vents.
- Tauler de control: Pantalla digital i botons per al funcionament.
- Reixelles de sortida d'aire: Adjustable to direct airflow.
- Filtre d'aire: Located behind the front grille, washable and reusable.
- Cable d'alimentació: Per a connexió elèctrica.
- Comandament a distància: Per a un funcionament còmode des de la distància.
3.2 Tauler de control i comandament a distància
The unit can be operated via the intelligent touch panel on the unit or the included remote control.
Figure 3.2: Illustration of the control panel buttons and LCD display, along with the remote control.
Les funcions clau inclouen:
- Botó d'encendre: Encén o apaga la unitat.
- Botó MODE: Cycles through operating modes (Cool, Dry, Fan, Auto Mode, Sleep, ECO).
- Botó VELOCITAT DEL VENTILADOR: Adjusts fan speed (High, Med, Low, Auto Speed).
- Botons d'ajust de temperatura (fletxes amunt/avall): Estableix la temperatura desitjada.
- Botó TIMER: Configura un temporitzador per a l'encesa/apagada automàtica.
- Botó FILTRE: Indicates when the filter needs cleaning.
4. Configuració i instal·lació
The Winado 12000 BTU Window Air Conditioner is designed for easy installation without requiring professional technical skills or major modifications to your window frame.
Figure 4.1: Visual representation of the simple installation process for the window unit compared to other AC types.
4.1 Recommended Window Size
Ensure your window meets the recommended dimensions for proper installation.

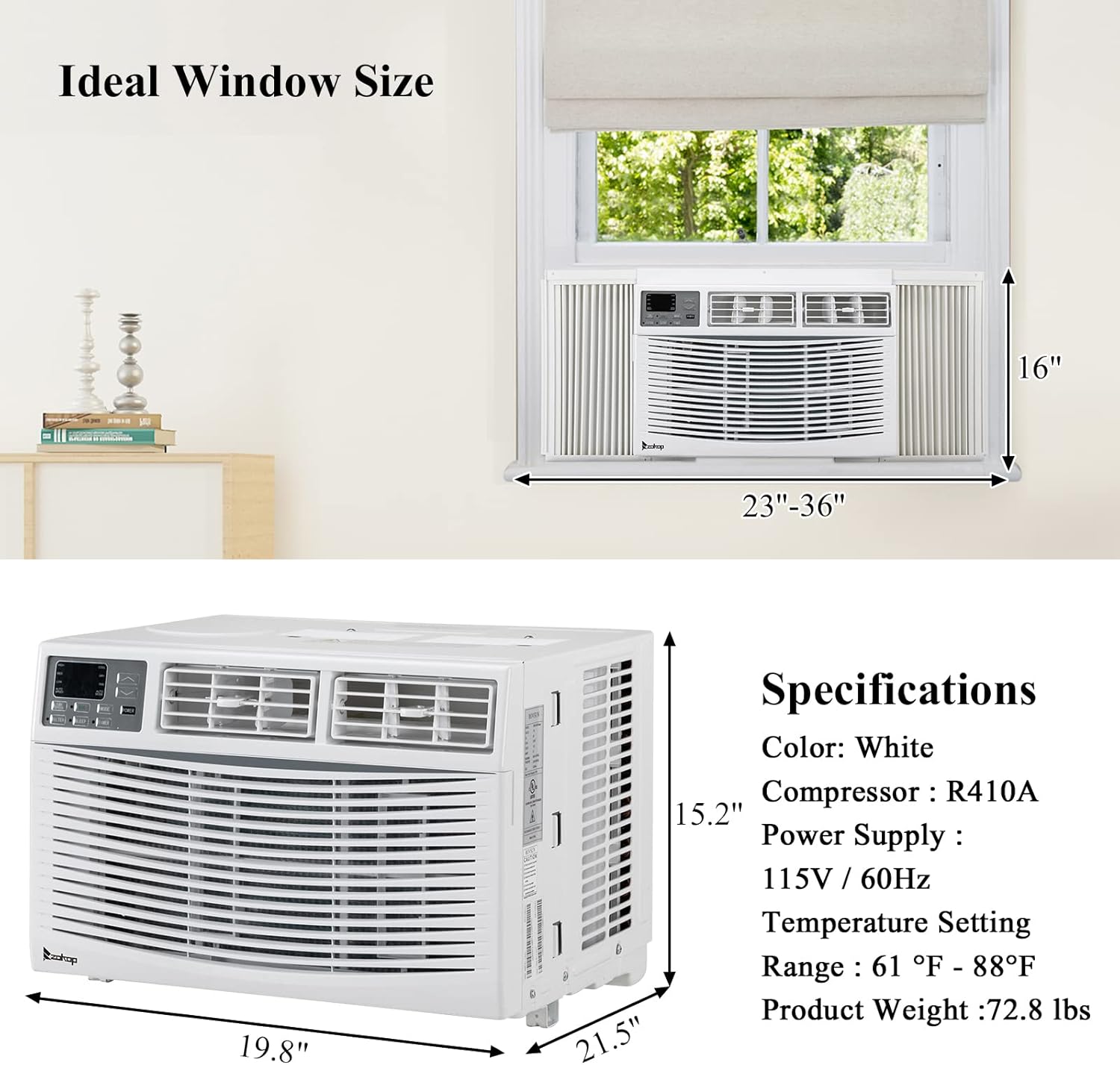

Figure 4.2: Recommended window width is 23"-36" and height is 14.5" (or 16" as per image).
- Recommended Window Width: 23" - 36"
- Recommended Window Height: 14.5" (minimum)
4.2 Passos d'instal·lació
The package includes the necessary installation window kit and screws. Follow these general steps for installation:
- Prepare the window opening by cleaning the area.
- Attach the top mounting rail to the unit.
- Carefully place the unit into the window opening, ensuring it is centered and level.
- Esteneu els panells laterals per omplir l'espai de la finestra i fixeu-los amb cargols.
- Install the window sash seal and any additional insulation as needed to prevent air leakage.
- Secure the unit to the window frame using the provided brackets and screws.
- Ensure the unit is tilted slightly outwards to allow for proper condensate drainage.
- Important: After installation, wait at least 24 hours before plugging in and operating the unit to allow refrigerants to settle.
5. Instruccions de funcionament
Your Winado air conditioner offers multiple operating modes and features for optimal comfort.
Figure 5.1: Key features of the Winado 12000 BTU Window Air Conditioner.
5.1 Funcionament bàsic
- Encès/apagat: Press the POWER button on the control panel or remote control.
- Seleccioneu el mode: Press the MODE button to cycle through Cool, Dry, Fan, Auto Mode, Sleep, and ECO modes.
- Temperatura establerta: Use the Up/Down arrow buttons to adjust the desired temperature (Range: 61°F - 88°F).
- Ajustar la velocitat del ventilador: Press the FAN SPEED button to select High, Med, Low, or Auto Speed.
5.2 Modes de funcionament
- Mode fresc: Provides powerful cooling. Adjust temperature and fan speed as desired.
- Mode sec (deshumidificació): Reduces humidity in the room. The fan speed is automatically controlled.
- Mode de ventilador: Circulates air without cooling. Choose desired fan speed.
- Mode automàtic: The unit automatically selects the operating mode (Cool, Dry, or Fan) and fan speed based on the room temperature to maintain the set temperature.
- Mode de repòs: Increases the set temperature gradually over time to save energy and provide comfortable sleeping conditions.
- Mode ECO: Optimizes energy consumption by cycling the compressor on and off to maintain the set temperature efficiently.
5.3 Funció de temporitzador
The timer function allows you to set a specific time for the unit to turn on or off automatically (up to 24 hours).
- Premeu el botó TIMER.
- Use the Up/Down arrow buttons to set the desired time.
- Press the TIMER button again to confirm.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del teu aire condicionat.
6.1 Neteja del filtre d'aire
The air filter is washable and reusable. A clean filter helps maintain cooling efficiency and air quality. The FILTER indicator light on the control panel will illuminate when cleaning is recommended.
Figure 6.1: Steps for accessing and cleaning the air filter.
- Desendolleu l'aire condicionat de la presa de corrent.
- Open the front grille and carefully remove the air filter.
- Renteu el filtre amb aigua tèbia i sabó. Esbandiu-lo bé.
- Allow the filter to air dry completely before reinserting it. Do not use direct heat to dry.
- Once the filter is reinstalled, press the FILTER button to reset the indicator.
It is recommended to clean the filter every two weeks or more frequently depending on usage and air quality.
6.2 Neteja general
- Netegeu l'exterior de la unitat amb un drap suau iamp tela. No utilitzeu productes químics agresivs o abrasius.
- Assegureu-vos que la zona de drenatge de la part posterior de la unitat estigui lliure de deixalles.
- For long-term storage, clean the unit thoroughly, allow it to dry, and cover it to protect from dust.
7. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Sense corrent, interruptor automàtic saltat, cable d'alimentació no completament connectat. | Check power supply, reset circuit breaker, ensure plug is secure. |
| La unitat no refreda eficaçment. | Filtre d'aire brut, sortides d'aire bloquejades, habitació massa gran, portes/finestres obertes. | Clean air filter, clear obstructions, close doors/windows, ensure unit capacity matches room size. |
| Aigua que goteja per dins. | Unit not tilted correctly, drain hole blocked. | Ensure slight outward tilt, clear drain hole. |
| Funcionament sorollós. | Loose installation, fan obstruction, normal operating sounds. | Check installation for tightness, remove any obstructions. Some fan and compressor sounds are normal. |
| El comandament a distància no funciona. | Piles gastades, obstrucció entre el comandament a distància i la unitat. | Replace batteries, remove obstructions, ensure remote is pointed at the unit. |
8. Especificacions
Technical specifications for the Winado 12000 BTU Window Air Conditioner, Model WAC-12000.
Figura 8.1: Dimensions i especificacions del producteview.
| Especificació | Valor |
|---|---|
| Model | WAC-12000 |
| Color | Blanc |
| Font d'alimentació | 1F, 115V~, 60Hz |
| Capacitat de refrigeració (nominal) | 12000 Btu / h |
| Entrada nominal | 992W |
| Corrent nominal | 8.6A |
| Tipus de refrigerant | R32 / 650g / 22.93 ozs |
| Interval de temperatura | 61 °C - 88 °C |
| Nivell de soroll interior (Alt/Med/Baix) | 59/57/55 dB(A) |
| Outdoor Noise Level (Hi/Med/Lo) | 66/64/61 dB(A) |
| Recommended Window Width | 23-36 cm |
| Recommended Window Height | 14.5" (minimum) |
| Dimensions del producte (P x A x A) | 19.8" x 21.5" x 15.2" |
| Pes de l'article | 72.6 lliures |
| Applicable Room Area | Fins a 550 peus quadrats. |
| Tipus de material | ABS, acer |
| Components inclosos | Air Conditioner, Installation Window Kit, Screws, Remote Control |
9. Garantia i Suport
For warranty information or technical support, please refer to the documentation included with your purchase or contact Winado customer service through their official weblloc web o el venedor on es va comprar el producte.
Please have your model number (WAC-12000) and purchase date ready when contacting support.
