Introducció
This manual provides essential information for the safe and effective use of your BIG RED ATZ220005R Torin Heavy Duty Pin Type Professional Car Jack Stands. Designed for professional and heavy-duty applications, these jack stands offer a robust solution for supporting vehicles during maintenance and repair.
Image: A pair of BIG RED ATZ220005R Torin Heavy Duty Pin Type Professional Car Jack Stands, red with black adjustable posts.
Informació de seguretat
ADVERTIMENT: Failure to read, understand, and follow all instructions in this manual may result in serious personal injury, property damage, or death. Always use these jack stands on a hard, level surface. Do not exceed the rated capacity. Ensure the vehicle is properly centered on the saddle of the jack stand.
- Always use jack stands in pairs and on a hard, level surface.
- Ensure the vehicle is stable and cannot roll before placing it on jack stands. Use wheel chocks if necessary.
- Do not work under a vehicle supported only by a jack. Always use jack stands.
- Verify the vehicle's weight and ensure it does not exceed the 22 Ton (44,000 lbs) capacity of these jack stands.
- Position jack stands under the vehicle's frame or designated support points as specified by the vehicle manufacturer.
- Ensure the locking pin is fully inserted through both sides of the adjustable column and the main body before applying load.
- Keep hands and feet clear of moving parts and pinch points.
- Inspect jack stands for damage or wear before each use. Do not use if damaged.
Producte acabatview i Característiques
The BIG RED ATZ220005R jack stands are engineered for heavy-duty applications, providing reliable support for a wide range of vehicles including cars, sedans, trucks, SUVs, ATVs, and UTVs. Their robust construction ensures durability and safety.
- Professional Heavy-Duty Design: Each stand has a 22 Ton (44,000 lbs) capacity per pair, suitable for most large vehicles.
- Alçada ajustable: Features a minimum lifting height of 12.79 inches and a maximum lifting height of 19.68 inches.
- Sturdy Welded Steel Construction: Built with heavy gauge steel for superior strength and to prevent distortion or twisting. Each stand is equipped with a large chassis design for increased stability.
- Adjustable Pin Included: A robust steel pin secures the adjustable column at desired height positions. The pin is tethered to the stand to prevent loss.
- Acabat durador: High-quality spray paint provides durability, preventing rusting or breaking.
- Disseny portàtil: Integrated handle for easy positioning and carrying.
Image: A single BIG RED jack stand illustrating its minimum (13-3/4" or 350mm) and maximum (19-11/16" or 500mm) lifting heights.
Image: The base of a BIG RED jack stand showing its 11" x 11" (280mm x 280mm) dimensions.
Imatge: Detallada view of the robust welds on the top saddle and base of the jack stand, highlighting the sturdy construction.
Configuració
- Desembalar: Carefully remove the jack stands from their packaging. Inspect for any shipping damage.
- Familiaritzar-se: Identify the adjustable column, the base, the locking pin, and the pin holder.
- Prepara la superfície: Ensure the working surface is hard, level, and free of debris. Avoid soft ground, gravel, or uneven surfaces.
Instruccions de funcionament
Follow these steps for safe operation of your BIG RED jack stands:
- Preparar el vehicle: Park the vehicle on a hard, level surface. Engage the parking brake and place the transmission in "Park" (automatic) or in gear (manual). Use wheel chocks on wheels that will remain on the ground.
- Vehicle elevador: Using a suitable vehicle jack (e.g., a floor jack or bottle jack), lift the vehicle to a height slightly above the desired support height for the jack stands. Refer to your vehicle's owner's manual for proper jacking points.
- Adjust Jack Stand Height: Remove the locking pin from the jack stand. Raise or lower the adjustable column to the desired height. Ensure the column is aligned with the holes in the main body.
- Insert Locking Pin: Fully insert the locking pin through the aligned holes in the adjustable column and the main body. Ensure the pin is securely in place and cannot be dislodged. The pin is tethered to the stand to prevent loss.
- Position Jack Stands: Carefully position the jack stands under the vehicle's designated support points (e.g., frame rails, axle housing). Ensure the vehicle's weight is centered on the saddle of each jack stand. Use multiple jack stands as needed for stability and weight distribution.
- Vehicle inferior: Slowly and carefully lower the vehicle onto the jack stands using the vehicle jack. Once the vehicle's weight is fully resting on the jack stands, remove the vehicle jack.
- Verifica l'estabilitat: Gently rock the vehicle to ensure it is stable and securely supported by the jack stands before beginning any work.
- Remove Vehicle: When work is complete, use the vehicle jack to lift the vehicle off the jack stands. Remove the jack stands, then slowly lower the vehicle to the ground.

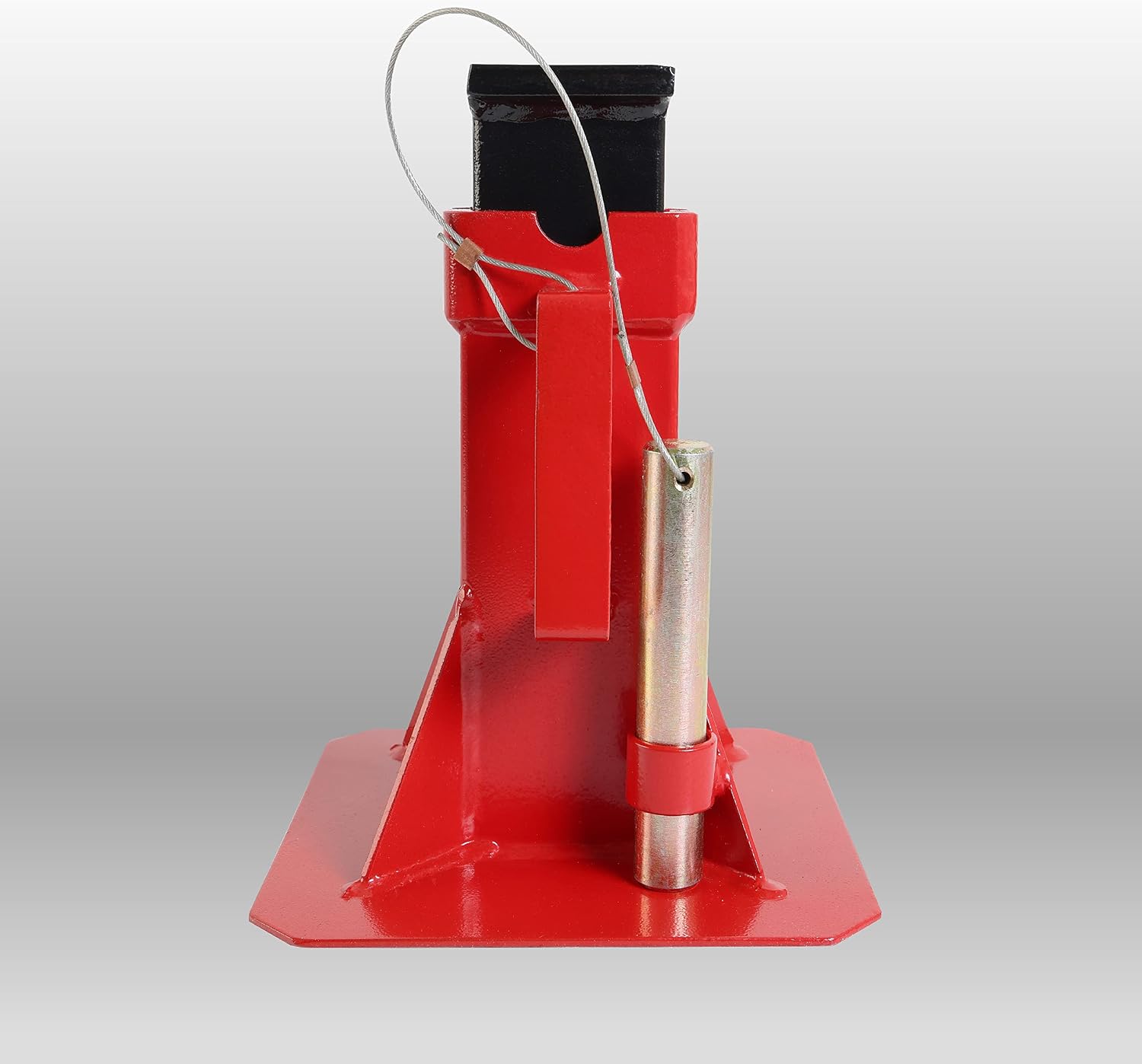

Imatge: Un primer pla view of the robust locking pin and its integrated holder, ensuring the pin remains with the stand.
Image: Two BIG RED jack stands, one shown at its lowest height and the other extended to a higher position, demonstrating adjustability.
Image: A collage showing the versatility of the jack stands supporting different heavy vehicles like a truck, excavator, double-decker bus, and tractor.
Manteniment
- Neteja: Wipe down the jack stands after each use to remove dirt, grease, and debris.
- Inspecció: Regularly inspect for signs of wear, damage, or corrosion. Pay close attention to welds, the adjustable column, and the locking pin.
- Lubricació: Apply a light coat of grease or oil to the adjustable column and locking pin periodically to ensure smooth operation and prevent rust.
- Emmagatzematge: Store jack stands in a dry, clean area, away from moisture and corrosive materials. They can be stored on their sides to save space.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Jack stand wobbles or is unstable. | Uneven surface; improper vehicle placement; damaged stand. | Move to a hard, level surface. Re-position vehicle to center weight. Inspect for damage; do not use if damaged. |
| Adjustable column sticks or is difficult to move. | Rust or dirt buildup; lack of lubrication. | Clean column and apply a light lubricant (e.g., silicone spray or grease). |
| Locking pin does not insert fully. | Column not aligned; pin or holes are bent/damaged. | Ensure column holes align perfectly with body holes. Inspect pin and holes for damage; do not force. |
Especificacions
| Característica | Detall |
|---|---|
| Model | ATZ220005R |
| Marca | BIG RED (Torin) |
| Capacitat de càrrega | 22 Tons (44,000 lbs) per pair |
| Alçada mínima d'elevació | 12.79 polzades (aprox. 32.5 cm) |
| Alçada màxima d'elevació | 19.68 polzades (aprox. 50 cm) |
| Dimensions de l'article (L x A x A) | 11.02 x 11.02 x 12.79 inches (base dimensions) |
| Pes de l'article | 58.2 lliures (per la parella) |
| Color | Vermell |
| Material | Acer de calibre pesat |
| País d'origen | Xina |
Garantia i Suport
BIG RED stands behind the quality of its automotive repair tools. The ATZ220005R Torin Heavy Duty Pin Type Professional Car Jack Stands include a 1 any de garantia des de la data de compra.
For any questions, concerns, or support needs regarding your jack stands, please contact BIG RED customer service. All inquiries will be replied to within 24 hours.
Note: Warranty details and contact information may be subject to change. Please refer to the product packaging or official BIG RED weblloc per obtenir la informació més actualitzada.
