ODK L-Shaped Desk User Manual

1. Producte acabatview

The ODK L-Shaped Desk is a versatile and stylish furniture piece designed for both computer work and gaming. Its L-shaped design maximizes corner space, making it suitable for various environments such as home offices, study rooms, or gaming setups. The desk features a durable construction with a high-strength melamine laminate top and a sturdy steel frame, ensuring stability and longevity. It also includes convenient storage solutions like a removable storage bag and an integrated monitor stand to enhance ergonomics and organization.

Figure 1.1: The ODK L-Shaped Desk in a typical setup, showcasing its spacious design and capacity for multiple monitors and peripherals.

2. Informació de seguretat

• Assegureu-vos que tots els components estiguin ben subjectats abans d'utilitzar-los.
• Do not exceed the maximum load capacity of the tabletop (approximately 60 kg).
• Mantingueu les peces petites fora de l'abast dels nens durant el muntatge per evitar riscos d'asfíxia.
• Eviteu col·locar objectes calents directament sobre la superfície de l'escriptori sense protecció.
• Use caution when moving the assembled desk to prevent injury or damage.
• The desk top features a fillet design to reduce the risk of injury from accidental bumps.

3. Contingut del paquet

Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

4. Instruccions de muntatge (Configuració)

This desk requires customer assembly. Please follow these steps carefully. It is recommended to assemble the desk with two people for easier handling.

1. Desempaquetar i identificar les peces: Lay out all components on a clean, soft surface (e.g., a blanket or cardboard) to prevent scratches. Refer to the "Package Contents" section to identify each part.
2. Muntar el marc d'acer:
   • Attach the steel frame legs (D) to the reinforcement pipes (E) using the provided hardware (J). Ensure all screws are finger-tight at this stage.
   • Install the cross-bracing hardware (F) to the frame for added stability. Tighten these screws securely.
3. Adjunta els panells d'escriptori:
   • Carefully place the main desktop panel (A) onto the assembled frame. Align the pre-drilled holes.
   • Attach the side desktop panel (B) to the main panel and the frame. The L-shape can be configured to either the left or right side based on your preference.
   • Secure both desktop panels to the frame using the appropriate screws from hardware (J). Once all panels are in place, fully tighten all screws on the frame and panels.
4. Instal·leu els peus ajustables: Screw the adjustable feet (G) into the bottom of each steel leg. These can be adjusted to level the desk on uneven floors.
5. Muntar el suport del monitor: Attach the monitor stand panel (C) to its support legs (if separate) and place it on the desired section of the desk.
6. Adjuntar accessoris:
   • Hang the storage bag (H) on the side of the desk using its integrated hooks.
   • Attach the headphone hook (I) to the underside of the desk as desired.
7. Comprovació final: Ensure all connections are tight and the desk is stable before placing any items on it.

Figure 4.1: Desk dimensions and structural overview, aiding in assembly and placement planning.

5. Features and Usage (Operating)

5.1 L-Shaped Design

The L-shaped configuration allows for optimal use of corner spaces, providing a large surface area for multiple monitors, keyboards, mice, and other peripherals. This design is ideal for creating a dedicated workspace for gaming, studying, or professional tasks.

Figure 5.1: The desk integrated into a home office environment, demonstrating its spacious and functional layout.

5.2 Integrated Monitor Stand

The included monitor stand elevates your display to an ergonomic height, helping to improve posture and reduce neck strain during long periods of use. This feature contributes to a more comfortable and efficient work or gaming experience.

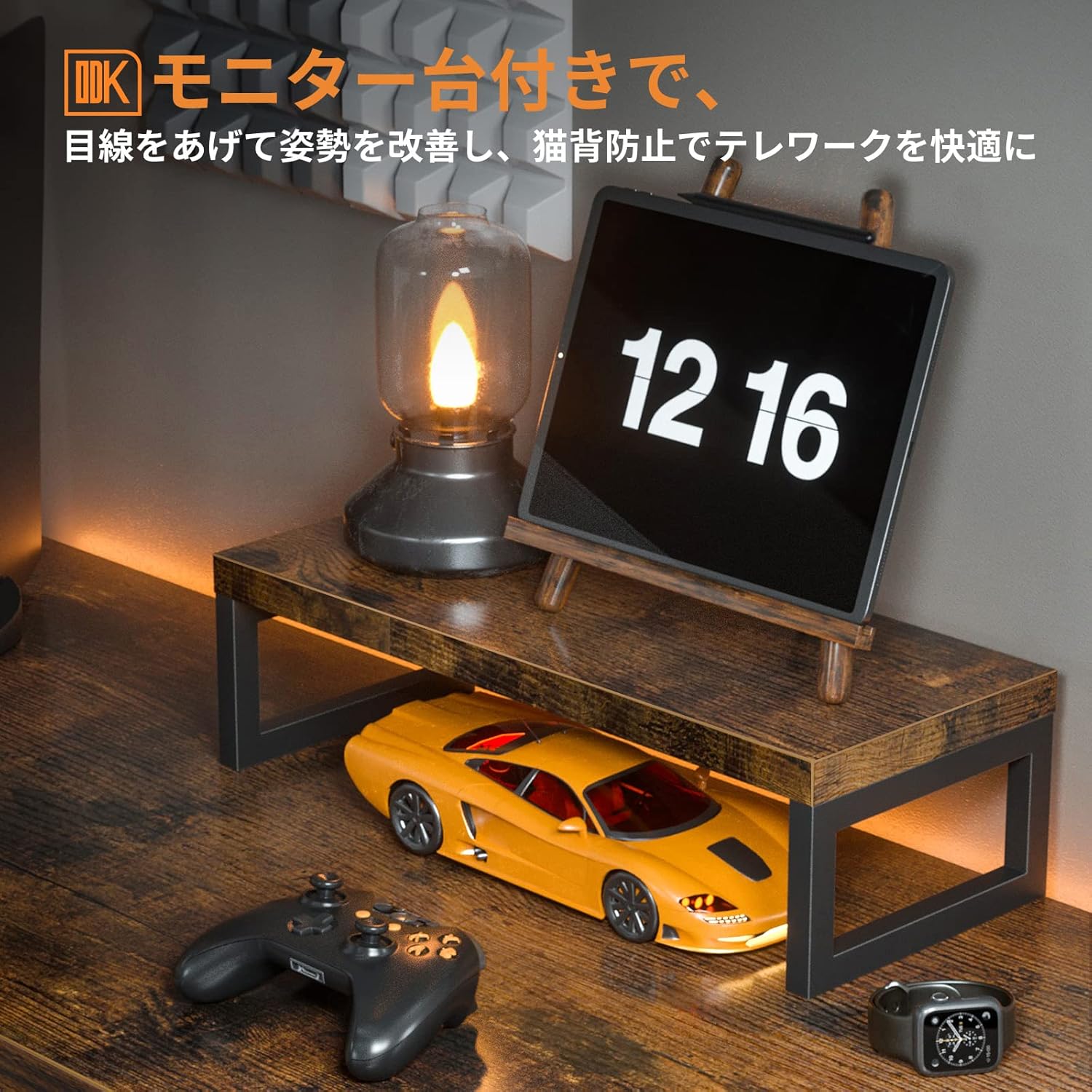

Figura 5.2: Detall view of the monitor stand, showing its elevation and potential for storing small items underneath.

5.3 Storage Bag and Headphone Hook

The removable storage bag provides convenient access to books, documents, and small accessories, keeping your desktop clutter-free. The headphone hook offers a dedicated spot to hang your headphones, preventing them from taking up valuable desk space or getting damaged.

Figure 5.3: The fabric storage bag attached to the desk, illustrating its capacity for various items like notebooks, pens, and glasses.

Figure 5.4: The headphone hook located on the underside of the desk, providing a convenient storage solution for audio equipment.

6. Cura i Manteniment

• Neteja: Netegeu la superfície de l'escriptori amb un damp cloth. For stubborn stains, use a mild soap solution and dry immediately. Avoid abrasive cleaners or harsh chemicals, as they may damage the melamine laminate finish.
• Protecció: Use coasters for drinks and placemats for hot items to protect the surface from heat and moisture damage.
• Inspecció: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal per mantenir l'estabilitat.
• Moviment: When moving the desk, lift it rather than dragging it to prevent damage to the legs or floor.

7. Solució De Problemes

8. Especificacions

• Marca: ODK
• Número de model: B01XS01998JP
• ASIN: B0B1PX36P3
• Dimensions (L x A x A): Aproximadament 146 cm x 120 cm x 74 cm (57.5 polzades x 47.2 polzades x 29.1 polzades)
• Pes del producte: Approximately 18.5 kg (40.8 lbs) (Package Weight)
• Material: Melamine Laminate (Top), Steel (Frame)
• Color: Vintage
• Load Capacity (Tabletop): Aproximadament 60 kg (132 lliures)
• Muntatge requerit: Yes (Customer Assembly)

9. Garantia i Suport

The ODK L-Shaped Desk comes with a Garantia del fabricant de 1 anys des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For warranty claims, missing parts, or any other inquiries, please contact ODK customer support. Please have your purchase receipt and model number (B01XS01998JP) ready when contacting support.

Informació de contacte: Please refer to your purchase platform or the original packaging for the most current customer support contact details for ODK.
