BOMATA T201A Digital Instant Read Thermometer User Manual

1. Introducció

Gràcies per la compraasing the BOMATA T201A Digital Instant Read Thermometer. This manual provides detailed instructions for the proper use, maintenance, and troubleshooting of your new thermometer. Please read this manual thoroughly before use to ensure optimal performance and longevity of the device.

The BOMATA T201A is designed for quick and accurate temperature measurements of food, liquids, and other substances, making it ideal for cooking, BBQ, and various household applications. Its waterproof design and long probe ensure safety and ease of use.

2. Producte acabatview i Característiques

The BOMATA T201A thermometer is packed with features to provide a reliable and user-friendly experience.

• Classificació impermeable IPX7: The entire body of the thermometer is waterproof, allowing for easy rinsing under running water for cleaning. Note: Do not immerse in hot water or wash in a dishwasher.
• Sonda llarga: Equipped with a 13.7 cm (5.4 inch) food-grade 304 stainless steel probe, ensuring safety from heat and reaching deep into food or liquids.
• Gran pantalla LCD retroil·luminada: A 4 x 1.8 cm (1.57 x 0.7 inch) LCD screen with backlight provides clear and easy-to-read temperature readings, even in low light conditions.
• Fast Response & High Accuracy: Delivers temperature readings in 2-3 seconds with an accuracy of ±0.5 ℃ (between 0 ℃ and 100 ℃).
• Ampli rang de mesura: Measures temperatures from -50 ℃ to 300 ℃ (-58 ℉ to 572 ℉).
• Funcions múltiples: Features include ℃/℉ switching, HOLD function, MAX/MIN temperature display, calibration, and automatic shutdown.
• Funció d'apagat automàtic: Automatically turns off after 10 minutes of inactivity to conserve battery life.
• Esquena magnètica: Built-in magnets allow for convenient storage on metallic surfaces like refrigerators.

Figure 2.1: The BOMATA T201A Digital Thermometer, showcasing its waterproof design with a water splash effect and the included probe protection tube.

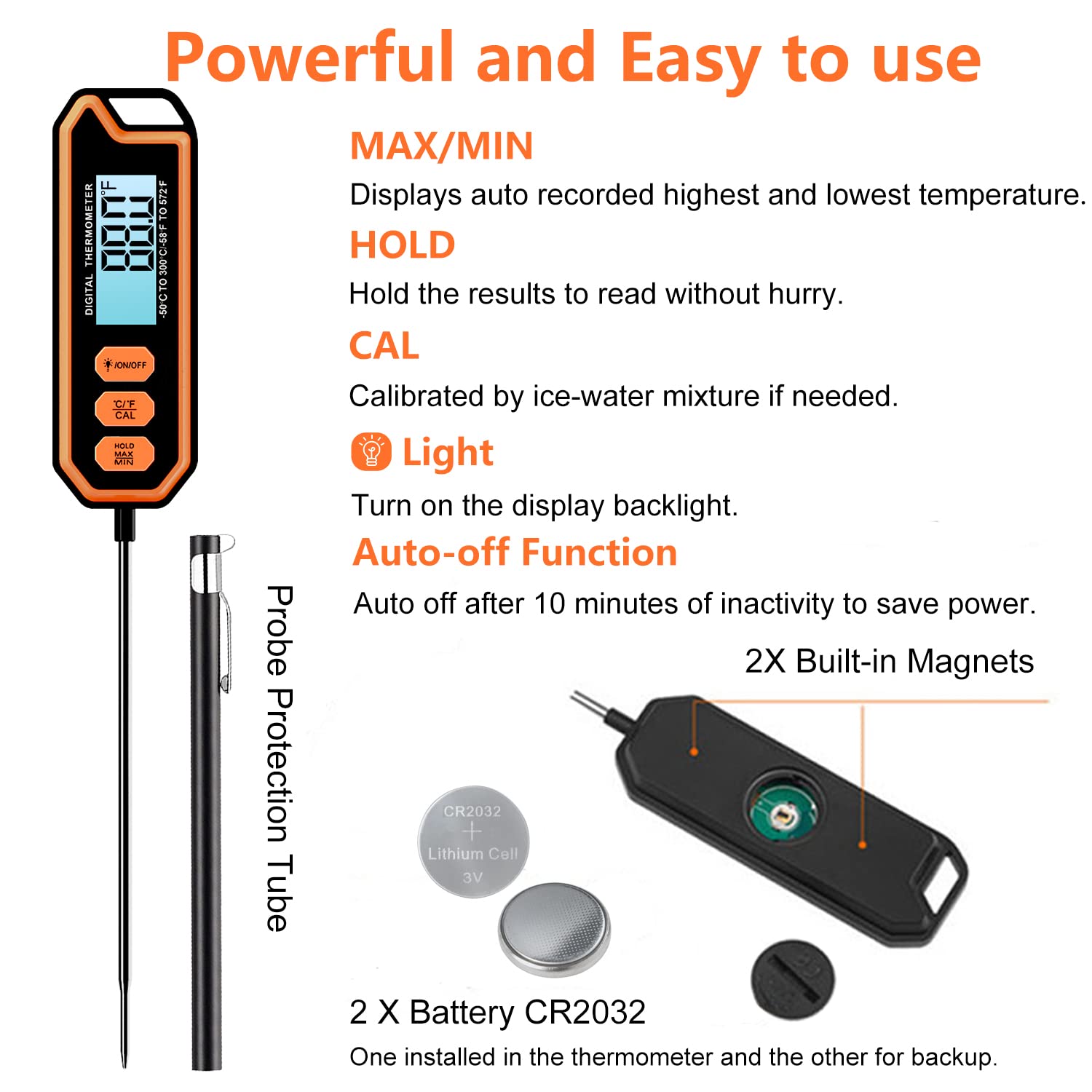

Figura 2.2: Detallada view of the thermometer's buttons (ON/OFF, C/F/CAL, HOLD/MAX/MIN), the probe protection tube, and the battery compartment with two CR2032 batteries.

3. Configuració

3.1 Desembalatge i inspecció inicial

Traieu amb cura tots els components de l'embalatge. El paquet ha d'incloure:

• 1 x BOMATA T201A Digital Thermometer
• 1 x Probe Protection Tube
• 1 x manual d'instruccions
• 2 x CR2032 Batteries (one pre-installed, one for backup)

Inspect the thermometer for any visible damage. If any components are missing or damaged, please contact customer support.

3.2 Instal·lació de la bateria

Your thermometer comes with one CR2032 battery pre-installed and one spare. If the display does not turn on or is dim, you may need to replace the battery.

1. Localitzeu el compartiment de la bateria a la part posterior del termòmetre.
2. Use a small coin or screwdriver to gently twist the battery cover counter-clockwise to open it.
3. Remove the old battery (if any) and insert a new CR2032 battery with the positive (+) side facing up.
4. Replace the battery cover and twist clockwise to secure it.

Ensure the battery is correctly oriented to avoid damage to the device.

4. Instruccions de funcionament

4.1 Funcionament bàsic

1. Encès/apagat: Premeu la tecla "ON/OFF" button to turn the thermometer on or off.
2. Insereix la sonda: Carefully insert the stainless steel probe into the center of the food or liquid you wish to measure. Ensure the probe tip is fully submerged and not touching bones or the bottom of the pan for accurate readings.
3. Temperatura de lectura: The temperature will be displayed on the LCD screen within 2-3 seconds.
4. Apagat automàtic: The thermometer will automatically shut off after 10 minutes of inactivity to save battery power.

Figure 4.1: The thermometer in use, measuring the temperature of food on a grill, highlighting its long probe and large LCD display.

4.2 Botons de funció

The thermometer features three main buttons for various functions:

• ℃/℉/CAL Botó:
  • Press once to switch between Celsius (℃) and Fahrenheit (℉) temperature units.
  • Press and hold for 3 seconds to enter calibration mode (see Section 4.3 for calibration instructions).
• MANTINGUEU/MÀX/MÍN Botó:
  • Press once to "HOLD" the current temperature reading on the display. Press again to release and resume live reading.
  • Press and hold for 3 seconds to cycle through MAX (highest recorded temperature) and MIN (lowest recorded temperature) readings. Press again to return to live reading.
• LIGHT/ON/OFF Botó:
  • Press once to turn the display backlight on or off.
  • Press and hold for 3 seconds to turn the thermometer on or off (alternative to quick press).

4.3 Calibració

The thermometer is factory calibrated, but you can re-calibrate it using an ice-water mixture if you suspect inaccuracies.

1. Fill a glass with crushed ice and add cold water until the glass is full. Stir the mixture and let it sit for 3-5 minutes.
2. Insert the thermometer probe into the center of the ice-water mixture, ensuring the tip is fully submerged and not touching the sides or bottom of the glass.
3. Wait for the reading to stabilize (it should be around 0.0℃ or 32.0℉).
4. Premeu i manteniu premuda la tecla "℃/℉/CAL" button for 3 seconds until "CAL" appears on the display.
5. The display will flash "0.0℃" or "32.0℉". If the reading is not exactly 0.0℃ or 32.0℉, the thermometer will automatically adjust to this point.
6. Once calibration is complete, the display will return to normal measurement mode.

Figure 4.2: Calibrating the thermometer using an ice-water mixture to ensure accuracy.

5. Manteniment

5.1 Neteja

Thanks to its IPX7 waterproof rating, cleaning the BOMATA T201A is simple:

• Rinse the entire thermometer under running tap water after each use.
• Use a mild soap if necessary, and wipe with a soft cloth.
• Assecar bé abans de guardar.
• IMPORTANT: Do not immerse the thermometer in hot water or place it in a dishwasher, as this can damage the internal components.

Figure 5.1: The thermometer being rinsed under running water, highlighting its IPX7 waterproof capability for easy cleaning.

5.2 Emmagatzematge

When not in use, store the thermometer in its protective probe tube to prevent damage to the probe. The built-in magnets allow for convenient storage on metallic surfaces.

Figura 5.2: Examples of convenient storage for the thermometer, including using its magnetic back on a refrigerator and hanging it by its loop.

6. Solució De Problemes

If you encounter any issues with your BOMATA T201A thermometer, please refer to the table below for common problems and solutions.

7. Especificacions

Detailed technical specifications for the BOMATA T201A Digital Instant Read Thermometer:

8. Garantia i Suport

BOMATA is committed to creating quality products and services. The BOMATA T201A Thermometer comes with a garantia d'un any des de la data de compra.

If the product does not meet your expectations or if you encounter any issues not covered in the troubleshooting section, please do not hesitate to contact BOMATA customer support for assistance, refund, or replacement.

For support, please refer to the contact information provided on the product packaging or the official BOMATA weblloc.
