1. Introducció
Gràcies per la compraasing the Sixfivsevn 43 Inch Electric Fireplace. This manual provides essential information for the safe operation, installation, and maintenance of your new electric fireplace. Please read all instructions carefully before use and retain this manual for future reference.
2. Informació important de seguretat
- Llegeix totes les instruccions: Before installing or operating this fireplace, read all instructions in this manual.
- Protecció contra el sobreescalfament: This fireplace is equipped with an overheating safety protection system. A thermostat limiter inside the fireplace automatically turns off the unit to prevent overheating if the internal temperature becomes too high.
- Seguretat elèctrica: Ensure the power source matches the requirements specified on the product label. Do not overload electrical circuits.
- Col·locació: Do not place the fireplace directly below a fixed socket outlet. Maintain adequate clearance from combustible materials.
- Ventilació: Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat. No bloquegeu les entrades ni sortides d'aire.
- Nens i animals de companyia: Keep children and pets away from the fireplace, especially when it is operating and emitting heat.
- Manteniment: Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Sixfivsevn 43 Inch Electric Fireplace Unit
- Control remot
- Mounting Hardware (screws, drywall anchors, wall hanging bracket)
- Crystal Glass Stones (for flame bed)
- Manual d'instruccions (aquest document)
4. Especificacions del producte
| Característica | Especificació |
|---|---|
| Marca | Sixfivsevn |
| Nom del model | 699838483811 |
| Font d'alimentació | AC |
| Dimensions del producte | 4.33 "P x 43" W x 16.14" H |
| Material | Metall, Vidre temperat |
| Tipus d'instal·lació | Recessed, Wall Mount |
| Sortida de calor | 5100 unitats tèrmiques britàniques |
| Configuració de calor | 750 W / 1500 W |
| Interval de temperatura | De 62 °F a 82 °F |
| Cobertura de calefacció | Fins a 400 peus quadrats |
| Característiques especials | 12 Adjustable Flame Color, Low Noise, Remote Control, Timer, Ultra-Thin |
| Color | Negre |
| Pes de l'article | 29 lliures |
5. Instruccions d'instal·lació
The Sixfivsevn Electric Fireplace offers flexible installation options: recessed (built-in) or wall-mounted.
5.1. Instal·lació encastada
- Prepara l'obertura: Select a dry wall location. Dig a hole of appropriate size to place the fireplace. Measure the size of the hole carefully to ensure a snug fit.
- Perforar forats: Play 6 holes around the wall opening for securing the fireplace.
- Elimina els claudàtors: Take off the screws and remove the brackets attached to the back of the fireplace.
- Disassemble glass panel: Take off the two screws that fix the panel, then carefully disassemble the glass panel.
- Insert fireplace body: Put the fireplace body into the prepared hole and drive the 4 long screws into drywall anchors to secure it.
- Reattach glass panel: Carefully reattach the glass panel and secure it with the two screws.
Video: Installation instructions for Sixfivsevn electric fireplace. This video demonstrates the steps for installing the fireplace, including preparing the wall opening, securing the unit, and reattaching the glass panel.
Image: A diagram illustrating the steps for recessed installation, including measuring the opening, drilling holes, and inserting the fireplace unit.
Image: A diagram detailing the dimensions of the 43-inch fireplace and illustrating both recessed and wall-mounted installation methods.
5.2. Instal·lació de paret
- Install wall hanging bracket: Secure the wall hanging bracket to the wall using 4 screws, ensuring it is level and properly anchored.
- Mount fireplace: Match the snap on the back of the fireplace to the wall hanging bracket. Carefully lift and hang the fireplace onto the bracket until it is securely in place.
Image: A diagram illustrating the steps for wall hanging installation, including securing the bracket and mounting the fireplace unit.
Image: A collage showing the electric fireplace installed in different settings, including wall-mounted, recessed in a wall, and inserted into a TV cabinet.
6. Instruccions de funcionament
Your Sixfivsevn Electric Fireplace can be operated using the included remote control or the button panel on the unit.
6.1. Funcions de control remot
Image: The Sixfivsevn electric fireplace shown with its remote control, highlighting the convenience of wireless operation.
- Encès/apagat: Premeu el botó d'engegada per encendre o apagar la llar de foc.
- Configuració de calor: Adjust between 750W and 1500W heat output. The fireplace can heat areas up to 400 square feet.
- Control de temperatura: Ajusteu la temperatura ambient desitjada entre 62 °F i 82 °F.
- Color de la flama: Cycle through 12 adjustable flame color modes to match your ambiance.
- Crystal Bed Color: Select from 12 LED flame bed color modes for the crystal stones.
- Temporitzador: Configureu un temporitzador d'apagada automàtica de 0.5 a 9 hores.
- Mode de repòs: Activate sleep mode for quiet operation.

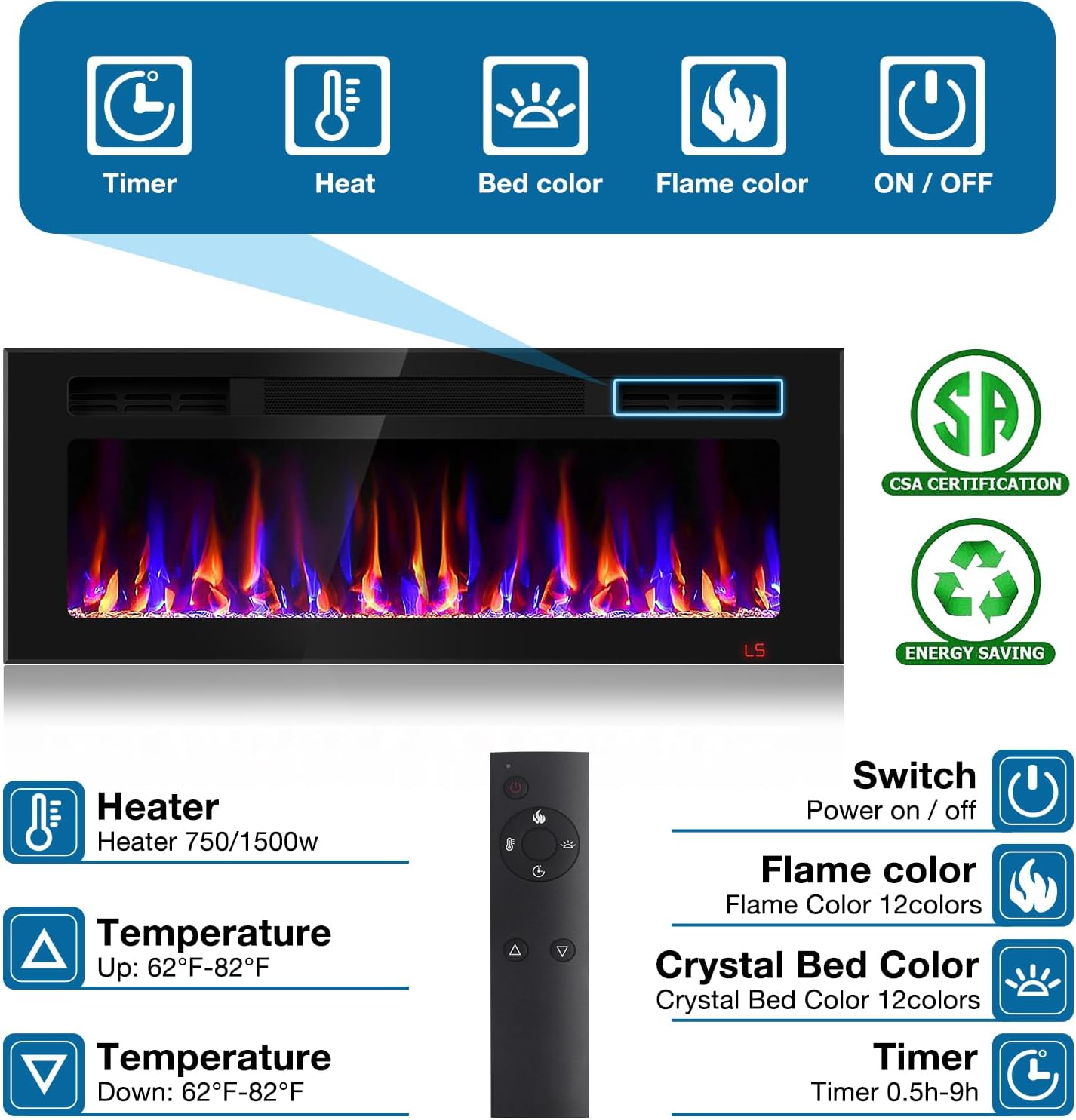

Image: A diagram illustrating the various functions of the remote control, including power, heat, temperature, flame color, crystal bed color, and timer settings.
6.2. Button Panel Control
The fireplace also features a button panel for direct control, located on the unit itself.
Imatge: Una imatge detallada view of the fireplace's button panel, showing controls for timer, heat (750W/1500W), flame bed color, and flame color adjustment.
- Control de potència: Enceneu o apagueu la unitat.
- Ajust de calor: Toggle between 750W and 1500W heat settings.
- Color de la flama: Change the flame colors.
- Flame Bed Color: Adjust the color of the crystal flame bed.
- Temporitzador: Set the automatic shut-off timer.
Image: This image highlights the heating operation, suitable for up to 400 square feet, adjustable temperature (62°F-82°F), and low noise operation (35-40dB).
Image: A visual representation of the 12 available flame colors and 12 LED bed colors, offering 144 combinations for personalized ambiance.
7. Manteniment
- Neteja: Desendolleu sempre la llar de foc abans de netejar-la. Feu servir un drap suau i sec.amp drap per netejar les superfícies exteriors. No utilitzeu netejadors ni esprais abrasius.
- Panell de vidre: Netegeu el panell de vidre amb un drap suau i un netejador de vidres.
- Vendes d'aire: Periodically check and clean the air inlets and outlets to ensure unobstructed airflow.
- Emmagatzematge: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe, cool place.
8. Solució De Problemes
- Sense energia: Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni. Assegureu-vos que l'interruptor no s'hagi disparat.
- Sense calor: Verify that the heat function is activated and the temperature setting is above the current room temperature. Check for any obstructions in the air vents.
- El comandament a distància no funciona: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's sensor.
- Soroll inusual: While designed for low noise, if unusual or loud noises occur, turn off the unit and contact customer support.
9. Garantia i Suport
This Sixfivsevn Electric Fireplace comes with a Garantia limitada. For detailed warranty information, claims, or technical support, please refer to the warranty card included in your package or contact Sixfivsevn customer service directly.
Per obtenir més ajuda, visiteu el Sixfivsevn Store on Amazon.
