LARIAU HCT-366 Smart Automatic Watering Device User Manual

Introducció

The LARIAU HCT-366 is an intelligent, rain-proof, and dust-proof automatic watering device designed to simplify your garden irrigation. Featuring a large display and a rain sensor, it offers precise and efficient watering for various plants and gardens. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance of your device.

Característiques del producte

• Pantalla gran: Features a large screen for clear visibility and convenient operation.
• Sensor de pluja: Automatically pauses watering during rainfall, conserving water and preventing over-watering.
• Filtre d'entrada d'aigua: An integrated filter screen effectively prevents impurities from entering the device.
• Funció de bloqueig infantil: Prevents accidental button presses or unauthorized changes to settings.
• Horaris programables: Supports 6 groups of programmable timing settings, offering weekly or cyclical modes.
• Instal·lació flexible: Equipped with a twisted active joint for easy installation on faucets, even those close to a wall.
• Precise Timing: Irrigation duration can be set precisely from 1 second to 99 minutes and 59 seconds.

Contingut del paquet

Si us plau, reviseu el paquet per assegurar-vos que hi ha tots els elements:

• 1 x LARIAU HCT-366 Irrigation Timer
• 1 x Caixa d’envasos
• 1 x Accessory Set (e.g., connectors, seals)

Configuració

1. Instal·lació de la bateria

The device requires two (2) AA alkaline batteries (not included). Ensure correct polarity when inserting the batteries into the compartment, typically located on the back or side of the unit. Close the battery compartment securely to maintain water resistance.

2. Instal·lació del dispositiu

1. Attach the LARIAU HCT-366 irrigation timer directly to your outdoor faucet. The twisted active joint allows for easy connection, even in tight spaces.
2. Ensure the connection is tight to prevent leaks. Use the provided accessory set (e.g., rubber washers) to create a secure, watertight seal.
3. Connect your garden hose or irrigation system to the outlet of the watering device.

Image: The LARIAU HCT-366 device connected to a standard outdoor faucet, demonstrating its compact design and easy installation.

3. Filtre d'entrada d'aigua

The device includes a water inlet filter screen to prevent debris from entering and clogging the system. Ensure this filter is properly seated during installation. Regularly check and clean the filter to maintain optimal water flow.

Image: An illustrative diagram of the HCT-366 connected to a water source and distributing water through a drip irrigation system to multiple plants.

Instruccions de funcionament

Visualització finalitzadaview

Imatge: Una imatge detallada view of the HCT-366's LCD screen, displaying various indicators such as current time, day of the week, battery status, rain sensor icon, and active program slots (P1-P6).

The large LCD screen provides all necessary information at a glance. Key indicators include:

• ARA: Hora actual.
• Days of the Week: Indicates active watering days (Su, Mo, Tu, We, Th, Fr, Sa).
• Indicador de bateria: Mostra la durada restant de la bateria.
• Rain Sensor Icon: Indicates if the rain sensor is active or has detected rain.
• Icona de bloqueig infantil: Shows if the child lock function is enabled.
• P1-P6: Program slots for setting irrigation schedules.
• HORA D'INICI: The programmed start time for watering.
• QUANT DE TEMPS: The programmed duration for watering.

Configuració de l'hora i el dia actuals

1. Premeu el botó "CONFIGURAR" button (or similar, typically indicated by a clock icon) to enter time setting mode.
2. Utilitza el "+" i "-" botons per ajustar l'hora i els minuts.
3. Premeu "D'acord" to confirm and move to the next setting (e.g., day of the week).
4. Adjust the current day using "+" i "-", després premeu "D'acord" per salvar.

Programming Irrigation Schedules (P1-P6)

The device allows for up to 6 independent watering programs. Follow these steps to set a program:

1. Premeu el botó "P" button (Program) to select a program slot (P1-P6). Use "+" or "-" to navigate between programs.
2. Premeu "D'acord" to enter the settings for the selected program.
3. Establir hora d'inici: Ús "+" i "-" per ajustar l'hora d'inici desitjada (hora i minut). Premeu "D'acord".
4. Configura la durada del reg: Ús "+" i "-" to set the watering duration from 1 second to 99 minutes 59 seconds. Press "D'acord".
5. Set Watering Frequency (Days):
   • Weekly Mode: Select specific days of the week (Su, Mo, Tu, etc.) using "+" i "-". Premeu "D'acord" to toggle selection for each day.
   • Mode de cicle: Some models may offer a cycle mode (e.g., every 2 days). Refer to the on-screen prompts to set the cycle interval.
6. Premeu "D'acord" to save the program settings. Repeat for other programs (P2-P6) as needed.

Image: The HCT-366 display in programming mode, showing placeholders for setting start time and watering duration, along with day selection options.

Rain Sensor Function

The integrated rain sensor automatically detects rainfall. When rain is detected, the device will pause any scheduled watering programs to prevent over-watering. Watering will resume according to the schedule once the sensor is dry. This feature helps conserve water and protects your plants.

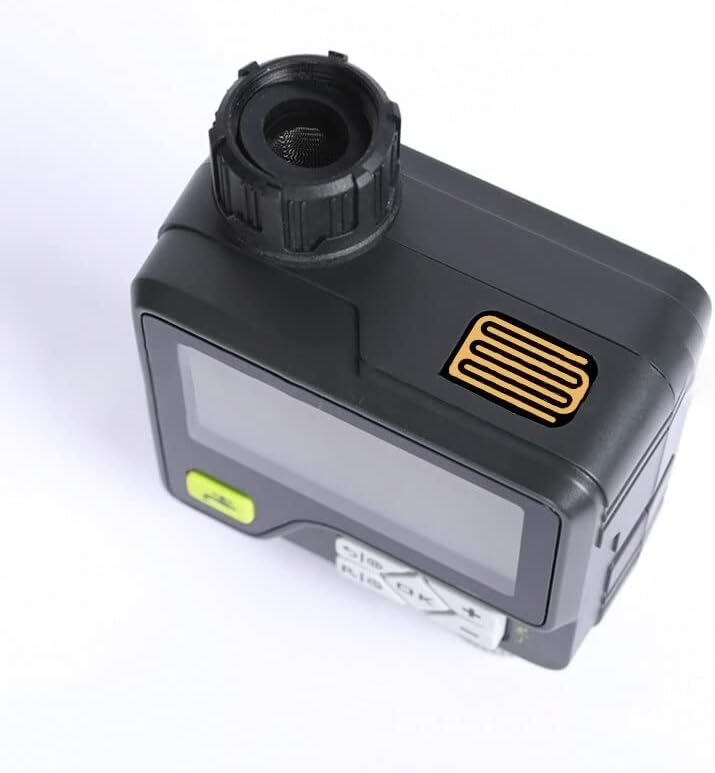

Imatge: Un professional lateralfile of the HCT-366, clearly showing the rain sensor grid located on the top of the unit, designed to detect precipitation.

Funció de bloqueig infantil

To prevent accidental changes to your watering schedule, activate the child lock:

• Per activar: premeu i manteniu premut el botó "LOCK" button (or a combination like "D'acord" i "-" simultaneously, refer to the device's button labels) until the lock icon appears on the screen.
• To deactivate: Repeat the action. The lock icon will disappear.

Reg manual

To initiate watering outside of the programmed schedule:

1. Premeu el botó "MANUAL" button (often indicated by a water droplet or faucet icon).
2. Ús "+" i "-" per configurar la durada de reg manual desitjada.
3. Premeu "D'acord" per iniciar el reg manual.
4. Per aturar el reg manual, premeu el botó "MANUAL" button again or "APAGAT".

Manteniment

Neteja del filtre d'entrada d'aigua

Periodically check the water inlet filter for debris and sediment. If clogged, carefully remove the filter and rinse it under running water. Reinsert the filter securely before reattaching the device to the faucet.

Canvi de bateria

When the battery indicator shows low power, replace the two AA alkaline batteries promptly to ensure continuous operation. Always use fresh alkaline batteries for best performance.

Emmagatzematge d'hivern

Before the first frost, disconnect the watering device from the faucet and drain any remaining water. Store the device indoors in a dry, frost-free location. Remove batteries if storing for an extended period to prevent leakage.

Resolució de problemes

• El dispositiu no s'encén: Check if batteries are installed correctly and are not depleted. Replace with fresh batteries if necessary.
• Sense flux d'aigua:
  • Ensure the faucet is fully open.
  • Check the water inlet filter for clogs and clean if needed.
  • Verify that the water pressure is within the operating range (0.05-0.8 MPA).
  • Confirm that a watering program is active or manual watering is initiated.
• Watering not starting at scheduled time:
  • Check if the current time and day are set correctly on the device.
  • Verify that the program's start time and frequency are correctly set.
  • Ensure the rain sensor is not wet, pausing the schedule.
  • Check if the child lock is active and interfering with settings.
• Rain sensor not working: Ensure the rain sensor area is clean and free from obstructions.

Especificacions

Garantia i Suport

For warranty information and technical support, please refer to the retailer's policy or contact LARIAU customer service through their official website or the point of purchase. Keep your purchase receipt as proof of purchase.
