1. Producte acabatview
The Amazon Basics Robot Vacuum Cleaner M3L-A is designed to provide efficient and convenient cleaning for your home. This 2-in-1 device offers both vacuuming and mopping functions, making it suitable for various floor types. Its slim design allows it to clean under furniture, and multiple cleaning modes ensure thorough coverage.
Image: The Amazon Basics Robot Vacuum Cleaner M3L-A, a compact black unit.
2. Instruccions de seguretat
Please read all safety instructions carefully before using this product and keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Aquest aparell el poden utilitzar nens a partir de 8 anys i persones amb capacitats físiques, sensorials o mentals reduïdes o amb manca d'experiència i coneixements si han rebut supervisió o instruccions sobre l'ús de l'aparell d'una manera segura i entenen els perills que comporta. .
- Els nens no jugaran amb l'aparell. La neteja i el manteniment dels usuaris no els han de fer els nens sense supervisió.
- No utilitzeu el robot aspirador en ambients humits ni a prop de l'aigua.
- Ensure the charging station is placed on a flat, stable surface away from heat sources and direct sunlight.
- Abans de netejar, traieu els cables solts, els objectes petits o els elements fràgils del terra per evitar que s'enredin o es facin malbé.
- Use only the original power adapter and charging station provided with the product.
- Do not operate the robot vacuum if it is damaged or malfunctioning. Contact customer support for assistance.
- Do not attempt to repair or modify the robot vacuum yourself.
3. Contingut del paquet
Carefully unpack the box and ensure all the following items are included:
- Robot aspirador
- Drap de fregona
- Filtre HEPA
- Control remot
- Estació de càrrega
- Adaptador d'alimentació
- Raspalls laterals (2)
- Raspall de rodets (preinstal·lat)
Image: All components included in the package: robot vacuum, charging station, power adapter, remote control, mop cloth, HEPA filter, and side brushes.
4. Configuració
4.1 Col·locació de l'estació de càrrega
Place the charging station against a wall in an open area, ensuring there are no obstacles within 1 meter (3 feet) to the sides and 2 meters (6 feet) in front of the station. Connect the power adapter to the charging station and plug it into a wall outlet.
4.2 Càrrega inicial
Before first use, fully charge the robot vacuum. Place the robot onto the charging station, ensuring the charging contacts align. The indicator light will show charging status. A full charge takes approximately 4-5 hours.
4.3 Installing Side Brushes and Mop Cloth
- Gira el robot aspirador cap per avall.
- Align the side brushes with the corresponding posts and press them down until they click into place.
- Attach the mop cloth to the water tank module (if not already attached). Fill the water tank with clean water and slide it into the designated slot at the rear of the robot.
4.4 Preparació de la zona de neteja
To ensure optimal cleaning performance, clear the floor of any loose cables, small toys, or other items that could entangle the brushes or obstruct the robot's path. The robot can climb over obstacles up to 21mm high.
Image: The robot vacuum demonstrating its ability to climb over a carpet and automatically returning to its charging station when battery is low.
5. Funcionament
5.1 Engegada/apagada
- To power on, press and hold the power button on the robot or the remote control.
- Per apagar-lo, premeu i manteniu premut el botó d'engegada fins que els llums indicadors s'apaguin.
5.2 modes de neteja
The robot vacuum offers several cleaning modes, selectable via the remote control:
- Auto Mode (Zigzag): The robot cleans in a zigzag pattern to cover the entire area efficiently. This is the default mode for general cleaning.
- Mode Spot: The robot cleans a specific area more intensely by spiraling outwards and then inwards. Useful for concentrated dirt.
- Mode Edge: The robot cleans along walls and furniture edges to ensure thorough cleaning of corners and perimeters.
5.3 Funció de temporitzador
You can schedule the robot to start cleaning automatically at a specific time each day using the timer function on the remote control. Refer to the remote control section for detailed instructions on setting the timer.
5.4 Ús del control remot
The included remote control allows you to:
- Inici/pausa de neteja
- Seleccioneu els modes de neteja
- Set cleaning schedules (timer)
- Manually control the robot's direction
- Send the robot back to the charging station

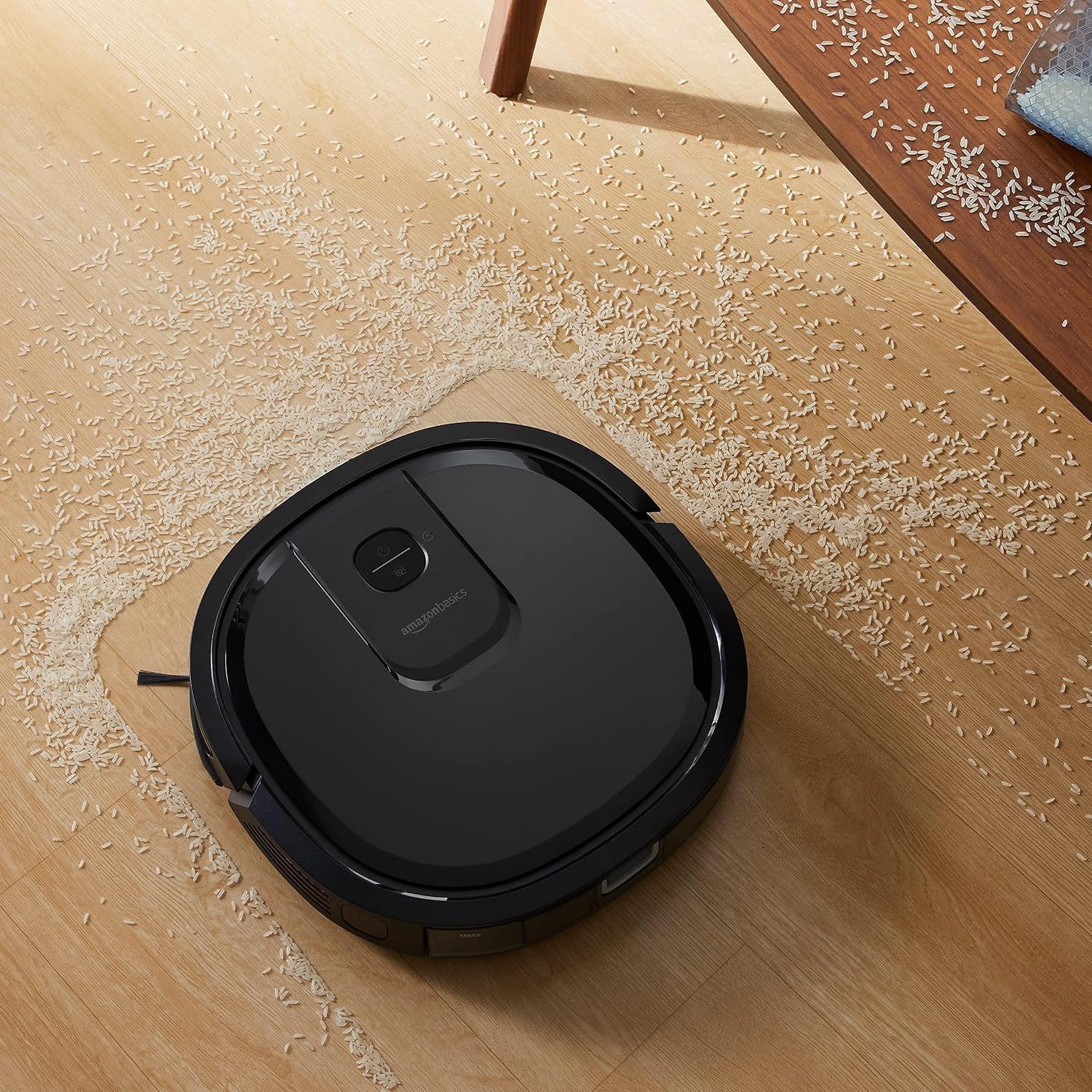

Image: The robot vacuum actively cleaning a hard floor, demonstrating its suction capability on scattered debris.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del teu robot aspirador.
6.1 Buidar el contenidor d'escombraries
The 600ml dustbin can hold up to 7 days of dust. Empty the dustbin after each cleaning cycle or when the indicator suggests it is full. Open the top cover, remove the dustbin, and dispose of the collected debris.
6.2 raspalls de neteja
- Raspalls laterals: Regularly check for tangled hair or debris. Remove and clean them as needed. Replace worn-out brushes.
- Raspall de rodets: Remove the main roller brush cover and lift out the brush. Use the cleaning tool (if provided) to cut and remove tangled hair and debris.
6.3 Neteja dels sensors
Wipe the anti-drop sensors (located on the bottom) and anti-collision sensors (located on the bumper) with a clean, dry cloth to ensure they function correctly. Dirty sensors can affect navigation.
6.4 Mop Pad Care
After mopping, remove the mop cloth from the water tank module, rinse it thoroughly with water, and let it air dry. Replace the mop cloth when it becomes worn or no longer cleans effectively.
6.5 Substitució del filtre HEPA
The HEPA filter should be cleaned regularly and replaced every 3-6 months, depending on usage. Tap the filter to remove dust or use a brush. Do not wash the HEPA filter with water.
Image: The underside of the robot vacuum, highlighting the side brushes, main roller brush, and wheels for maintenance reference.
7. Solució De Problemes
If you encounter any issues with your robot vacuum, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El robot no s'encén | Bateria baixa; el botó d'engegada no s'ha premut correctament | Charge the robot; Press and hold the power button for a few seconds. |
| El robot no es carrega | Charging contacts not aligned; Charging station unplugged | Ensure robot is properly docked; Check power connection to charging station. |
| Mal rendiment de neteja | Cubell de les escombraries ple; raspalls enredats; filtre obstruït | Empty dustbin; Clean side and roller brushes; Clean or replace HEPA filter. |
| El robot s'enganxa sovint | Obstacles on floor; Dirty sensors | Clear cables and small objects; Clean anti-collision and anti-drop sensors. |
| Soroll inusual durant el funcionament | Foreign object in brushes or wheels | Inspect and remove any foreign objects from brushes and wheels. |
| Water droplets in water tank (new product) | Quality control testing residue | This is normal and does not affect product use. |
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | Conceptes bàsics d'Amazon |
| Número de model | M3L-A |
| Dimensions (L x A x A) | 34 x 34 x 8 cm (13.4 x 13.4 x 3.1 polzades) |
| Pes del producte | 2.8 kg |
| Capacitat de la bateria | 2600 mAh |
| Temps d'execució màxim | Fins a 90 minuts |
| Capacitat de la paperera | 600 ml |
| Funcions de neteja | Aspirar, fregar |
| Modes de neteja | Auto (Zigzag), Spot, Edge |
| Capacitat d'escalada d'obstacles | Fins a 21 mm |
| Mètode de control | Control remot |
| Tipus de filtre | Filtre HEPA |
Image: Diagram showing the dimensions of the robot vacuum cleaner: 34 cm (13.4 in) in length and width, and 8 cm (3.1 in) in height.
9. Garantia i Suport
9.1 Informació de la garantia
This Amazon Basics product comes with a 1-year limited warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
9.2 Atenció al client
For warranty claims, technical assistance, or any questions regarding your Amazon Basics Robot Vacuum Cleaner, please contact Amazon customer support through your purchase platform. Have your order number and product model (M3L-A) ready for faster service.
You can also visit the official Amazon Basics store for more information and replacement parts: Botiga bàsica d'Amazon
