STERWINS Silent-4.1-2800 W Electric Shredder User Manual

1. Informació important de seguretat

ADVERTIMENT:

• Keep hands and other body parts away from moving parts.
• No toqueu les fulles.
• Desendolleu l'aparell quan no l'utilitzeu.
• Always wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy gloves, when operating the shredder.
• Ensure the shredder is on a stable, level surface before operation to allow the collection bin to close properly and the unit to function.

This shredder is designed for processing garden waste such as branches and shrubs. Do not use it for other materials.

2. Producte acabatview

The STERWINS Silent-4.1-2800 W Electric Shredder is a powerful tool designed for efficient garden waste management. It features a robust 2800 W motor and a silent rotor cutting system, capable of shredding branches up to 45 mm in diameter. The integrated 50-liter collection bin and transport wheels enhance usability and portability.

Figura 2.1: global view of the STERWINS Silent-4.1-2800 W Electric Shredder with its collection bin and wheels.

3. Muntatge i muntatge

The shredder requires minimal assembly. Follow these steps to prepare your unit for first use:

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Verifiqueu que totes les peces siguin presents segons la llista d'embalatge.
2. Muntatge del marc: Assemble the support frame and attach the wheels. Ensure all screws are securely tightened. The assembly process is straightforward, typically involving 8 screws.
3. Mounting the Shredder Unit: Securely mount the main shredder unit onto the assembled frame.
4. Collection Bin: Slide the 50-liter collection bin into its designated slot beneath the shredder. Ensure it is fully inserted and the safety interlock is engaged. The shredder will not operate if the bin is not correctly closed and level.
5. Connexió d'alimentació: Connect the power cable to a suitable electrical outlet. Ensure the power supply matches the specifications listed on the product label.

Figure 3.1: Detail of one of the wide wheels, highlighting the shredder's portability features.

4. Instruccions de funcionament

Before operating, ensure you have read and understood all safety warnings. Always wear appropriate safety gear.

1. Inici de la trituradora: Press the green "ON" button on the control panel to start the motor.
2. Material d'alimentació: Gradually feed branches and garden waste into the feeding chute. The shredder can process branches up to 45 mm (1.77 inches) in diameter. For optimal performance, cut lateral shoots before inserting plants.

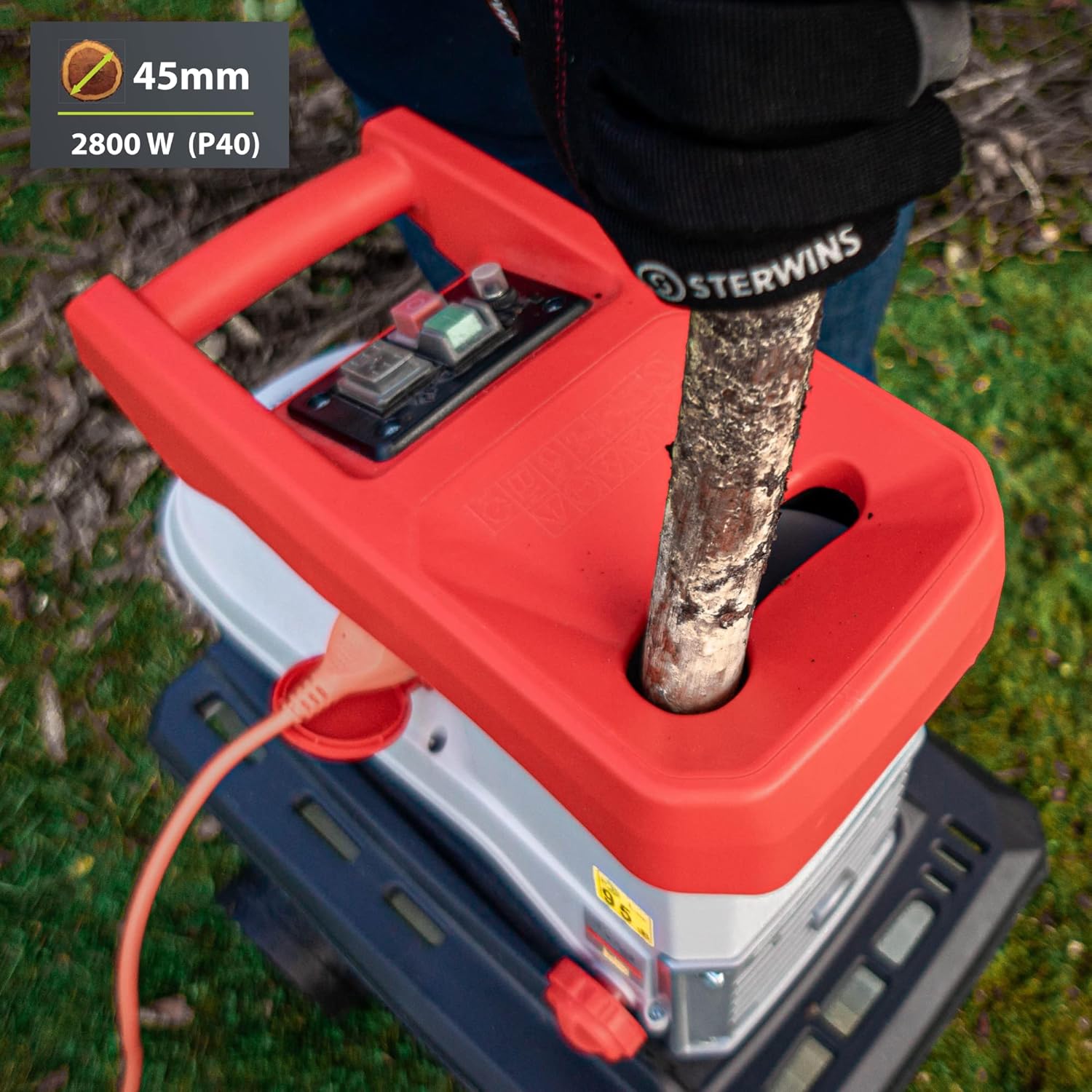

Figure 4.1: A user carefully feeding a branch into the shredder's intake chute. Note the maximum diameter indicator.

3. Using the Plunger: Use the provided plunger to safely push material into the shredding mechanism, especially for fresh branches and leaves. Never use your hands or feet.
4. Funció inversa: If material becomes jammed, press the red "OFF" button, then use the reverse switch to clear the obstruction. This allows for safe and easy removal of stuck branches.


Figure 4.2: The control panel showing the green start button, red stop button, and the reverse switch for clearing jams.

5. Collection Bin: The shredded material will collect in the 50-liter bin. Monitor the bin and empty it regularly to prevent overfilling and potential jams. The shredder significantly reduces the volume of branches, by a factor of 7.

Figure 4.3: The transparent 50-liter collection bin, showing processed wood chips. The bin's capacity is indicated.
6. Stopping the Shredder: To stop the shredder, press the red "OFF" button. Always unplug the unit when not in use or before performing any maintenance.

5. Manteniment i cura

Un manteniment regular garanteix la longevitat i el rendiment òptim de la vostra trituradora.

• Neteja: After each use, unplug the shredder and clean the feeding chute, shredding mechanism, and collection bin. Remove any accumulated debris or sap. Use a damp cloth for external surfaces.
• Ajust de la fulla: The shredder's cutting mechanism may require occasional adjustment to maintain optimal shredding performance. Refer to the specific instructions in the full manual for adjusting the rotor cutting system.
• Emmagatzematge: Store the shredder in a dry, protected area, away from direct sunlight and extreme temperatures. Ensure the collection bin is empty and clean before storage.
• Inspecció del cable: Periodically inspect the power cable for any signs of damage. Do not use the shredder if the cable is damaged.

6. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar.

7. Especificacions tècniques

8. Garantia i Suport

This STERWINS product is covered by a manufacturer's warranty, typically 3 years, as indicated on the product packaging. Please retain your proof of purchase for warranty claims.

For technical support, spare parts, or warranty inquiries, please contact STERWINS customer service or your authorized dealer. Refer to the contact information provided with your product packaging or visit the official STERWINS weblloc per obtenir més ajuda.
