1. Producte acabatview
The IKTCH 36-inch Insert Range Hood is designed to efficiently remove smoke, grease, and odors from your kitchen. Featuring a powerful 900 CFM motor, 4-speed settings, gesture sensing, touch controls, and energy-efficient LED lighting, this unit offers both ducted and ductless convertible options for versatile installation.
Figure 1.1: IKTCH 36-inch Insert Range Hood, showcasinel seu disseny elegant i el seu panell de control.

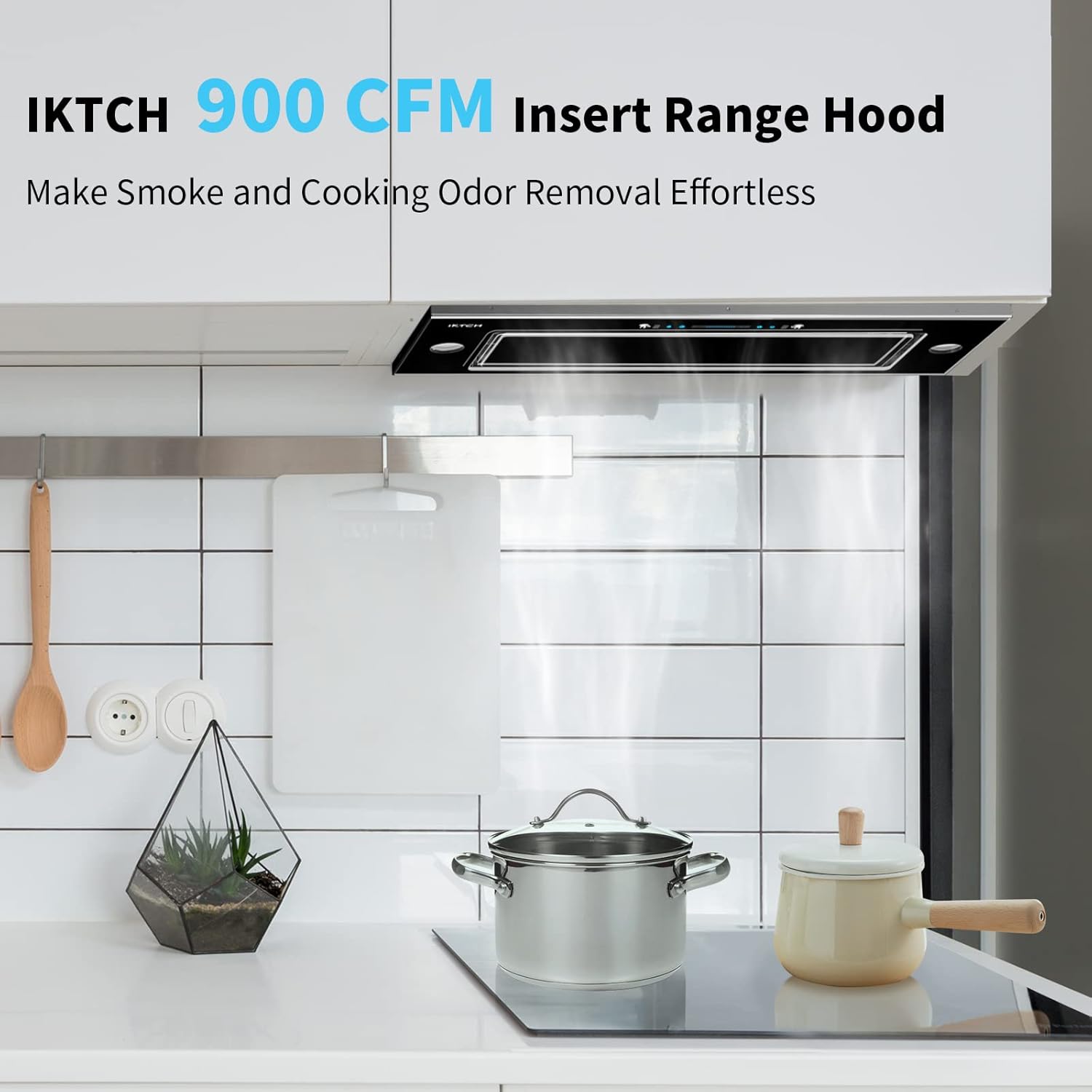

Figure 1.2: The IKTCH 900 CFM insert range hood seamlessly integrated into a kitchen environment.
Figure 1.3: The range hood operating quietly, maintaining a comfortable kitchen atmosphere.
Video 1.1: Demonstration of the powerful 900 CFM fan and 4-speed gesture sensing controls.
Vídeo 1.2: Acabatview of the IKTCH Insert Range Hood's features and design.
2. Configuració i instal·lació
2.1 Components
- Unitat de campana extractora
- Washable Aluminum Filters
- Charcoal Filter (for ductless conversion)
- Control remot
- Maquinari d'instal·lació
2.2 Opcions d'instal·lació
This range hood supports both ducted and ductless (recirculating) installation. For ductless operation, ensure the charcoal filter is properly installed to filter air before recirculation.
Figure 2.1: Key dimensions and recommended ceiling height for installation.
2.3 Carbon Filter Installation (Ductless Mode)
If converting to ductless operation, the included charcoal filter must be installed. Refer to the video below for detailed instructions.
Video 2.1: Instructions on how to install the carbon filter for ductless convertible use.
3. Instruccions de funcionament
3.1 Tauler de control
The range hood features an intuitive touch control panel for easy operation of all functions.
Figura 3.1: Detallada view of the intuitive control panel.
- Tecla d'engegada: Encén/apaga la unitat.
- Speed Key: Ajusta la velocitat del ventilador (4 nivells).
- Clau d'il·luminació: Controla els llums LED.
- Tecla del temporitzador: Sets the delay-off timer.
- Sensing Key: Activates gesture control.
3.2 Gesture Sensing Control
For hands-free operation, the range hood is equipped with gesture sensing technology. Wave your hand across the sensing points to control functions like power and fan speed.
Figure 3.2: Demonstrating the gesture sensing feature for convenient control.
3.3 Il·luminació LED
The integrated LED lights provide bright illumination for your cooking area. The brightness can be adjusted to suit your preference.
4. Manteniment
4.1 Cleaning Aluminum Filters
The aluminum filters are washable and designed for easy removal and cleaning. They can be cleaned by hand with warm, soapy water or placed in a dishwasher.
Figure 4.1: Removing a washable filter for cleaning.
Figure 4.2: The filters are dishwasher-safe for convenient cleaning.
4.2 Replacing Charcoal Filters (Ductless Mode)
For optimal performance in ductless mode, charcoal filters should be replaced periodically, typically every 3-6 months depending on usage. Refer to the installation video in Section 2.3 for removal and replacement guidance.
5. Solució De Problemes
If you encounter any issues with your IKTCH range hood, please review els següents problemes i solucions habituals:
- Sense energia: Check the power connection and circuit breaker. Ensure the unit is properly plugged in.
- El ventilador no funciona: Verify power supply. Check if the fan speed is set to a non-zero level.
- Mala succió: Clean or replace filters. Ensure proper ducting (if applicable) and that no obstructions are present.
- Els llums no funcionen: Check if the light function is activated. If individual lights are out, they may require replacement.
- Gesture Control Unresponsive: Ensure your hand movements are clear and pass over both sensing points at a fast speed.
For further assistance, please contact IKTCH customer support.
6. Especificacions
| Característica | Detall |
|---|---|
| Capacitat de cabal d'aire | 900 peus cúbics per minut (CFM) |
| Material | Carbon, Aluminum, Stainless Steel |
| Nivell de soroll | 65 decibels (màxim) |
| Tipus de font de llum | LED |
| Pes de l'article | 38.1 lliures |
| Dimensions del producte | 35.43 x 11.77 x 13.65 polzades |
| Número de model | IKB01-36B1 |
| Característiques especials | Stainless Steel, Adjustable, Durable, LED Lights, Touch Control, Removable Filters |
| Color | Negre |
| Tipus d'acabat | Pintat |
7. Garantia i Suport
IKTCH offers a 5-year protection plan for this range hood, ensuring product quality and durability. Customer satisfaction is a priority, with support available to address any inquiries or concerns.
- Garantia: Protecció d'5 any
- Atenció al client: Expect a reply within 24 hours for inquiries.
Per obtenir més informació o per contactar amb el suport tècnic, visiteu la IKTCH Store on Amazon.
