DEERC E590-003 RC Dump Truck Instruction Manual

1. Introducció

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your DEERC E590-003 RC Dump Truck. Please read this manual thoroughly before using the product to ensure proper function and longevity.

2. Característiques del producte

• Model a escala: 1/20 scale replica of a Mercedes-Benz Arocs dump truck.
• Construcció duradora: Dump bed and cabin constructed from aluminum alloy for enhanced durability.
• Alta capacitat de càrrega: Capable of carrying loads up to 20KG.
• Tracció a les quatre rodes (4WD): Provides strong traction for various terrains.
• Funcions realistes: Features include remote-controlled dump bed lift, working headlights, tail lights, roof warning lights, horn, and engine sounds.
• Modes de control dual: Operable via the included remote control or a smartphone application.
• Temps de joc ampliat: Equipped with a 7.4V 1200mAh battery, offering approximately 45 minutes of operation time.

Image: The DEERC E590-003 RC Dump Truck, showcasing its 1/20 scale design and realistic appearance.

Imatge: Primer pla view of the functional roof warning lights on the DEERC E590-003 RC Dump Truck.

Imatge: Detallada view of the functional headlights on the DEERC E590-003 RC Dump Truck.

Imatge: Primer pla view of the functional tail lights on the DEERC E590-003 RC Dump Truck.

Image: The DEERC E590-003 RC Dump Truck demonstrating its realistic horn and job sound effects.

Image: The DEERC E590-003 RC Dump Truck with its doors open, highlighting its detailed design.

Image: A smartphone screen showing the application control interface for the DEERC E590-003 RC Dump Truck.

Image: The 7.4V 1200mAh high-capacity battery, providing approximately 45 minutes of operation time for the DEERC E590-003 RC Dump Truck.

Image: The DEERC E590-003 RC Dump Truck demonstrating its 100-meter operation distance with the remote control.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• DEERC E590-003 RC Dump Truck
• Control remot
• Bateria recarregable de 7.4 V 1200 mAh
• Cable de càrrega USB
• Manual d'instruccions

Image: Contents of the DEERC E590-003 RC Dump Truck package, including the truck, remote control, battery, USB charging cable, and manual.

4. Configuració

4.1 Instal·lació i càrrega de la bateria

1. Locate the battery compartment on the underside of the dump truck.
2. Obriu la tapa del compartiment de la bateria.
3. Connect the 7.4V 1200mAh battery to the truck's power connector.
4. Col·loqueu la bateria dins del compartiment i tanqueu la tapa de manera segura.
5. To charge the battery, connect the USB charging cable to the battery and a suitable USB power adapter (not included). The charging indicator will show the charging status.
6. Ensure the battery is fully charged before first use (approximately 2-3 hours).

4.2 Configuració del control remot

1. Install 2x AA batteries (not included) into the remote control's battery compartment.
2. Engegueu el comandament a distància.
3. Turn on the dump truck. The truck and remote control should automatically pair. If not, refer to the troubleshooting section.

5. Instruccions de funcionament

5.1 Funcions bàsiques del comandament a distància

• Endavant/Enrere: Empenyeu el joystick esquerre endavant o enrere.
• Gireu a l'esquerra/dreta: Empenyeu el joystick dret cap a l'esquerra o la dreta.
• Dump Bed Up/Down: Use the dedicated buttons on the remote control to raise or lower the dump bed.
• Llums: Press the light button to toggle headlights, tail lights, and roof warning lights.
• Horn/Sound: Press the horn button for sound effects.

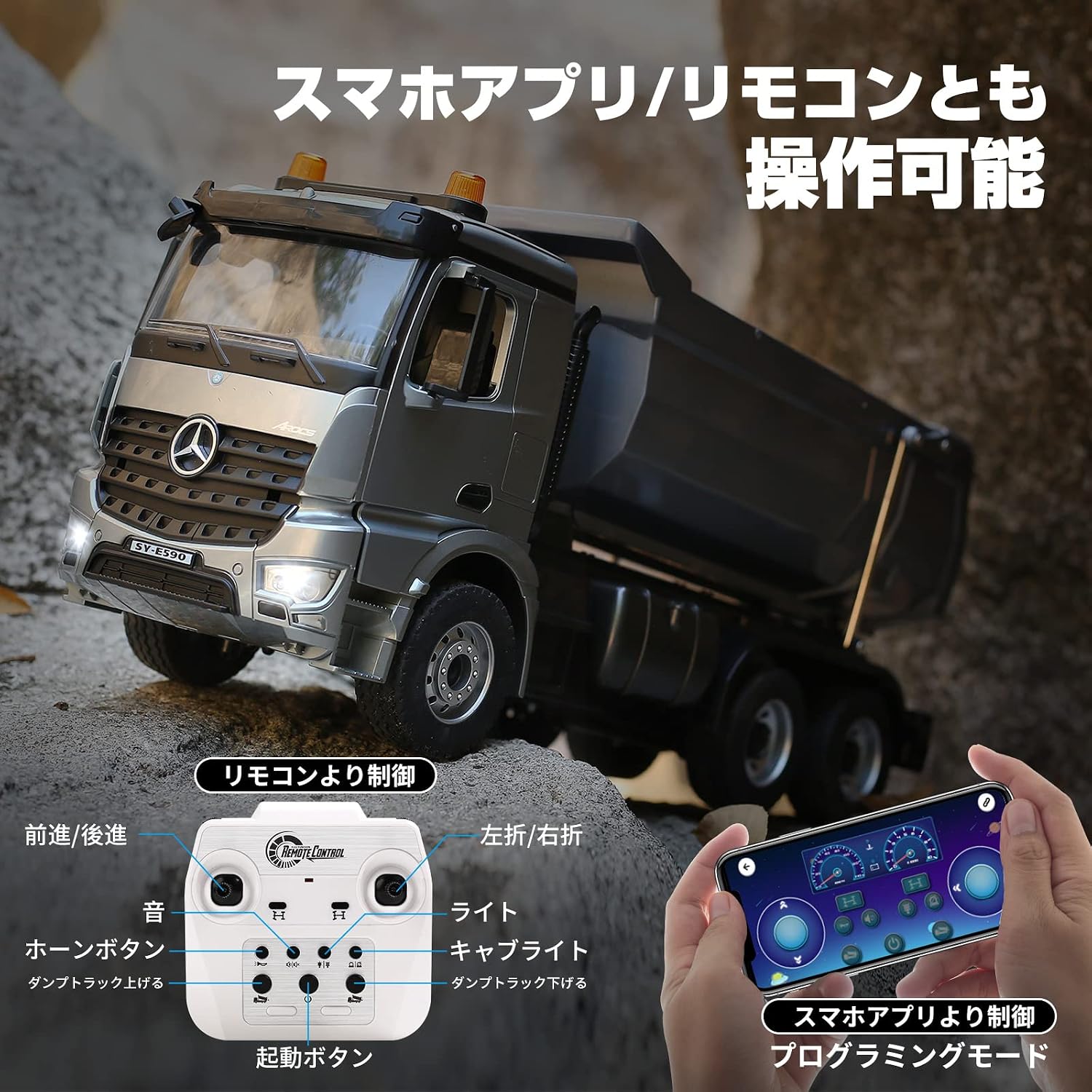

Image: The DEERC E590-003 RC Dump Truck showing both remote control and smartphone application control options.

5.2 Control d'aplicacions per a telèfons intel·ligents

1. Download the official DEERC RC app from your device's app store.
2. Assegureu-vos que el Bluetooth del vostre telèfon intel·ligent estigui activat.
3. Open the app and follow the on-screen instructions to connect to your E590-003 RC Dump Truck.
4. The app provides virtual joysticks and buttons for controlling all truck functions, including programming modes.

5.3 Entorn de funcionament

Operate the dump truck on flat, clear surfaces. While the 4WD system allows for some rough terrain, avoid excessive water, mud, or extremely uneven surfaces to prevent damage.

6. Manteniment

• Neteja: After each use, gently wipe the truck with a dry cloth to remove dust and debris. Do not use water or harsh chemicals.
• Emmagatzematge: Store the truck and remote control in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries from the remote control if not used for extended periods.
• Cura de la bateria: Do not overcharge or over-discharge the battery. Charge the battery at least once every three months to maintain its health.
• Inspecció: Regularly check for loose screws, damaged parts, or worn tires. Replace any damaged components promptly.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

For warranty information, technical support, or replacement parts, please contact DEERC customer service through the retailer where the product was purchased or visit the official DEERC weblloc web. Conserveu el rebut de compra com a comprovant de compra.
