B-Qtech KF609 Drone with 2K HD Dual Camera User Manual

1. Introducció

This manual provides essential information for operating your B-Qtech KF609 Drone. Please read it thoroughly before your first flight to ensure safe operation and optimal performance. Retain this manual for future reference.

2. Pautes de seguretat

Adherence to these safety guidelines is crucial to prevent injury, damage, or legal issues.

• Entorn de vol: Fly in open areas, away from people, animals, buildings, and power lines. Avoid flying in strong winds or adverse weather conditions.
• Línia de visió: Mantingueu sempre la línia de visió amb el dron durant el vol.
• Seguretat de la bateria: Feu servir només bateries i carregadors aprovats. No sobrecarregueu ni perforeu les bateries. Deixeu d'utilitzar-les si les bateries estan danyades o inflades.
• Seguretat de l'hèlix: Mantingueu els dits, els cabells i la roba solta allunyats de les hèlixs en rotació. Assegureu-vos que les hèlixs estiguin ben fixades abans del vol.
• Edat recomanada: This drone is recommended for adults.
• Compliment legal: Be aware of and comply with local drone regulations and privacy laws.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• B-Qtech KF609 Drone
• Control remot
• 3.7V 1100mAh Modular Batteries (2 included)
• Cable de càrrega USB
• Hélices de recanvi
• Tornavís
• Manual d'usuari

Image: B-Qtech KF609 Drone with remote control, two batteries, and spare propellers.

4. Producte acabatview

The B-Qtech KF609 is a foldable RC quadcopter featuring dual cameras, a six-axis gyroscope, and various intelligent flight modes. Its engineering plastic construction ensures durability.

4.1. Components del dron

• Braços plegables: Per a emmagatzematge i transport compactes.
• Càmeres duals: Front 2.7K 120° wide-angle camera and a bottom optical flow camera. The front camera is 90° manually adjustable.
• Hèlixs: Quatre hèlixs principals per a sustentació i empenyiment.
• Modular Battery Compartment: Houses the 3.7V 1100mAh battery.
• Sensor de flux òptic: Located on the bottom for stable hovering.

Image: Drone showing optical flow fixed height feature and durable construction.

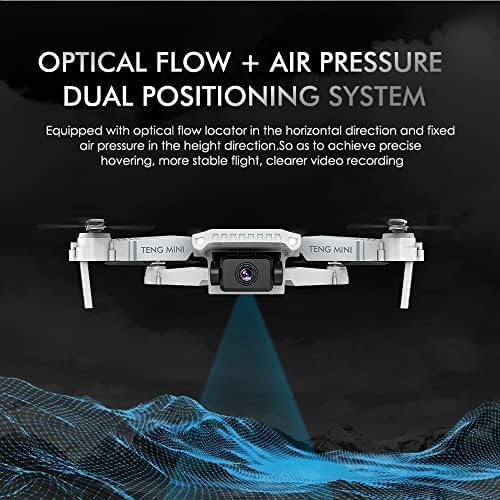

Image: Optical Flow + Air Pressure Dual Positioning System.

5. Introducció (Configuració)

5.1. Càrrega de bateries

The drone comes with two 3.7V 1100mAh modular batteries. Use the provided USB charging cable to charge them. Connect the cable to a USB power source (e.g., computer, USB wall adapter). The indicator light on the battery will show charging status (e.g., red for charging, off for fully charged).

• Charging time: Approximately 60-90 minutes per battery.
• Flight time: 8-10 minutes per battery.

5.2. Instal·lació de bateries

1. Assegureu-vos que el drone estigui apagat.
2. Localitzeu el compartiment de la bateria del drone.
3. Insert a fully charged modular battery into the compartment until it clicks into place.
4. Tanqueu bé la tapa del compartiment de la bateria.

5.3. Instal·lació de l'hèlix

If propellers are not pre-installed or need replacement, ensure they are correctly oriented. Each propeller is marked (A or B) and must match the corresponding motor arm. Use the provided screwdriver to secure them.

5.4. Controlador sobrepassatview

The remote control features joysticks for flight control and buttons for various functions like one-key take-off/landing, headless mode, and speed adjustment (via app). It also has a phone holder for FPV viewing.

5.5. Instal·lació i connexió de l'aplicació

1. Scan the QR code in the quick start guide or search for the recommended app (e.g., HFunPro) in your device's app store.
2. Instal·leu l'aplicació al vostre telèfon intel·ligent.
3. Enceneu el drone.
4. Go to your phone's Wi-Fi settings and connect to the drone's Wi-Fi network (usually named 'WIFI_XXXXXX').
5. Open the app. The drone's camera feed should appear, indicating a successful connection.

6. Operació de vol

6.1. Llista de verificació prèvia al vol

• Assegureu-vos que les bateries del dron i del comandament a distància estiguin completament carregades.
• Comproveu si les hèlixs estan danyades i assegureu-vos que estiguin ben fixades.
• Select a safe, open flying area.
• Connect your smartphone to the drone's Wi-Fi and open the app.

6.2. Taking Off and Landing

• Enlairament amb una sola clau: Press the one-key take-off button on the remote or in the app. The drone will automatically ascend to a stable hovering height.
• Enlairament manual: Push both joysticks down and outwards to arm the motors, then slowly push the left joystick up to ascend.
• Aterratge d'una sola clau: Premeu el botó d'aterratge d'un sol botó. El dron descendirà i aterrarà automàticament.
• Aterratge manual: Slowly pull the left joystick down to descend.

6.3. Controls bàsics de vol

• Joystick esquerre (accelerador/guinyada): Amunt/Avall per a l'altitud, Esquerra/Dreta per a la rotació (guinyada).
• Joystick dret (Pitch/Roll): Up/Down for forward/backward movement (pitch), Left/Right for left/right movement (roll).

6.4. Mode sense cap

In Headless Mode, the drone's orientation is irrelevant. It will move relative to the pilot's position. Press the Headless Mode button to activate/deactivate.

6.5. Altitude Hold Mode

The drone automatically maintains a stable altitude, allowing you to focus on directional control. This feature is enabled by the optical flow and air pressure dual positioning system.

6.6. Control de gestos

Perform specific hand gestures in front of the drone's camera to trigger photo or video recording. Refer to the app for specific gesture commands.

6.7. Vol de la trajectòria

Using the app, draw a flight path on your smartphone screen. The drone will automatically follow this trajectory. This feature is ideal for capturing specific aerial routes.

Image: Trajectory Flight via mobile app control.

6.8. Smart Follow (Portrait Following)

Activate Smart Follow mode in the app. The drone will identify and follow a designated target, keeping it centered in the frame. This is useful for hands-free video recording.

Image: Portrait Following feature in action.

6.9. 3D Flip Function

Press the 3D Flip button on the remote control (or activate via app) and then move the right joystick in any direction to perform an aerial flip.

7. Camera and Video Features

7.1. Dual Camera Functionality

The KF609 drone is equipped with a front 2.7K HD camera and a bottom optical flow camera. You can switch between these cameras via the app to capture different perspectives.

Image: Dual Cameras Switch Shooting.

7.2. FPV Live Video

The drone transmits live video footage to your connected smartphone via Wi-Fi, providing a First Person View (FPV) experience. This allows for real-time monitoring of your flight and captures.

7.3. Ajust de l'angle de la càmera

The front camera's angle can be manually adjusted up to 90 degrees before flight to achieve your desired shooting perspective.

Image: Front camera with 90° manual adjustment.

8. Manteniment i cura

• Neteja: Use a soft, dry cloth to clean the drone and remote control. Avoid water or solvents.
• Substitució de l'hèlix: If propellers are damaged, replace them with spare parts. Ensure correct A/B orientation.
• Cura de la bateria: Guardeu les piles en un lloc fresc i sec. No descarregueu completament les piles durant períodes prolongats. Carregueu-les periòdicament si no les feu servir.
• Emmagatzematge: Fold the drone arms for compact storage when not in use.

9. Solució De Problemes

10. Especificacions

11. Informació sobre garantia i assistència

For warranty claims or technical support, please refer to the contact information provided at the point of purchase or visit the official B-Qtech weblloc web. Conserveu el rebut de compra com a comprovant de compra.
