Moimhear 29180708
Moimhear Bunk Bed Playhouse Instruction Manual
Model: 29180708
Producte acabatview
The Moimhear Bunk Bed Playhouse is designed to provide children with a fun and safe sleeping and play area. Its unique treehouse design transforms bedtime into an enjoyable adventure, ensuring a secure and pleasant experience for your child.
This bunk bed features a sturdy pine wood construction, a 3-step ladder for easy access, and a safety barrier on the upper bunk. The white finish is versatile and complements various room styles.
Figure 1: The Moimhear Bunk Bed Playhouse, showcasing its white finish, integrated ladder, and house-shaped upper structure, set in a child's room with blue walls.
Advertències de seguretat
- Ensure correct assembly under adult supervision.
- Do not exceed the maximum allowed mattress weight. The maximum load capacity for the bed is 100 kg.
- Avoid standing or climbing on the upper bed frame or roof structure.
- Use a standard single mattress with a maximum thickness of 15 cm or less.
- Reviseu regularment tots els cargols i connexions per assegurar-vos que estiguin ben ajustats.
Muntatge i muntatge
This product requires assembly. A clear manual and necessary tools are included with the product delivery. Follow the instructions carefully to ensure proper and safe assembly.
- Desembaleu tots els components i verifiqueu-los amb la llista de peces que es proporciona al manual de muntatge.
- Identify all hardware and tools.
- Assemble the main bed frames according to the step-by-step diagrams.
- Attach the ladder securely to the bunk bed structure.
- Install the safety barrier on the upper bunk.
- Assegureu-vos que totes les connexions estiguin ben ajustades abans d'utilitzar-les.
Figure 2: Components of the Moimhear Bunk Bed Playhouse, showing the wooden slats and frame pieces before assembly.

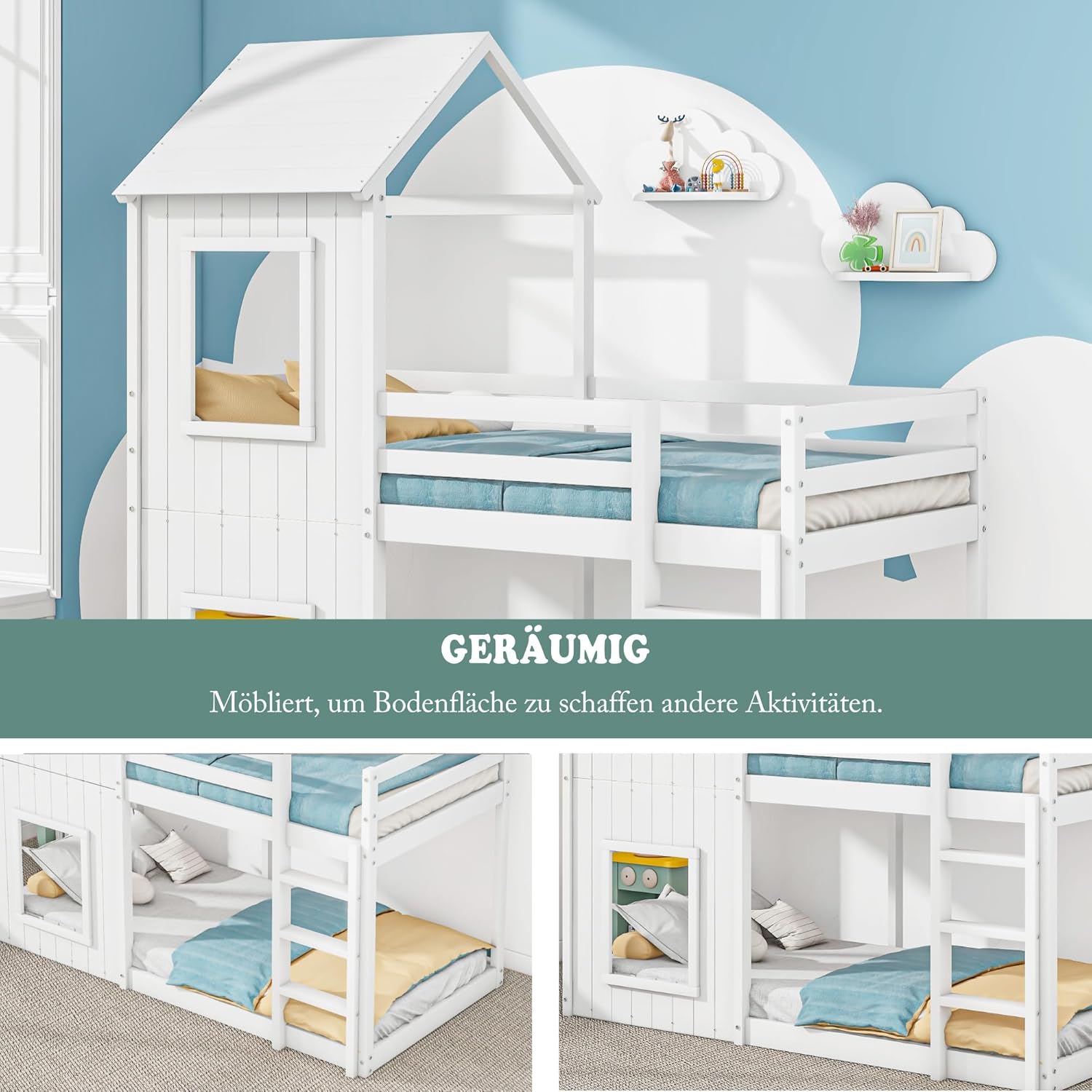

Figura 3: Primer pla view of the Moimhear Bunk Bed Playhouse, highlighting the sturdy 3-step ladder and the safety rail on the upper bunk.
Instruccions de funcionament
The Moimhear Bunk Bed Playhouse is designed for sleeping and imaginative play. Ensure children understand the safe use of the bunk bed.
- The upper bunk is intended for older children capable of safely climbing the ladder.
- Do not allow more than one person on the upper bunk at a time.
- Discourage rough play or jumping on the bed.
- Assegureu-vos que el matalàs encaixa perfectament dins del marc del llit per evitar buits.
Figure 4: The Moimhear Bunk Bed Playhouse with mattresses and bedding, illustrating its functional use as a sleeping area.
Manteniment
Proper maintenance will extend the life of your Moimhear Bunk Bed Playhouse.
- Neteja diària: Netegeu suaument amb un suau, damp drap. Eviteu productes químics agressius o netejadors abrasius.
- Ventilació: Upon delivery, allow the product to air out for a few days in a well-ventilated area. The paint used is ecological and safe.
- Comprovació de maquinari: Periodically check all screws, bolts, and connections to ensure they are tight. Re-tighten if necessary to maintain structural integrity.
- Eviteu la humitat: Protect the wood from excessive moisture and direct sunlight to prevent warping or discoloration.
Resolució de problemes
Aquesta secció tracta problemes comuns que podeu trobar.
| Problema | Causa possible | Solució |
|---|---|---|
| El llit sembla inestable o inestable. | Cargols o connexions soltes. | Carefully re-tighten all assembly bolts and screws. Ensure all parts are correctly aligned. |
| Sorolls de grinyols. | Friction between wooden parts or loose connections. | Check and tighten all bolts. Apply a small amount of paraffin wax or silicone spray to contact points if squeaking persists. |
| Ladder feels insecure. | Ladder not properly attached or bolts are loose. | Verify that the ladder is correctly installed and all its attachment bolts are fully tightened. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Moimhear |
| Número de model | 29180708 |
| Color | Blanc |
| Material | Fusta de pi |
| Dimensions totals (L x A x A) | 216 x 98 x 209 cm (aprox. 85 x 38.6 x 82.3 polzades) |
| Pes del producte | 49 kg (aprox. 108 lliures) |
| Mida de matalàs compatible | 200 x 90 cm (aprox. 78.7 x 35.4 polzades) |
| Capacitat de càrrega màxima | 100 kg (aprox. 220 lliures) |
| Gruix recomanat del matalàs | Maximum 15 cm (approx. 5.9 inches) |

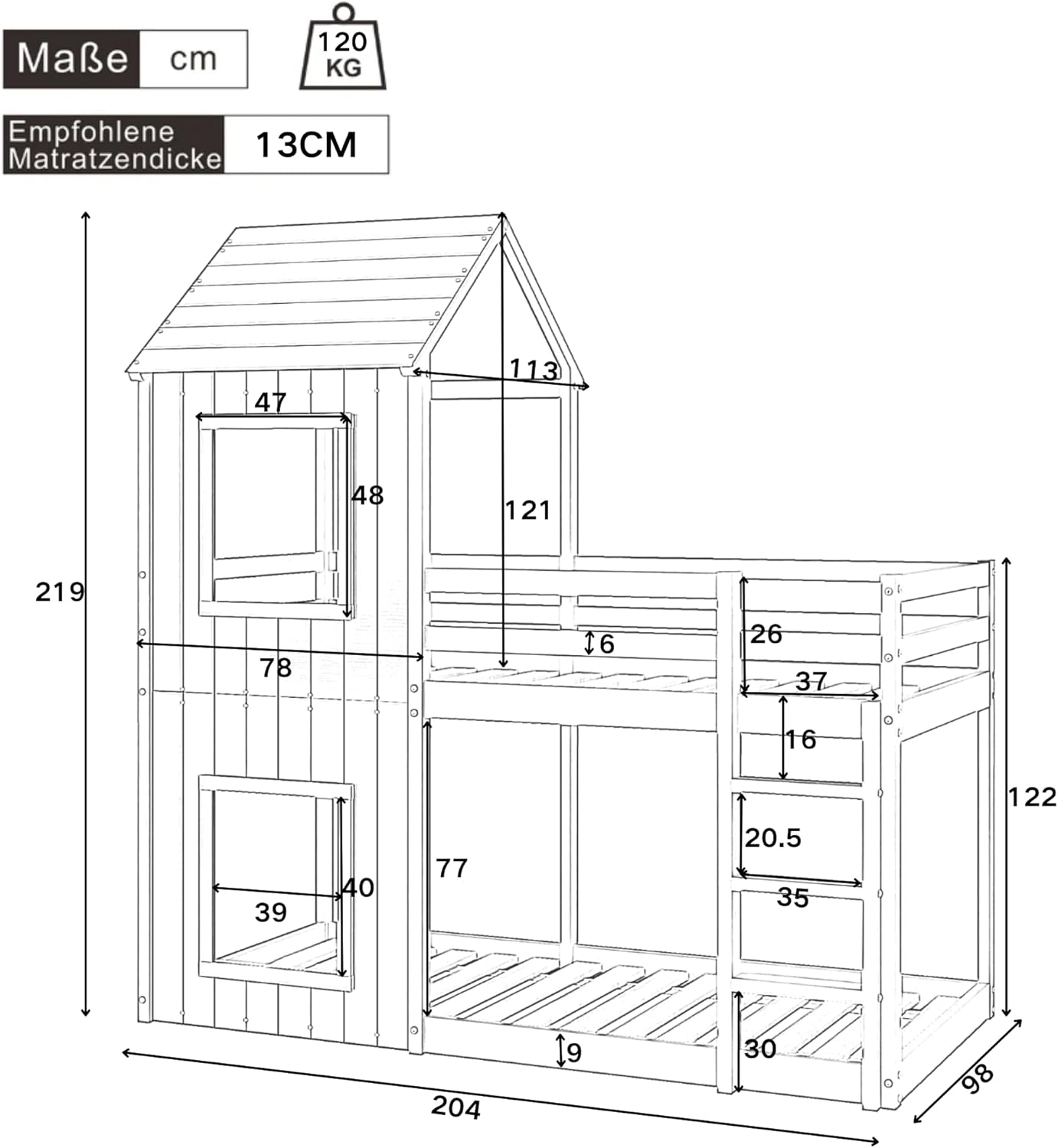

Figure 5: Technical diagram showing detailed dimensions of the Moimhear Bunk Bed Playhouse in centimeters, including height, length, width, and ladder step measurements.
Garantia i Suport
Information regarding warranty coverage and customer support for Moimhear products is typically provided with your purchase documentation or can be found on the manufacturer's official website. Please refer to the packaging or included leaflets for specific details.
For any issues not covered in this manual, or for replacement parts, please contact Moimhear customer service through their official channels. Keep your purchase receipt and model number (29180708) handy when contacting support.
