1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your WASSERMANN 115V AC Water Pressure Diaphragm Pump. Please read this manual thoroughly before use and retain it for future reference.

The WASSERMANN Water Pressure Diaphragm Pump is a self-priming booster pump designed to provide strong and consistent water pressure for various applications, including kitchen and bathroom fixtures, RVs, marine vessels, yachts, and garden irrigation systems. Its compact design and 115V AC power plug make it suitable for home use.

Precaucions de seguretat

• Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment o instal·lació.
• Ensure proper electrical grounding to prevent electric shock.
• No feu funcionar la bomba amb líquids inflamables.
• Protegiu la bomba de les temperatures de congelació per evitar danys.
• Assegureu-vos que totes les connexions estiguin ben fixades i sense fuites abans de l'operació.

2. Característiques del producte

• Voltage: 115 Volt AC power, designed for standard wall sockets.
• Caudal: Strong output up to 4.0 Gallons Per Minute (GPM).
• Configuració de pressió: 45 PSI pressure switch for automatic operation.
• Autoamorçant: Capable of drawing water without external priming.
• Funcionament automàtic: Starts when a tap is opened and stops when closed.
• Durabilitat: Corrosion-resistant thermoplastic construction with 100% solid copper motor windings.
• Protecció: Features thermal overload and ignition protection.
• Portabilitat: Lightweight design for easy transport and installation.

Key features of the WASSERMANN Water Pressure Diaphragm Pump.

3. Contingut del paquet

En desembalar-lo, comproveu que tots els components siguin presents i no estiguin danyats:

• 1 x WASSERMANN 115 Volt Water Pressure Diaphragm Pump (Model: 3WDP4-45-115V)
• 1 x Manual d'usuari (aquest document)
• 2 x 1/2" Barbed Hose Adaptors
• 1 x 1/2" Male Thread Hose Adaptor
• 1 x Filter (for debris)

The WASSERMANN Water Pressure Diaphragm Pump and its accompanying accessories.

4. Configuració

Follow these steps for proper installation of your water pressure pump:

1. Muntatge: Securely mount the pump in a dry, well-ventilated area, protected from direct sunlight and freezing temperatures. Use the integrated mounting feet for stability.
2. Connexió d'entrada: Connect your water supply line to the pump's inlet port. It is highly recommended to install the included filter on the inlet side to prevent debris from entering and damaging the pump.
3. Connexió de presa: Connect your output water line (e.g., to a faucet, shower, or garden hose) to the pump's outlet port. Use the appropriate hose adaptors provided for a secure fit.
4. Connexió elèctrica: Ensure the pump's power plug is easily accessible. Plug the 115V AC power cord into a standard household wall socket.

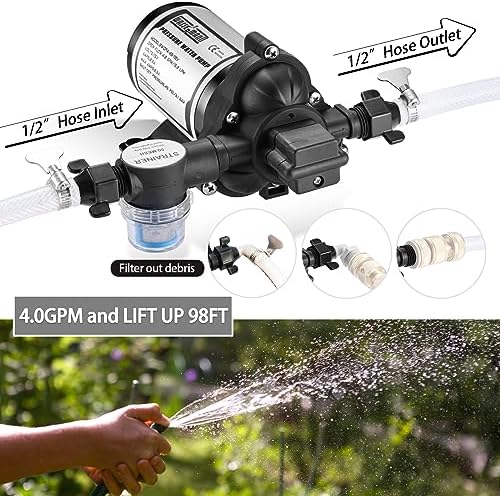

Illustration of hose connections and the debris filter.

Connecting the pump to a standard 115V AC wall socket.

Example of pump integration into a water system.

5. Instruccions de funcionament

The WASSERMANN Water Pressure Diaphragm Pump is designed for automatic operation based on water demand:

• Inici automàtic: When a water fixture (e.g., faucet, shower, hose nozzle) connected to the pump's outlet is opened, the pressure in the system drops, and the pump's internal pressure switch will automatically activate the pump.
• Parada automàtica: When all water fixtures connected to the pump's outlet are closed, the pressure in the system builds up to the preset 45 PSI, and the pump's pressure switch will automatically turn the pump off.
• Autoamorçant: The pump is self-priming, meaning it can draw water from a source without needing to be manually filled with water first. Ensure the inlet hose is submerged in water for optimal priming.

Key components including the automatic pressure switch.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la bomba:

• Neteja de filtres: Periodically inspect and clean the debris filter located on the pump's inlet side. A clogged filter can reduce flow and pressure. To clean, unscrew the clear housing, remove the mesh filter, rinse it thoroughly, and reassemble.
• Inspecció de connexió: Regularly check all hose connections and fittings for leaks or signs of wear. Tighten or replace as necessary.
• Hivernització: If the pump will be exposed to freezing temperatures, it is crucial to drain all water from the pump and connected lines to prevent ice damage.
• Neteja general: Keep the exterior of the pump clean and free from dirt and debris.

The removable debris filter for easy cleaning.

7. Solució De Problemes

Si teniu problemes amb la bomba, consulteu els següents problemes i solucions habituals:

8. Especificacions

Pump label with detailed specifications.

Internal components of the WASSERMANN pump.

9. Garantia i Suport

WASSERMANN is committed to customer satisfaction. For any product-related inquiries or support, please refer to the following:

• Política de devolució de 30 dies: Products are covered by Amazon’s hassle-free return and replacement policy for 30 days from the date of purchase.
• After 30 Days: For support beyond the initial 30-day period, please contact the seller directly. WASSERMANN is committed to working closely with customers to find satisfactory solutions.

For additional information or to explore other WASSERMANN products, visit the official WASSERMANN Store on Amazon: WASSERMANN Store
